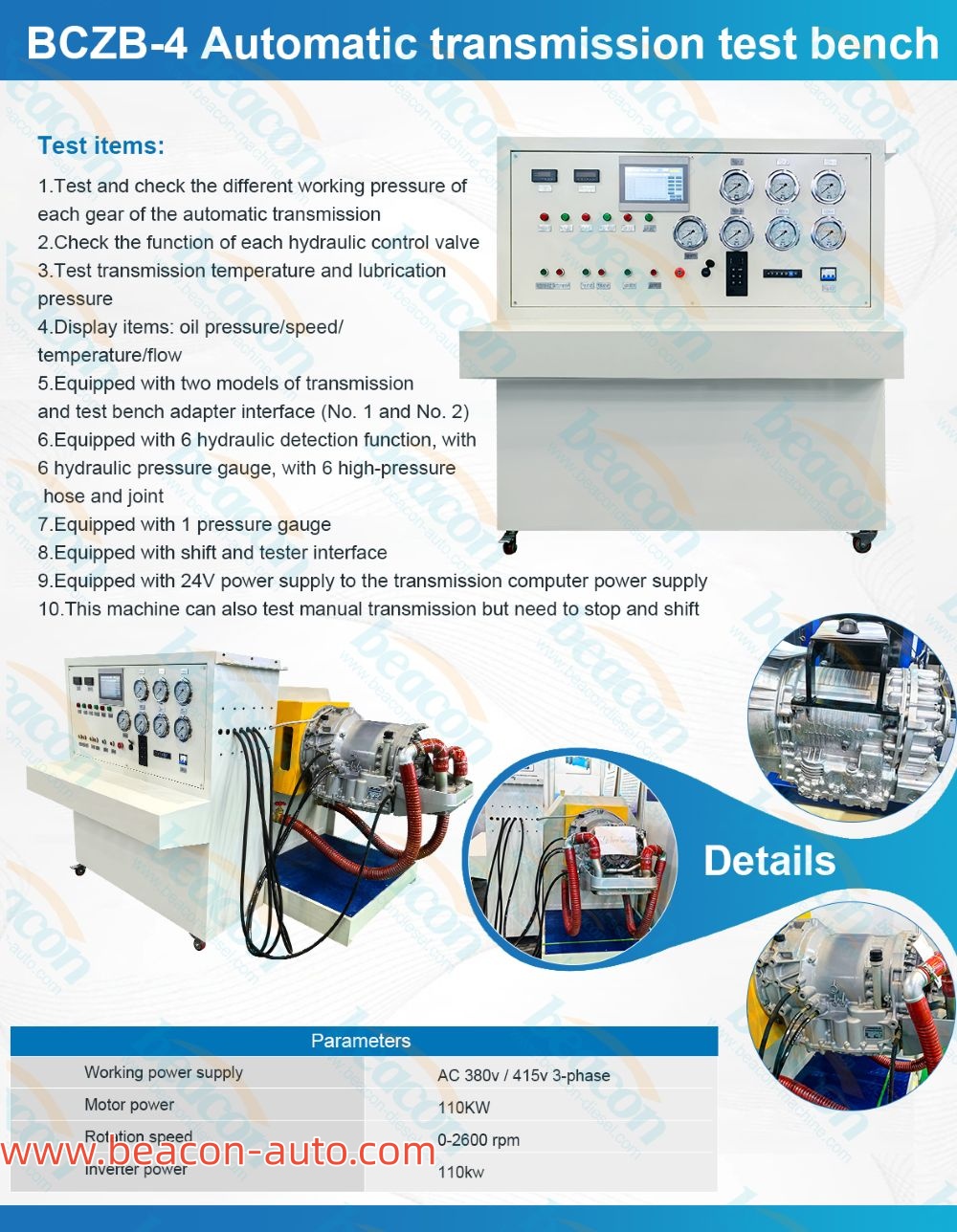

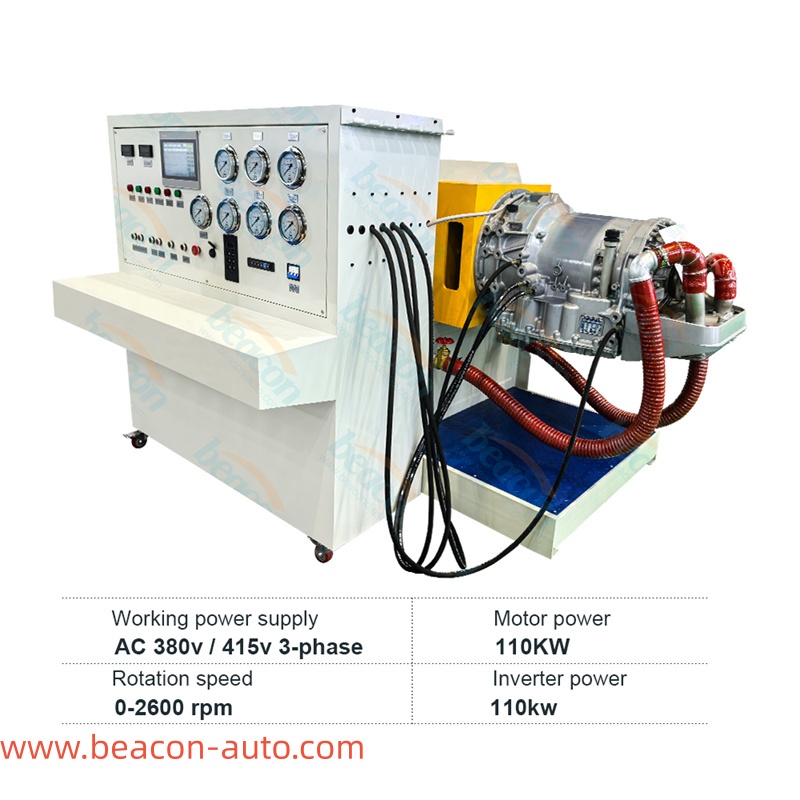

Specialized Inspection and Testing Equipment for ZF and ALLISON Automotive Gearbox — BCZB-4 Automatic Transmission Test Bench

    Specialized Inspection and Testing Equipment for ZF and ALLISON Automotive Gearbox — BCZB-4 Automatic Transmission Test Bench

Technical parameters:

1. Working power supply: AC 380v / 415v 3-phase

2. Motor power :110KW

3. Rotation speed: 0-2600 rpm

4. Inverter power :110kw

Test items:

1. Test and check the different working pressure of each gear of the automatic transmission.

2,Check the function of each hydraulic control valve.

3,Test transmission temperature and lubrication pressure.

4,Display items: oil pressure/speed/temperature/flow

5,Equipped with two models of transmission and test bench adapter interface (No. 1 and No. 2)

6,Equipped with 6 hydraulic detection function, with 6 hydraulic pressure gauge, with 6 high-pressure hose and joint

7,Equipped with 1 pressure gauge

8,Equipped with shift and tester interface

9,Equipped with 24V power supply to the transmission computer power supply

10,This machine can also test manual transmission but need to stop and shift
