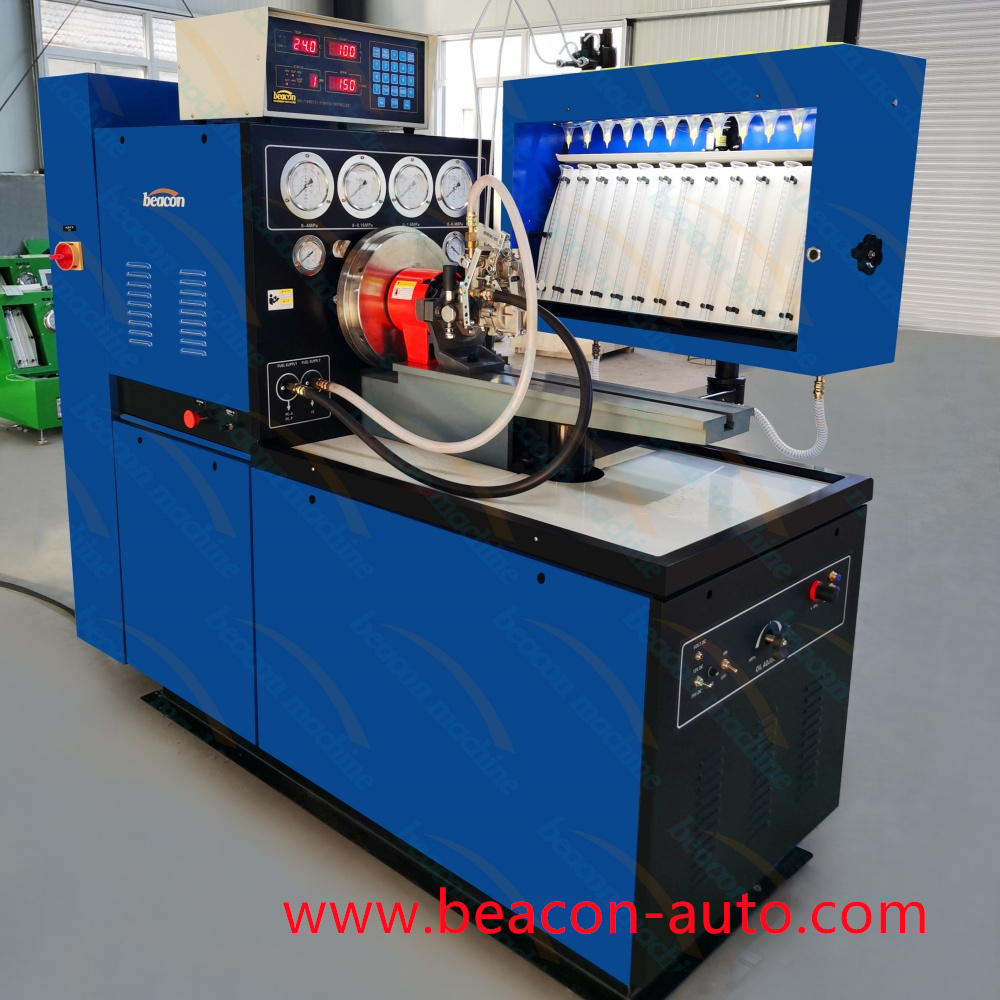

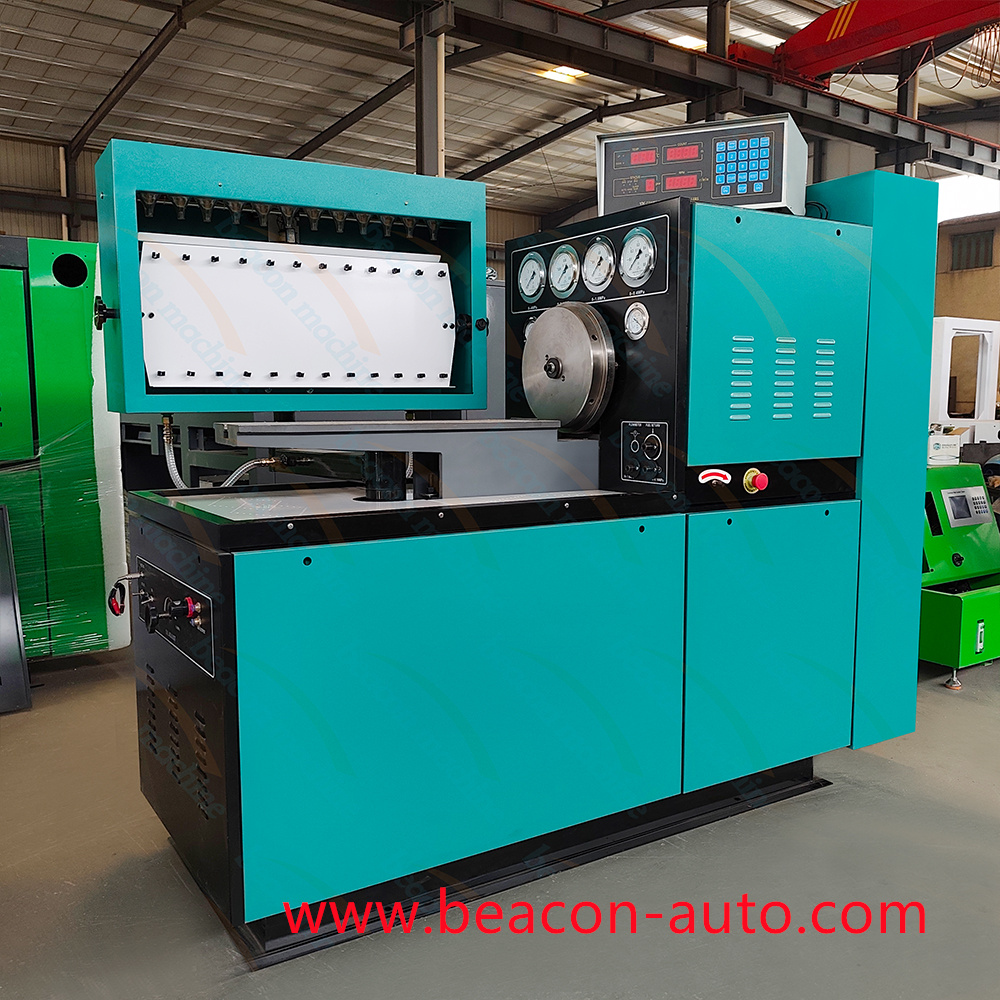

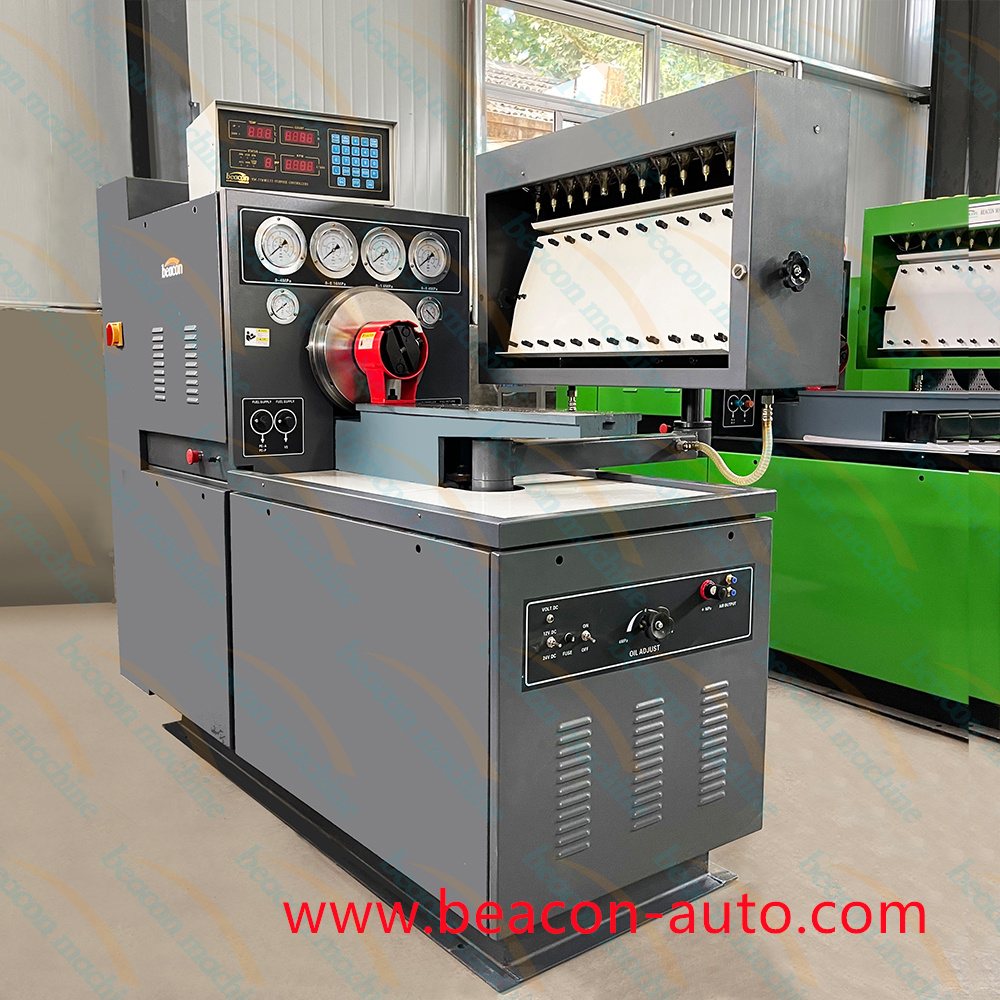

12PSB Fuel Injection Pump Test Bench Diesel Pump Calibration Machine

 12PSB Fuel Injection Pump Test Bench Diesel Pump Calibration Machine

12PSB series diesel fuel injection test machine is design for customer's require. This series test bench adopt high quality frequency conversing device, and it has characteristic with hi-reliability, ultra-low-noise, energy save, high output torque, perfect auto-protecting function and operate easy.  It is the kind of  product with high quality and good price in our business.

CHARACTERISTICS

1. Chaning frequency changing rotational speed

2. Low fall of rotational speed and high output torque

3. High measurement precision;

4. The functions of over voltage, overload and short circuit protection;

5. Ten classes Rotation speeds presetting;

6. Constant temperature controlled;

7. Ultra low noise;

8. Operating position: arbitrary side of the two work sides of the test stand;

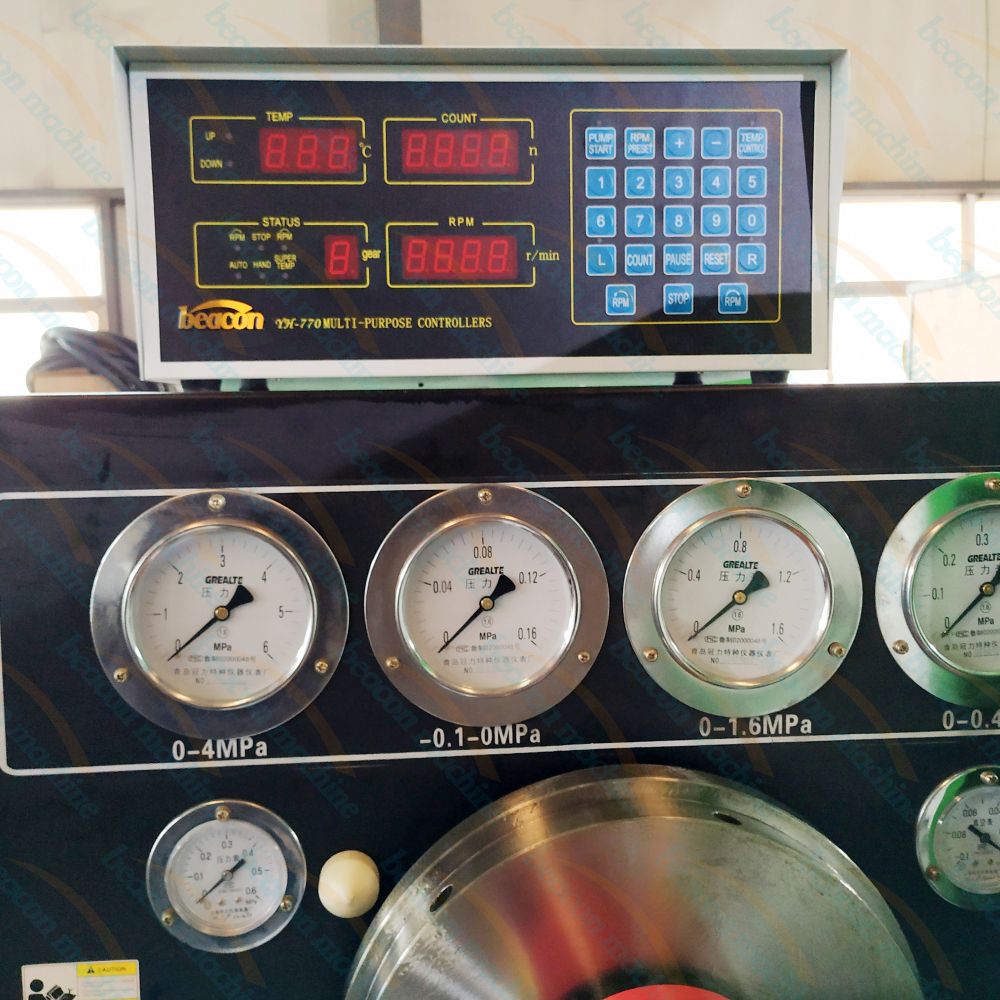

9. Rotation speed, count, temperature, air pressure, advance angle and rack travel are measured and controlled by computers in real time, then displayed by 17″CRT or on request (17 LCD touch screen).

10. Built-in air resource;

11. All data can be made into reports and printed;

12. Automatically generating and displaying speed characteristics curve;( tooth bar stroke)

13. The data of the pumps can be saved, modified and obtained pump database;

14. It is very easy to find the data of the pumps in pumps database;

15. Windows operating system.
