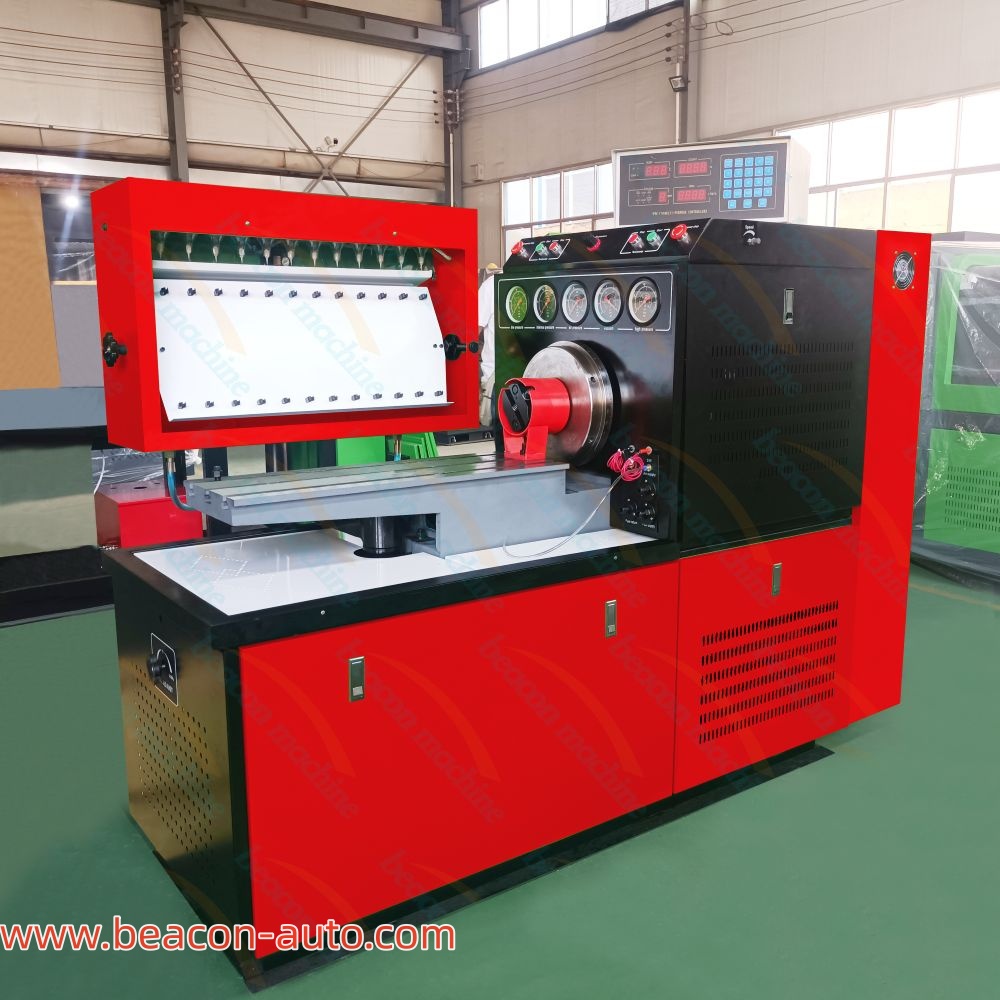

12PSB-H diesel Injection Pump test Bench for Calibrating Mechanical Pump

  12PSB-H diesel Injection Pump test Bench for Calibrating Mechanical Pump

12PSB fuel pump test bench main function

1.Measurement of each cylinder delivery at any speed.

2. Test point and interval angle of oil supply of injection pump.

3. Checking and adjust the mechanical governor.

4. Checking and adjusting the distributor pump.

5. .Experiment and adjusting of behavior of supercharging and compensatory device.

6. Measurement of oil return of distributing pump

7. Testing of the electromagnetic valve of distributor pump.(12V/24V)

8. Measurement of the internal pressure of distributor pump.

9. Checking of the advance angle of advance device.(on request)

10. Checking the sealing of injection pump body

11. Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.)

Also diesel injection pump test bench OPTIONAL FUNCTION BELOW:

1.TRAVEL OF TOOTH BAR

2.OIL LUBRICATE

3.FORCED COLLING

4.Checking of the advance angle of advance device

1.Cylinders:12

2.RPM :0-4000

3.DC power:12v/24v

4.Oil count times:digital display

5.Power supply :11KW 15KW 18.5KW on reuqest

6.Voltage :22.V,60HZ,380V,50HZ,1 phase or 3 phases on request

7. Optional function :

TRAVEL OF TOOTH BAR

OIL LUBRICATE

FORCED COLLING
