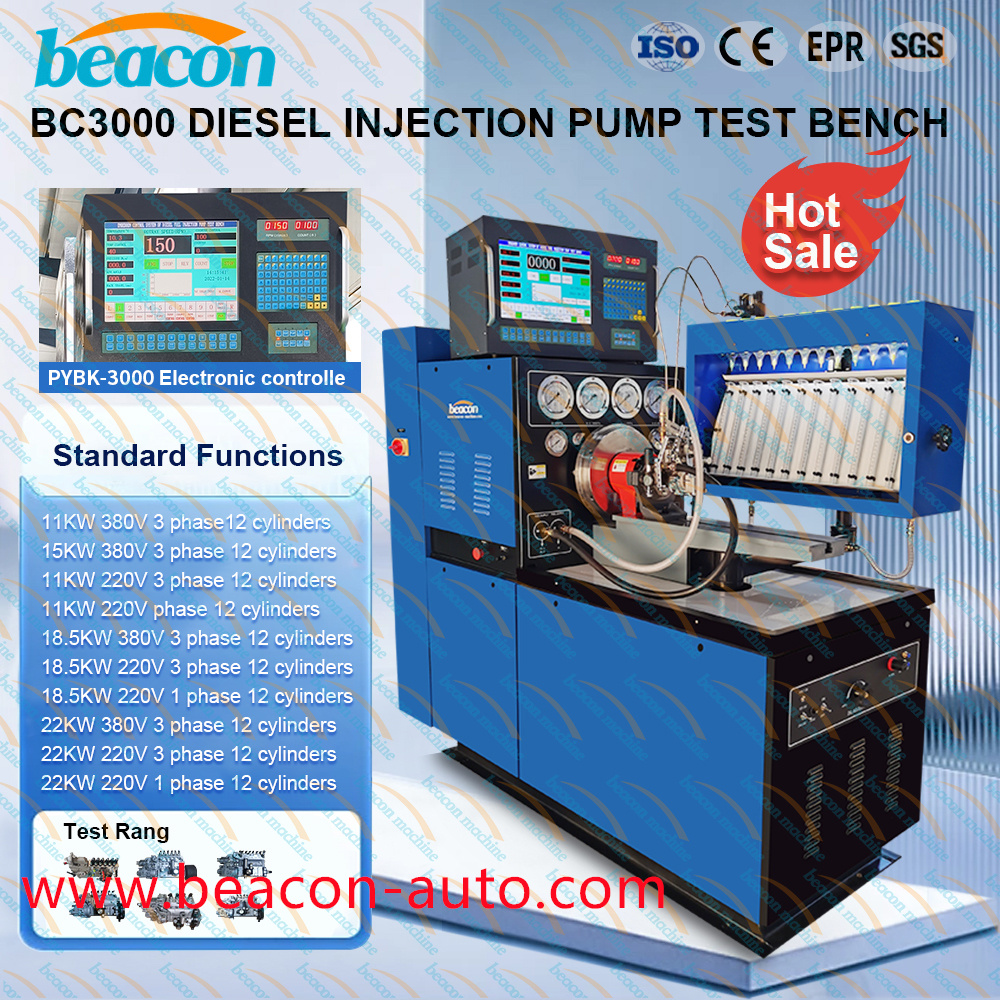

BC3000 Mechanical Diesel Pump Calibration Test Equipment

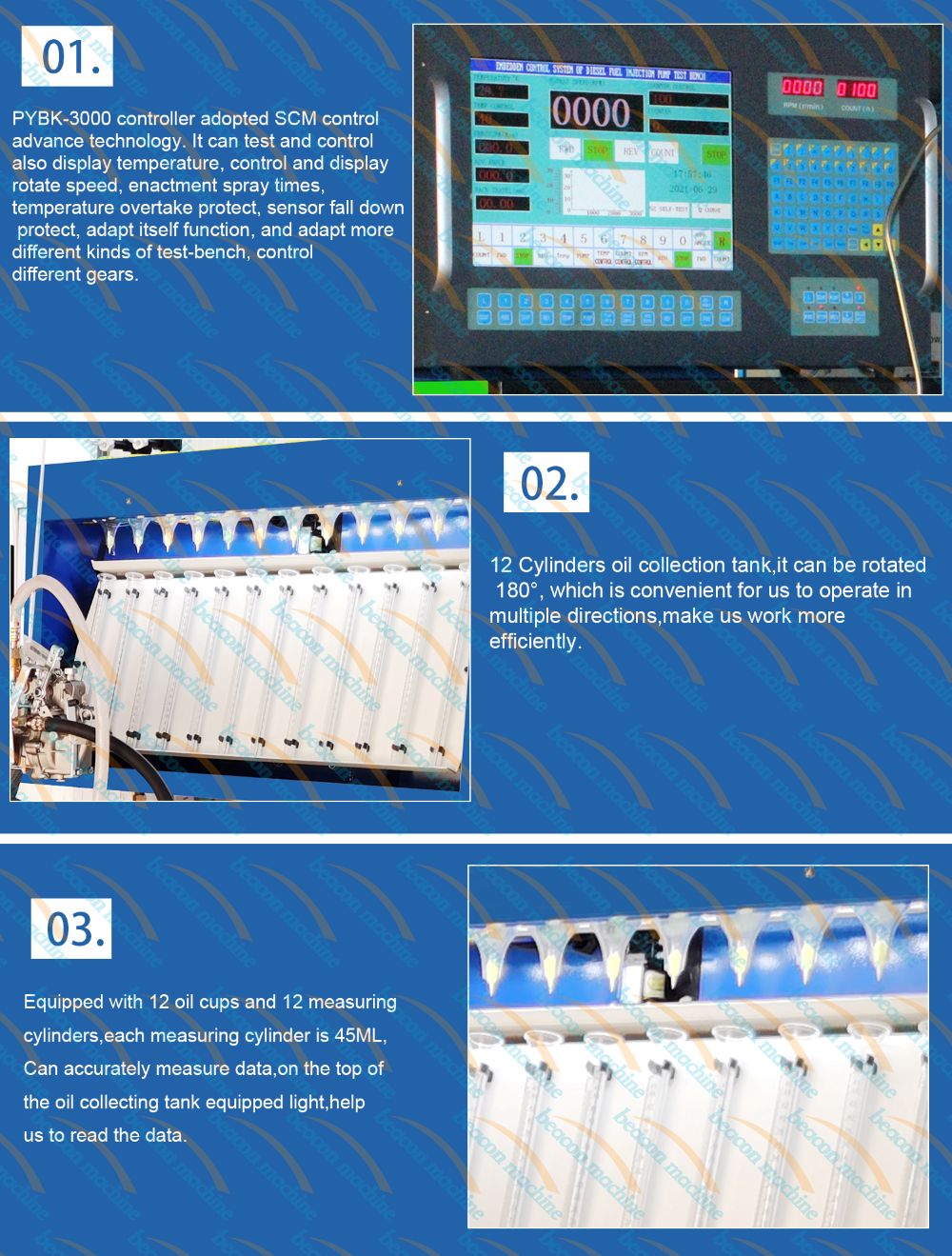

BC3000 diesel fuel injection pump test bench is 12 cylinders and with monitor computer display screen and can test all kinds of mechnical pumps and EURO II pumps and traditional pumps and line pumps

Whatsapp: +86-18253885137

Tel / Wechat: 0086-18253885137

Email: franksong@beacon-machine.com

inquiry

Introduction

BC3000 Mechanical Diesel Pump Calibration Test Equipment

Main Functions:

Measurement of each cylinder delivery at any speed.

Test point and interval angle of oil supply of injection

			pump.

Checking and adjust the mechanical governor.

Checking and adjusting the distributor pump.

Experiment and adjusting of behavior of supercharging and compensatory device

Measurement of oil return of distributing pump.

Testing of the electromagnetic valve of distributor pump.(12V/24V)

Measurement of the internal pressure of distributor pump.

Checking the sealing of injection pump body.

Install tube of auto-sucking oil supply can check on oil supply pump. (including

			VE pump).

Optional Functions.

11. Checking of the advance angle of advance device.(Optional) 12. Checking the travel of stroke. (Optional)

13. Oil lubricate. (optional)

14. Force cooling system.(optional)

parameter

Specification

item	value
Type	diesel fuel injection pump test bench
customized support	OEM, ODM, OBM, Software reengineering
place of origin	China
	Shandong
power	11 KW
Accuracy	0.1
Voltage	220V, 380V, 415V
Protection Class	ip67
warranty	1 Year
brand name	beacon
Application	auto testing
Color	Customers' Requirements
Function	Diesel Fuel Injector Pump Test Bench
Weight	880 kg
Warranty	1 Year for free and offer technical support all life
Certificate	ISO CE
RPM	0-4000
voltage	380v/220v
Option function	The advance angle of advance device
Capability with pump type	All in- line and rotary pump
Type	test diesel fuel injection and pump
