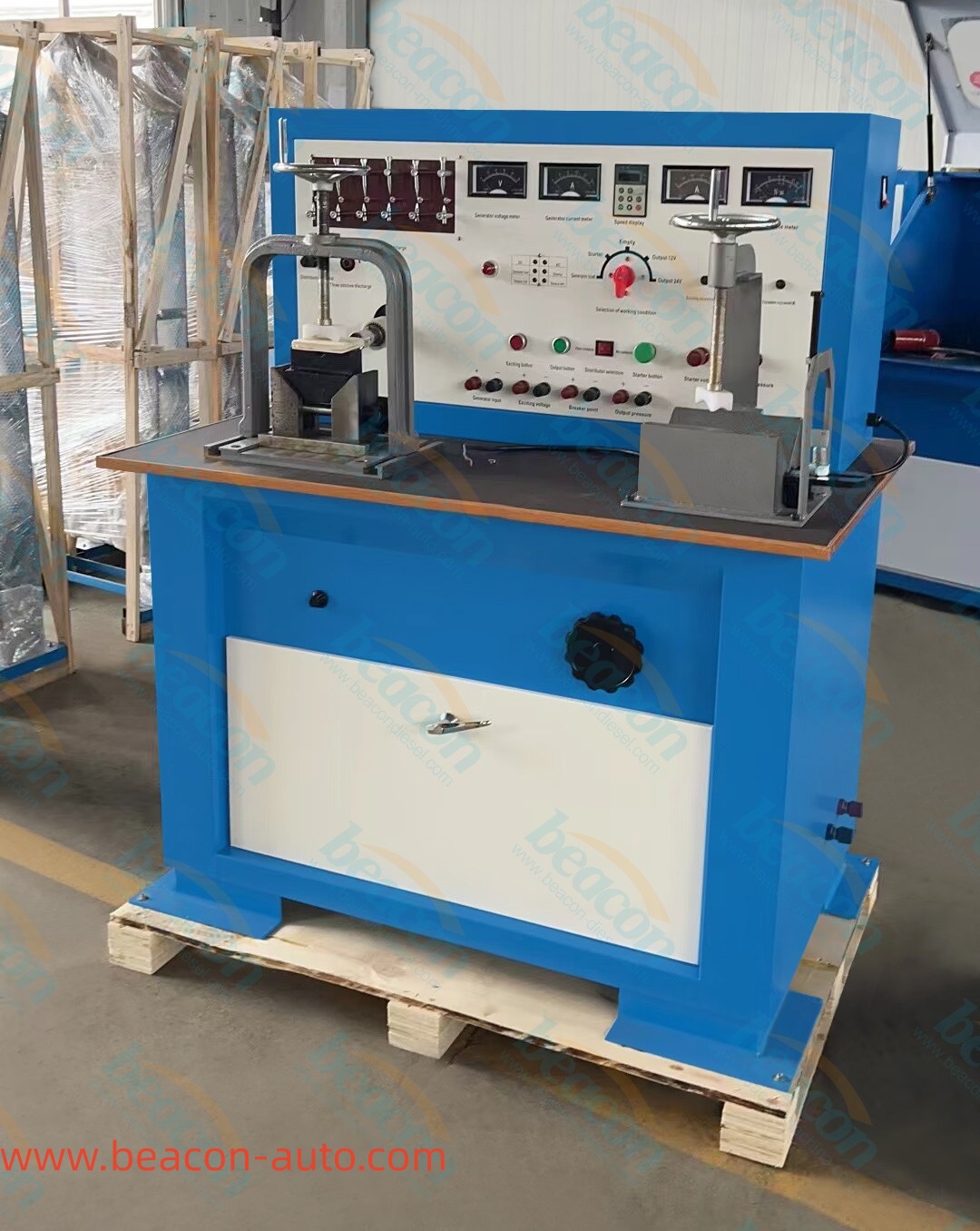

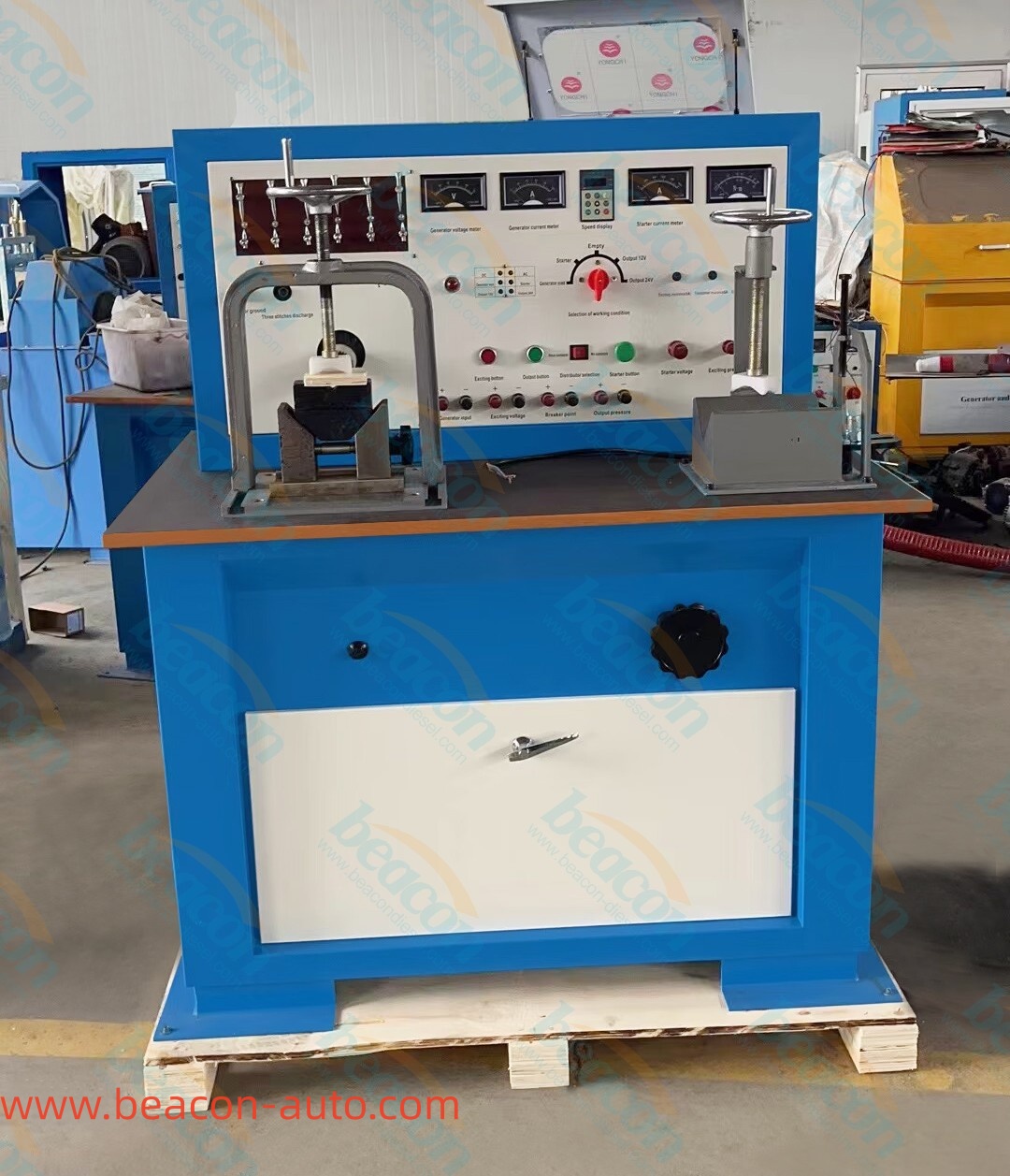

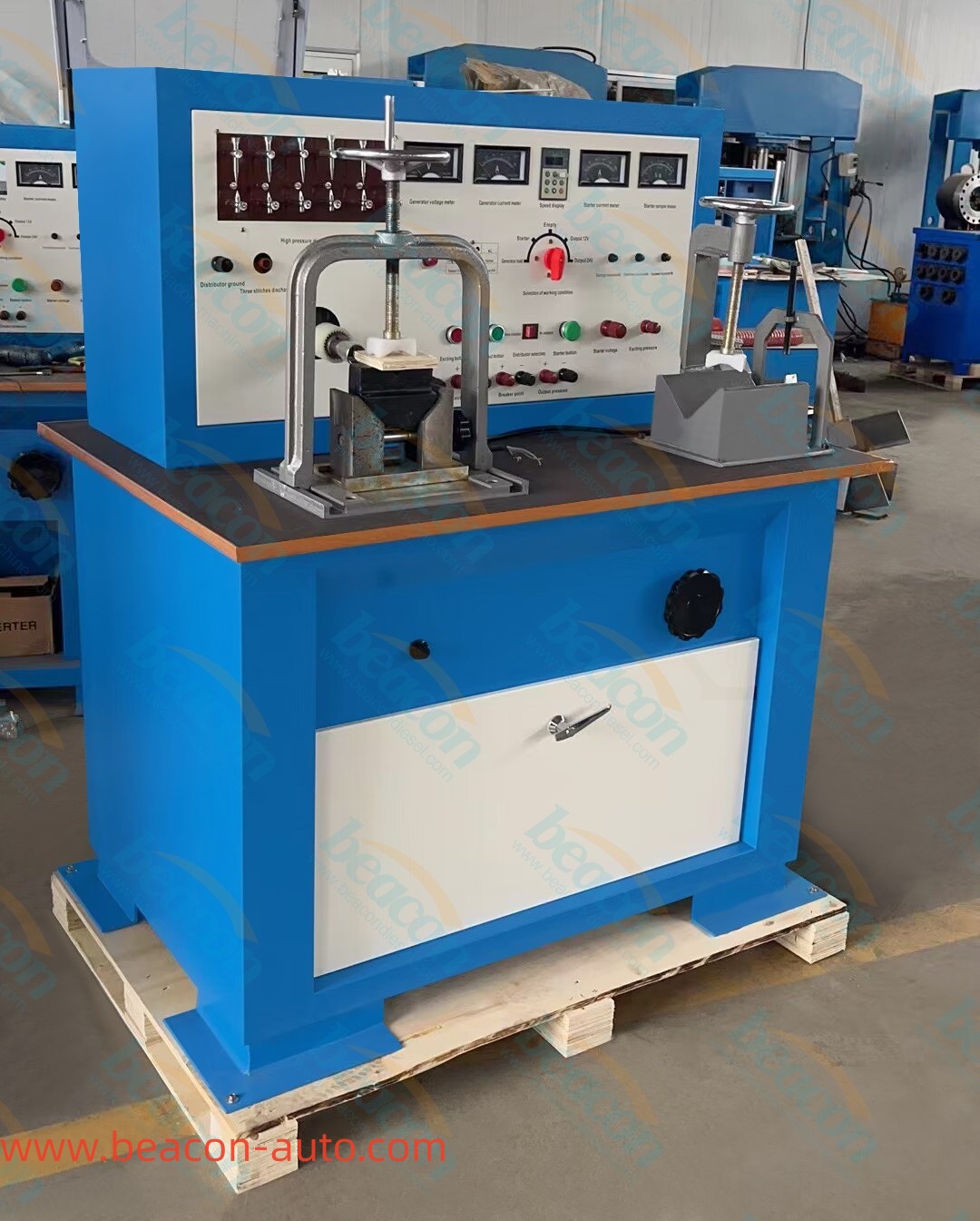

BCQZ-2B starter and alternator test bench

BCQZ-2B Generator Starter and Alternator Test Bench can test and diagnose different generators and Alternators

inquiry

Introduction

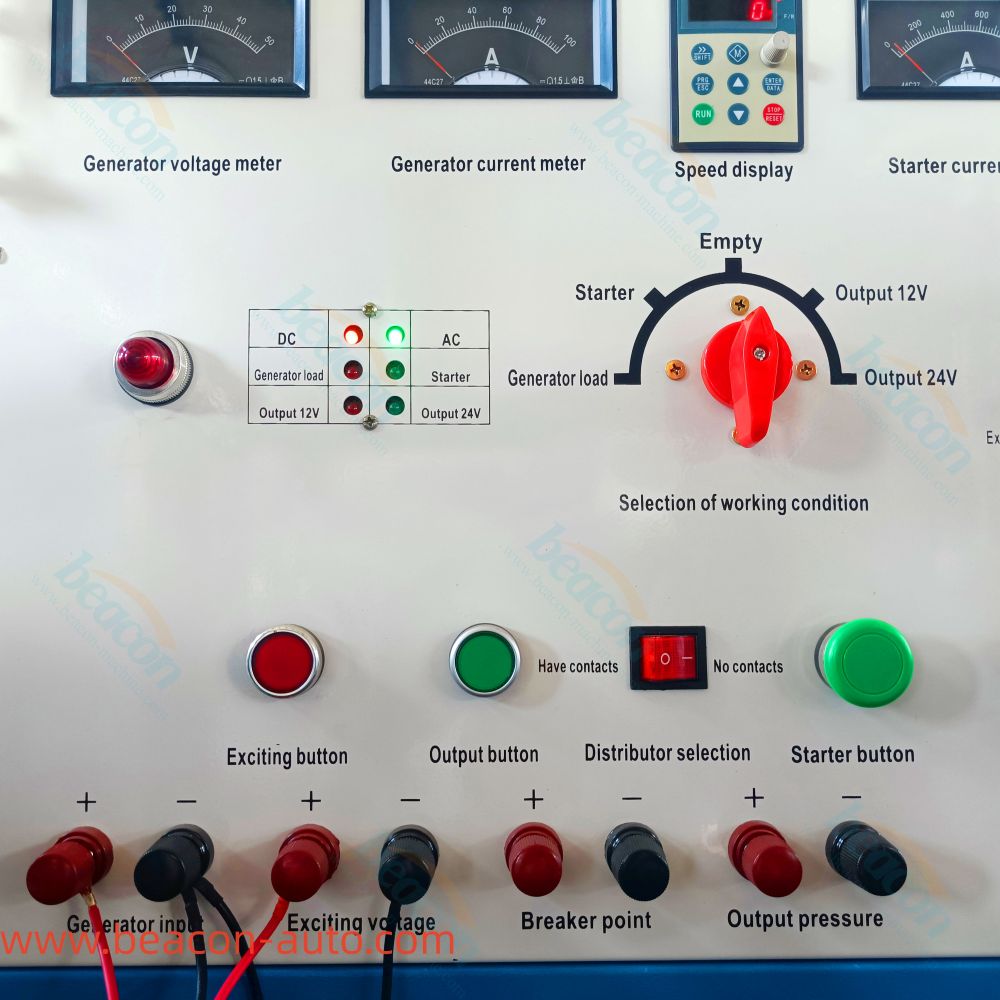

BCQZ-2B starter and alternator test bench

1.Power (for this test bed) three phase AC 220V±5%
External power supply: DC、12V、24V
(Select the storage battery voltage according to starter voltage)
2.Speed control motor: frequency control 1.5KW.
Rotary speed range: 0---3000 rpm
Rotary direction: forward, reversed

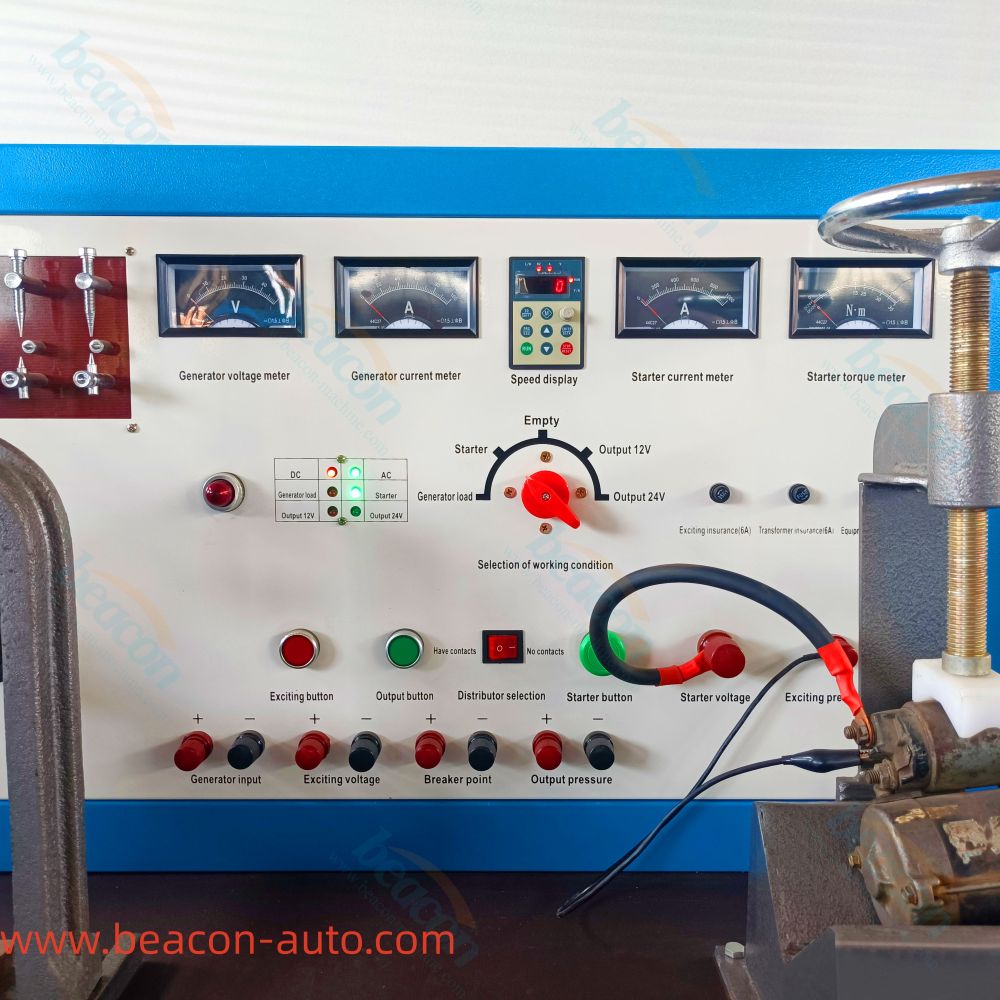

Display mode: Converter panel with LED display
3.Three-needle discharge: 6-set parallel
Ignition angle graduated dial: 360°scale
Adjusting clearance range: 0—15mm
4.Starter testing range:
Max. brake current: 1000A;
Max. brake torque100 N．M (analog mode)
Starter supply mode: external storage battery BCQZ-2B BCQZ-2B starter and alternator test bench BCQZ-2B test bench
