BCZB-4 Automatic Gearbox Test Bench ZF and Allison brand Transmission Test Equipment

BCZB-4 Automatic Gearbox test bench can test all different of ZF Transmission and Allison Transmission etc

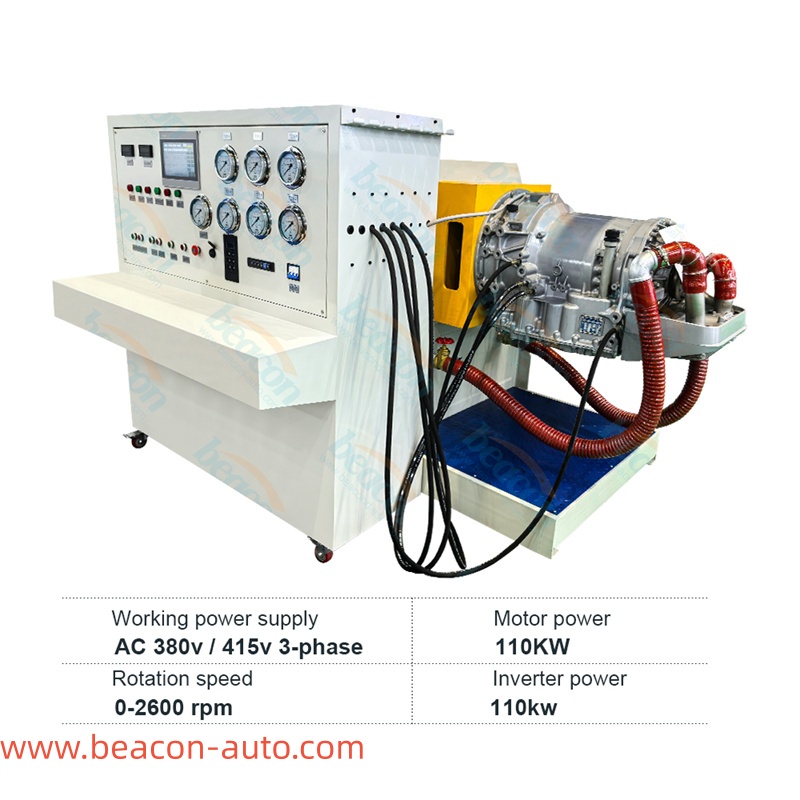

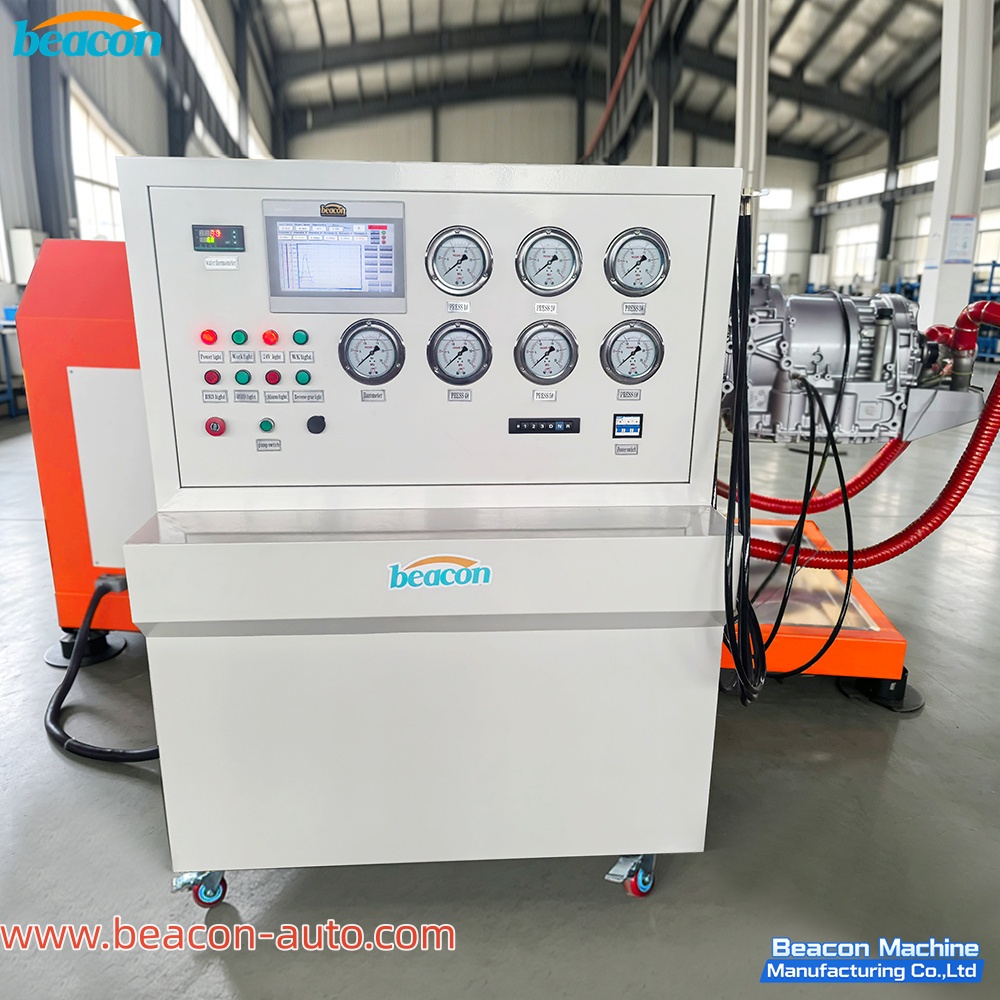

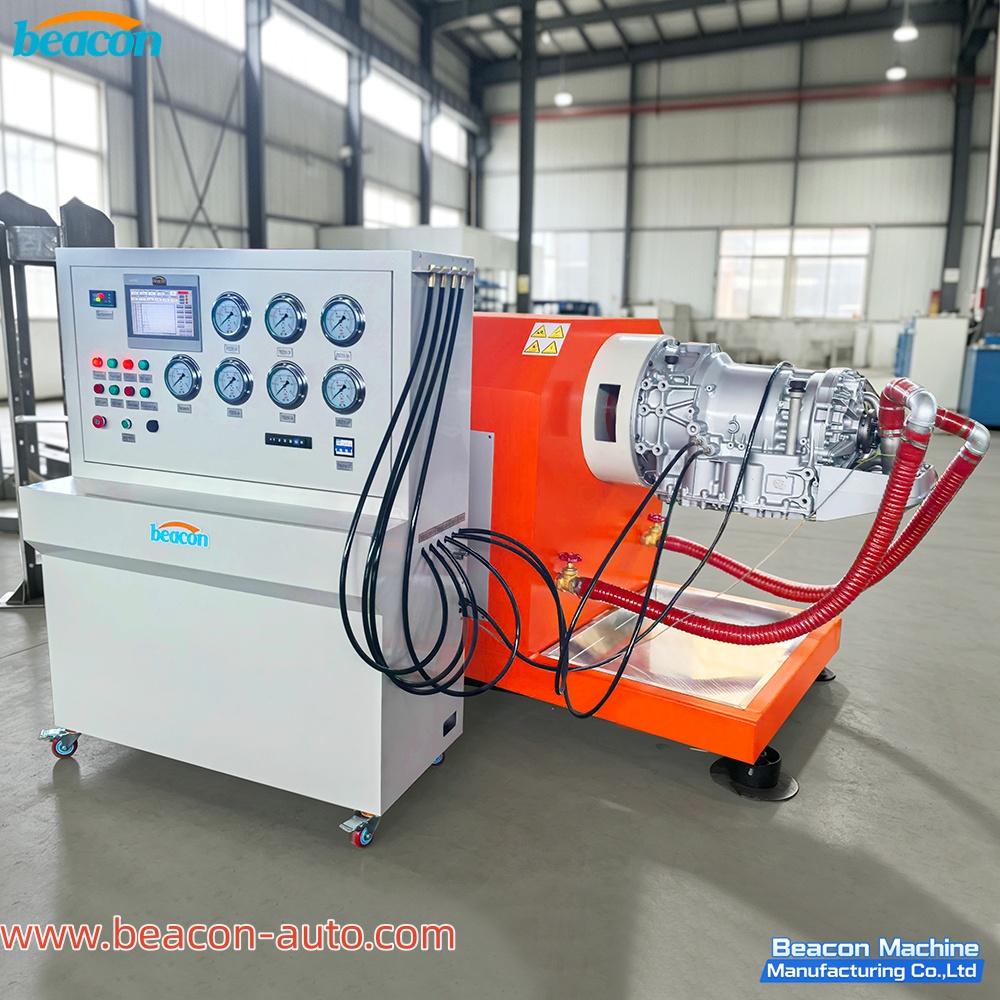

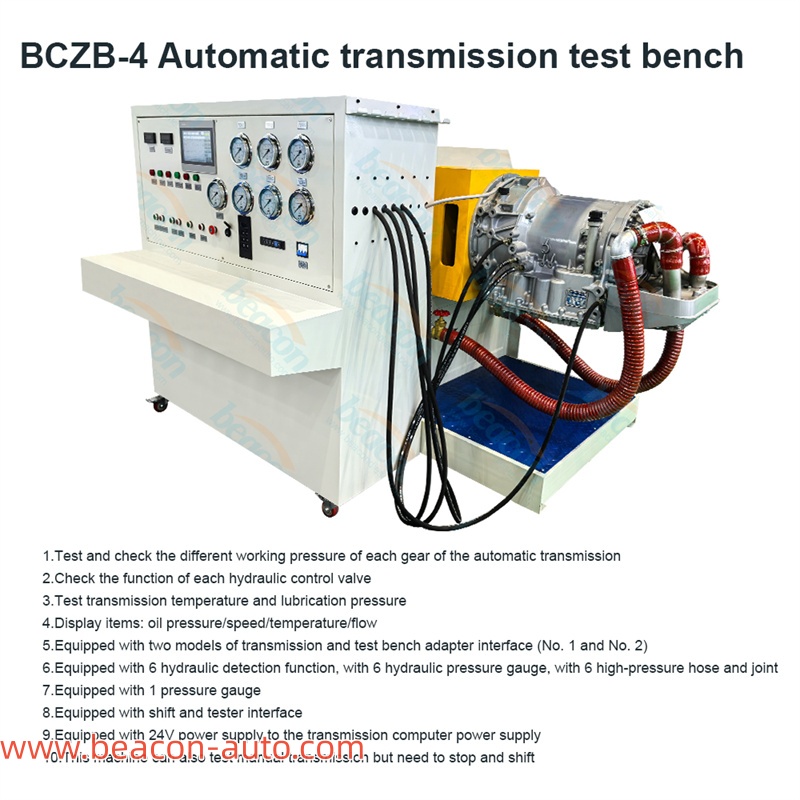

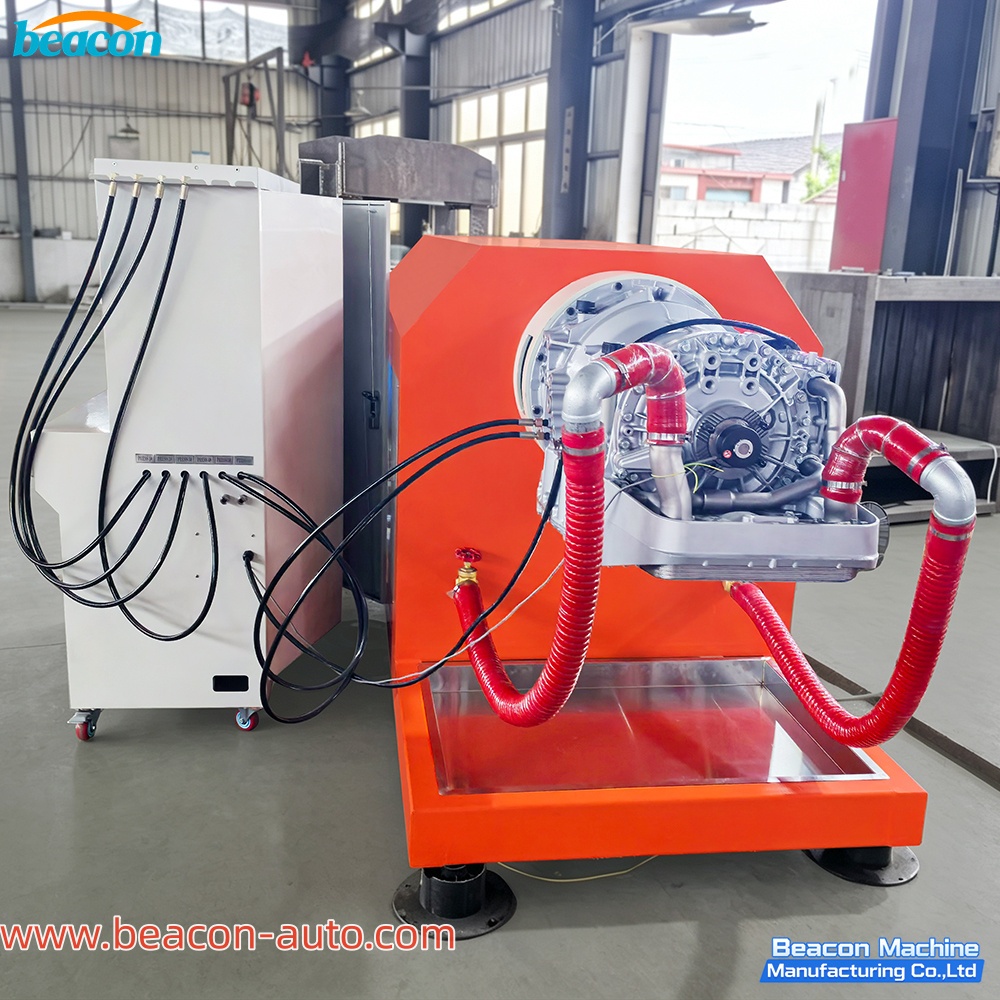

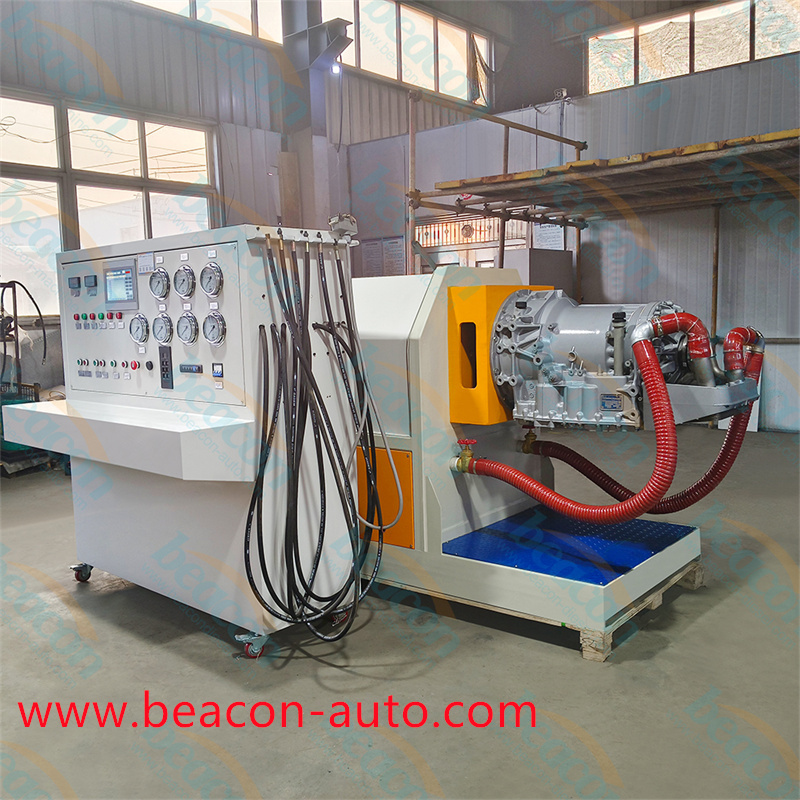

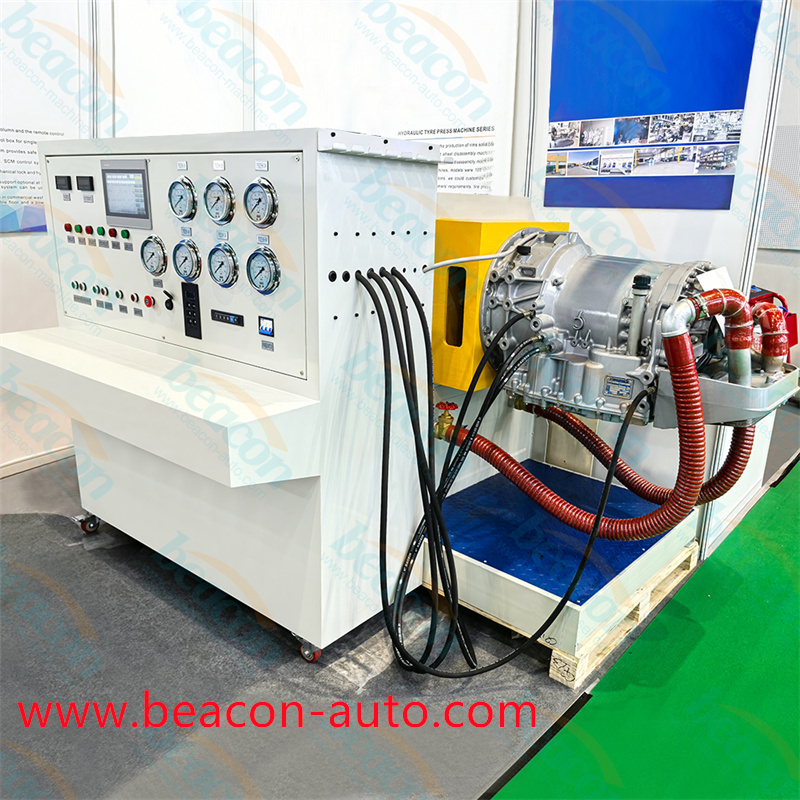

BCZB-4 Automatic transmission test bench

Main function and character :

The test bench is suitable for the operation and test of automobile transmissions such as Alison, Dena and ZF, Gearbox. It has the
characteristics of convenient operation, variable frequency speed regulation of motor and high running in power. Optional PLC,
computer touch screen. In addition, it can also be customized according to customer requirements

parameter

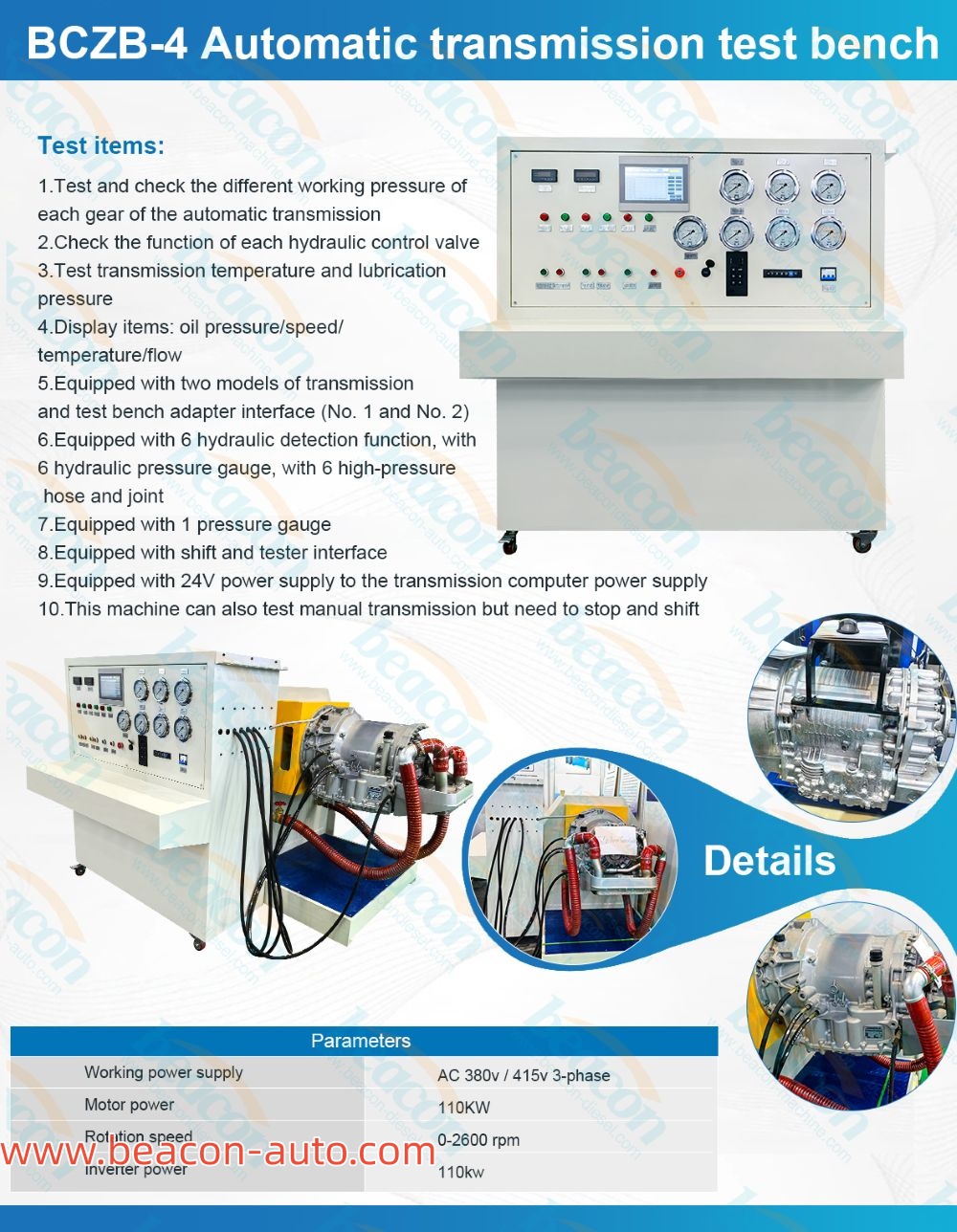

2.Technical parameter

1. Test and inspect the hydraulic system of automobile gearbox.

2. Check the function of each hydraulic control valve

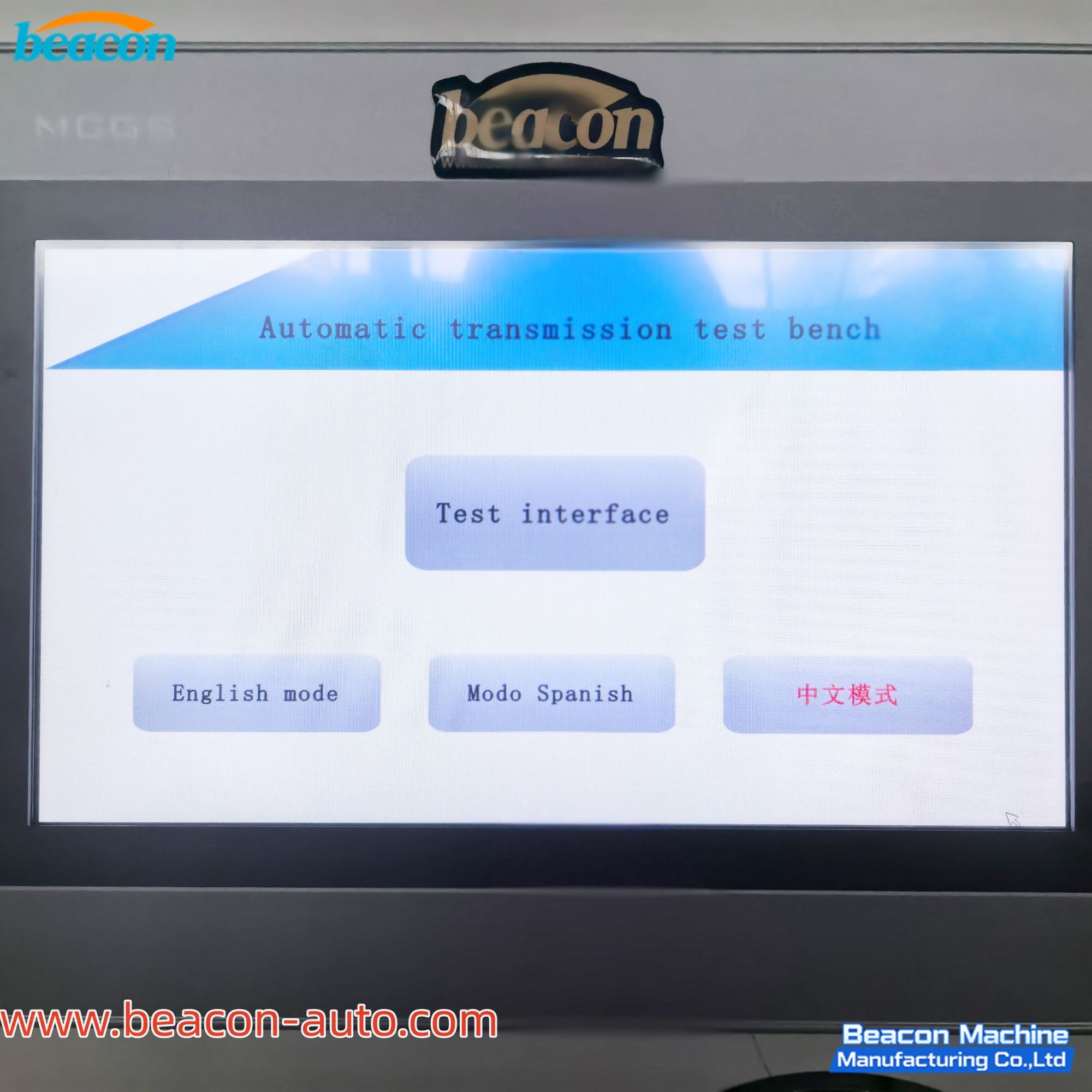

3. The shift test of automatic transmission can be controlled by PLC + touch screen or connected with computer

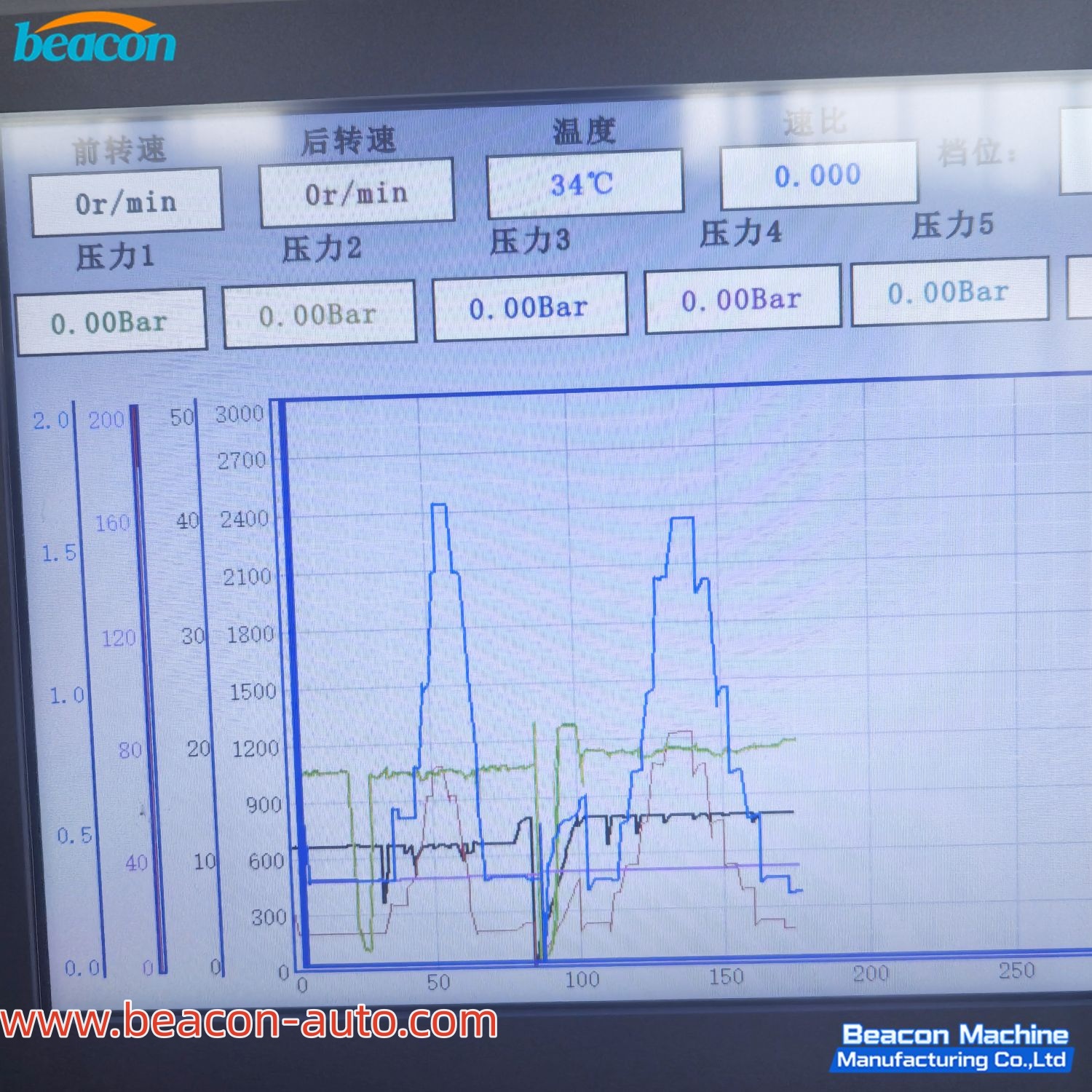

4. Test the main motor temperature, oil pump flow, transmission oil temperature and lubrication pressure

5. Use the hydraulic system to check the assembly defects of each component.
