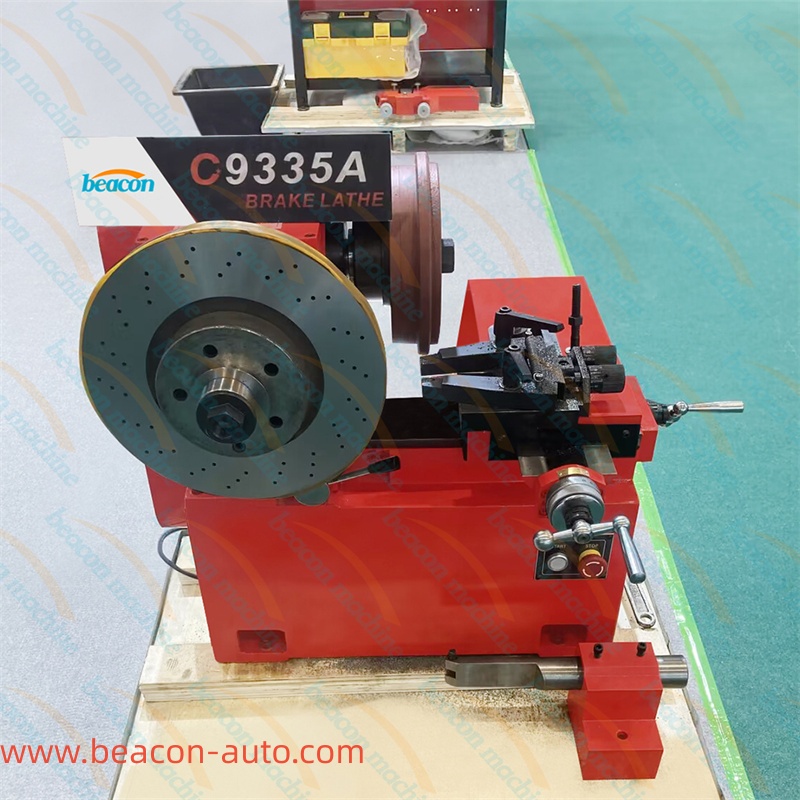

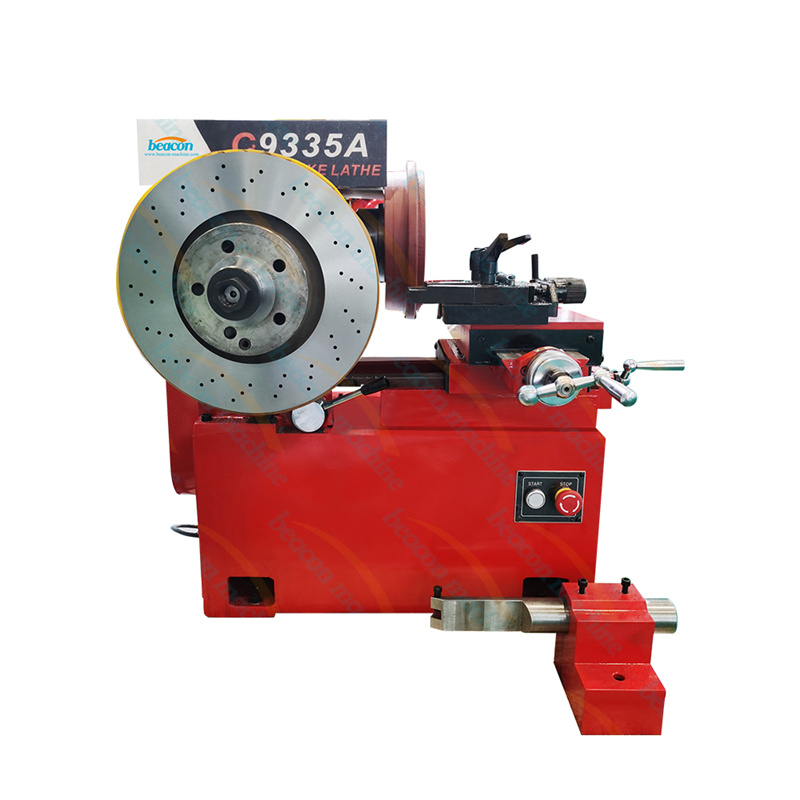

C9335A Brake Disc Lathe Machine

C9335A Vehicle Brake Disc Lathe for Brake Disc and Drum Polishing Brake Repair Machine

inquiry

Introduction

    C9335A Brake Disc Lathe Machine



This C9335A brake drum disc cutting brake lathe machine used gary cast iron for integral casting, the screw and other parts are thicker, less wearing parts and strong rigidity. 2. Both sides of the brake disc can be automatically fed at the same time to ensure processing efficiency 3.The skateboard can automatically feed from left to right 4. At the same time, the rigidity of the machine can ensure that the machine has a larger amount of knife, which improves the work efficiency. 5.Can turn the car brake disc and brake drum


New improvements on Brake Rotor Cutting Turning Lathe Machine Drum and Disc Brake Rotor Cutting lathe machine C9335A:

1.Adopts frequency inverter for adjusting spindle speed from 0-140 r/minute, this is the fastest speed in all small and medium size brake disc and drum lathes;
2. Adopts double tool - feedings and self - locking device, when cutting brake disc, the 2 cutters can be adjusted to move the surface of disc respectively, easy and saving tool-setting time;
3. Adopt sprofessional 220v1 ph or 380v, 3ph gear motor750w, more powerful and longer service lifetime;
4. Adopts industrial chain transmission instead of belt transmission, more precision and stable processing, and no need to change belt timely.

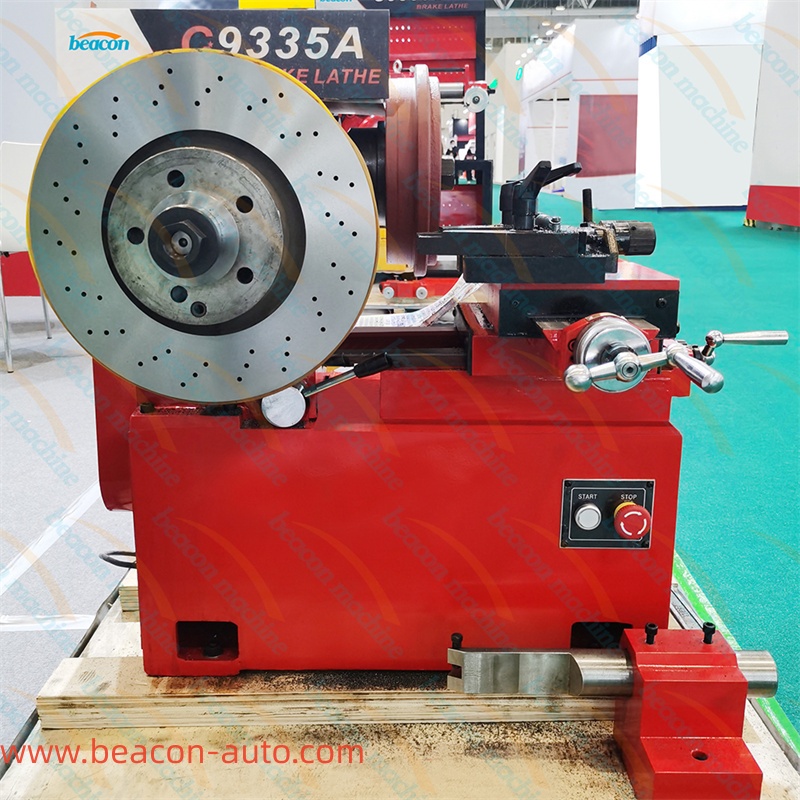

 C9335A Brake Disc Lathe MachineC9335A Lathe Machine

parameter

Place of Origin
Shandong, China
Brand Name
JN Quality CNC
Warranty
2 Years
Name
Brake Rotor Cutting Turning Lathe Machine
Model
C9335A new model
Max. cutting diameter on brae disc
160-400mm
Max. cutting diameter on brake drum /hub
180-350mm
Application
Cars repair
Rotational speed
0-140 r /minute
Feeding capacity (ball screw)
0.075mm/roll
Motor power
Gear motor 750w
Voltage
220v, 1ph or 380v, 3ph, 50hz/60hz
Wooden package size and weight
805*605*800 mm with 180kg
C9335A
