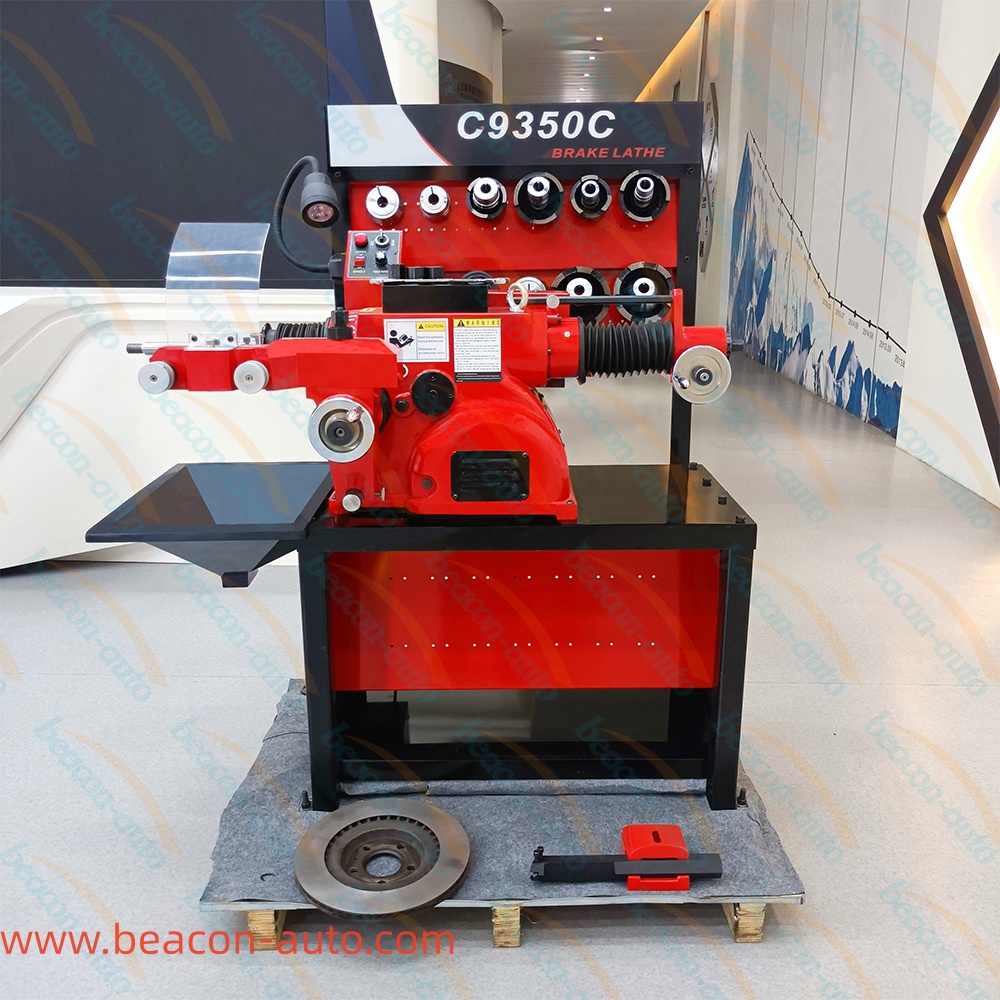

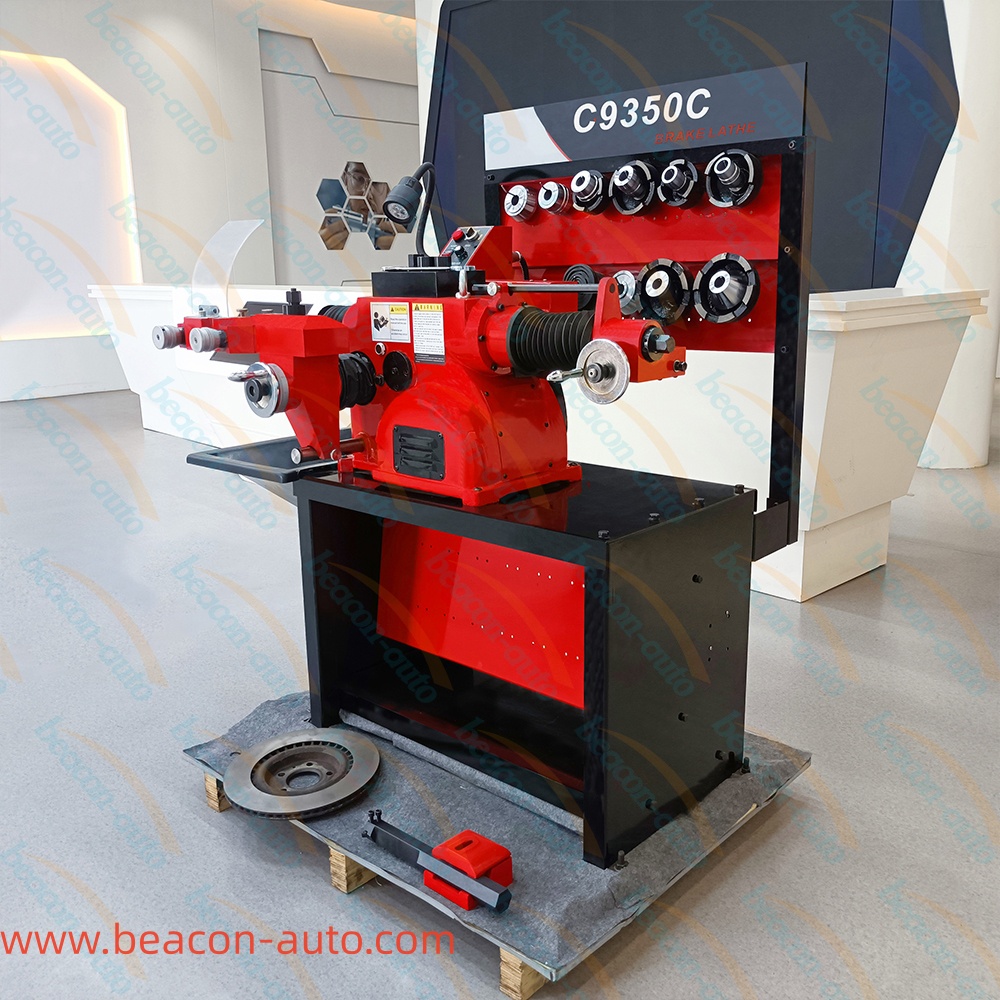

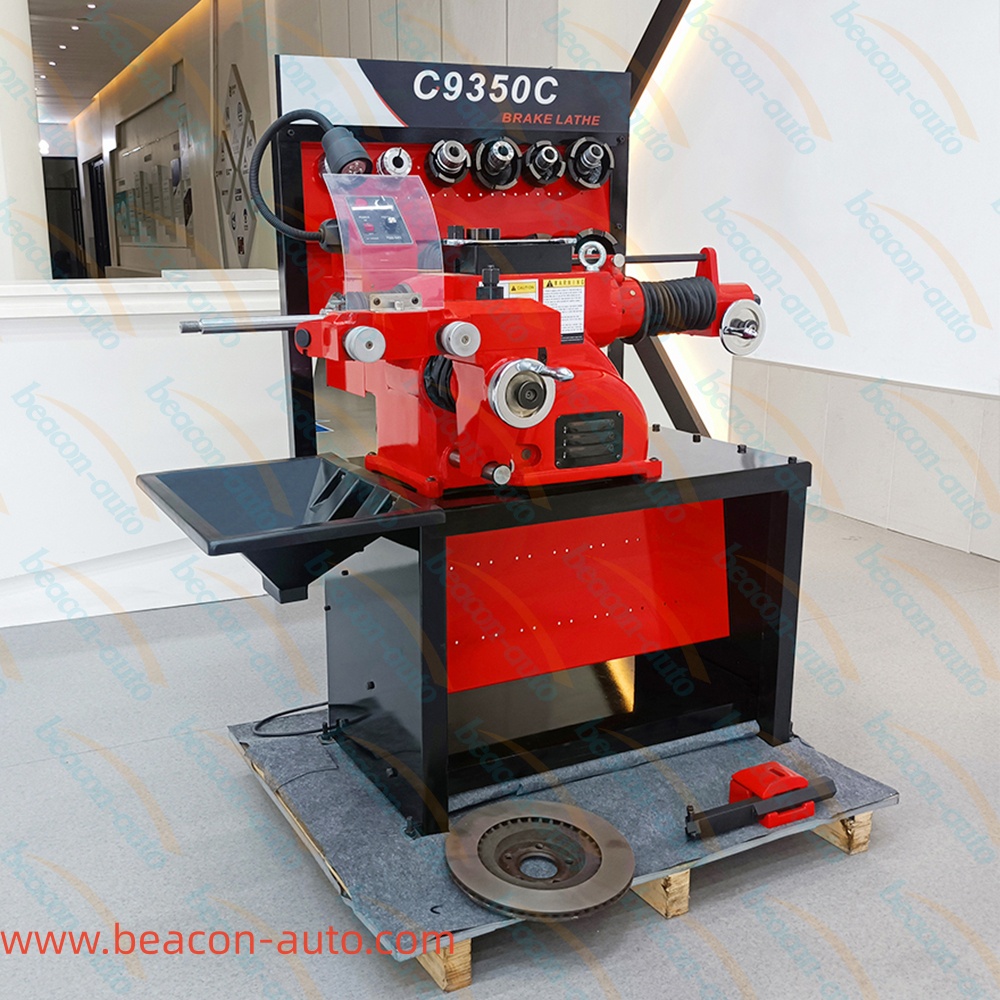

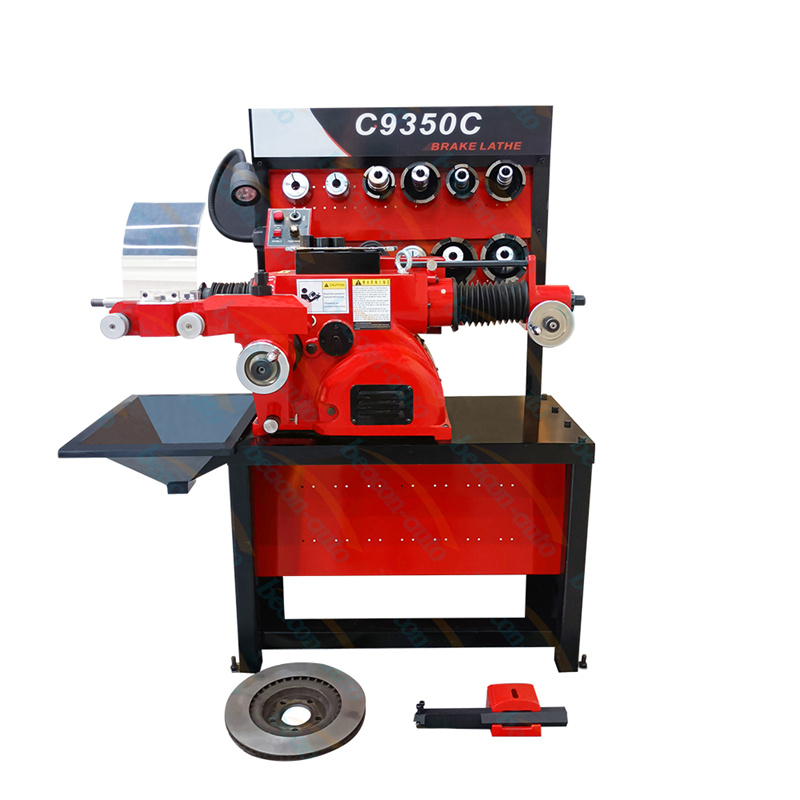

C9350C brake disc lathe machine
1.C9350C brake lathe is capable of faster,more accurate and easier resurfacing the lathe,Infinitely adjustable feed rates allow you to easily modify cut speeds with the sample turn of a dial.Now you can reduce or incarese the cut-time for best finish results,whether you're speeding through and initial rough cut or single-pass micro-finish.
2.Product advantages
(1) Work Lamp---A work lamp can keep your work piece lighted even in dark area
(2) High Efficiency---A convenient design allows to quickly change from rotor to drum
(3)Perfect Finish---The perfect finish meets or exceeds all OEM specifications
(4) Safe Work Area---A chip bin can keeps your work area clean and safe
(5) Heavy Work Bench---The heavy work bench can reduces vibration and chatter ensure the smooth finish
(6)Simple Convenience---A tool tray and tool board means you can easy to take

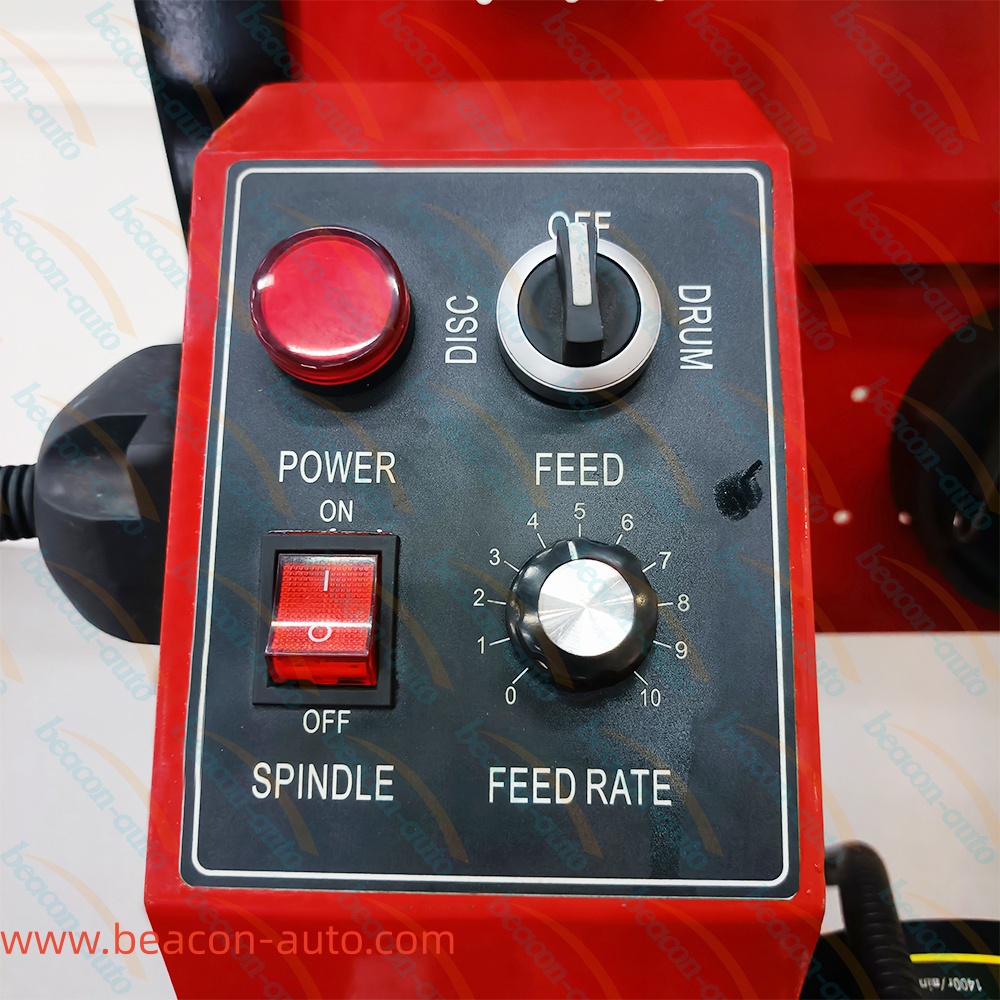

(7) Infinitely Speed---Variable spindle speed and cross feed speed provide a perfect finish
(8) Stop Switch---Two automatic shut-off switches make the motor of rotor and drum automatic stop after finishing.
(9) Single Pass---Positive rate tooling for optimum finish with a single pass

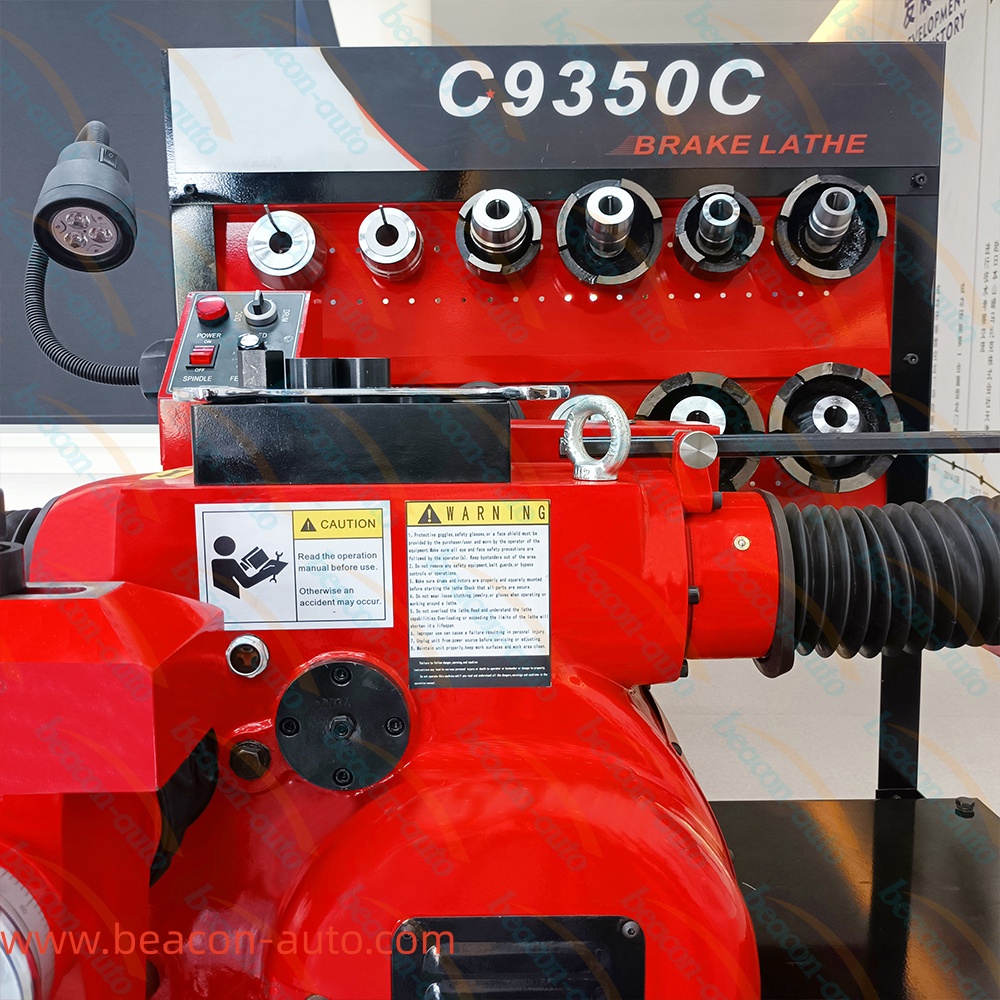

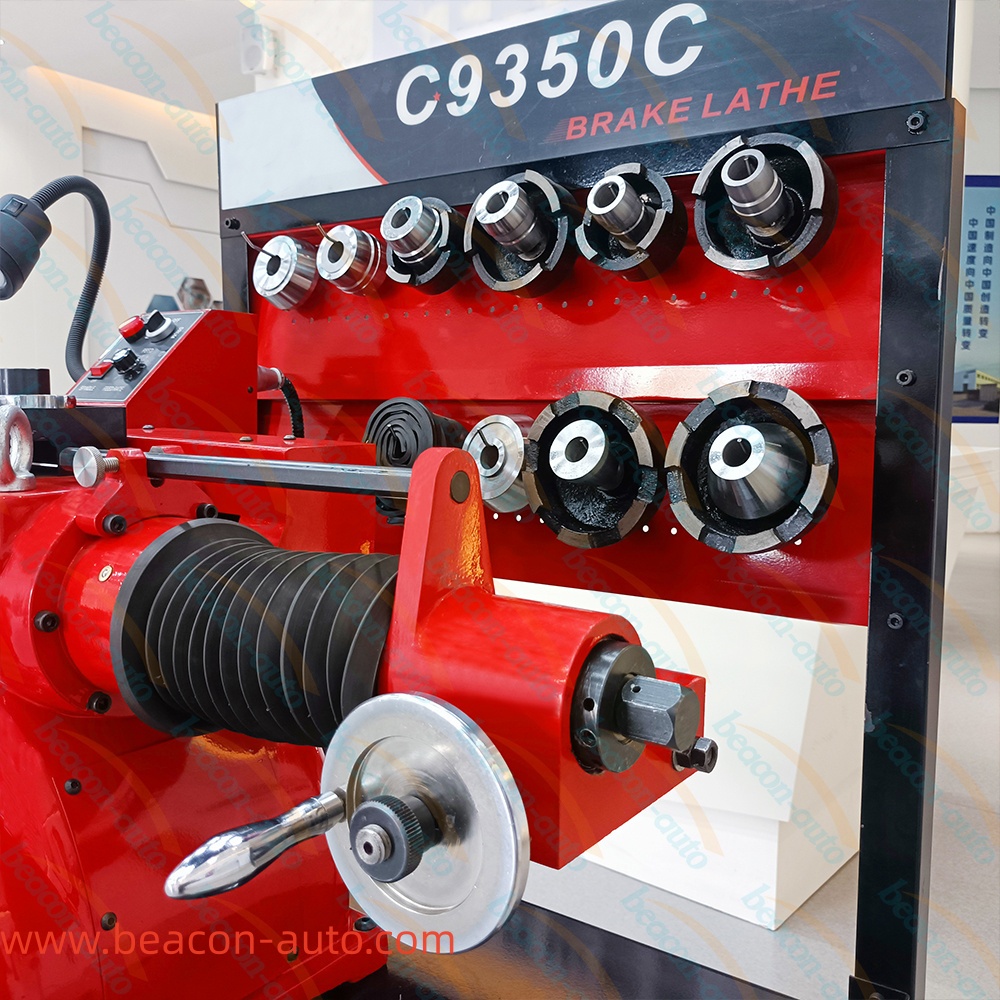

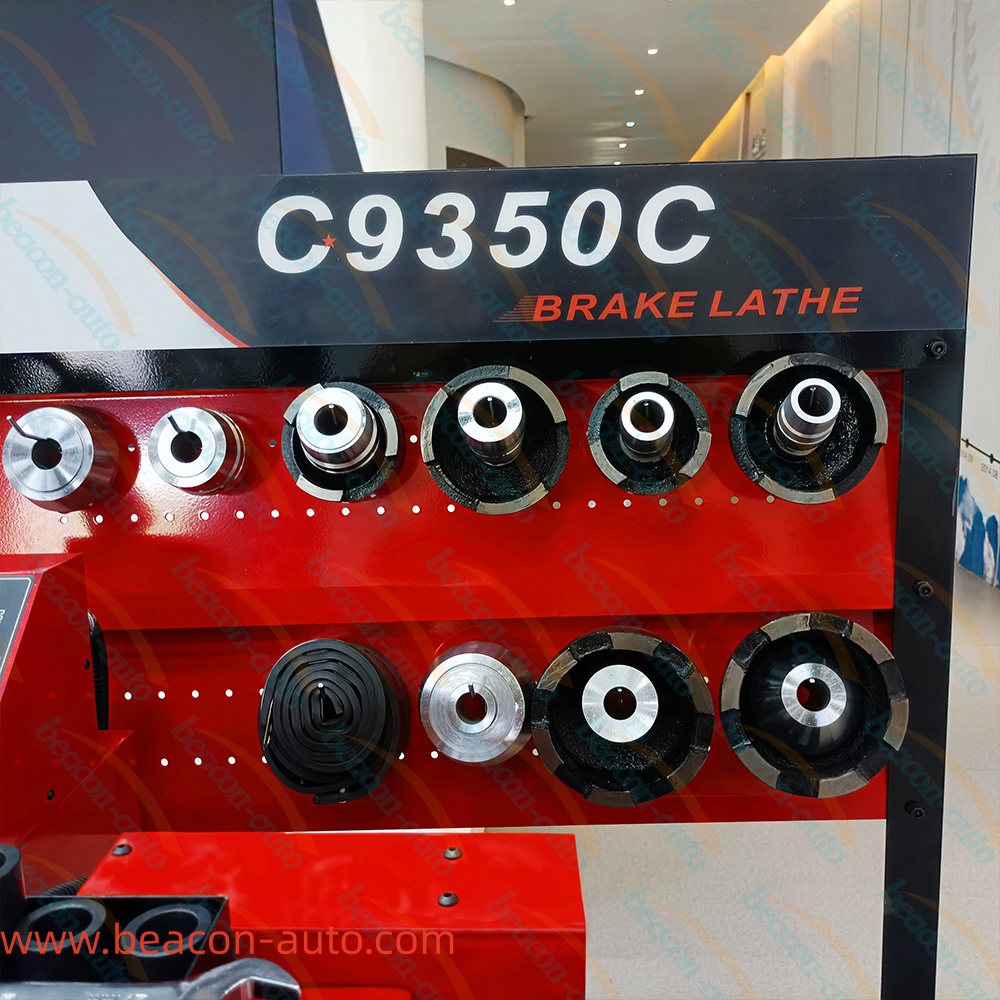

(10) Low Tool Board---A low board can put all adapters which you

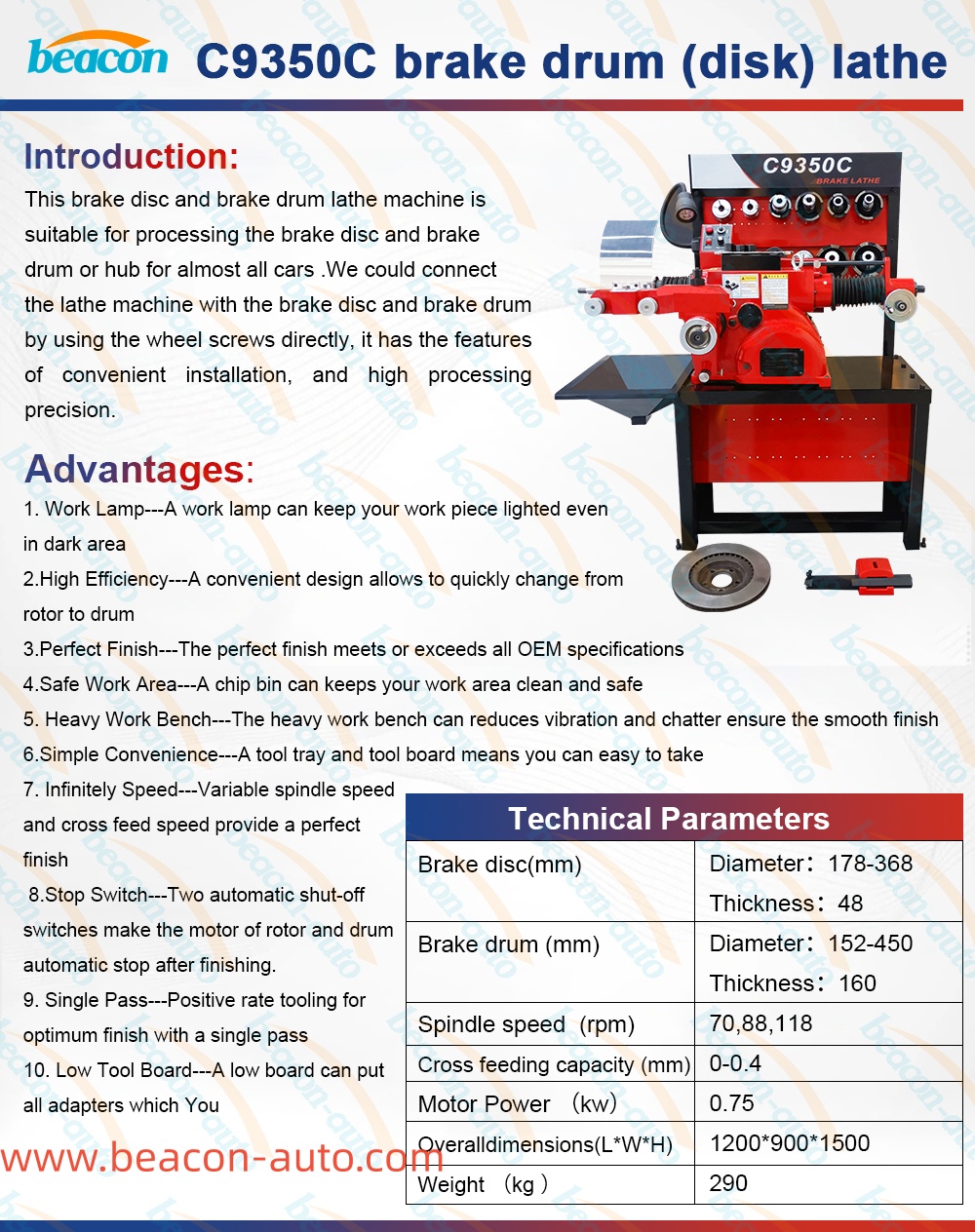

Model |
C9350C |
|
Brake disc |
Diameter mm |
178-368 |
Thickness mm |
48 |
|
Brake drum |
Diameter mm |
152-450 |
Thickness mm |
160 |
|
Spindle speed rpm |
70,88,118 |
|
Cross feeding capacity mm/r |
0-0.4 |
|
Motor power kw |
0.75 |
|
Overalldimensions(L*W*H) mm |
1200*900*1500 |
|
Weight kg |
290 |
