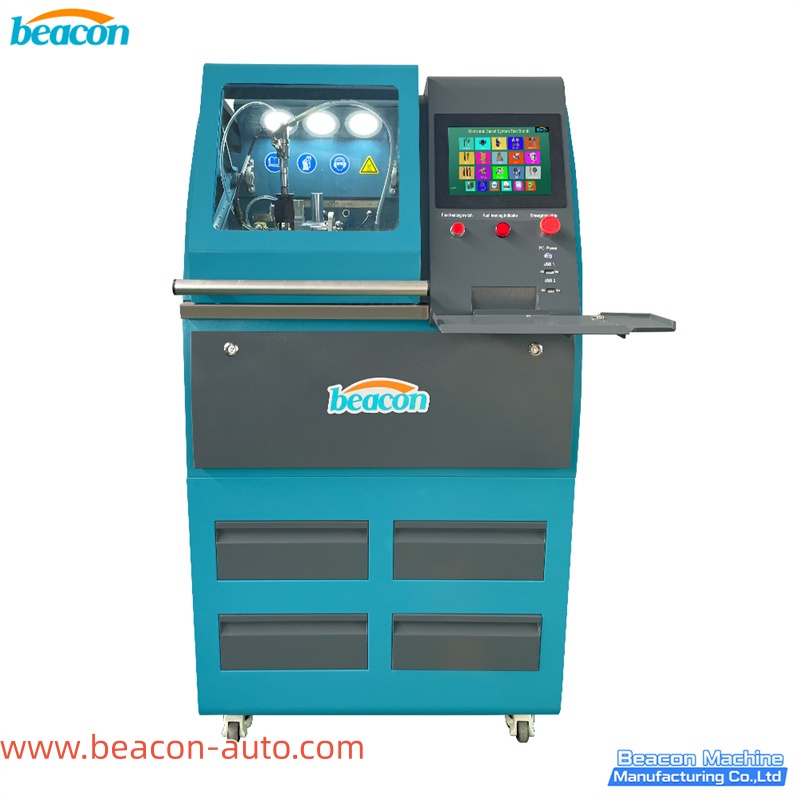

CR304 Common Rail Injector Test Machine Automotive Diagnostic CR304 Common Rail Diesel Injector Calibration Test Bench Machine To Test 4 Injectors At The Same Time

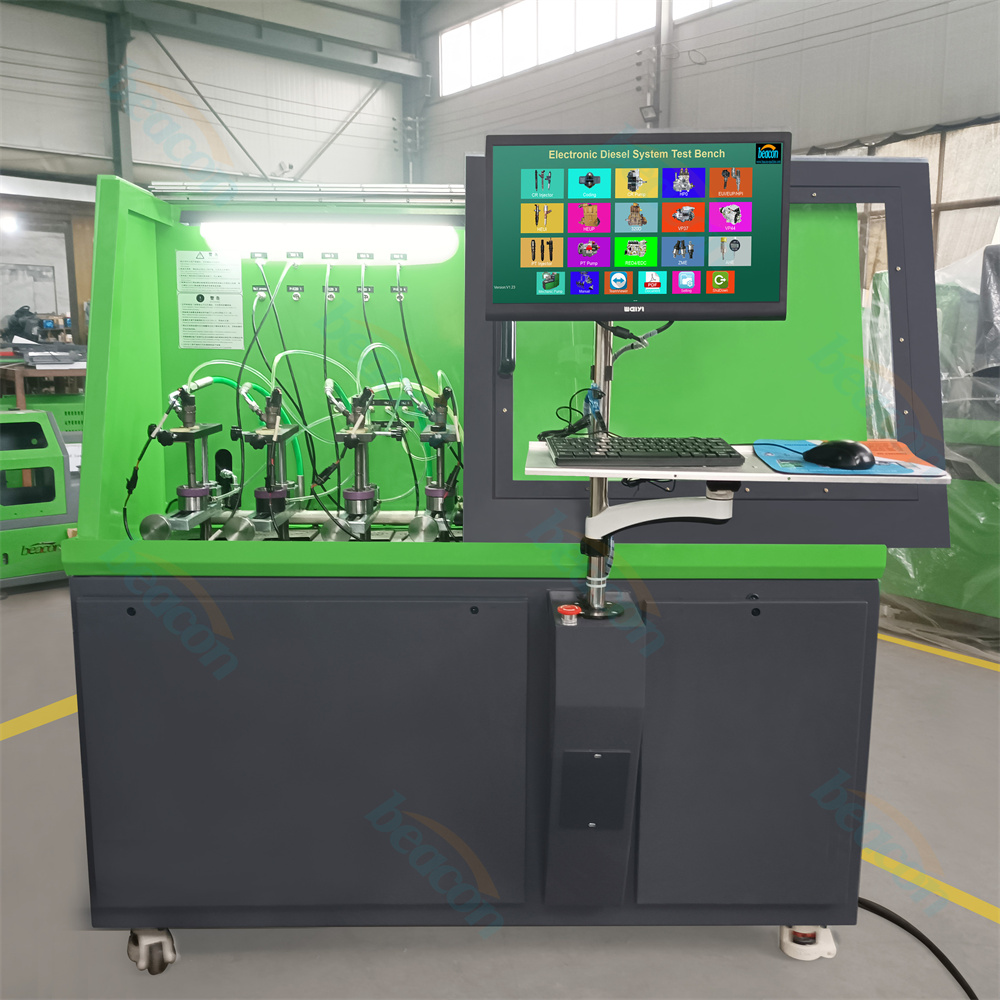

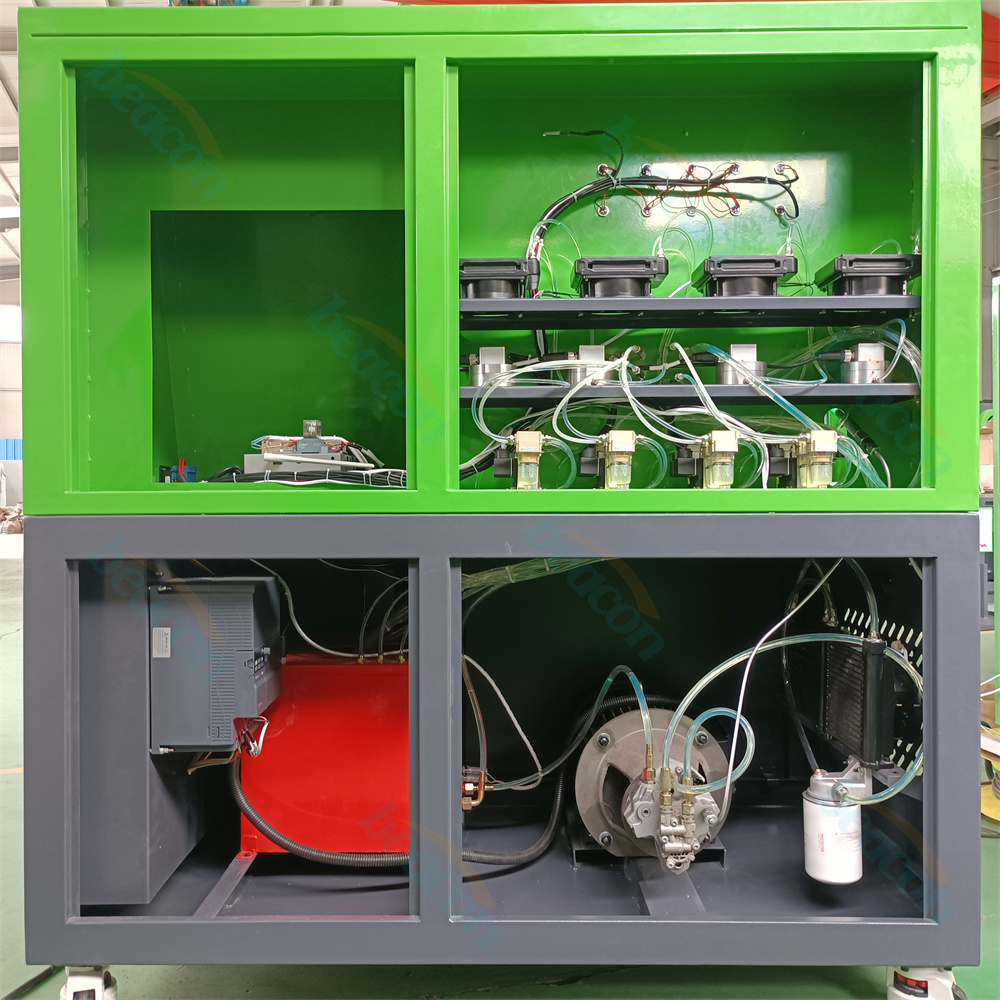

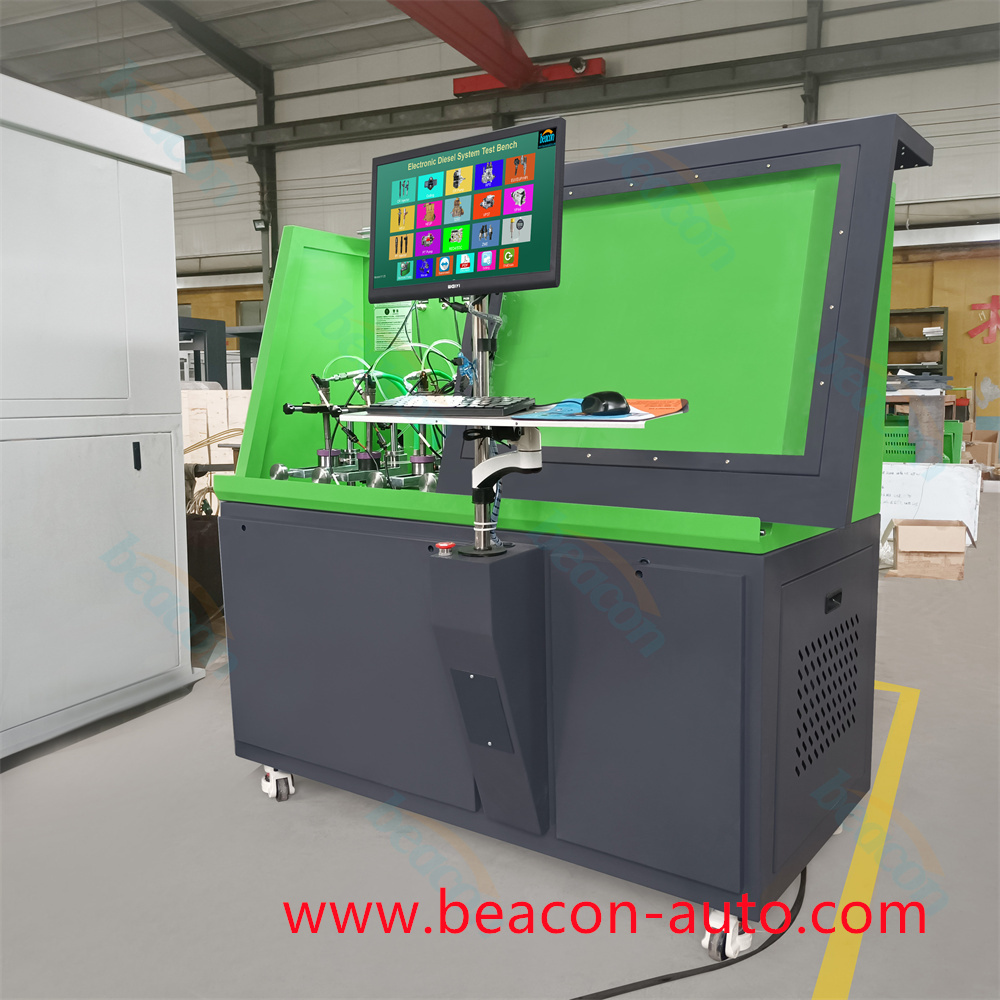

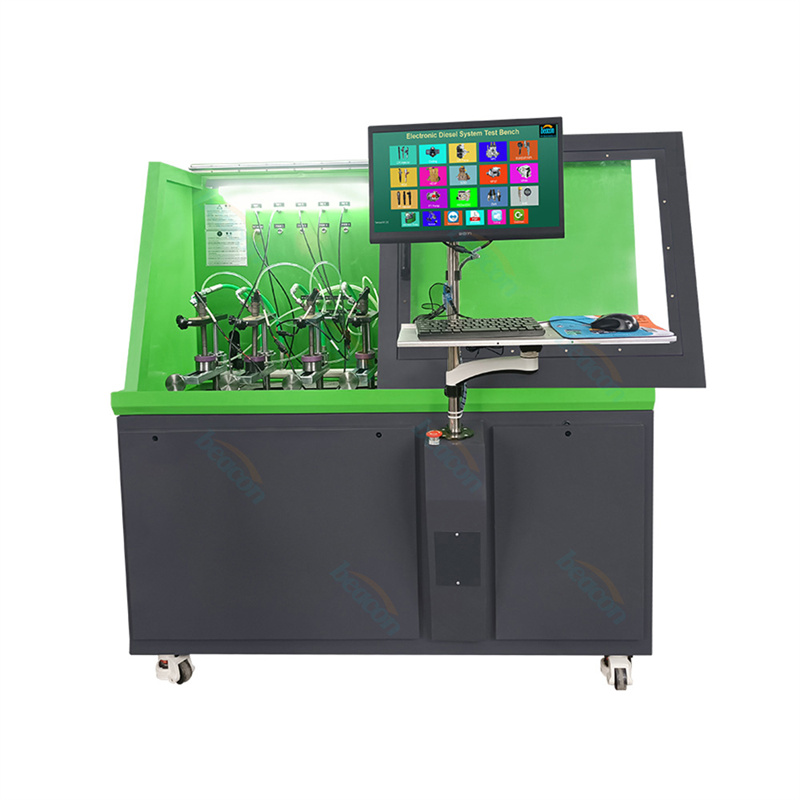

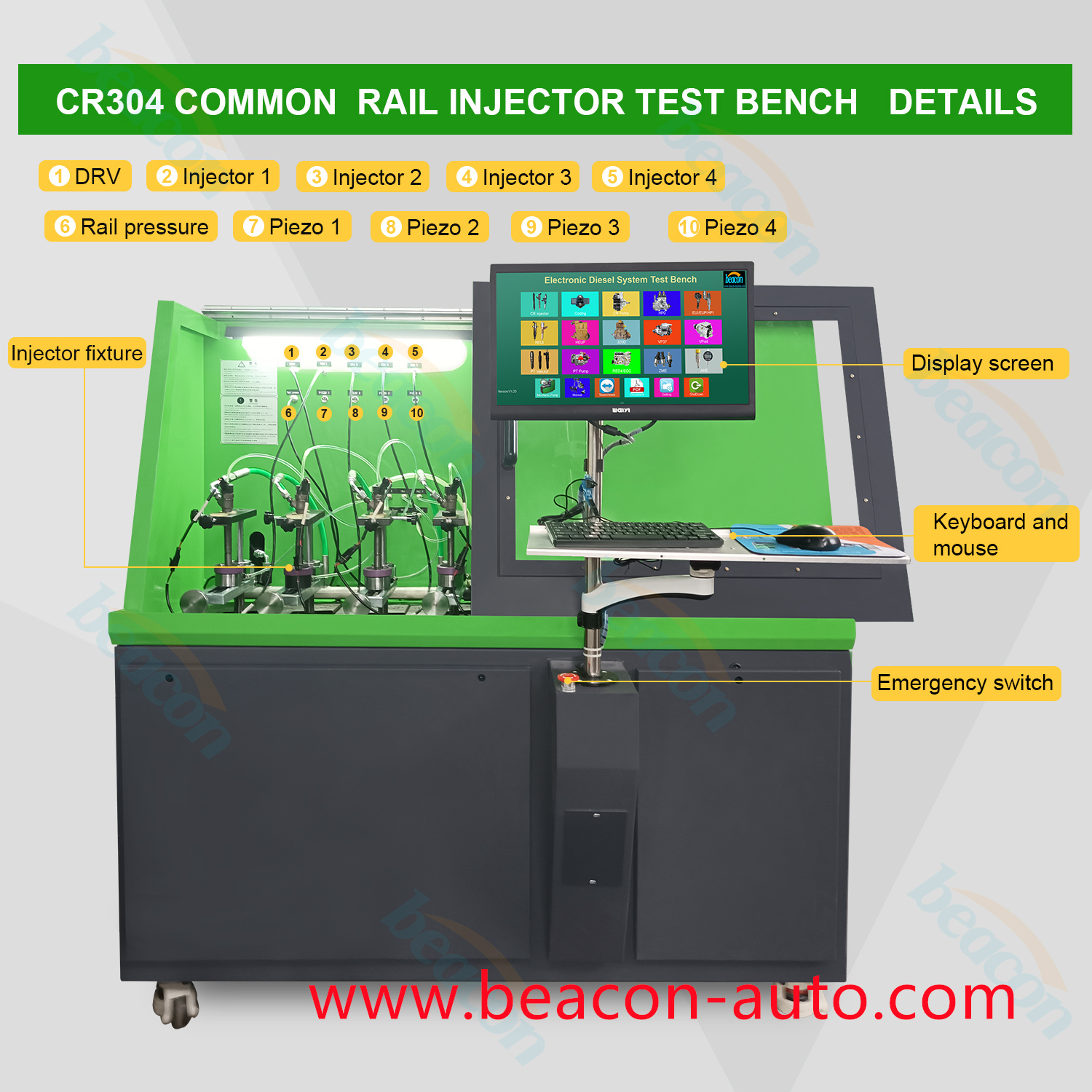

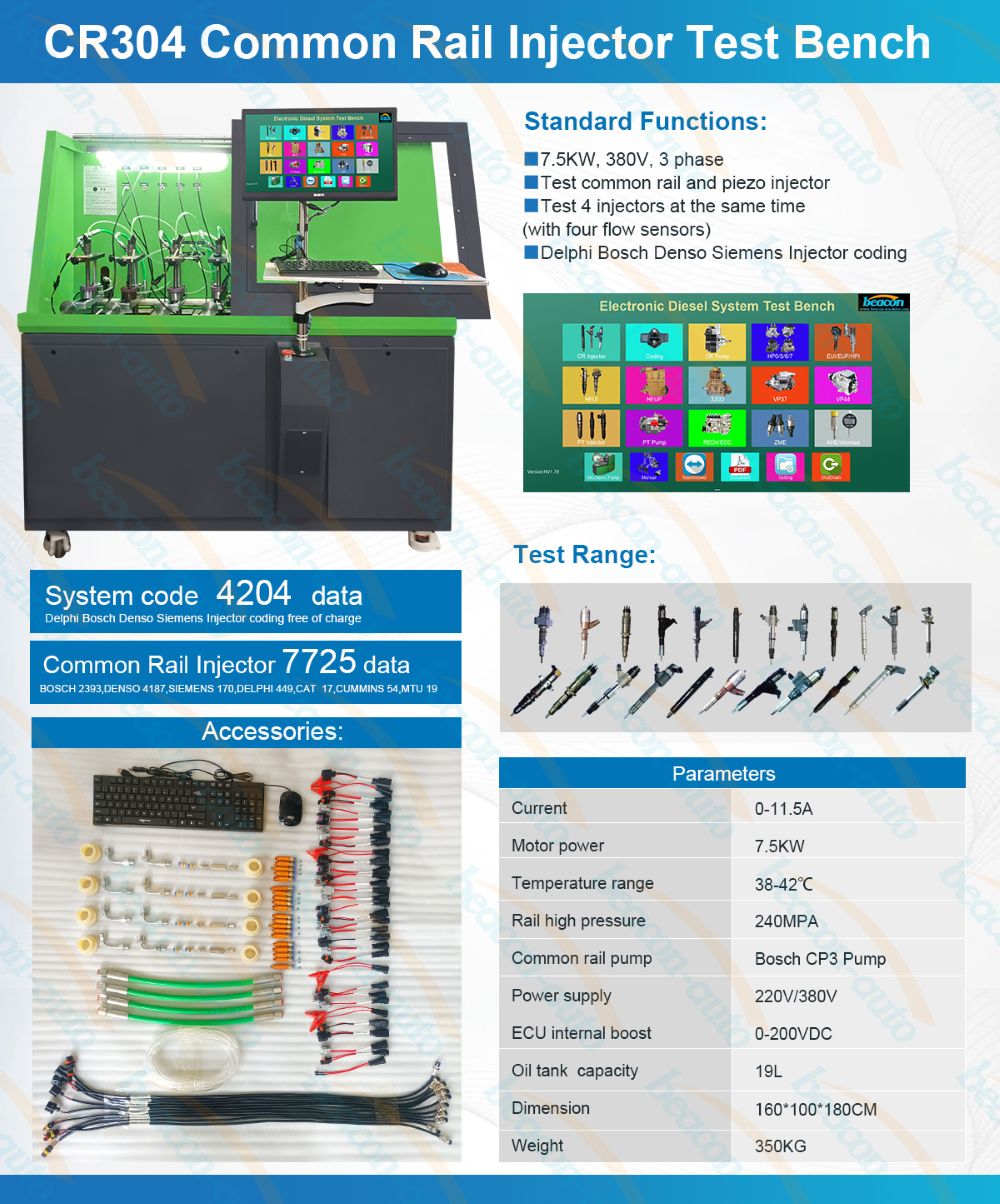

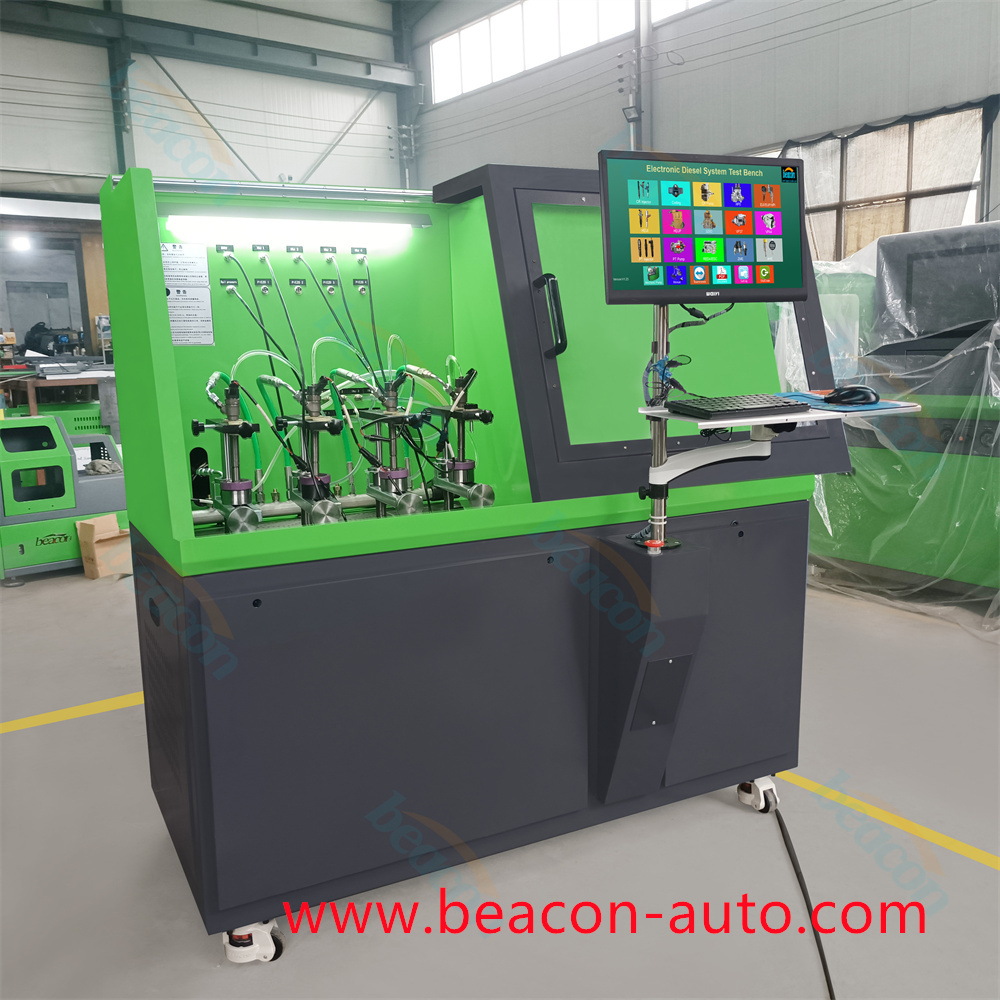

CR304 Common Rail Injector Test Bench is our latest indepentent researched special device to test the performance of high-pressure common rail injector, controlled by industrial computer, Windows operating system. The oil quantity is measured by sensor and displayed on computer screen. All data can be searched and saved. It adopts BOSCH original CP3 pump to provide 0~2400 bar of rail pressure. The rail pressure can be adjusted automatically. It can test common rail injector of BOSCH, SIEMENS, DELPHI, DENSO. Also support piezo injectors.

1. Controlled by industrial computer in real time, windows operating system. 2. Oil quantity is measured by sensor and displayed on 10.4 tactile LCD screen. 3. More than 3000 kinds of injecotors data can be searched and used. 4. Data can be searched and saved. 5. It is installed Bosch CP3 pump to provide 0~2400 bar of rail pressure. 6. Rail pressure can be tested in real time, it contains the high-pressure protection function. 7. Pulse and frequency of the injector drive signal can be adjusted. 8. Injection time can be setted. 9. Protection function of short-circuit. 10. Precise measurement, easy operation, low noise

FUNCTION:

1. Test injector brands:BOSCH, SIEMENS, DELPHI, DENSO. 2. Test 4pcs of injectors. 3. Test the pre-injection oil quantity of common rail injector. 4. Test the max. oil quantity of common rail injector. 5. Test the cranking oil quantity of common rail injector. 6. Test the backflow oil quantity of common rail injector. 7. Test the average oil quantity of common rail injector. 8. Test the seal performance of common rail injector. 9. Data can be searched and saved. 10. Clean the common rail injector. 11. All injector coding data.

OPTIONAL FUNCTIONS:

1. Test injecto response time.(BIP function). 2. Delphi E3 double pulse control system.
