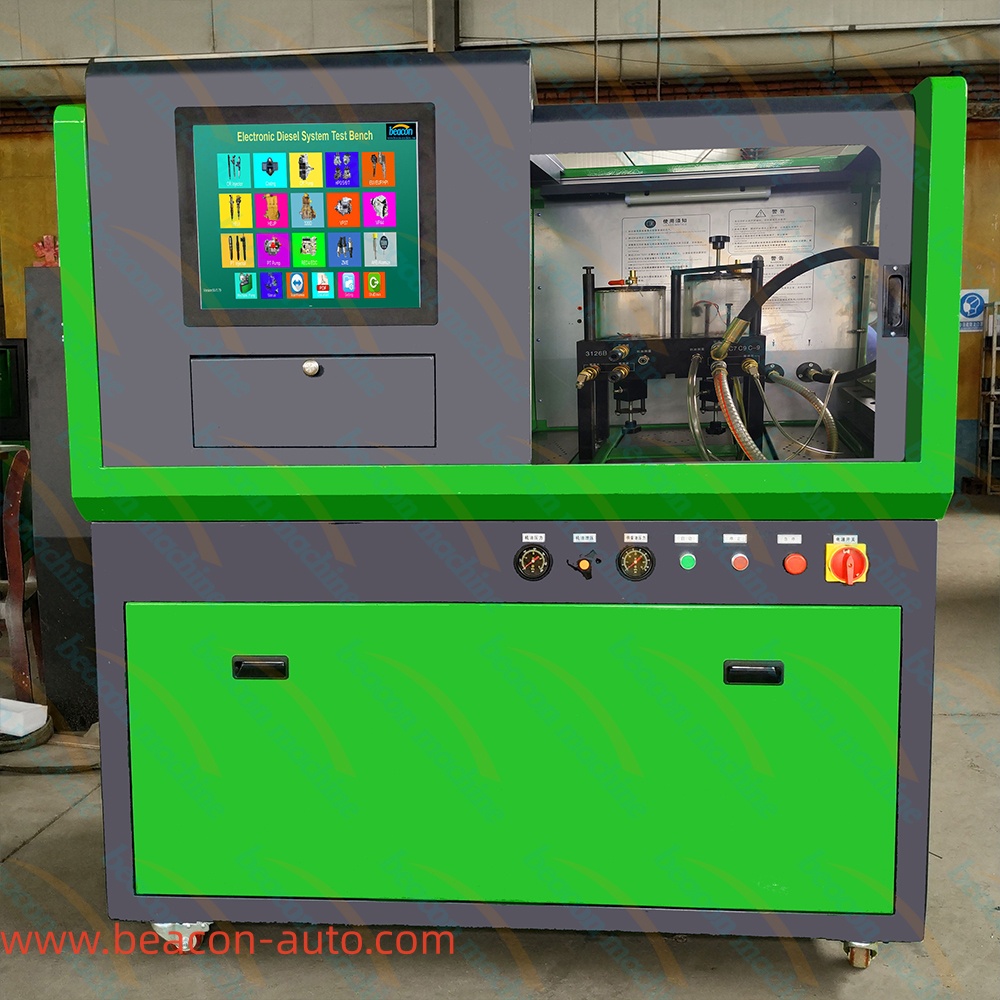

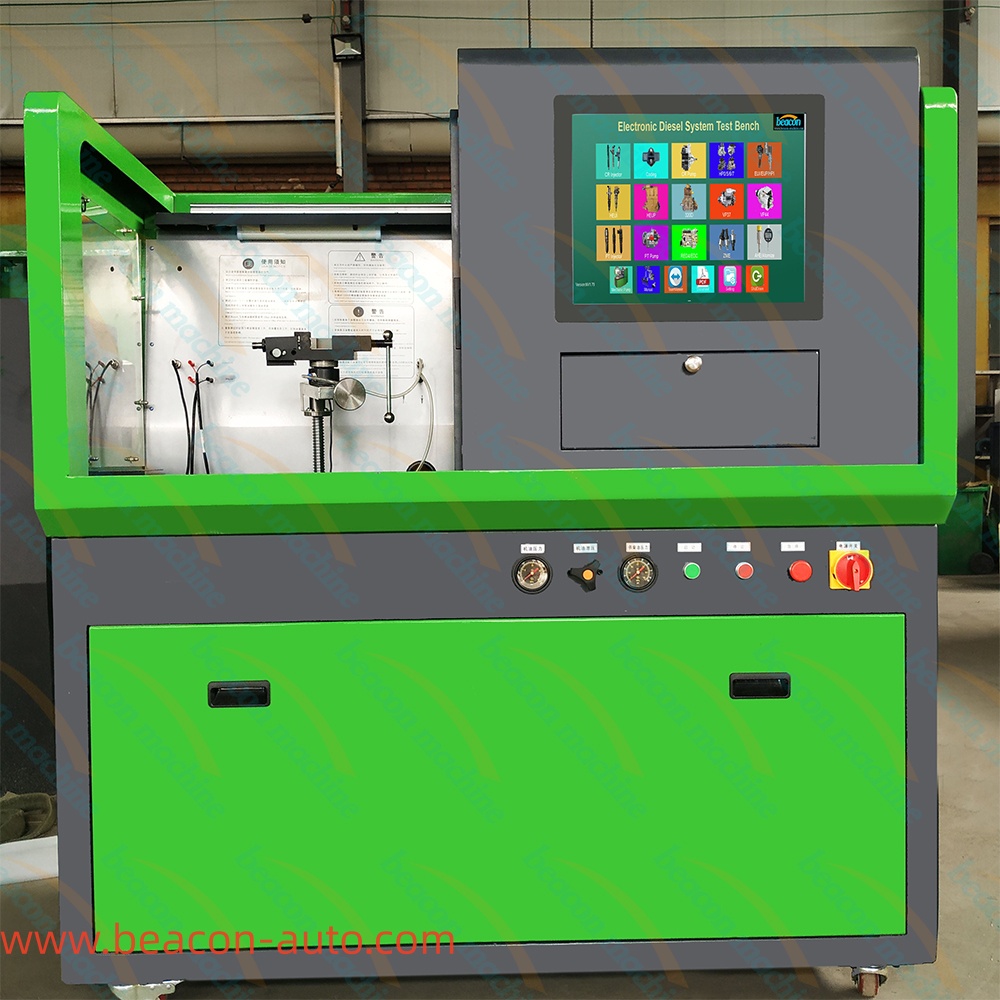

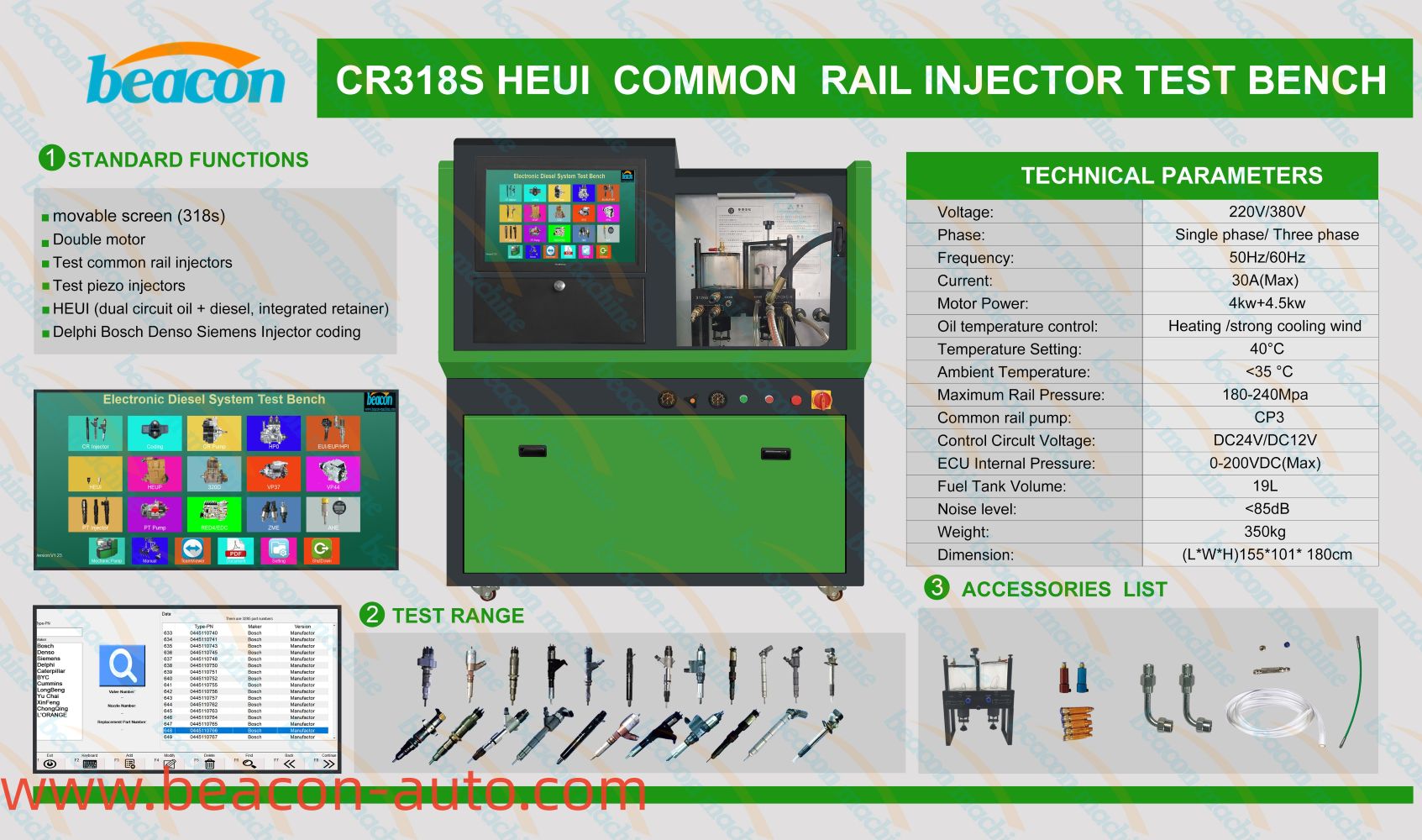

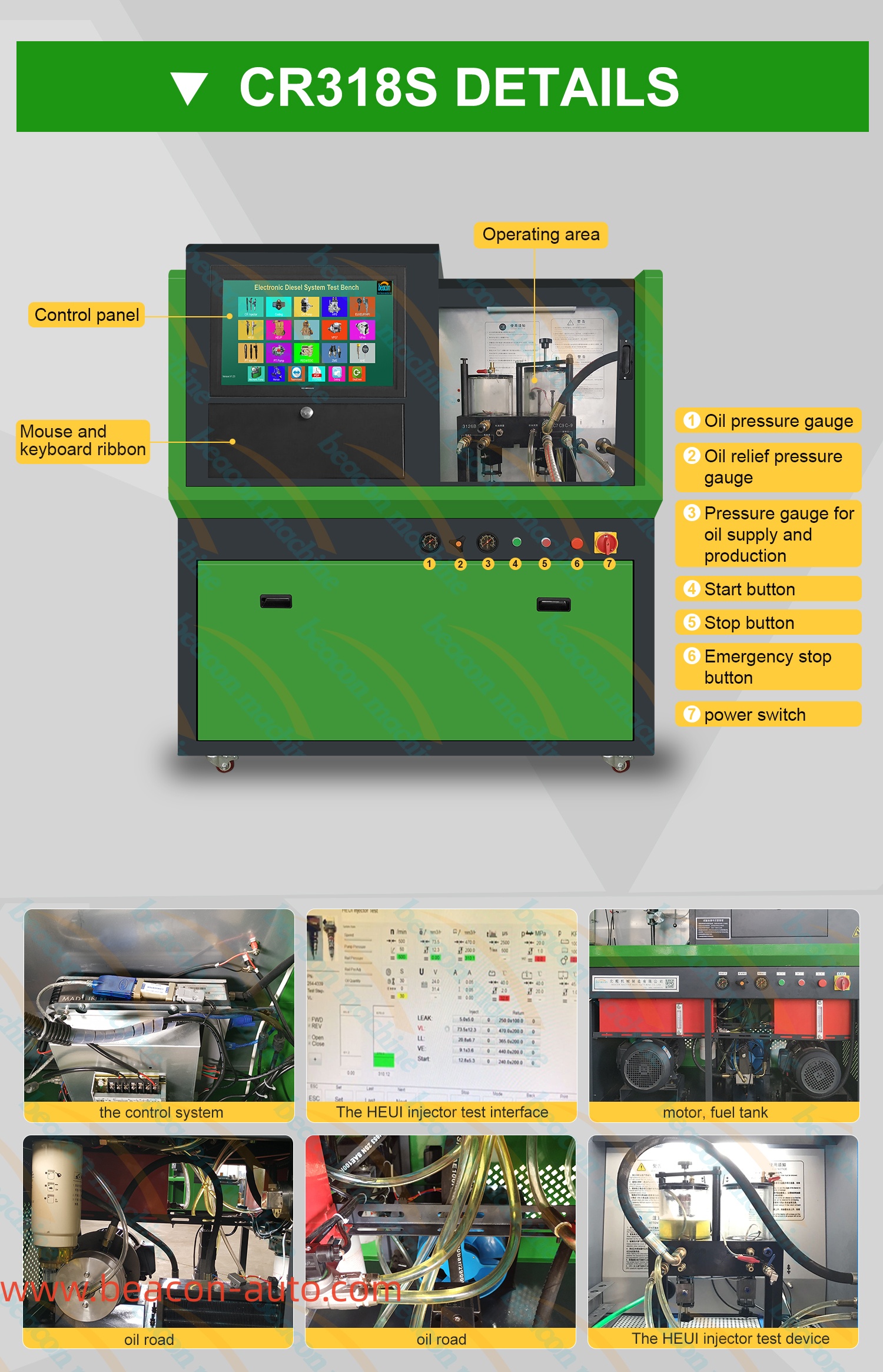

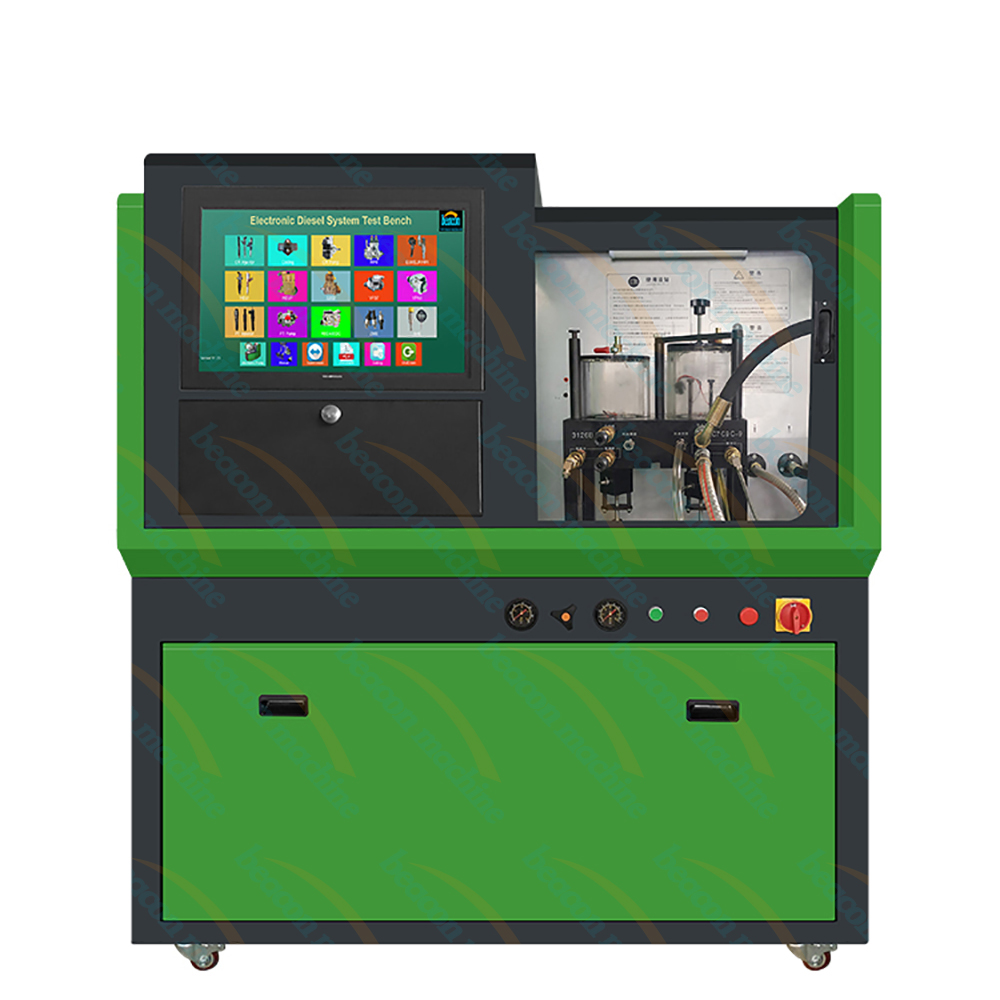

CR318S HEUI Injector Test Bench

     CR318S HEUI Injector Test Bench

1. High-Precision Flow Measurement, It Use Imported Flow Sensor, High Precision, Good Repeatability,

2. Test A Comprehensive, Test Injector Full Load, Medium Speed, Idle, Pre-Spray And Other Conditions Of

The Fuel Injection;

3. It Can Test Bosch, Denso, Delphi, Siemens, Cat Etc. Injector;

4. Machine Low Noise, It Is Using Frequency Control, Speed Prefabricated, Low Noise, No Impact;

5. Advanced Control, A Key Selection, The Whole Process Of Detection;

6. Massive Data;

7. Open Data Management, The User Can Add The Injector Data Itself, Especially For The New Fuel

Injector Standard Oil Calibration;

8. Injector Coding

1. Common rail fuel injectors test

2. Piezo injector test

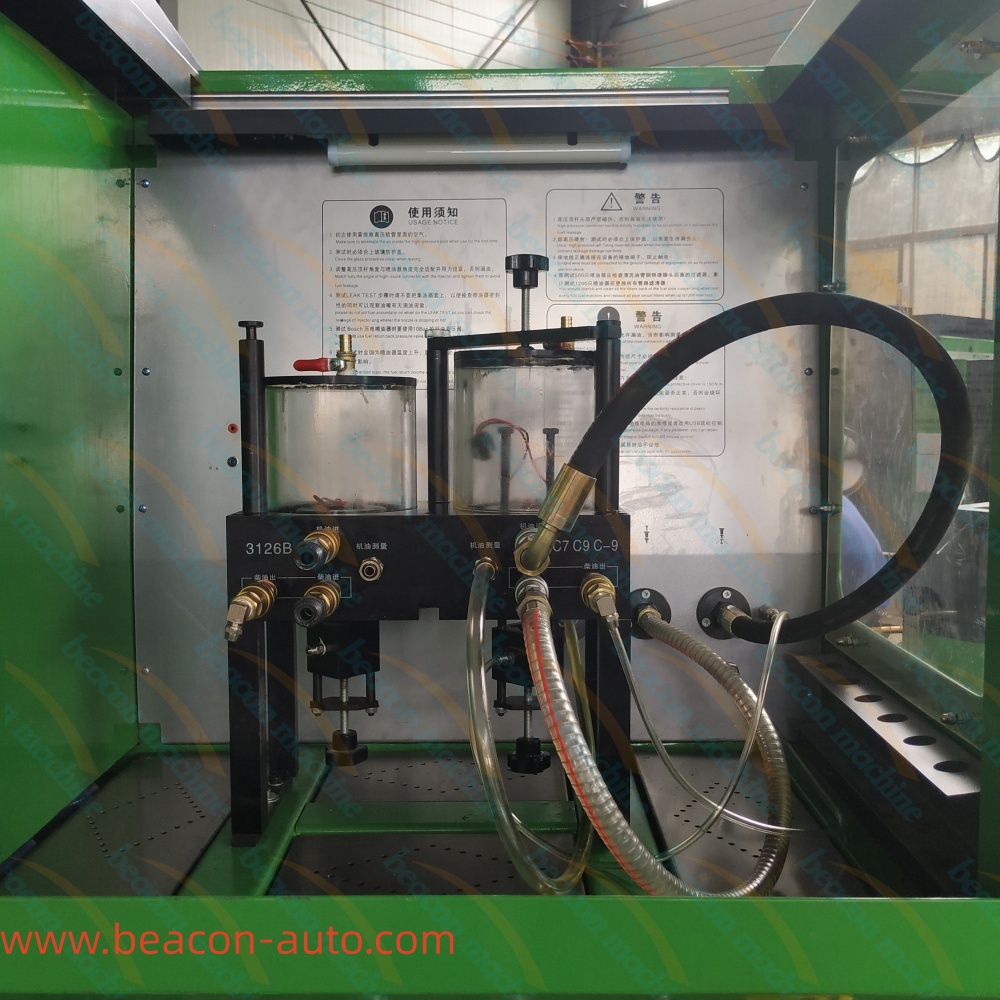

3. Test CAT HEUI 3126B c7 c9 with old or new adapters

4. Bosch, denso, siemens, Delphi coding functions

CR318S heui test bench optional features

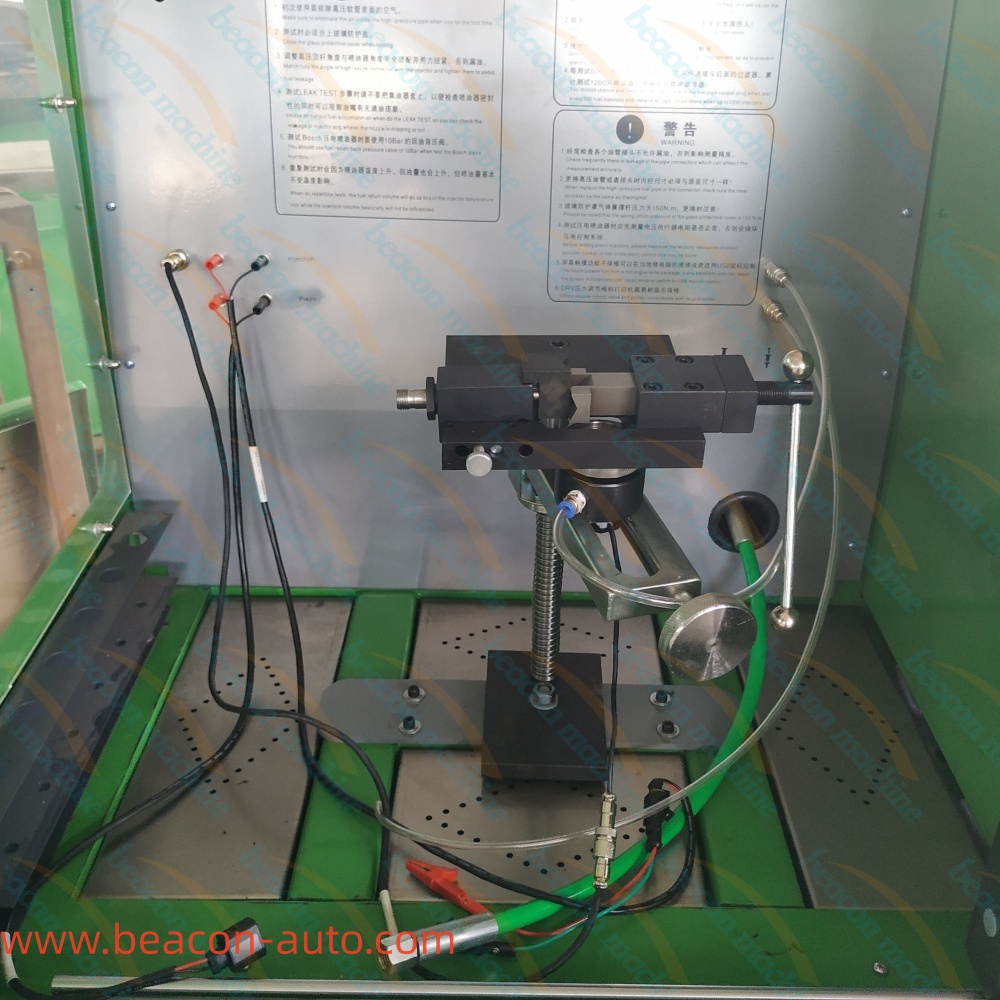

1 AHE injector dynamic stroke (with Bosch 110, 120 stroke measuring tool + dial gauge)

2 Rail pressure sensor test

3 DRV/HPV test

4 Solenoid valve test

5 Bosch 4 pins injector test

6 Simultaneously measure 4 injectors with 4 flow sensors

(Modify the system + add 3 additional flow sensors + 3 high-pressure oil pipes + 6 solenoid valves + 6 filter elements + 3 filters + 1 four injector fixtures)

7. Simultaneously measure 2 injectors with 2 flow sensors

(Modify the system + add 1 additional flow sensor + 1 high-pressure oil pipe + 2 solenoid valves + 2 filter elements + 1 filter + 1 double injector fixture)

8. HEUI 3126A/3412E/NAVISTAR/ISUZU/G2.8/G2.9

Injector opening 0-1000HZ

Control accuracy: 1HZ

frequency Control: 0-65535us

Fuel Injector Hold Time Control: 0-1000 times

Delivery Oil Count Control  accuracy: 1 times

Fuel pressure control 0-2400bar

Control accuracy: 1bar

Electronic power: 380v /220v  3 phase   220v single phase

Product Size: 155×101×180M

Weight: 600KG
