product details

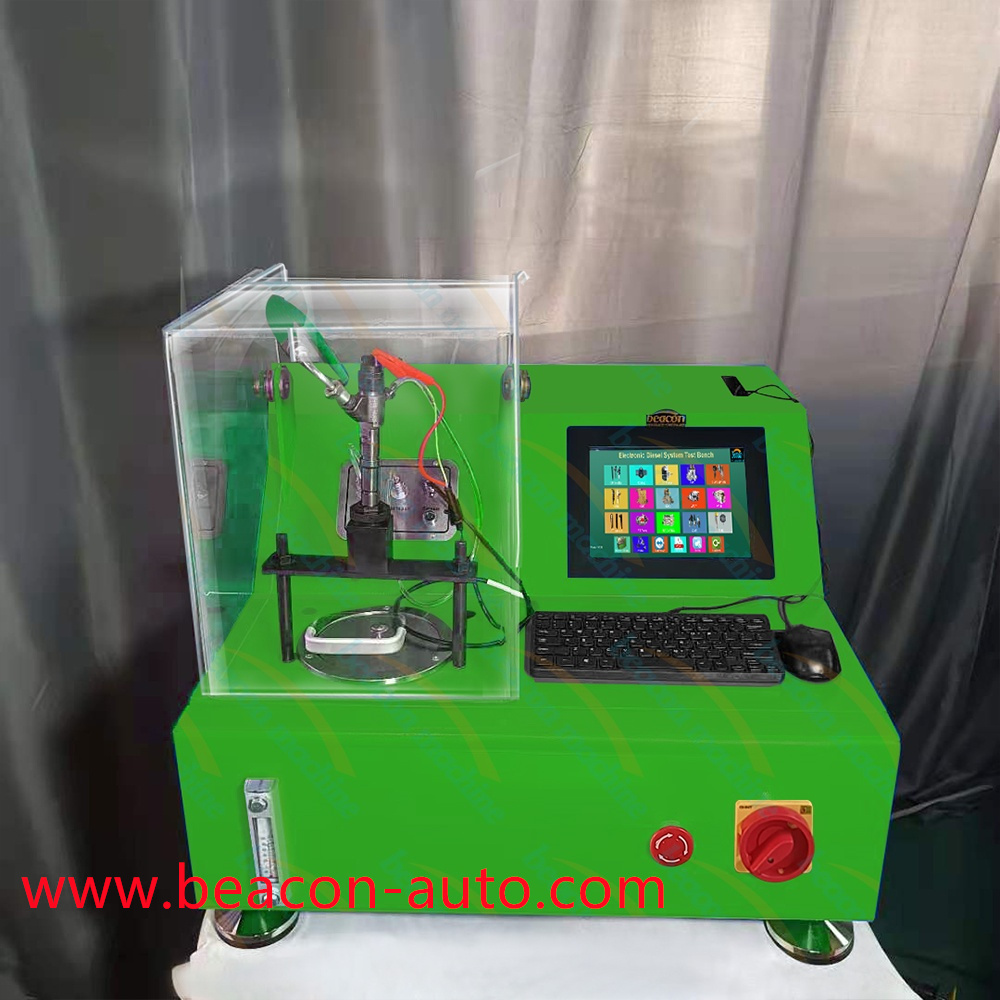

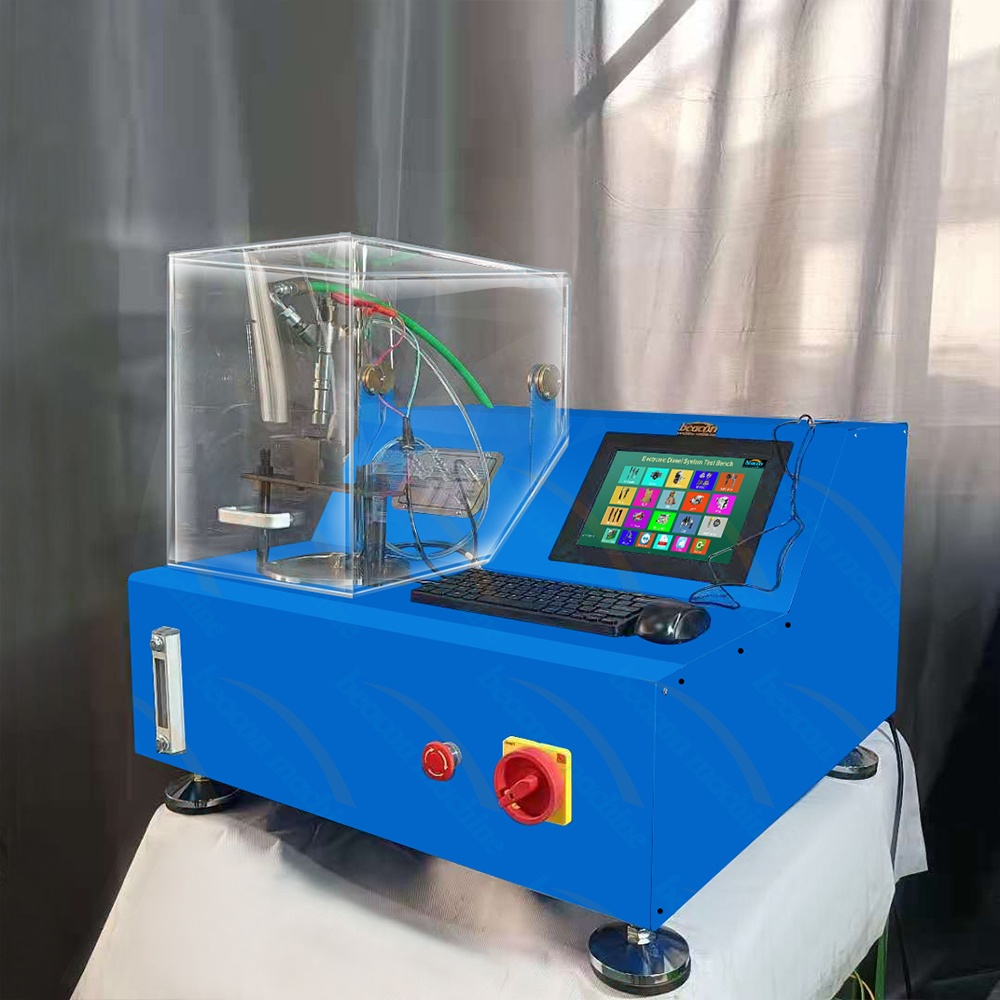

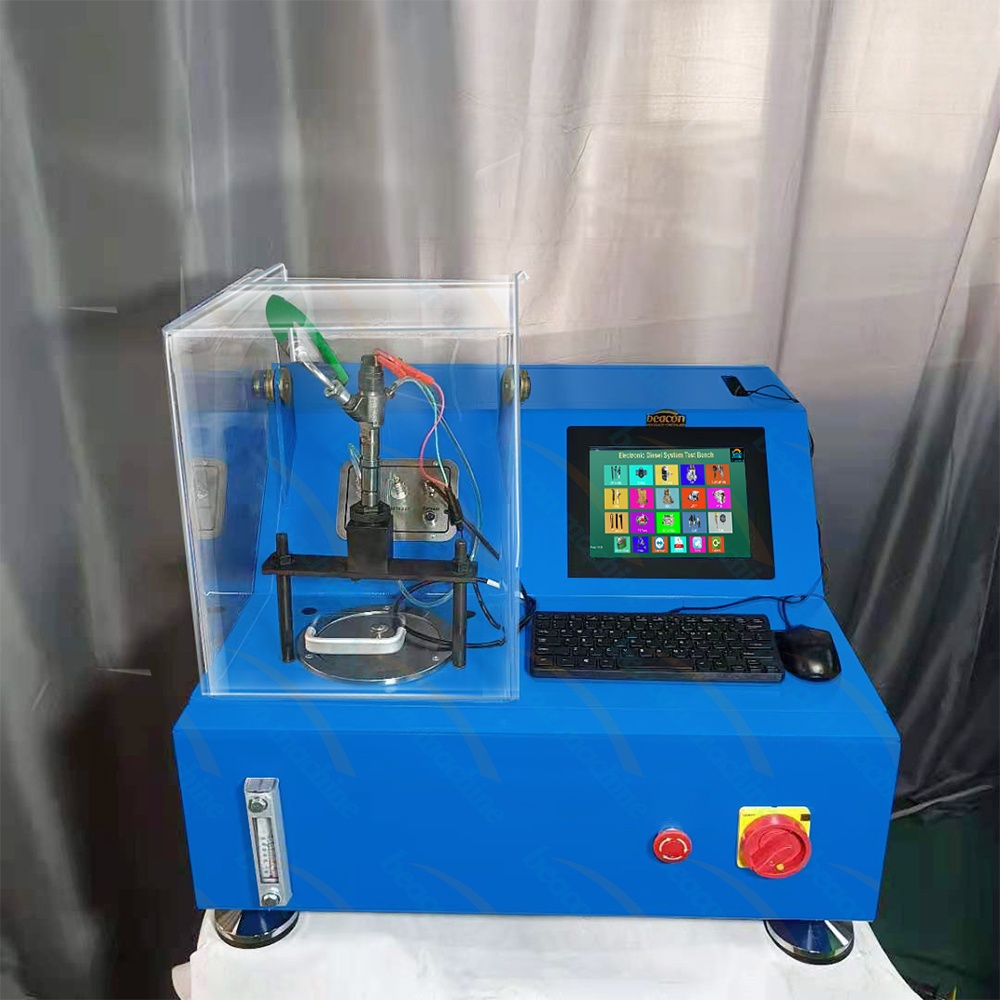

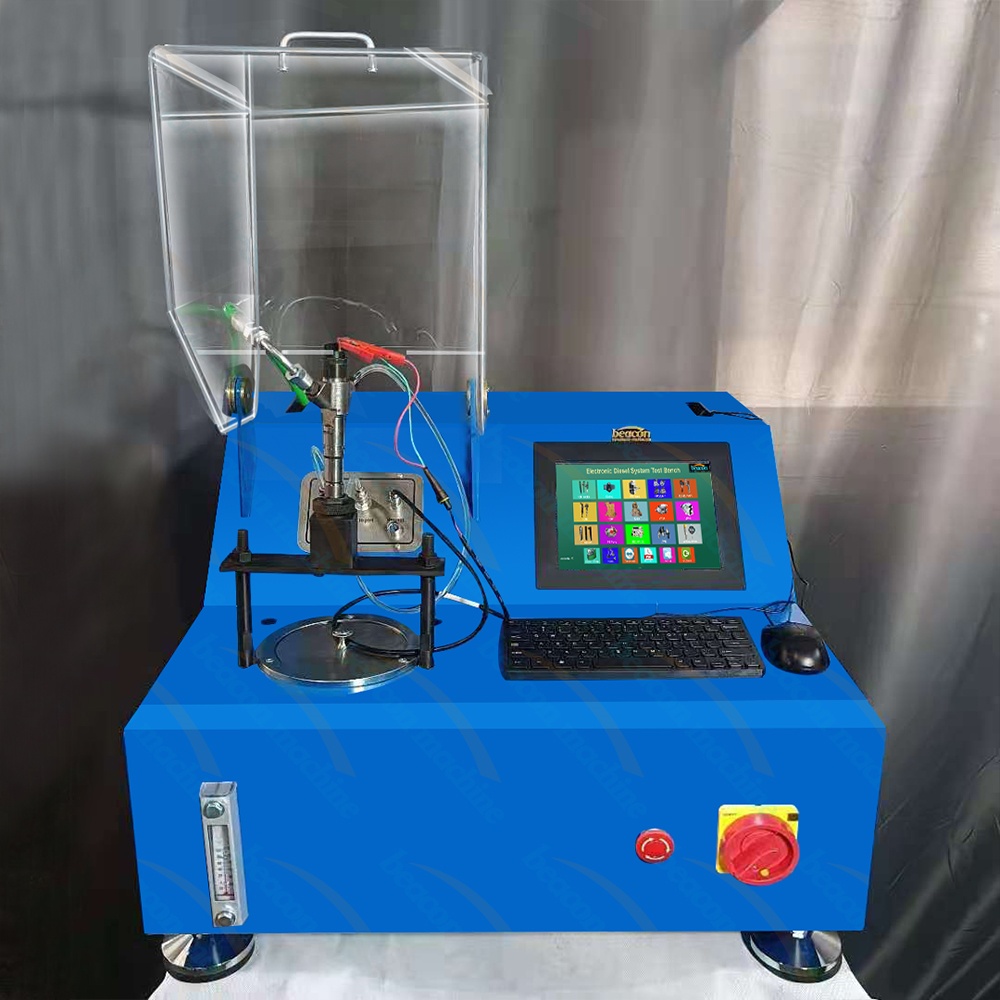

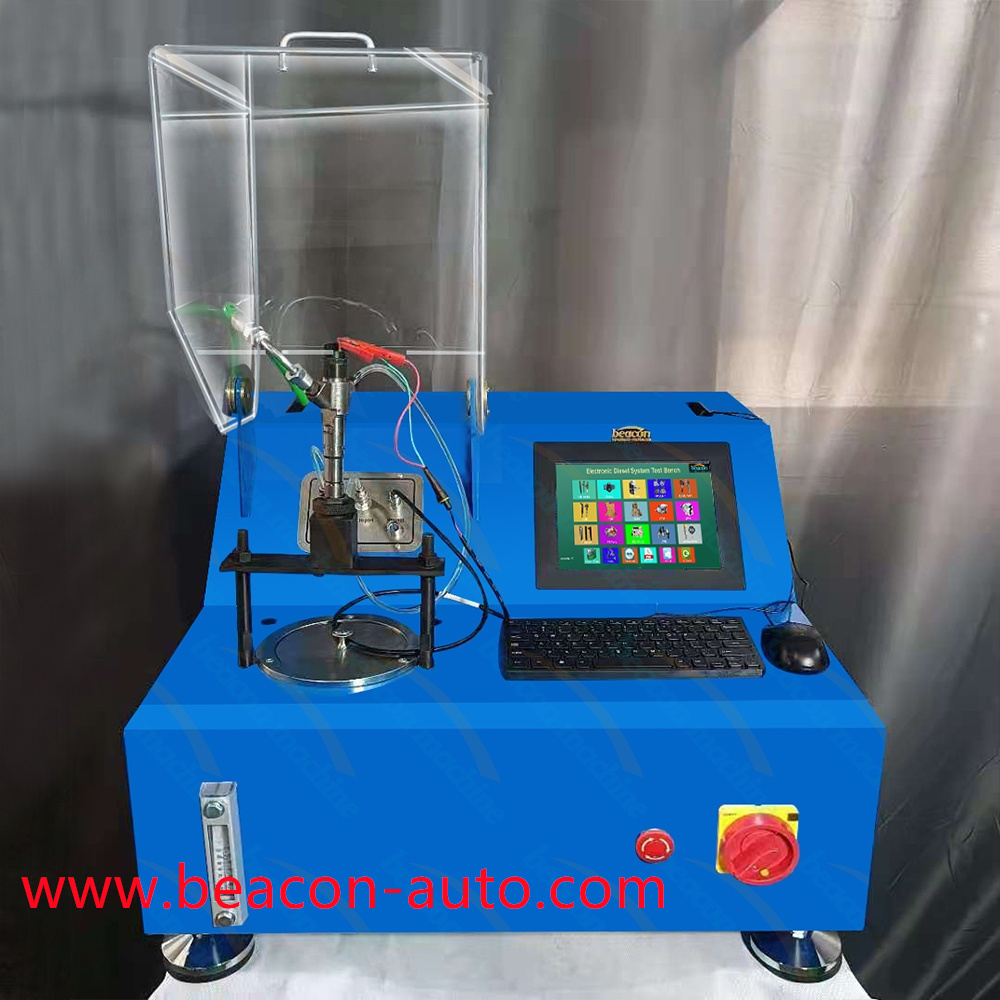

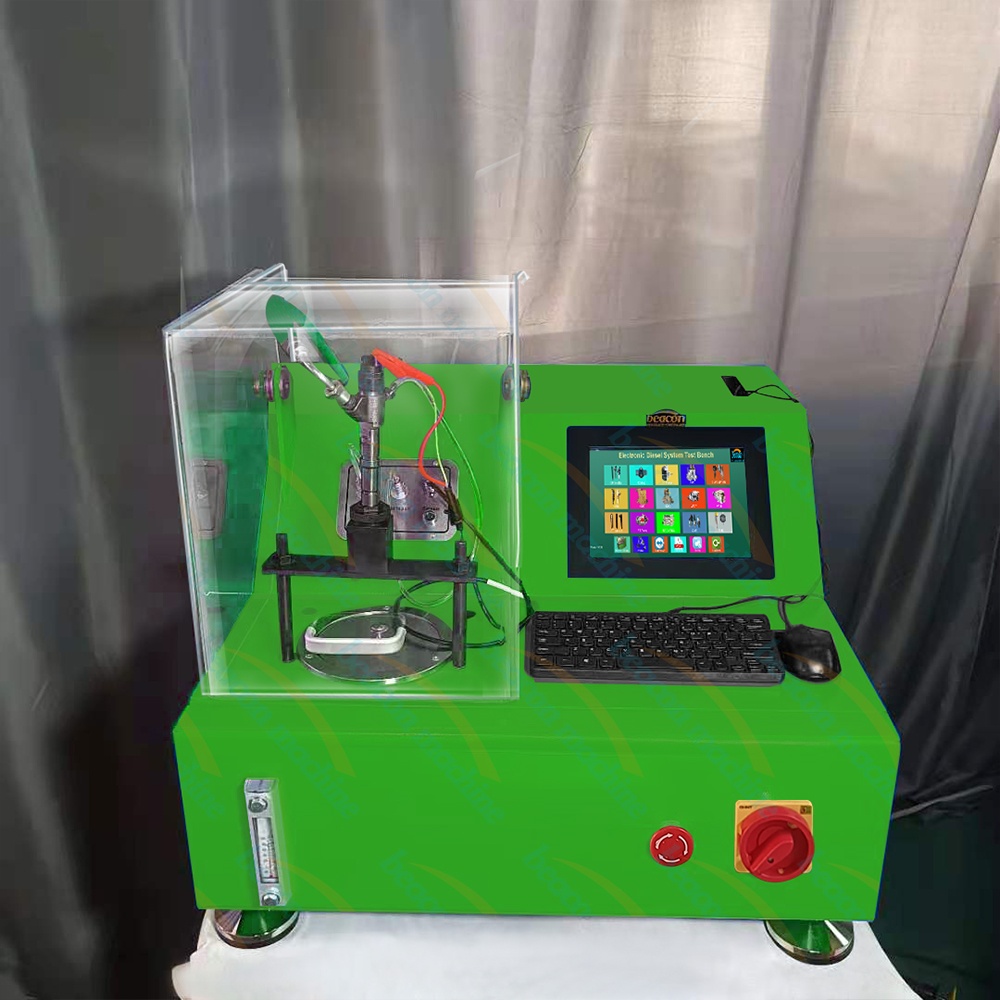

EPS200 Common Rail diesel Injector Tester

EPS200 common rail injector test bench can test all kinds of bosch ,denso ,delphi ,siemens ,VOD etc common rail injectors and piezo injectors , also can do injector coding function

Whatsapp: +86-18253885137

Tel / Wechat: 0086-18253885137

Email: franksong@beacon-machine.com

inquiry

Introduction

EPS200 Common Rail diesel Injector Tester

FUNCTION

1.Test injector brands:BOSCH, SIEMENS, DELPHI, DENSO.

2. Test 1 piece of injector.

3. Test the pre-injection oil quantity of common rail injector.

4. Test the max. oil quantity of common rail injector.

5. Test the cranking oil quantity of common rail injector.

6. Test the backflow oil quantity of common rail injector.

7.Test the average oil quantity of common rail injector.

8. Test the seal performance of common rail injector.

9. Data can be searched and saved.

10. Clean the common rail injector.

Common Rail Injector Data 7500+, Code 4000+

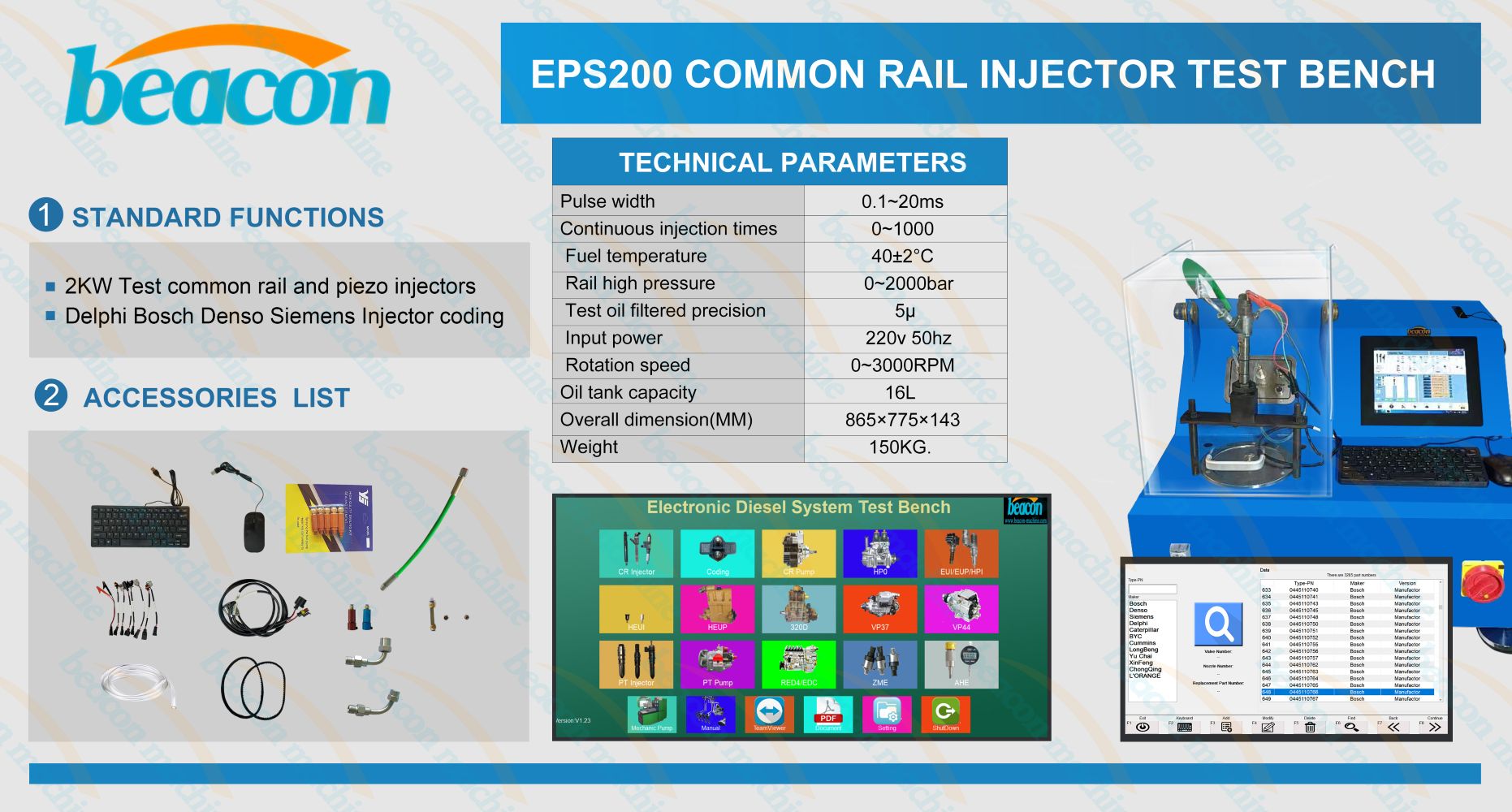

parameter

1. output power	2KW
2. power voltage	220V 1phase
3. motor speed:	0-3000RPM
4. Oil pressure	0-2000bar
5. flow measure range	0-600ml/1000times
6. flow measurement accuracy:	0.1ml
7. temperature control range	40+-2
8.Size	807580cm
