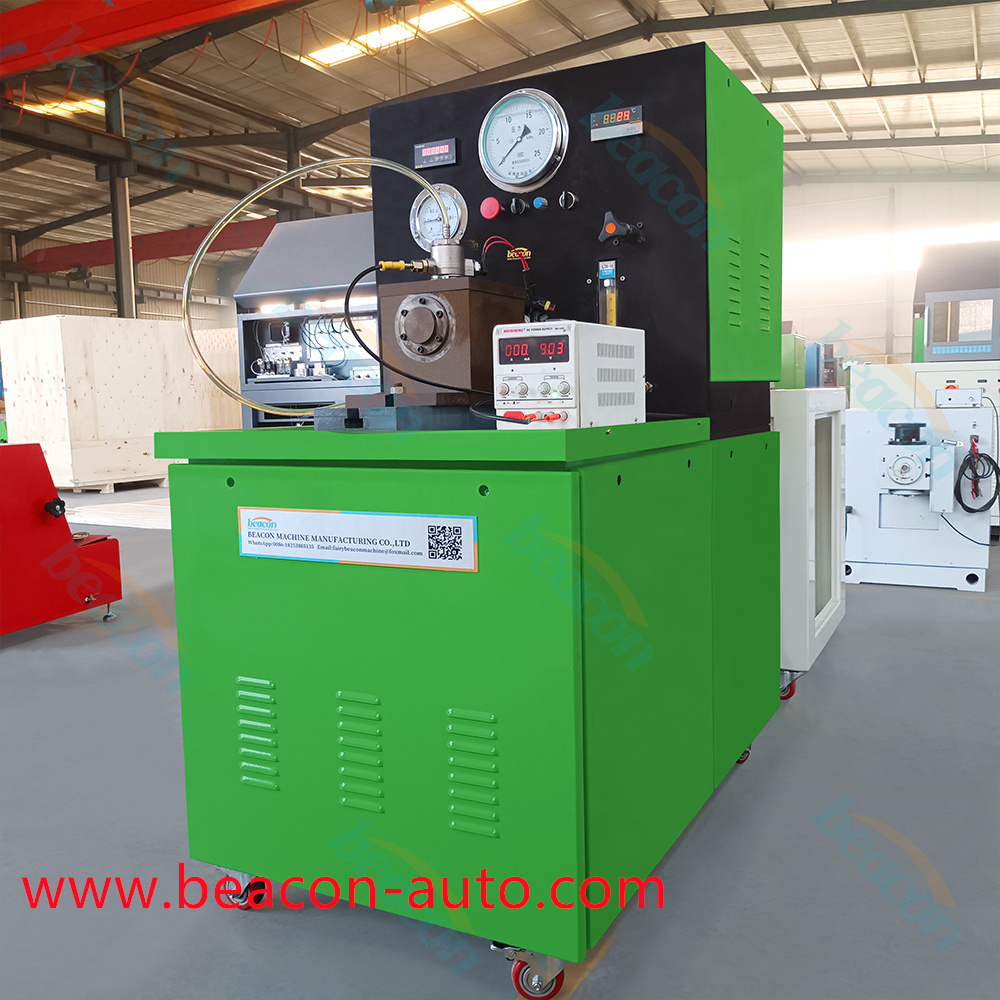

GDI101 Gasoline Fuel Pump Calibration test Bench

GDI101 Gasoline pump test bench is mainly used for the development, verification, and final production inspection of fuel high-pressure pumps (GDI pumps)

Whatsapp: +86-18253885137

Tel / Wechat: 0086-18253885137

Email: franksong@beacon-machine.com

inquiry

Introduction

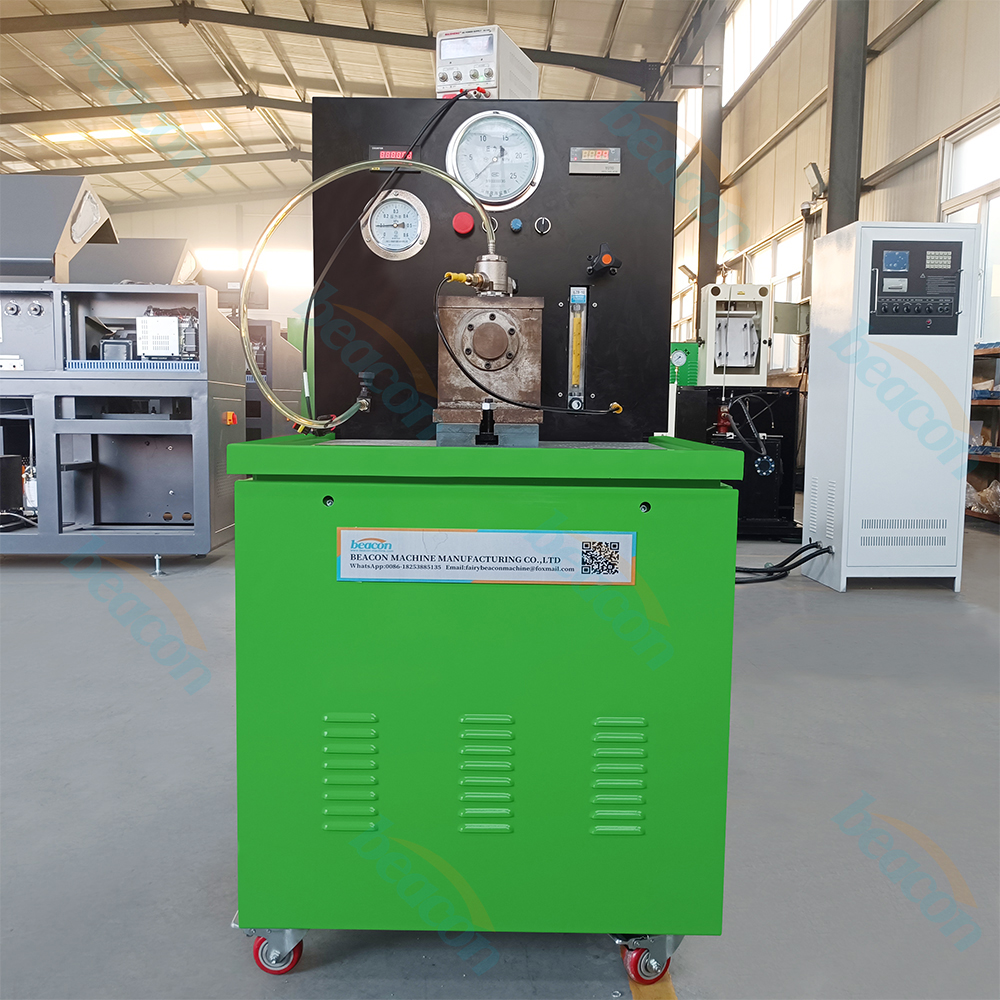

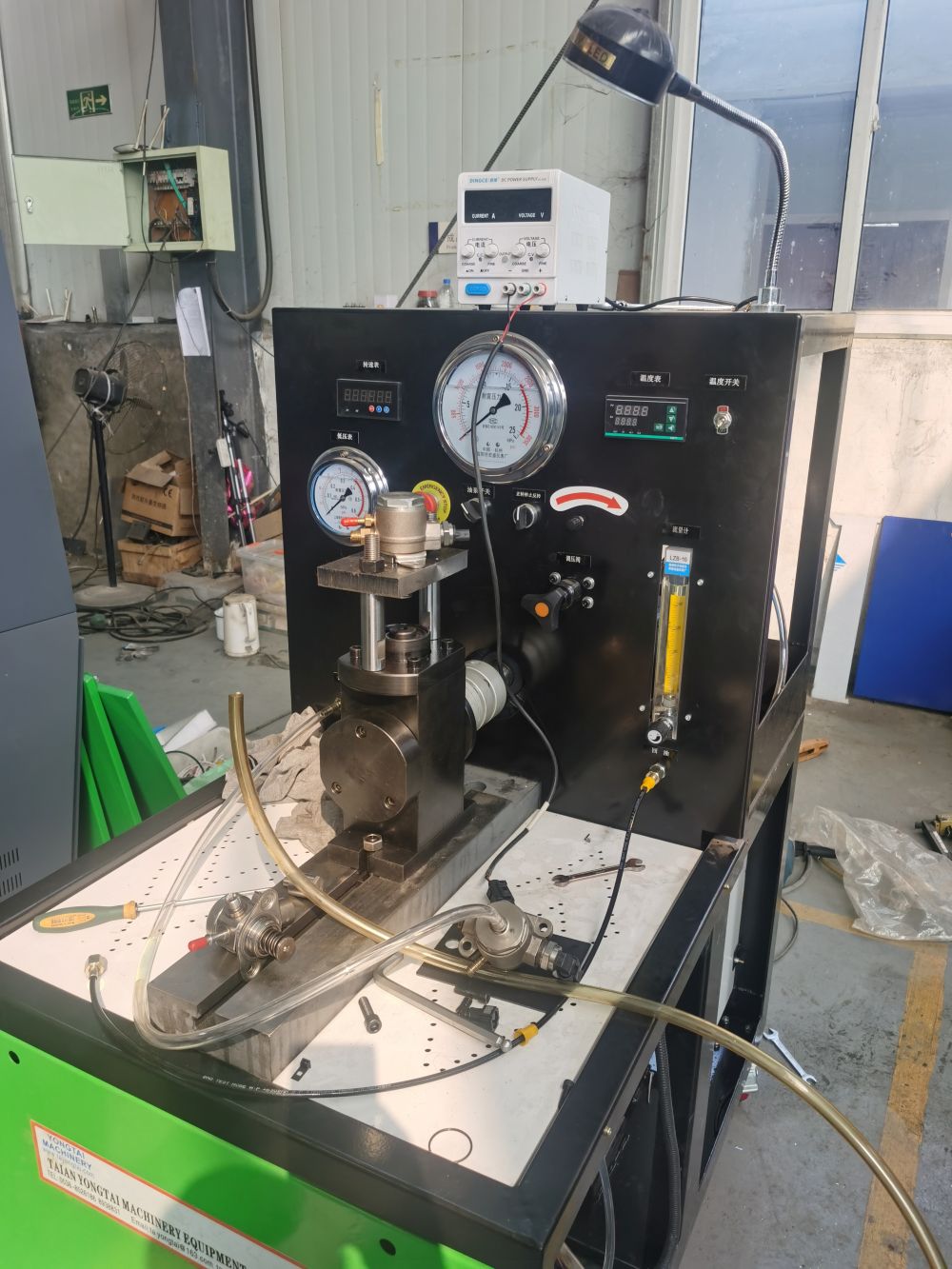

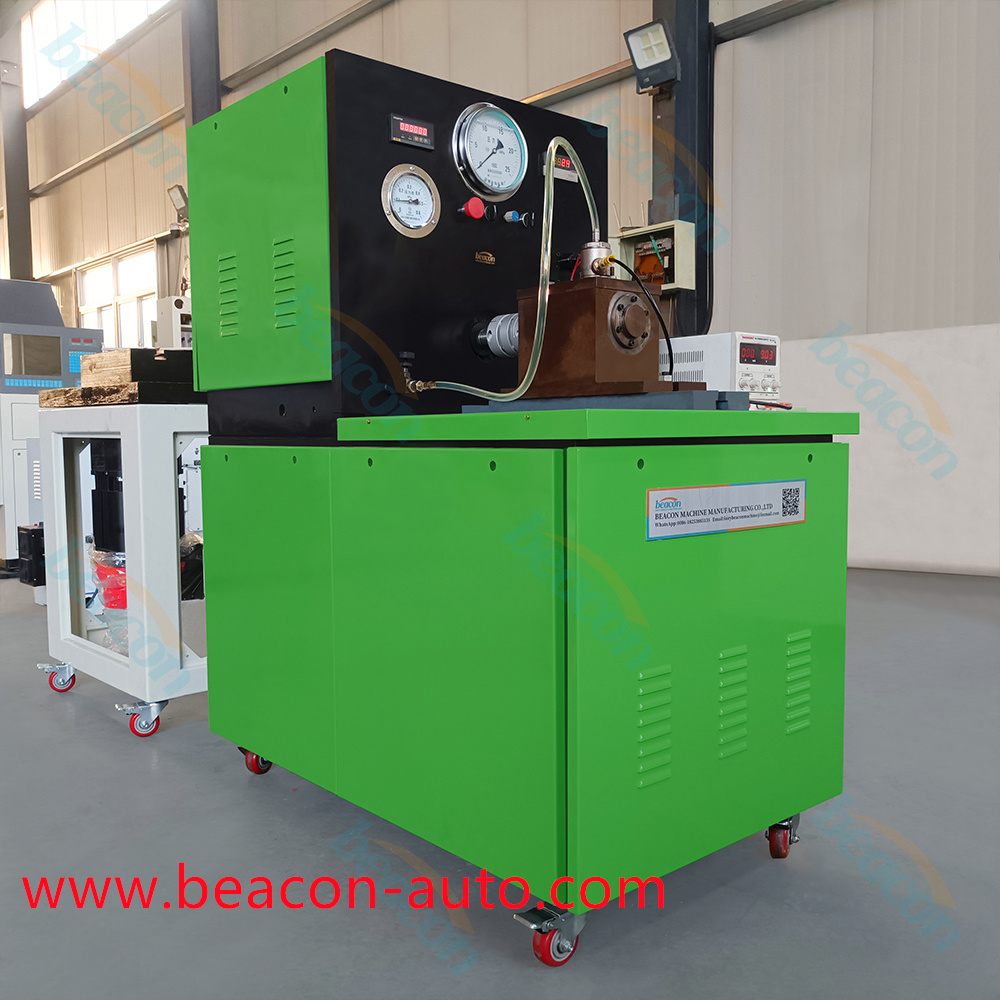

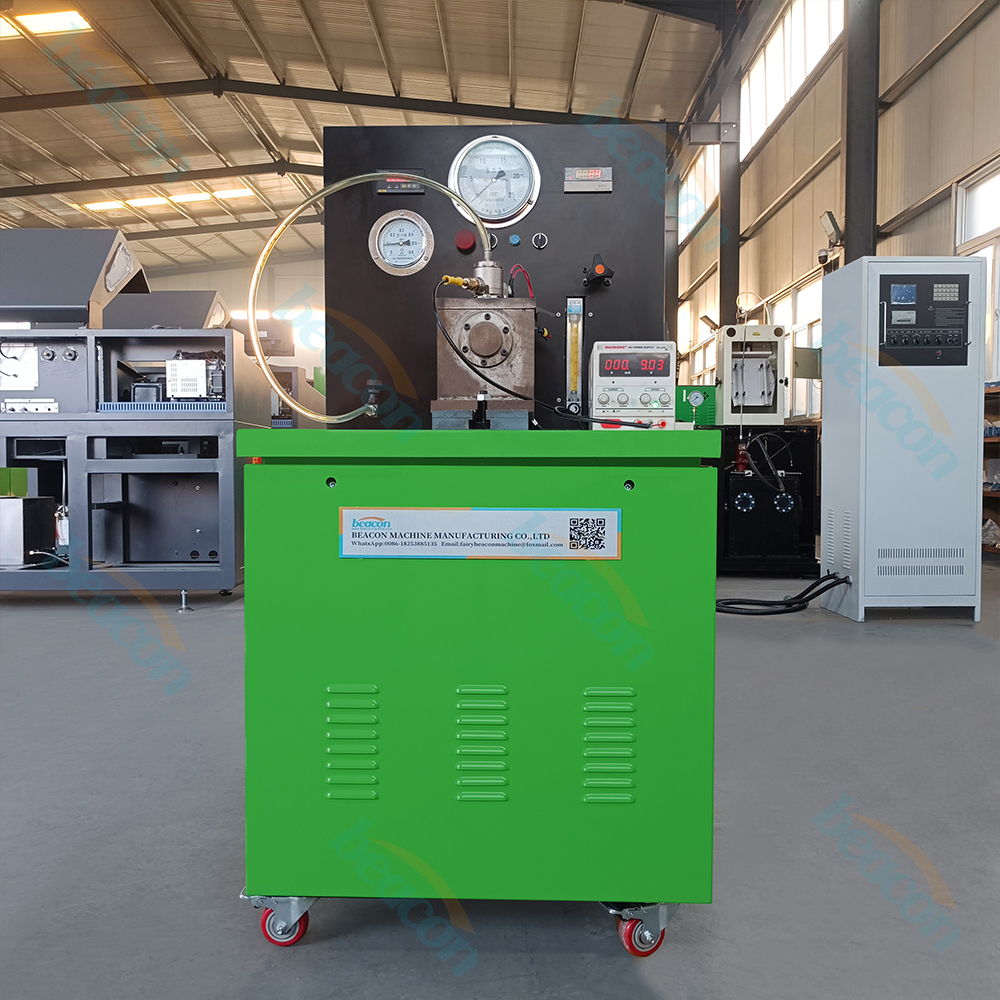

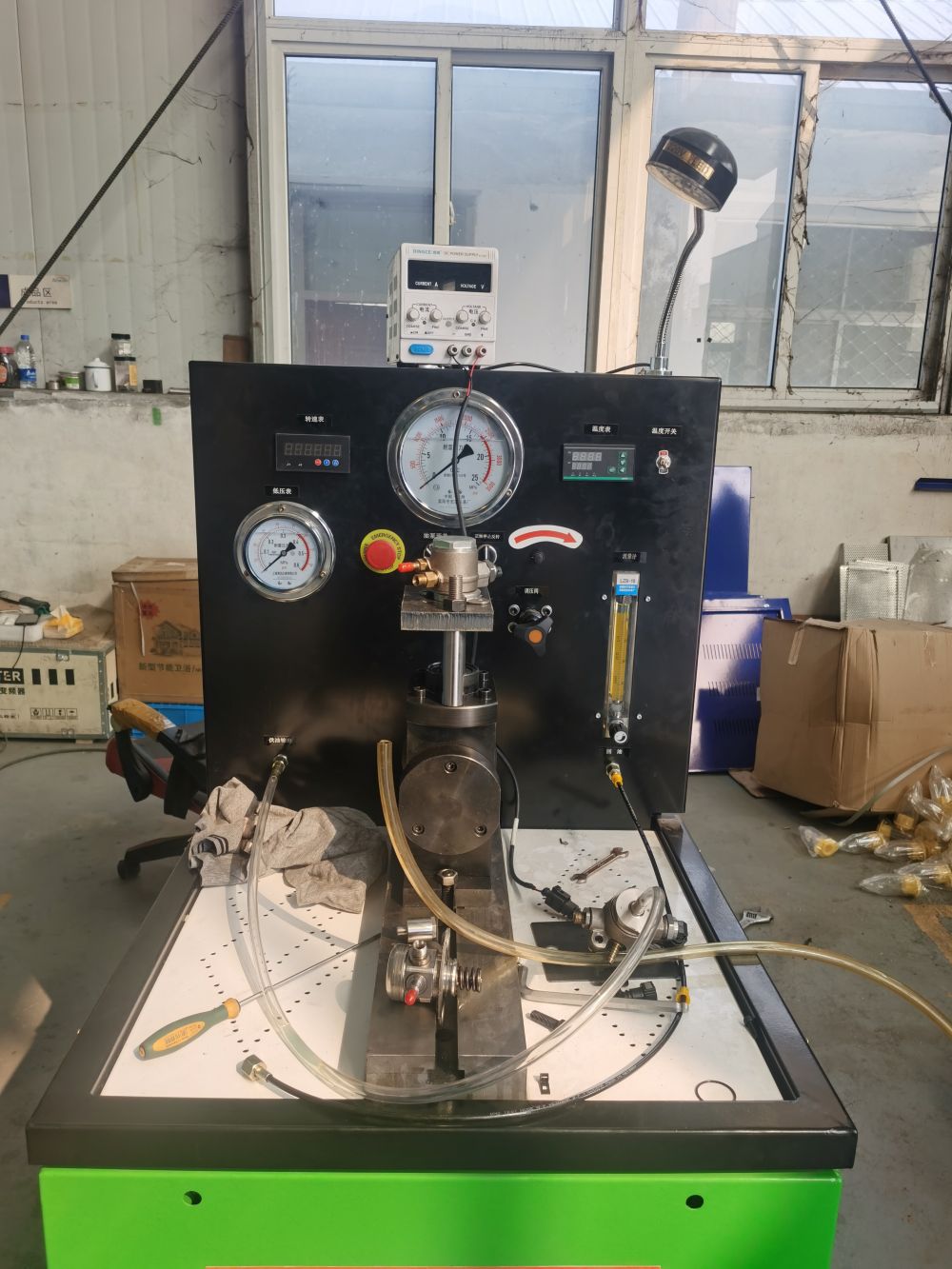

GDI101 Gasoline Fuel Pump Calibration test Bench

Introduction:

	The GDI101 high-pressure oil pump test bench is mainly used for the development, verification, and final production inspection of fuel high-pressure pumps (GDI pumps), and is also suitable for after-sales maintenance situations (there is also an optional economic test bench for maintenance purposes).

	Features： 1.Dual station inline layout (customizable for single station): can test one product simultaneously, with a testing time of 50 seconds;

	Test items: Boosting capacity, holding capacity,PRV opening pressure.

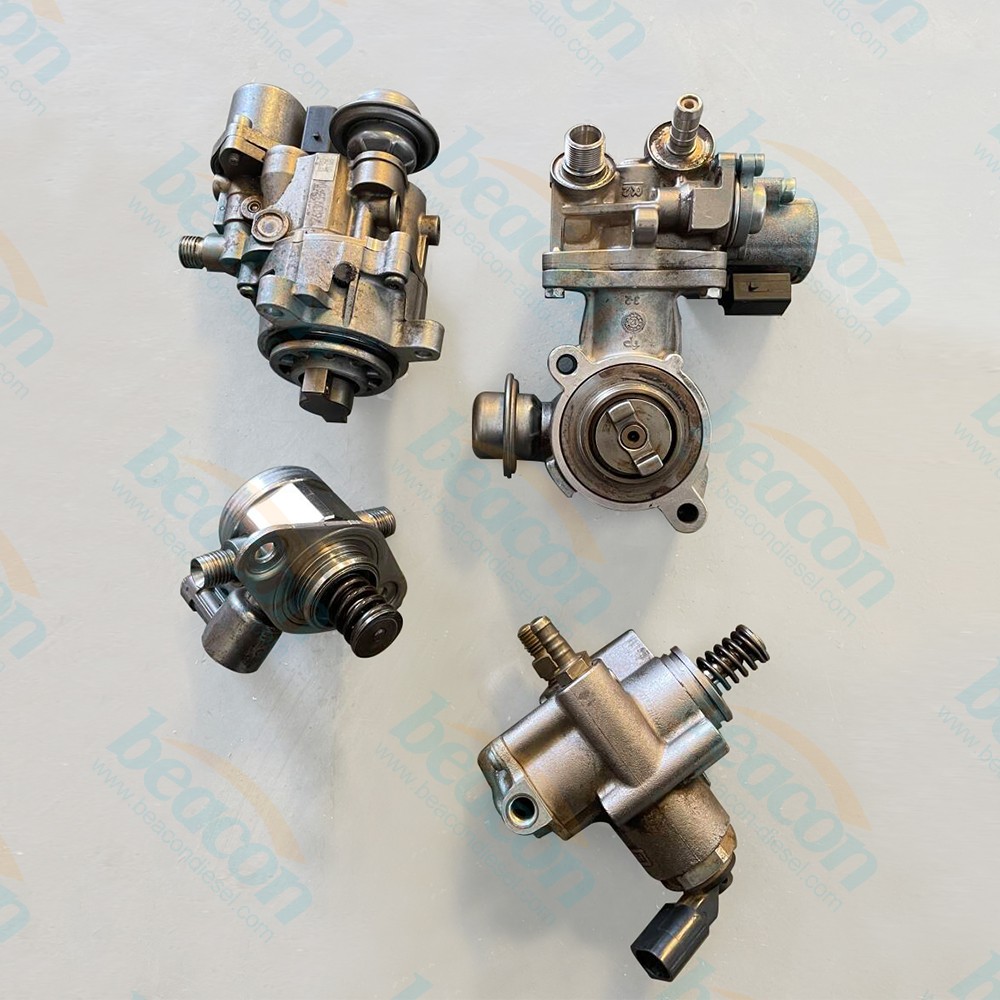

	2. Applicable product types: Compatible with normally closed and normally open fuel pumps from brands such as Bosch.Hitachi, Delphi, etc; 3.Three stage filtration of testing fluid: supply filtration,high-pressure filtration, and reflux filtration, all of which are replaceable filter elements, extending the service life of testing fluid,reducing equipment failures, and saving equipment maintenance costs

parameter

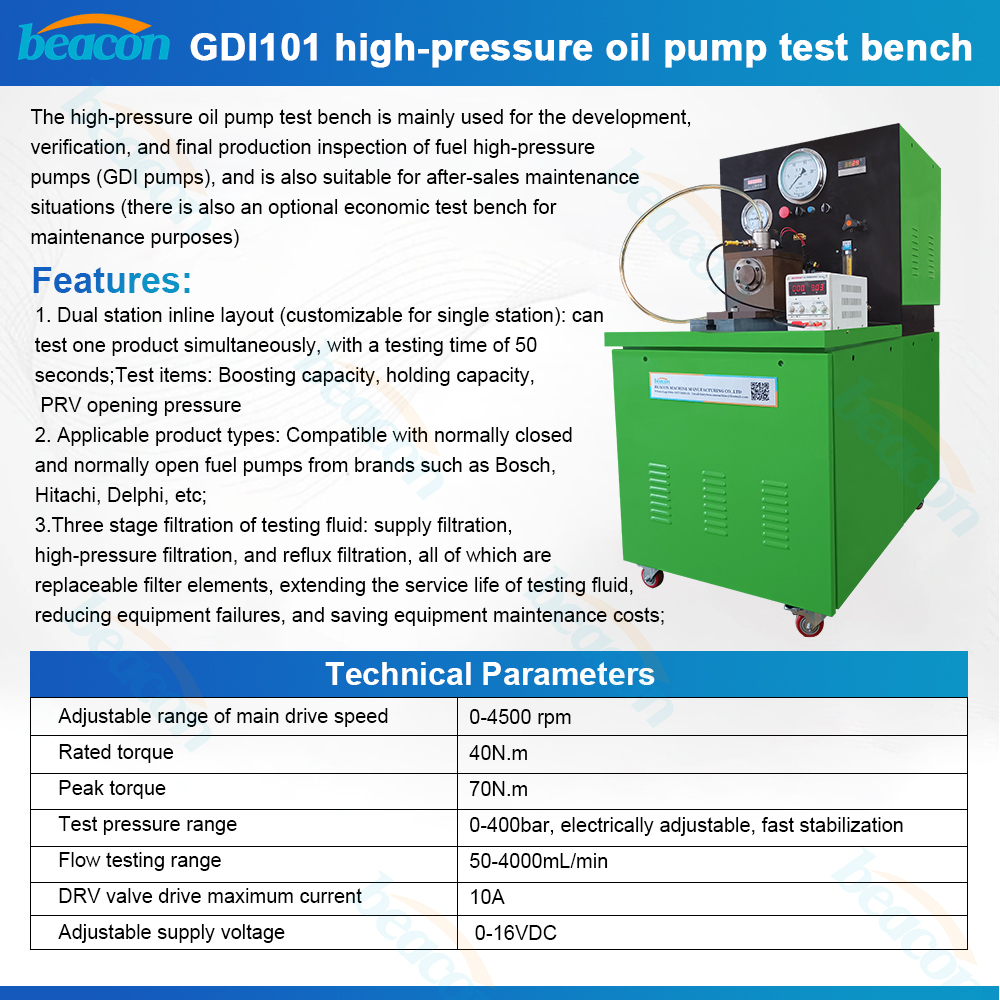

						Technical Parameters:


Adjustable range of main drive speed	0-4500 rpm
Rated torque	40N.m
Peak torque	70N.m
Test pressure range	0-400bar, electrically adjustable, fast stabilization
Flow testing range	50-4000mL/min
DRV valve drive maximum	10A
Adjustable supply voltage	0-16VDC
