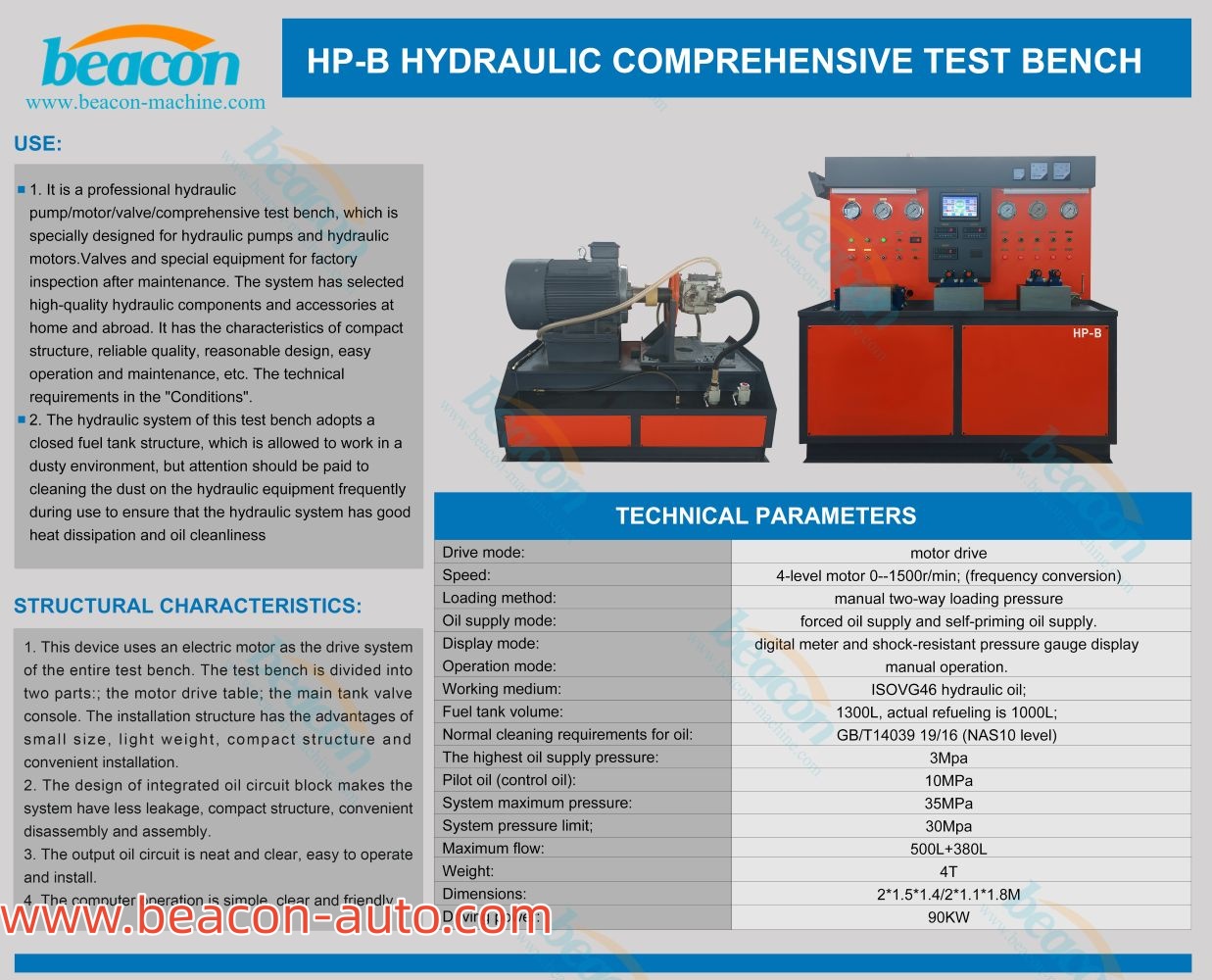

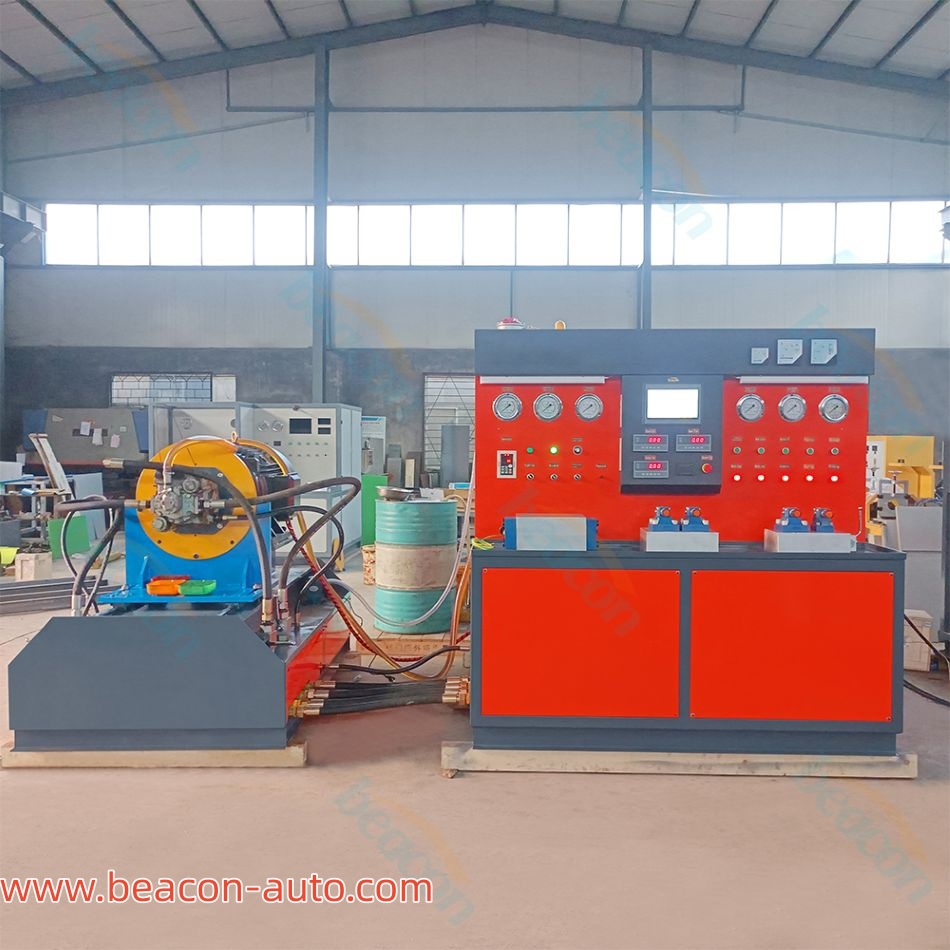

HP-B Hydraulic Pump Motor Valve Test Bench
HP-B hydraulic pump test table is for characteristic tests of single and double hydraulic pumps, open and closed hydraulic pumps, and hydraulic motors
Introduction
HP-B Hydraulic Pump Motor Valve Test Bench
Test projects:
1. Displacement inspection test: no-load pressure and displacement measurement.
2. Volumetric efficiency test: measure the volumetric efficiency under rated working conditions.
3. Overload test: Maximum displacement, nominal speed, 110% of rated pressure or operation for less than 1 minute at maximum pressure.
4. External leakage: In the above test, check the leakage of the sealing part.
5. The system pressure can reach 35MPa.
parameter
1. Drive mode: motor variable frequency drive, power 75kw+15KW
2. Speed adjustment method: variable frequency speed adjustment 0-3000r/min.
3. Loading method: Manual dual-channel loading 35MPa. Dual pumps can be tested simultaneously.
4. System maximum flow ≦380L/min
5. The maximum flow rate of the auxiliary system is ≦7.5L/min, and the maximum pressure of the auxiliary system is 16.5MPa.
6. Equipment operating environment temperature range: 0-60℃
7. Equipment power requirements: AC380V (315A)
9. Test components: mainly test open hydraulic pumps and closed pumps. Auxiliary testing of hydraulic valves, hydraulic cylinders, etc.
10. Left-hand pump and right-hand pump; both can be tested
11. Provide an oil filter pump to recover leaked oil.
12. The 4-stage filtration of the inlet and return oil filter has an alarm function.
13. Fuel tank volume: 1 cubic meter
14. The seller is not responsible for the on-site installation and debugging of the equipment.

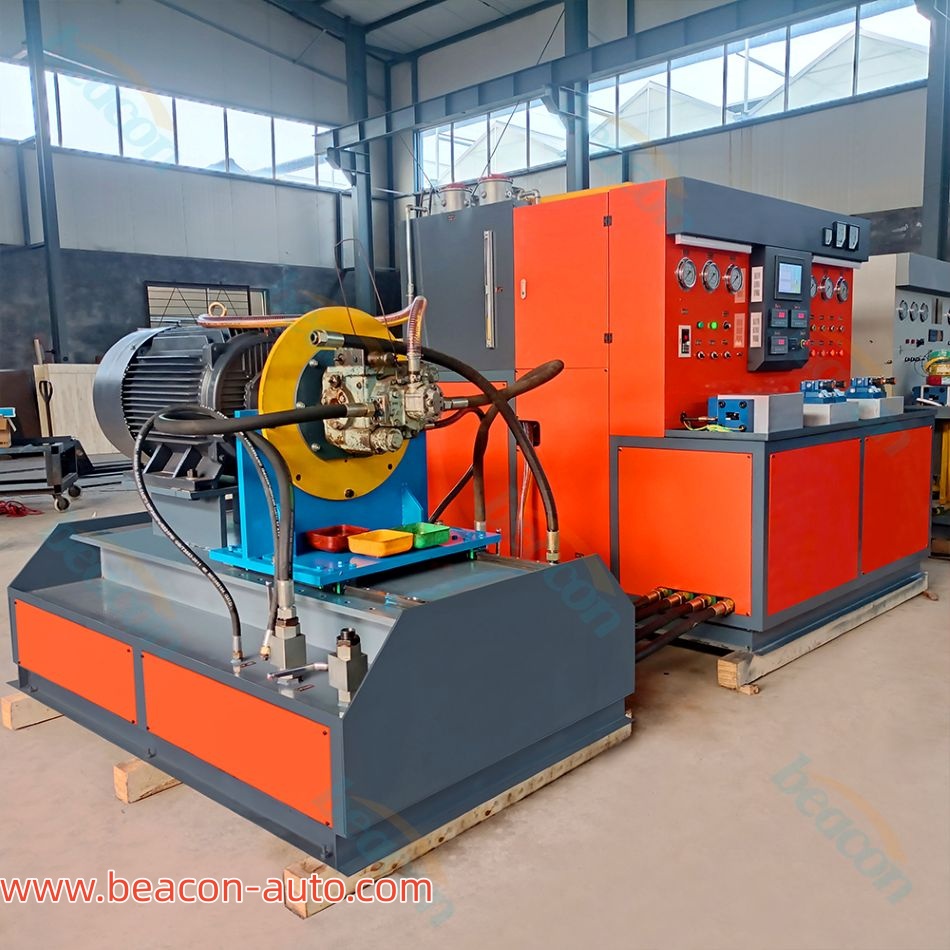

15. The main color of the equipment is: orange
16. Pilot oil supply motor power 3KW

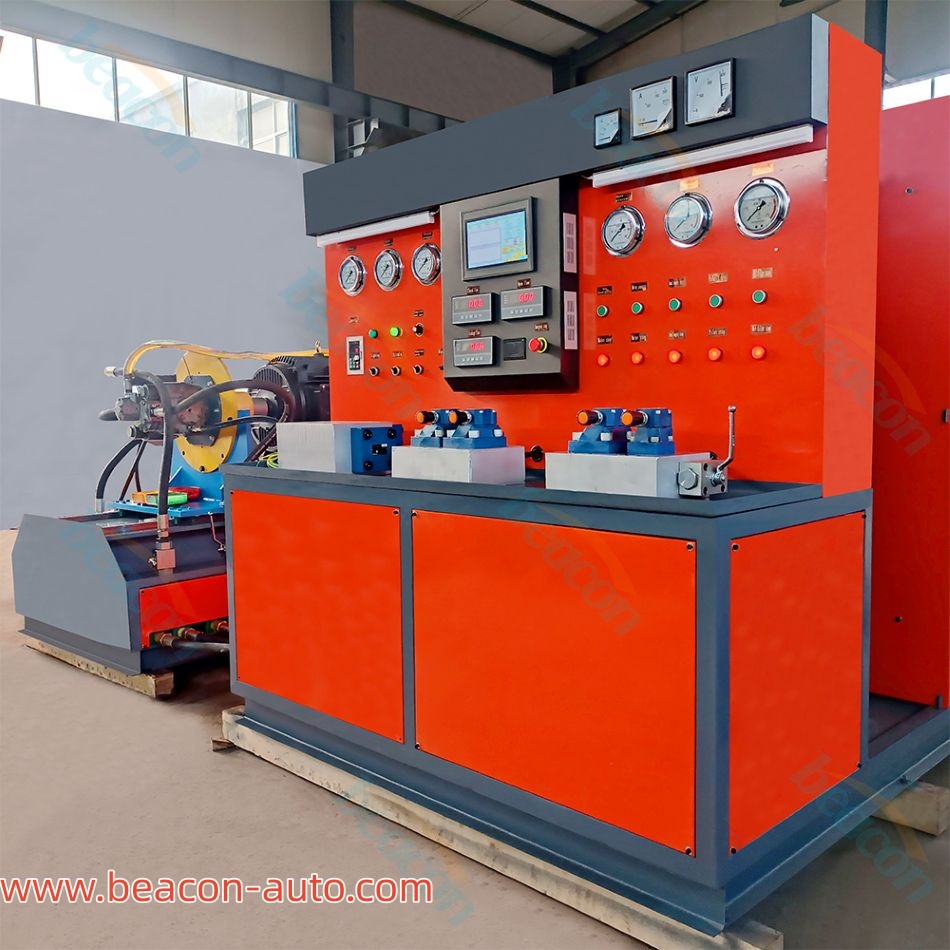

17. There are 8 pressure gauges
18. Hydraulic pump, hydraulic motor bench
