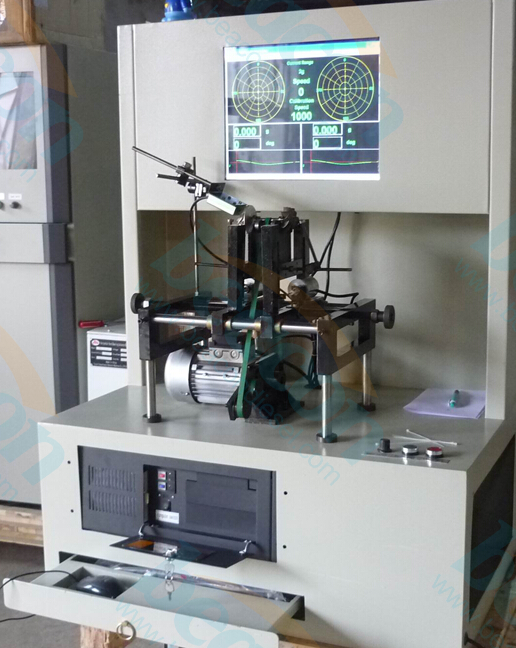

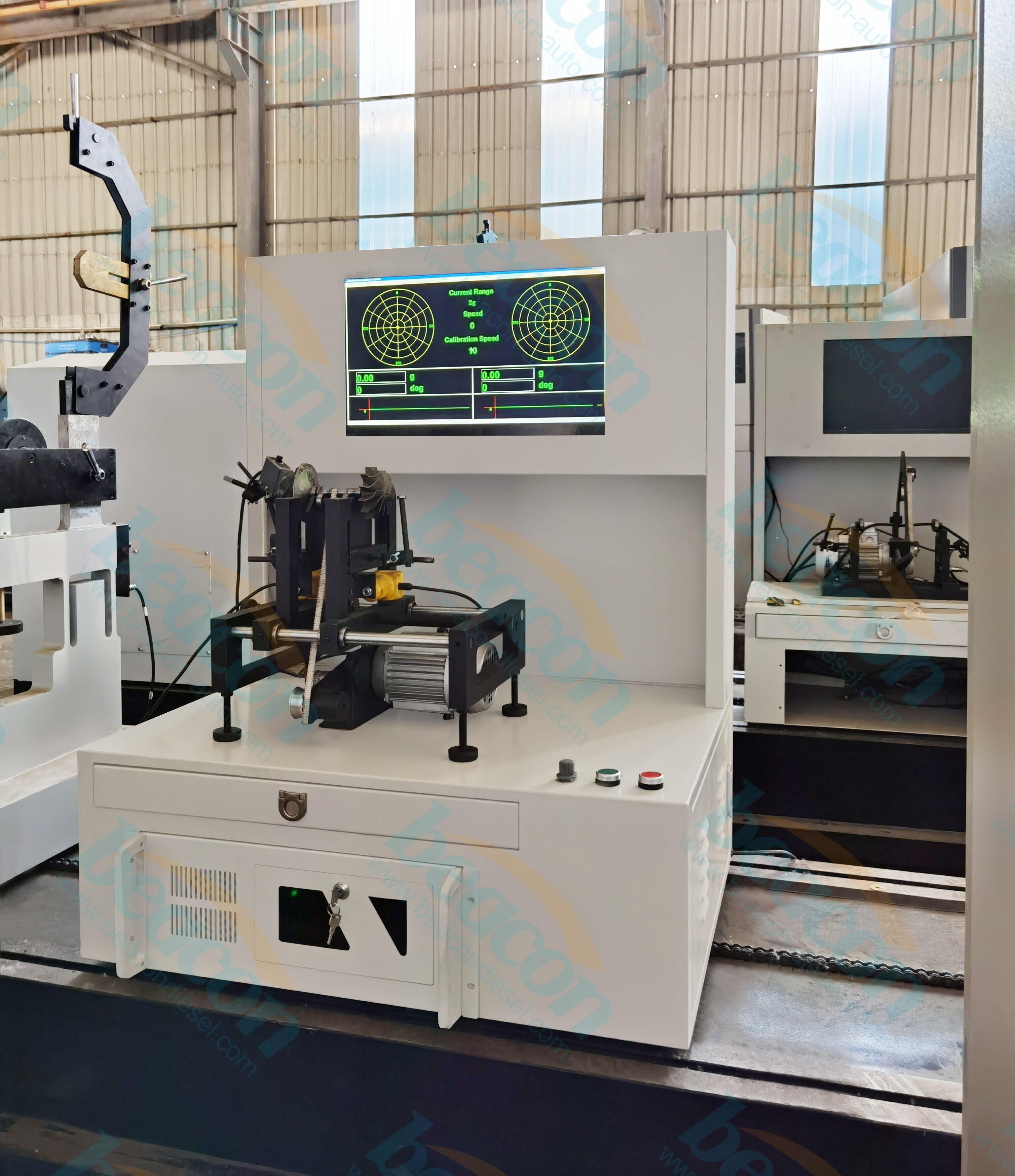

RYQ-10A Automobile Turbocharger Dynamic Balancing Machine

RYQ-10A turbocharger balance machine can balance different small sizes and small weights turbocharger fans and rotors etc

inquiry

1. Workpiece quality range:0.3-10KG

2. Maximum diameter of workpiece:350mm

3. Distance between two supports:30-450mm

4. Range of shaft diameter at support:4-17mm

5. Diameter range of the circle where the belt is dragged:≤150mm

6. Balance speed:400-3000r/min when drag diameter is 50mm

7. Minimum attainable residual imbalance:≤0.5g.mm/kg

8. Unbalance reduction rate:≥90%

9. Motor power:0.18KW

10. Speed adjustment method:Frequency

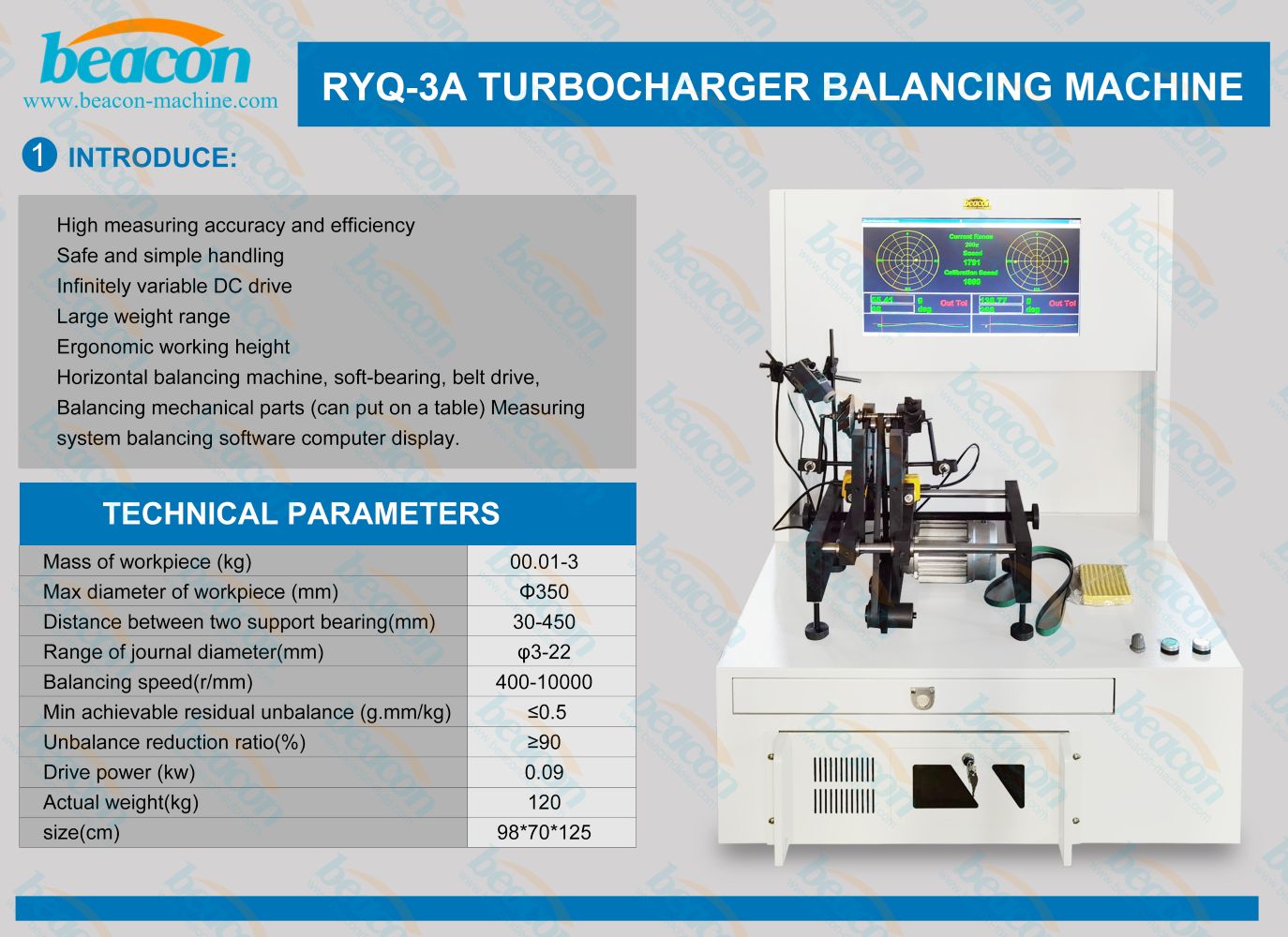

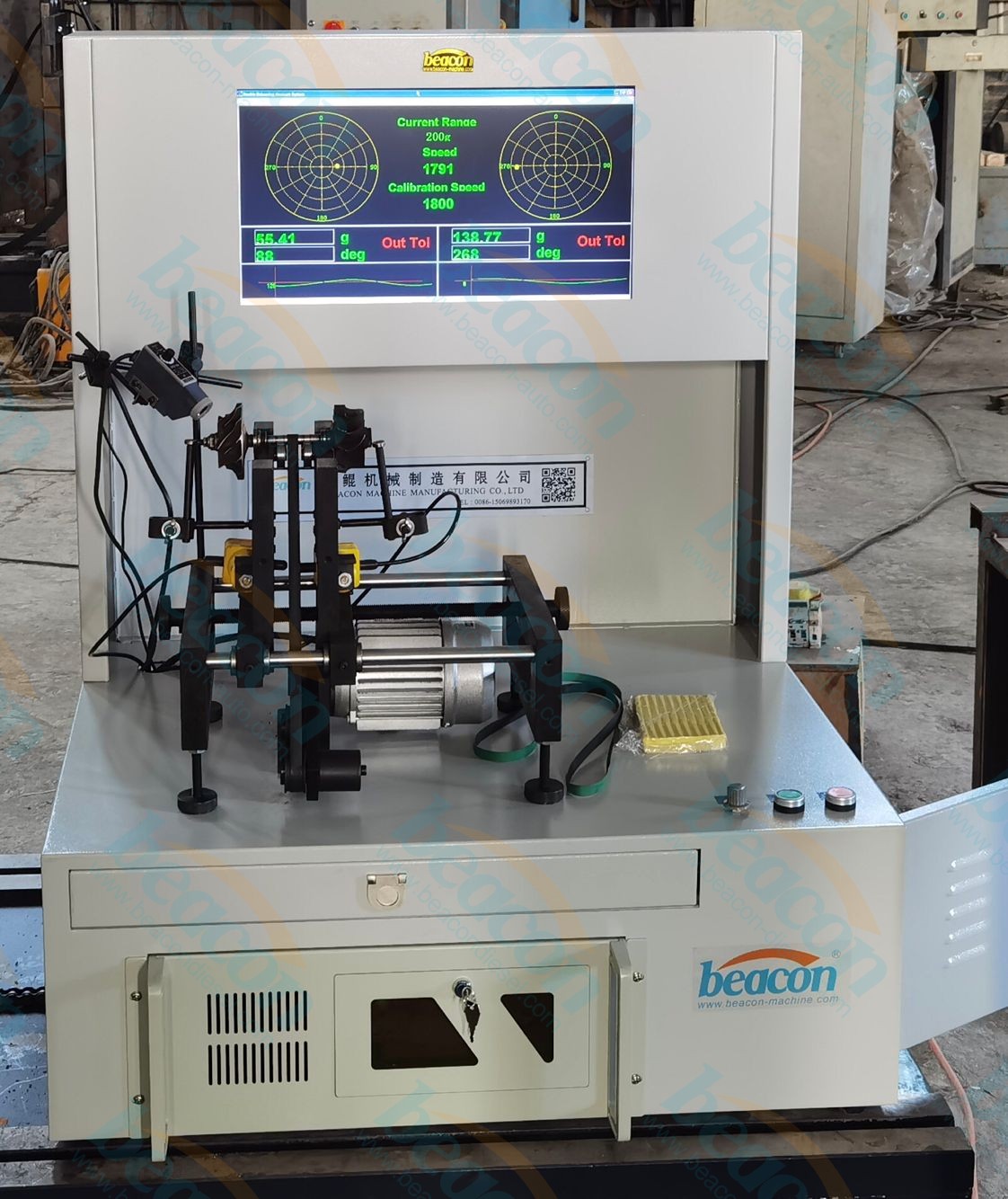

RYQ-3A turbocharger balancing machine
