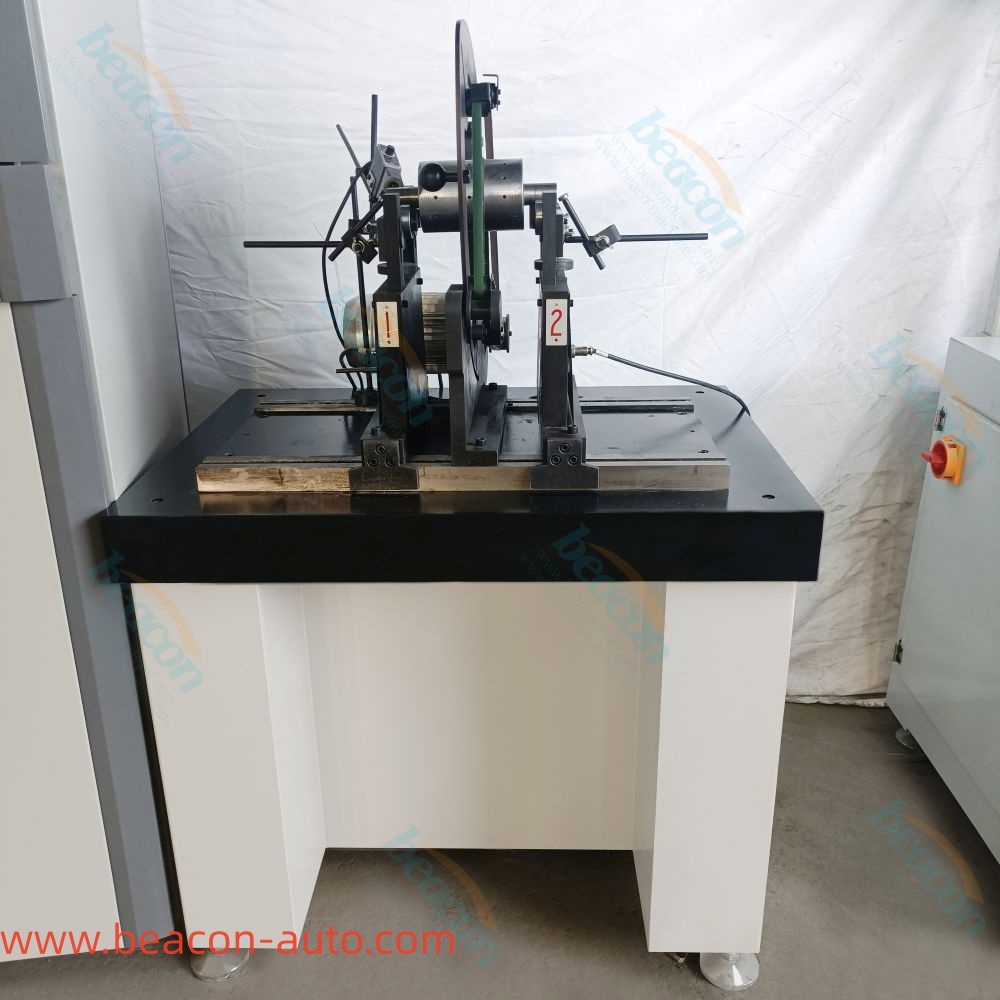

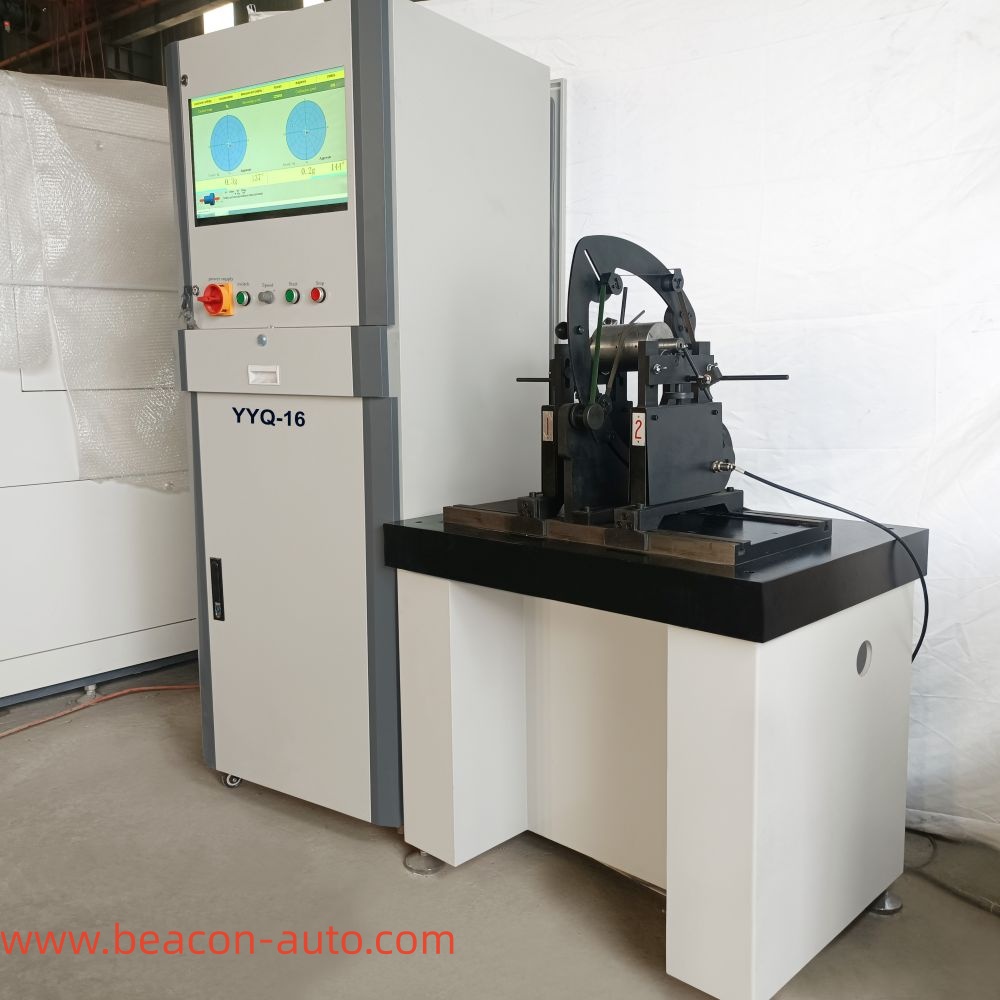

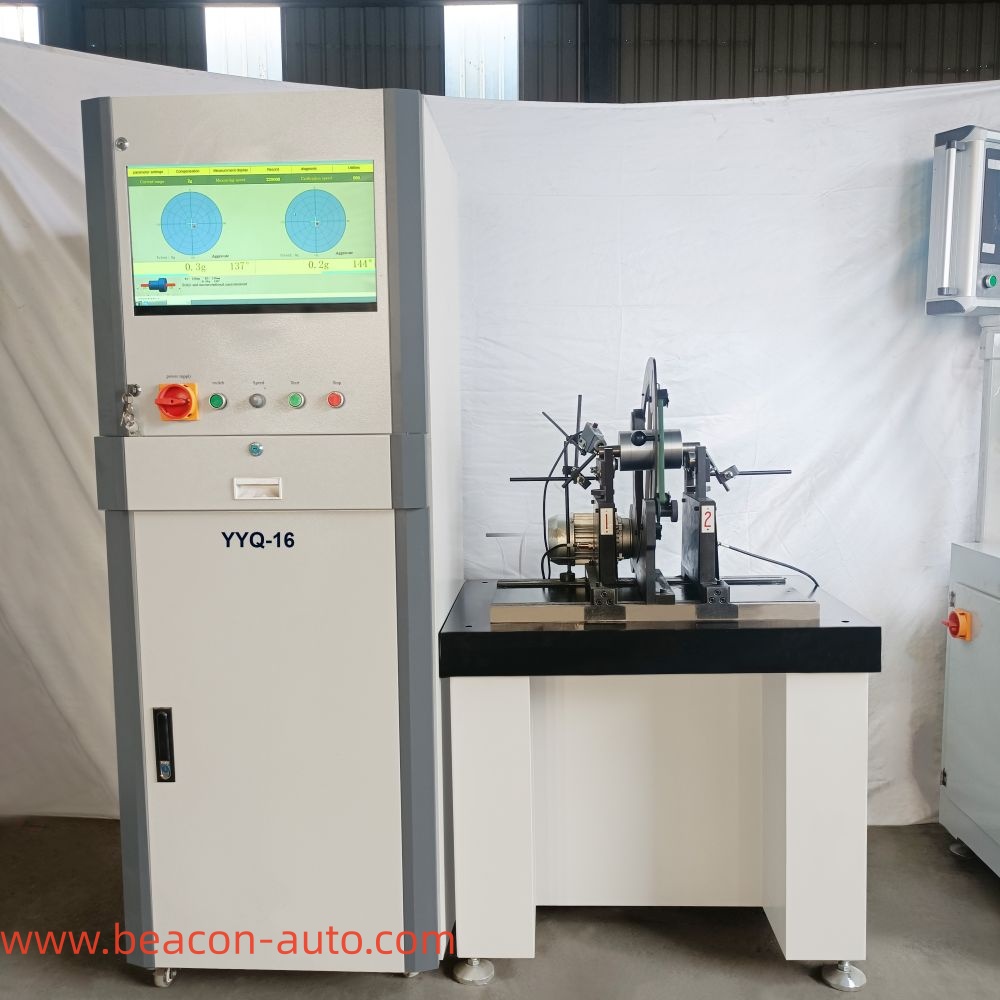

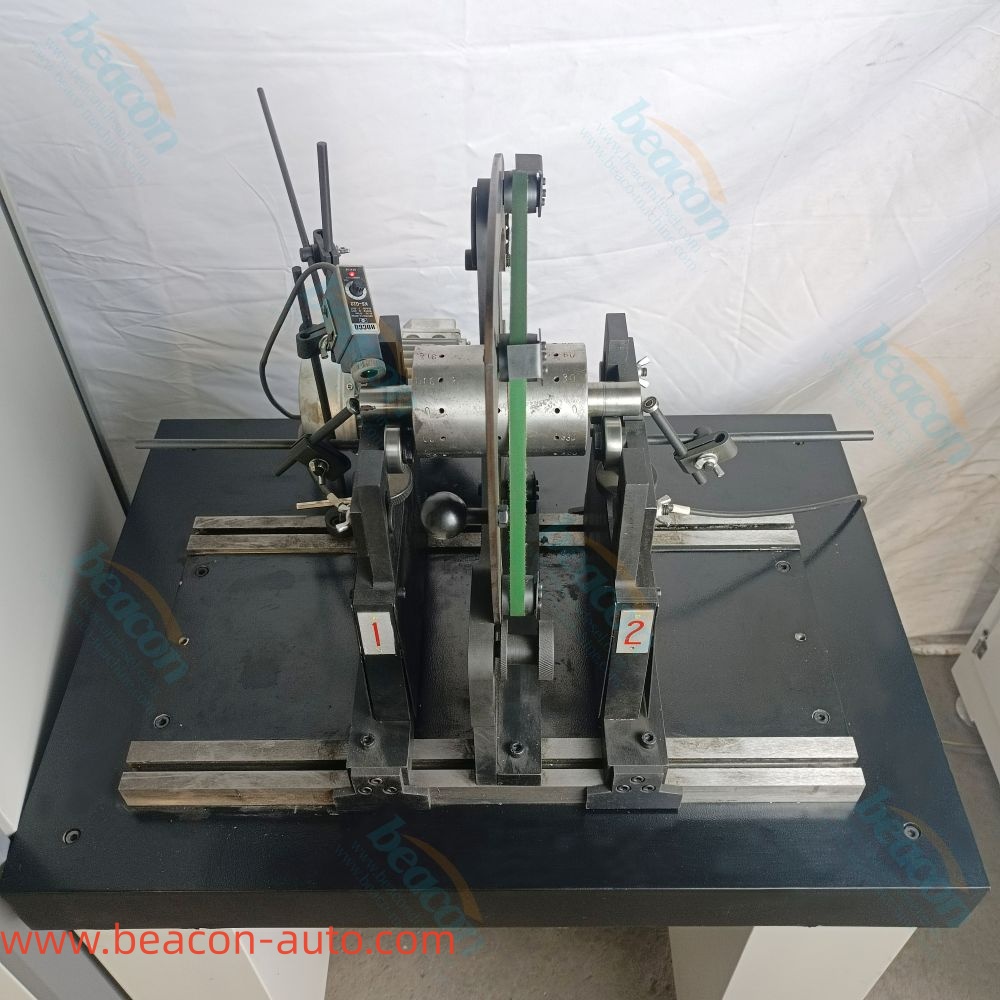

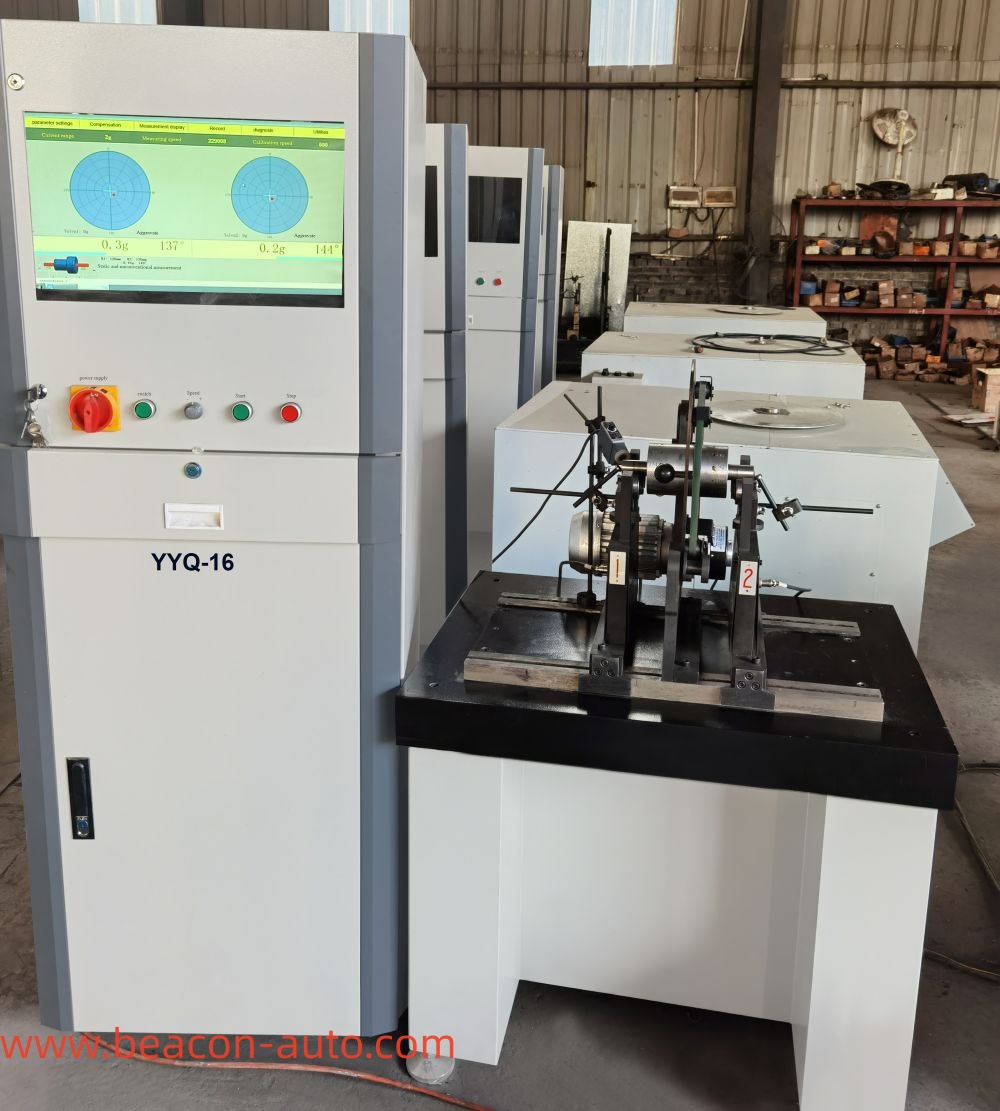

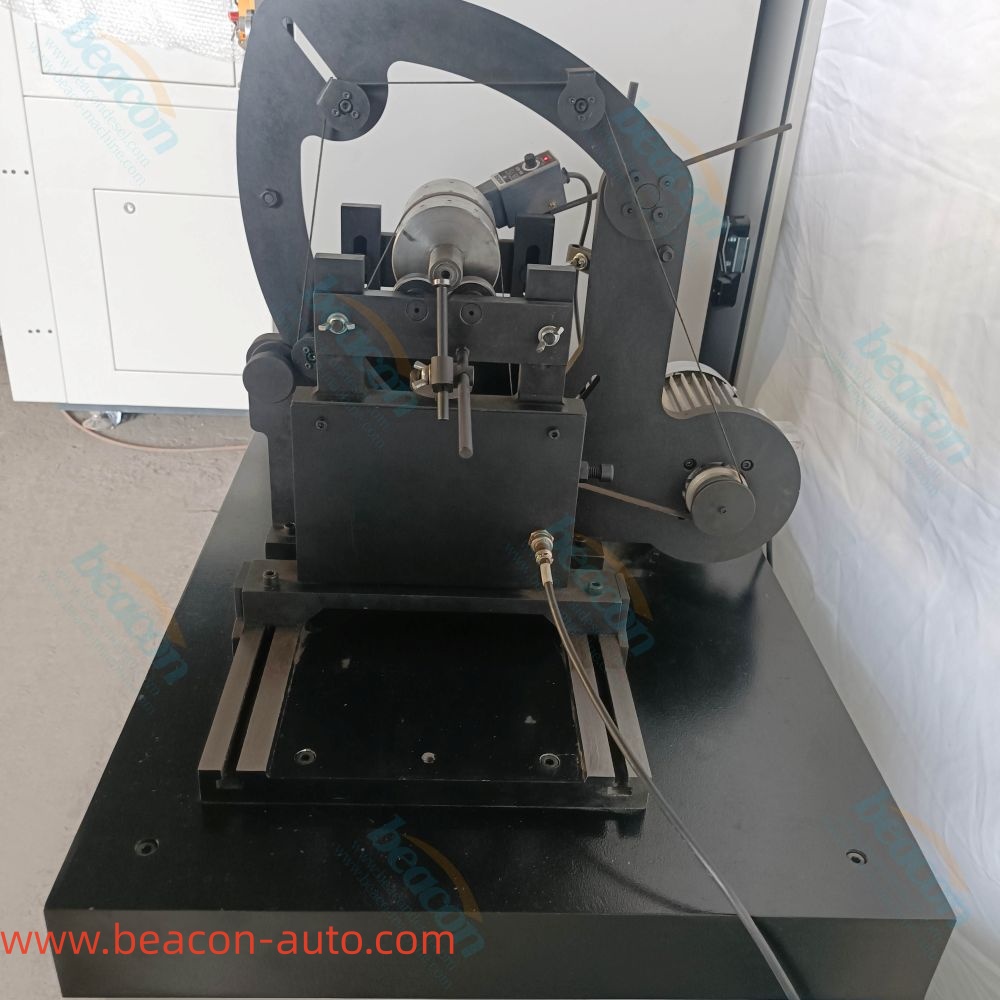

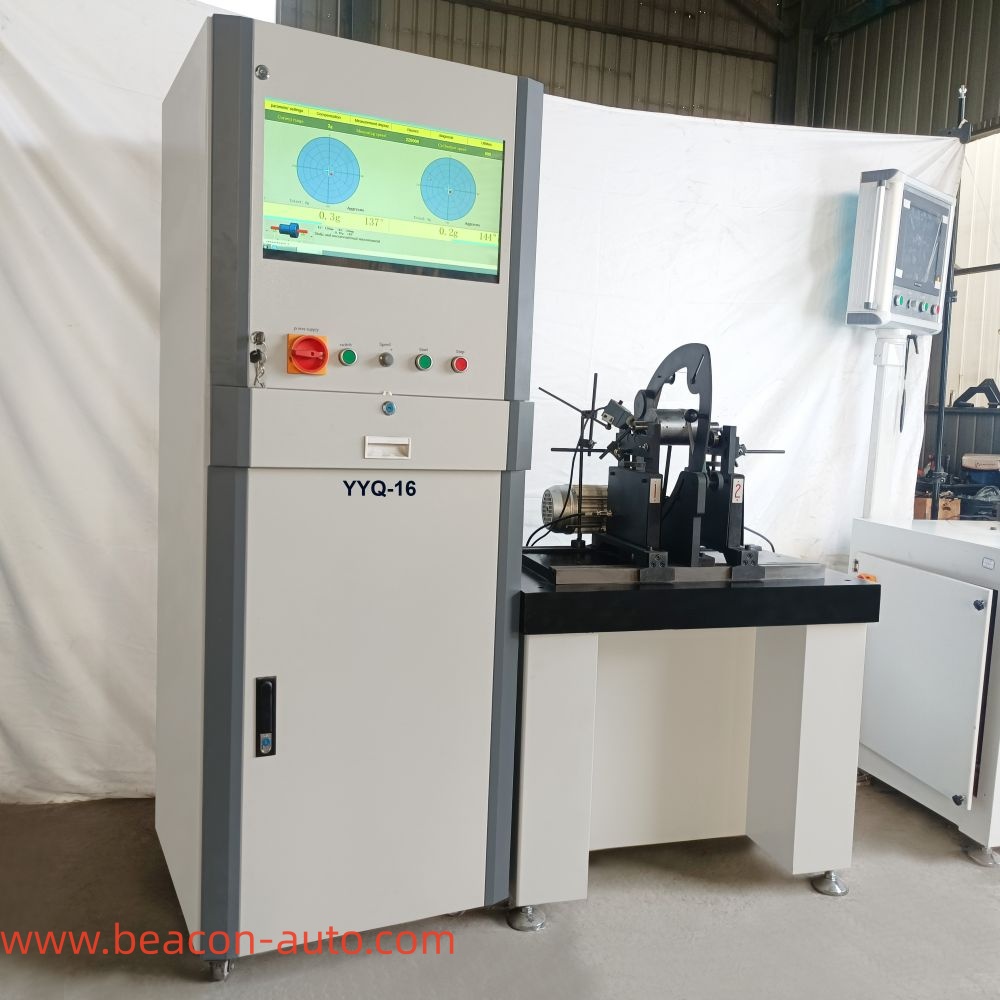

YYQ-16A High Speed Belt Drive Balancing Machine

 YYQ-16A High Speed Belt Drive Balancing Machine

Model:YYQ-16A

The measuring time:10s (measurement cycle can be arbitrary set).
Software version:Windows XP

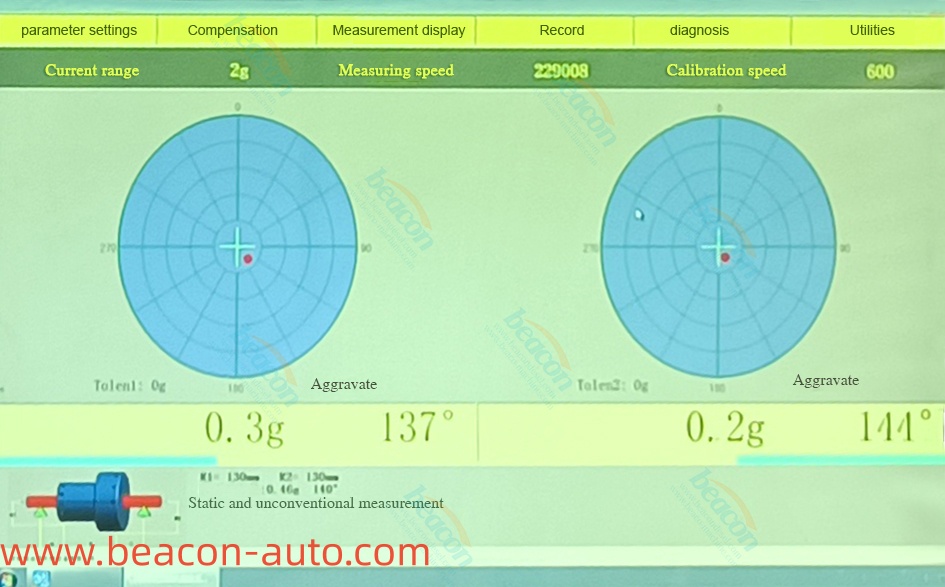

Display mode:19 inch LCD
Power supply:The power of three-phase four-wire type AC 380V,50/60HZ
Working:continuously
Work-piece quality range (Kg):16
Beam supporting interval distance (mm):60-600
Trunnion range (mm):Φ 5-40
Workpiece diameter (mm):500
Balance speed (r/min):300-2500 variable frequency speed regulation
Motor power (KW):0.18
Unbalance reduction ratio% :≤90
Minimum can reach surplus balabcing (emar):≤0.5g・mm/kg
