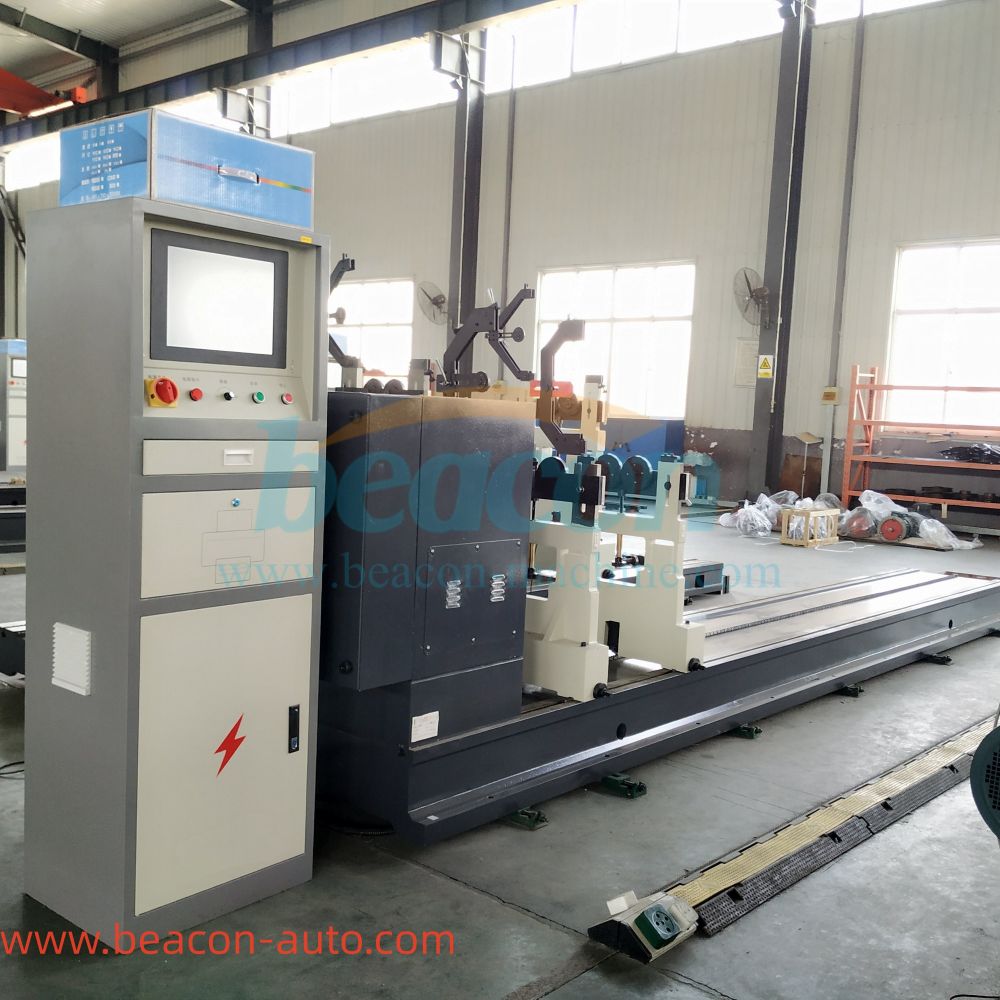

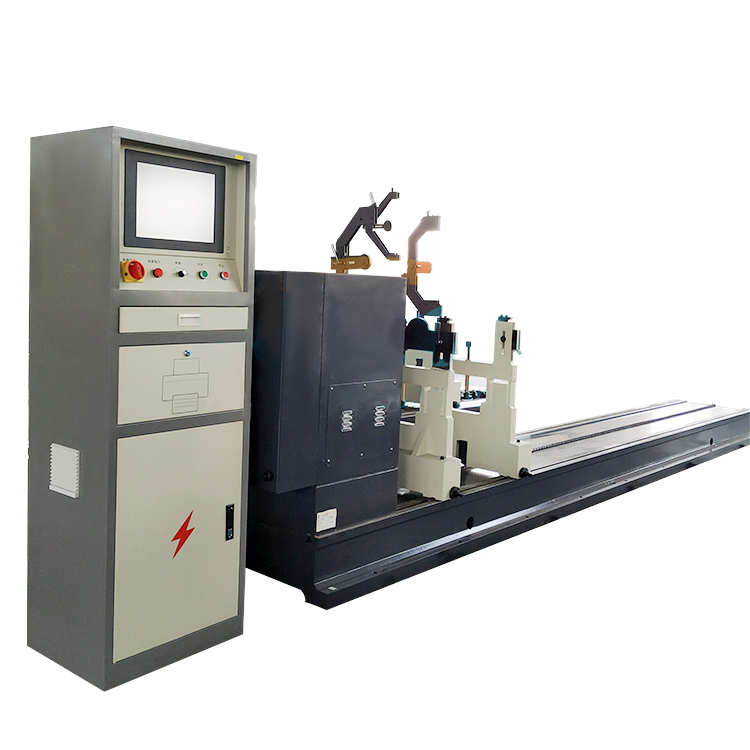

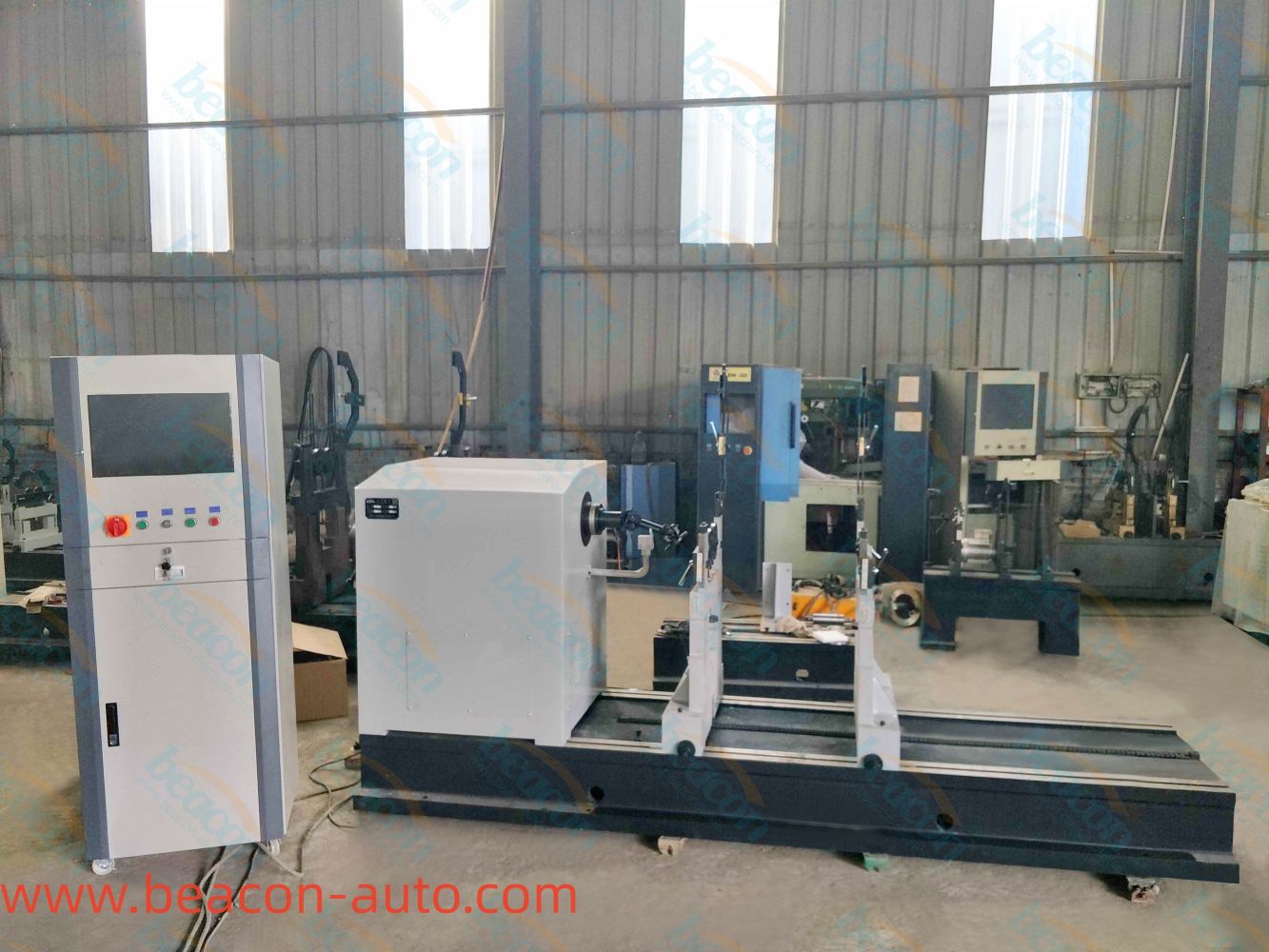

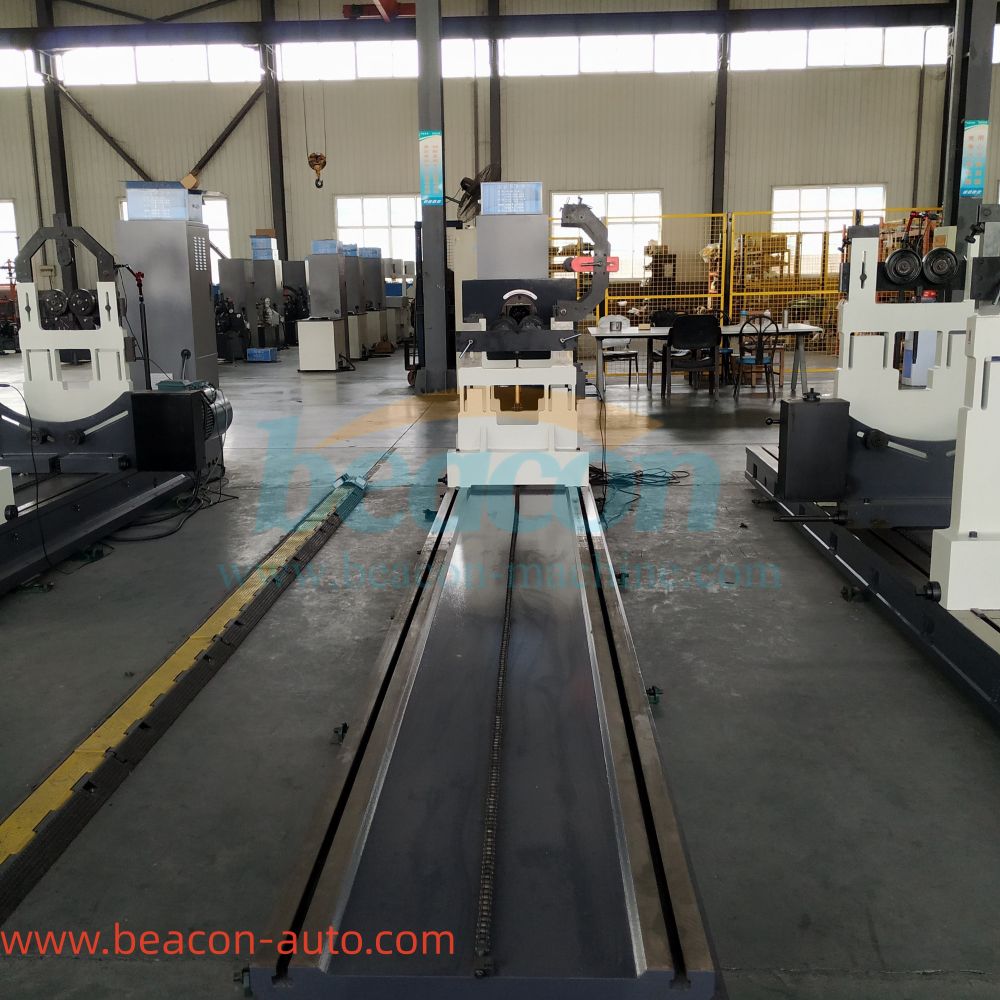

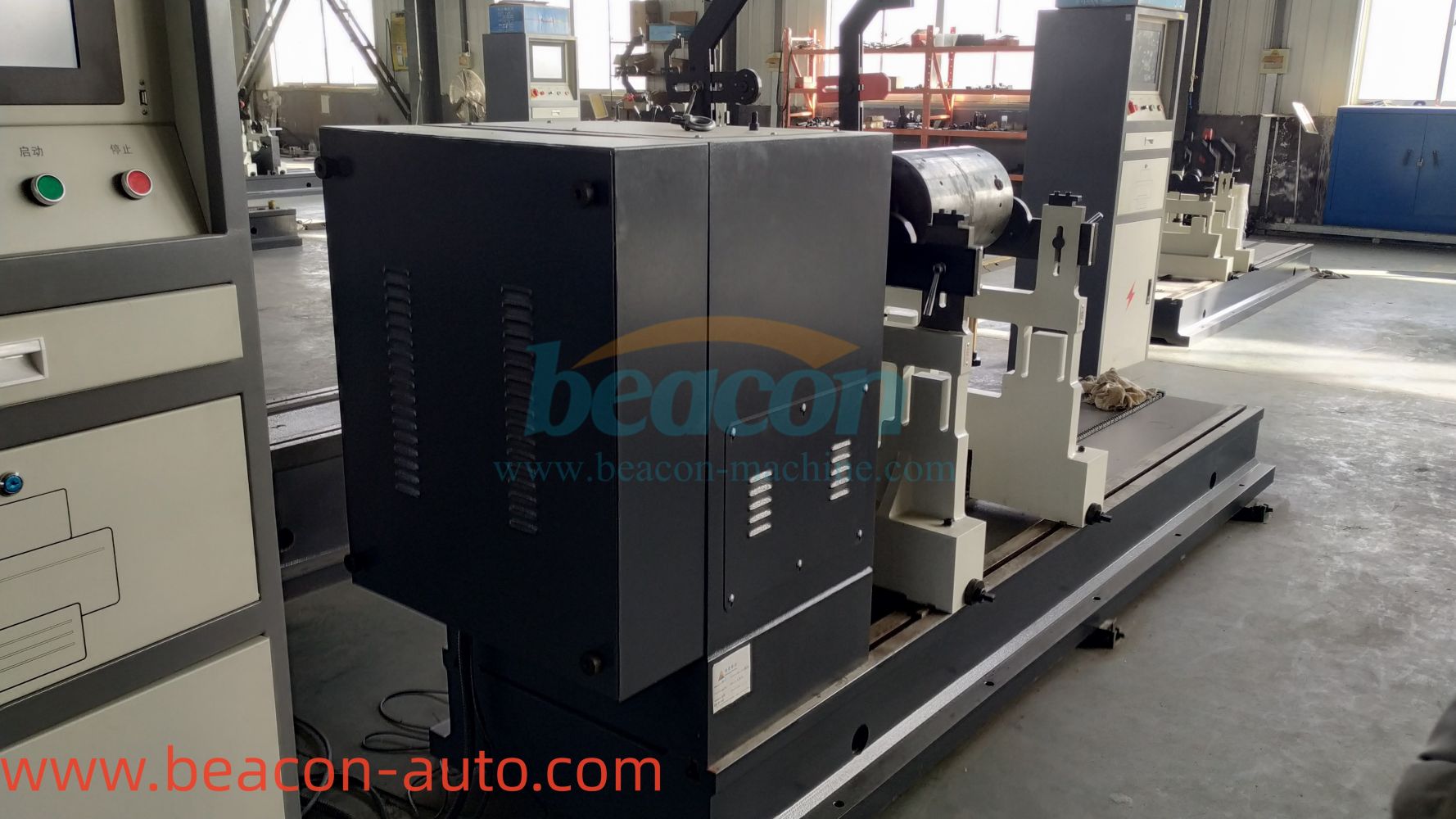

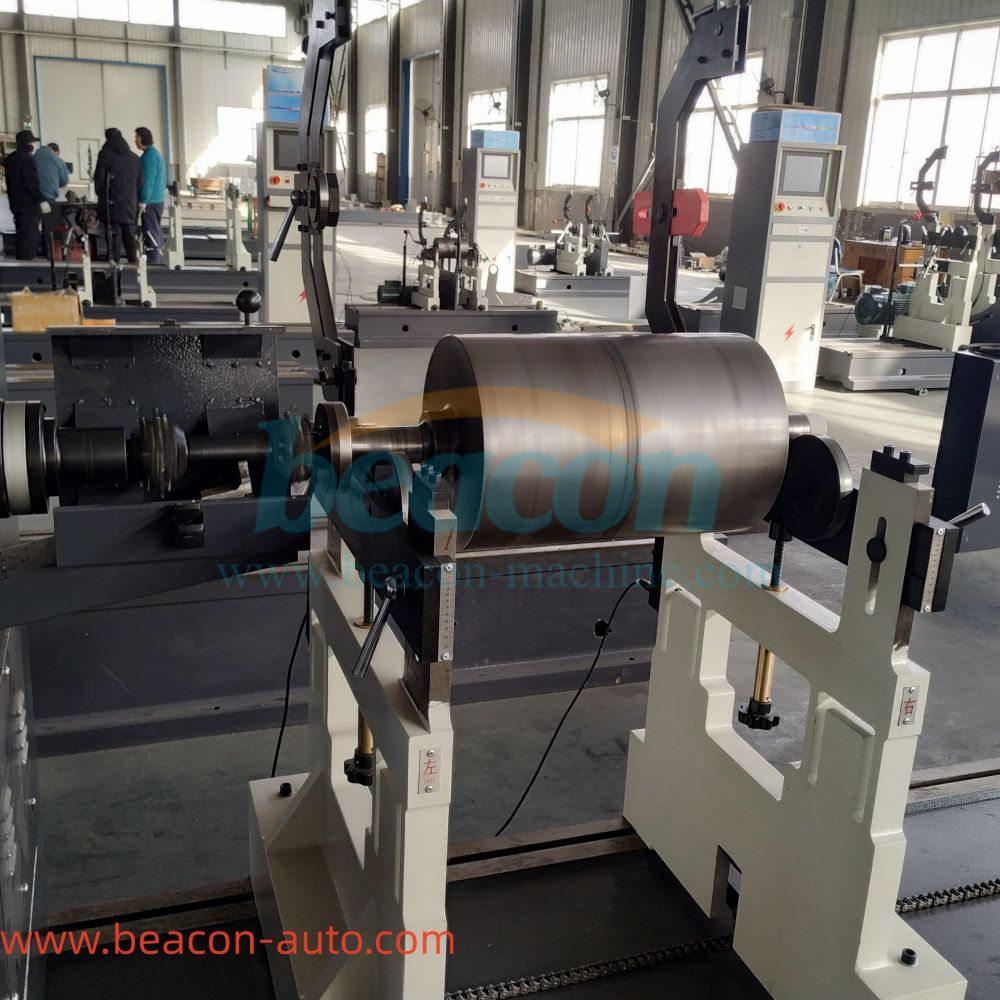

YYW-500A Universal Joint Dynamic Balancing Machine

 YYW-500A Universal Joint Dynamic Balancing Machine

1. Features:

General hard bearing dynamic balancing machine strictly according to GB/T 4201-2006 to produce, using roller bearing, universal joint driven, screen display structure, industrial control computer processing the data. 19 inches LCD screen display unbalance amount, phase angle and real-time rotating speed. It is widely used in paper making machine, textile machine, agriculture machine, electricmotor, blower fan, etc, can measuring balance on single, double, multifaceted interface, suited for large axle, plate, center of gravity overhung rotor.

2.Main technical index

Way of driving: universal joint driven, 5.5 kw motor

Measuring system: independent developed dynamic balancing machine special measuring software.

1) weight ofwork-piece universal joint driven(kg):            20-500

2) Max diameter of work-piece universal joint driven(mm):     φ1600

3) Distance between the two bearing frame:(mm)                    70-1800

4) Max distance from universal joint interface to right swing frame center(mm)      2000

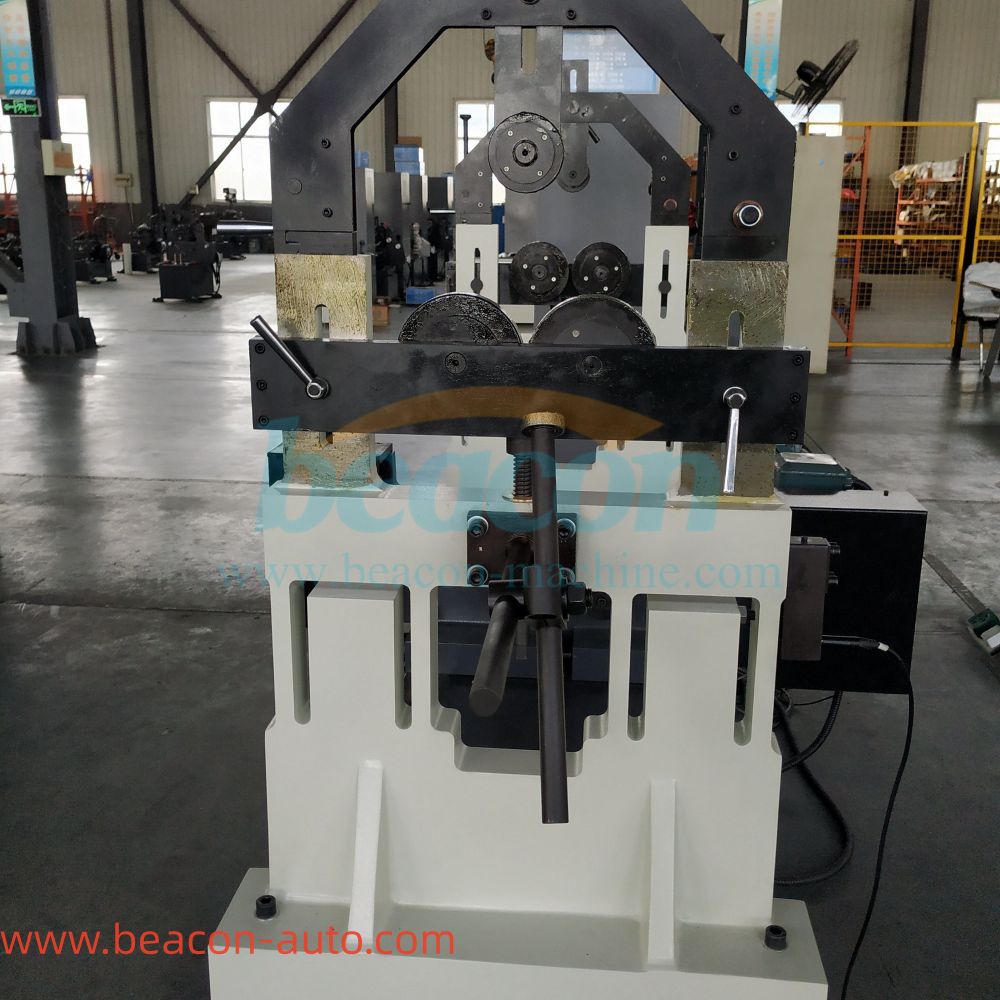

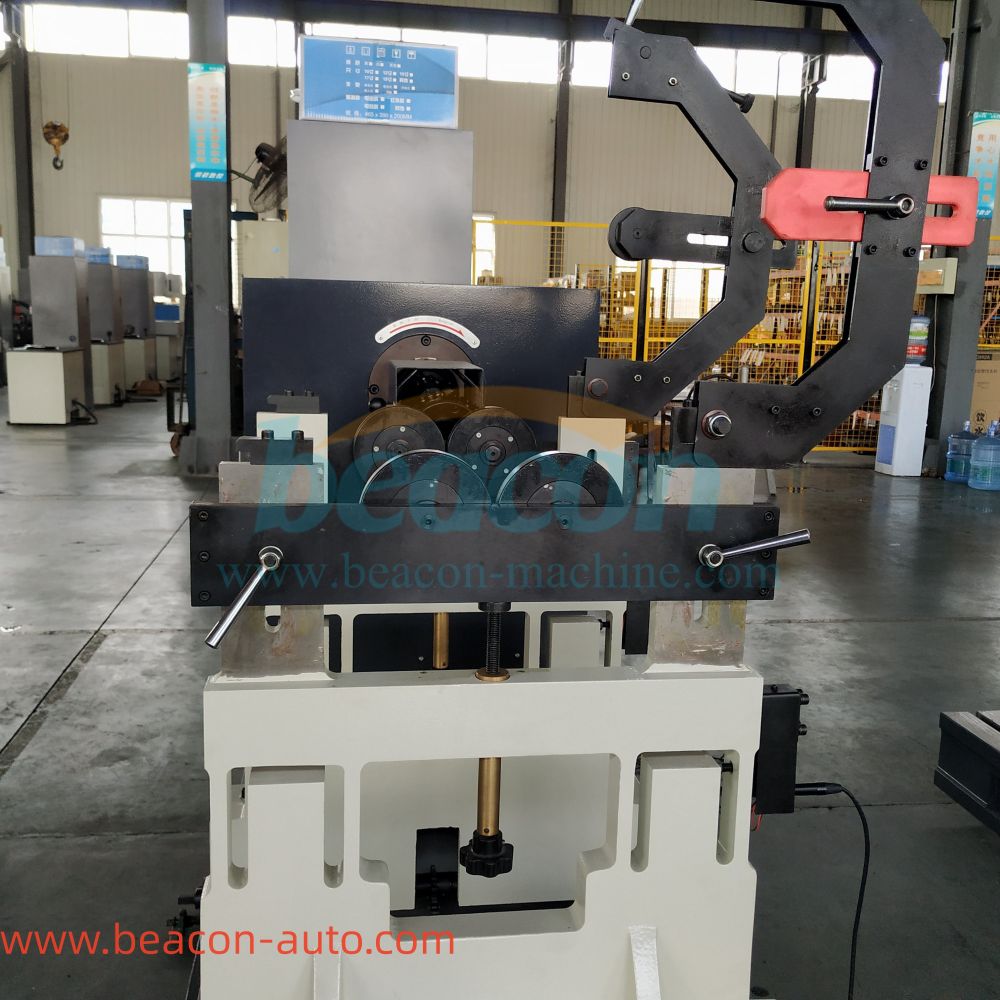

5) Journal diameter scope of work-piece(mm):     φ20-130(standard bearing roller frame

6) Min achievable residual unbalance amount(gmm/kg):    ≤1

7) Unbalance reduction ratio(%):                       ≥90

8) Rotating speed(r/min):                             200-1500

9) Motor power(kw):                                5.5

10) Drive mode:                             universal spindle coupling

11) Work environment:                  temperature: -5---45℃;humidity: 0-85%
