HEUI injector and fuel pump malfunctions and repair issues

     HEUI injector and fuel pump malfunctions and repair issues

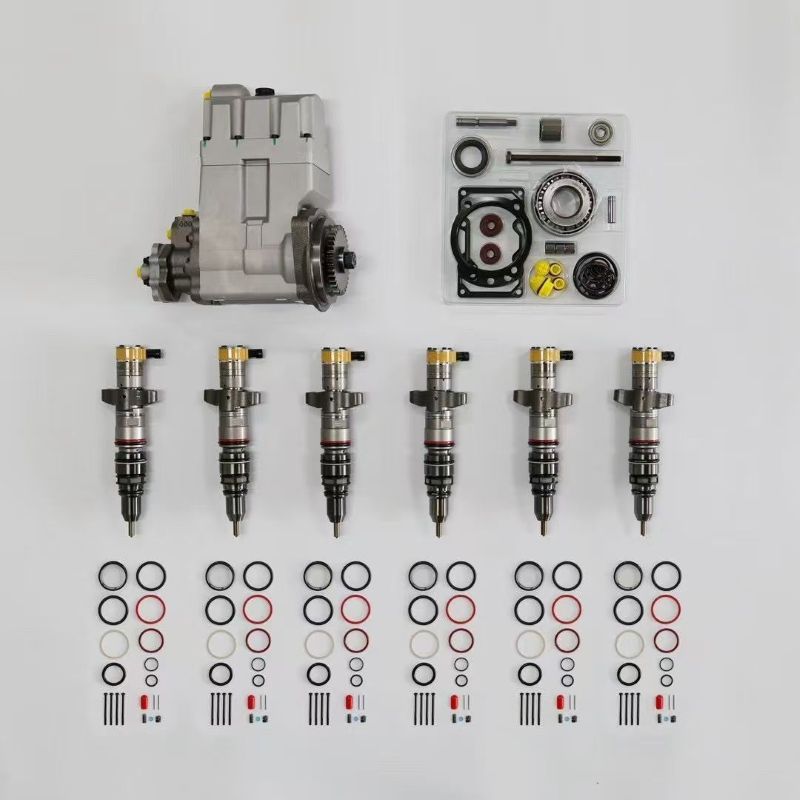

HEUI (Hydraulic Electronic Unit Injection) injector and pump repair involves specialized technical expertise. It primarily utilizes genuine or aftermarket repair kits to replace easily worn internal components such as O-rings, seals, armatures, plungers, and nozzles. Repairing Caterpillar C7/C9, Ford 6.0L/7.3L, and Perkins diesel engines requires specialized tools and testing equipment, with a focus on inspecting and calibrating electrical and hydraulic precision components to restore normal fuel injection and performance.

I. Repair Focus and Common Problems

 Precision Component Damage: The HEUI system's internal components (especially nozzles and plungers) are highly precise, making wear a common problem.

 Aging Seals: Failure of O-rings and seals leads to leaks or insufficient pressure.

 Control Valve/Armature Problems: Armature sticking or damage affects precise fuel injection control.

 Insufficient System Pressure: This can be caused by a malfunction in the Injector Pump (IAP) or the injector itself.

II. Repair Steps and Components

1. Diagnosis: Use specialized diagnostic tools (such as Cat ET) to read fault codes, check sensor data, and determine whether the problem is with the fuel pump or the injector.

2. Disassembly: Carefully disassemble the injector or fuel pump, taking care to protect delicate components.

3. Cleaning and Inspection: Thoroughly clean and inspect the wear of each component.

4. Part Replacement:

 Repair Kit: Typically includes armature, nozzle, spring, O-ring, etc.

 Plunger Assembly: Replace the plunger and nozzle.

 Injector/Pump Body: If severely damaged, the entire assembly must be replaced.

5. Use of Specialized Tools: Specialized tools are required to disassemble/install the armature, measure clearances, etc.

6. Testing and Calibration: Test the performance of the repaired injector on a specialized test bench under different operating conditions (such as different pressures, different injection stages) to ensure it meets requirements.

III. Applicable Vehicle Models/Engines

 Caterpillar: C7, C9, 3126B, etc.

• Ford: 4.5L, 6.0L, 7.3L diesel engines.

• Perkins: 1300 EDi series.

International: T444E/DT466E/I530E.
