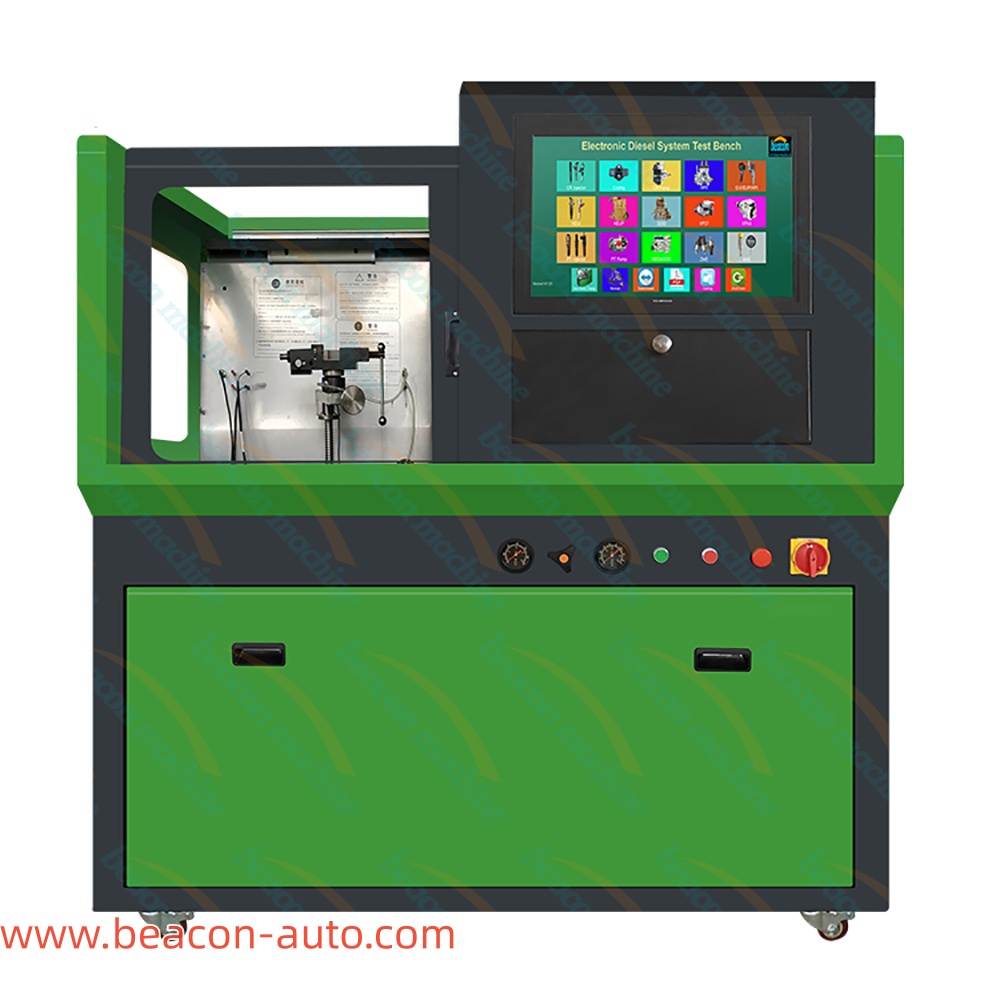

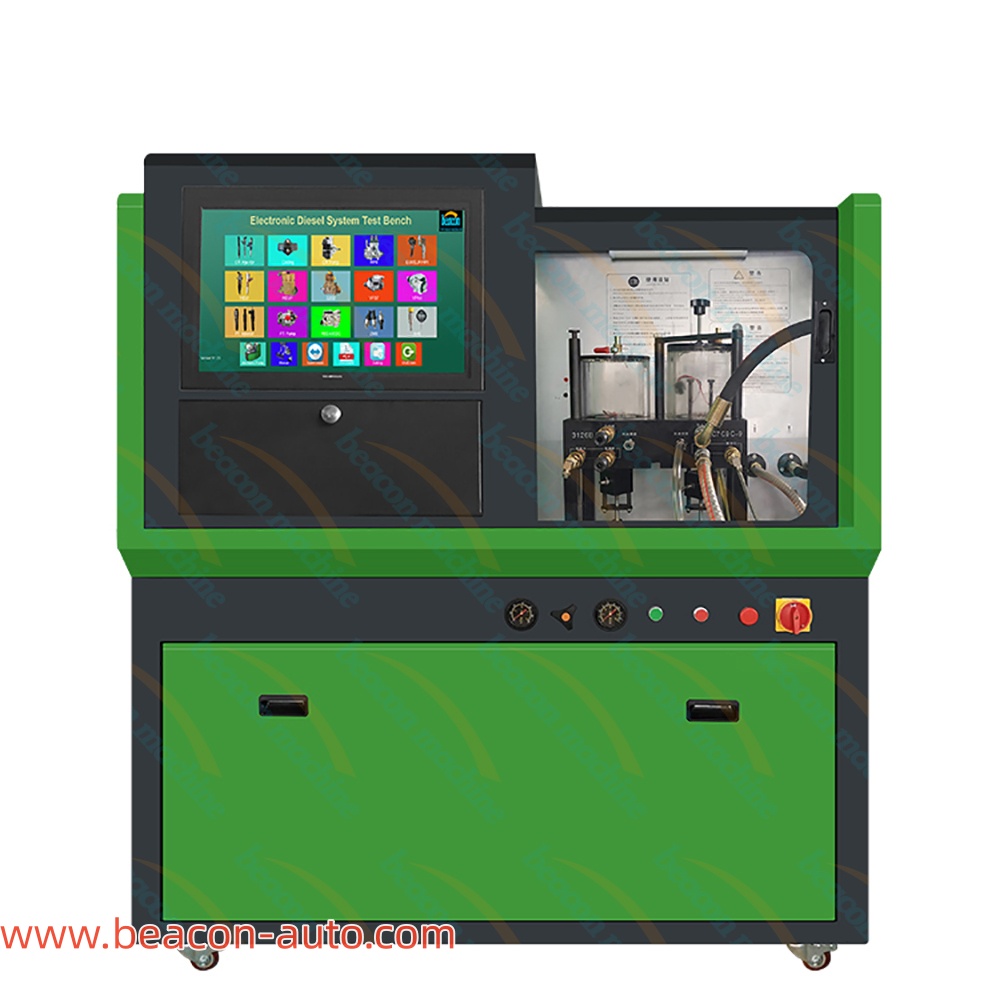

BEACON CR318S HEUI Common Rail Injector Test Bench

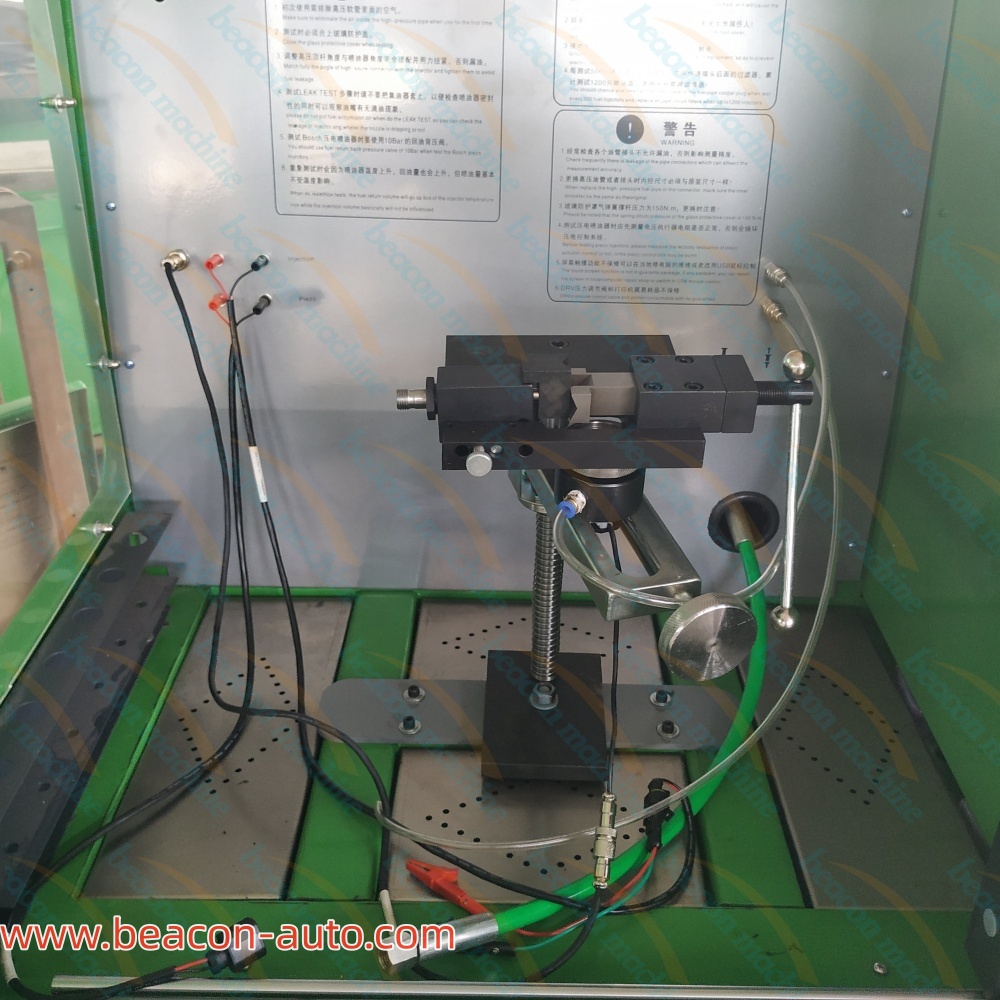

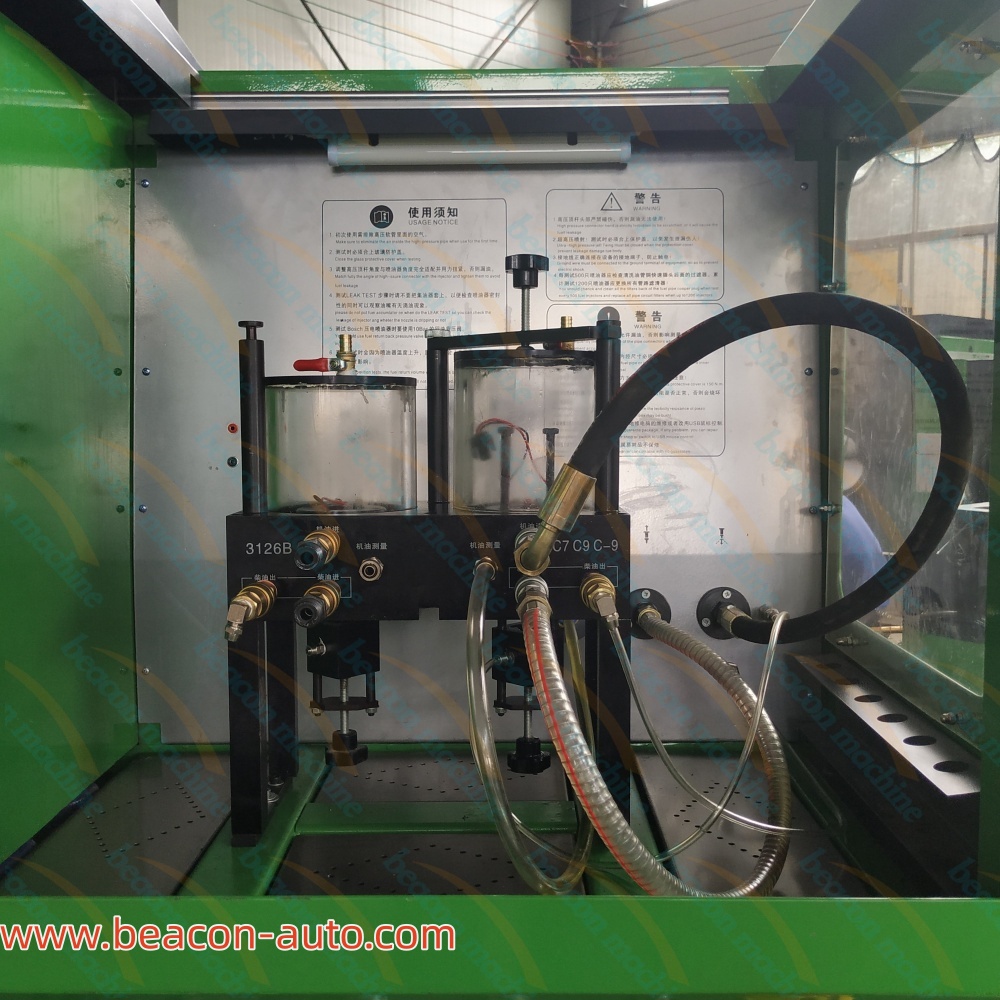

CR318S Common Rail Injector and HEUI Injector Test Bench has two working table , one side to test all kinds of common rail injectors and piezo injectors ,also doing injector coding function , other side to test CAT C7/C9/C-9/3126B HEUI injectors

Whatsapp: +86-18253885137

Tel / Wechat: 0086-18253885137

Email: franksong@beacon-machine.com

inquiry

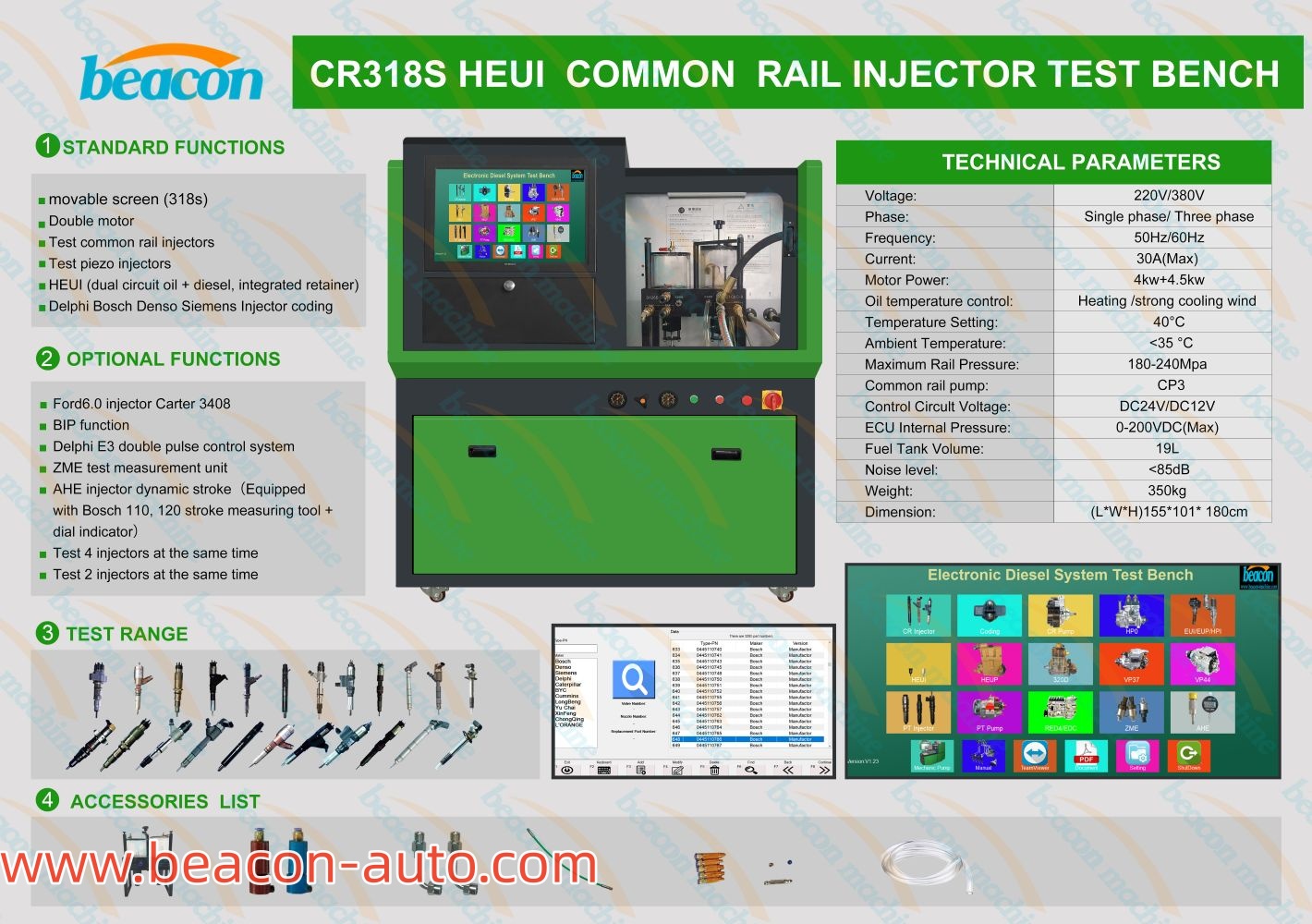

Introduction

BEACON CR318S HEUI Common Rail Injector Test Bench

Introduction:

BC-CR318S is mainly test for common rail Injector and HEUI.Also it is continuous fuel delivery analysis computerised measuring system for conventional and new diesel injection systems. The electronic fuel delivery measuring system is compulsory for modern diesel injection system testing. It guarantees a high level of reproductivity of the measured Value.

The system is suitable for detection of BOSCH, DENSO, DELPHI .C7 C9 HEUI.

It also can test 2 common rail injectors in one time.

-- CP3.3 common rail pump

--original common rail +DRV

--Common rail system motor Power 5.5KW

--HEUI drive power:3KW

--Oil system pressure automatic adjustment system

--Diesel tan)heating,cooling,liquid level,temperature sensor,temperature security)

--Oil tank(heating,cooling,liquid level,temperature sensor)

--Industrial PC(with touch screen,built-in WIFI remote training,service,upgrade)

--Flow meter(German ZDM) injector flow sensor

--Flow meter(German KRACHT) oil flow sensor
