product details

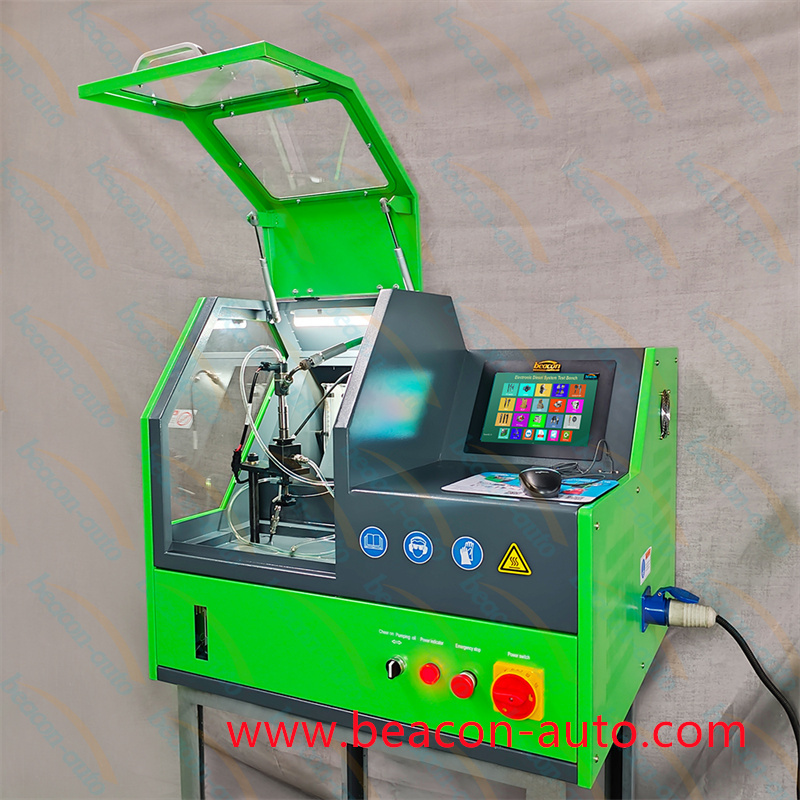

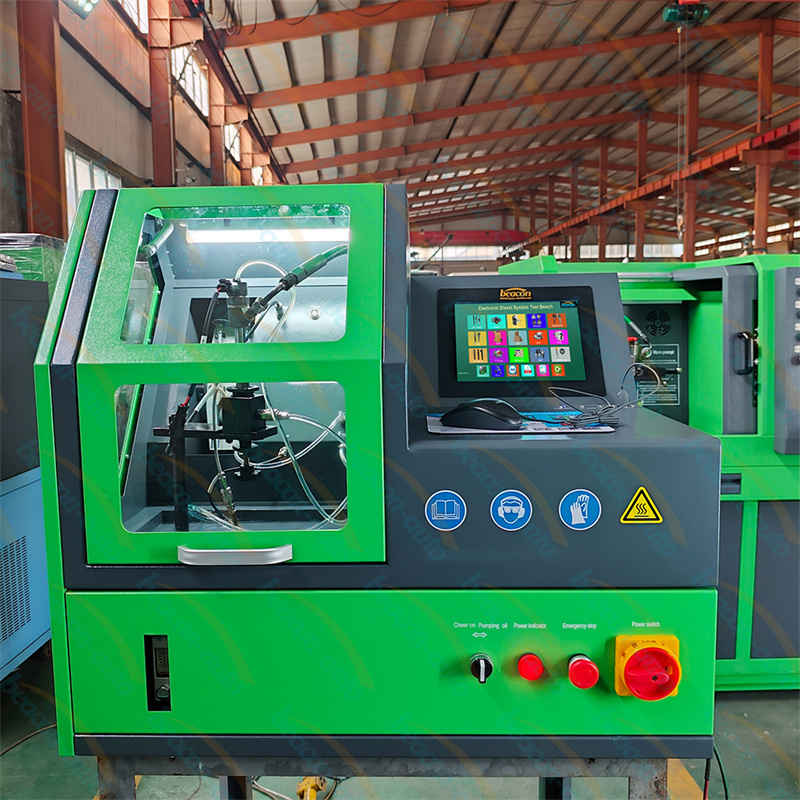

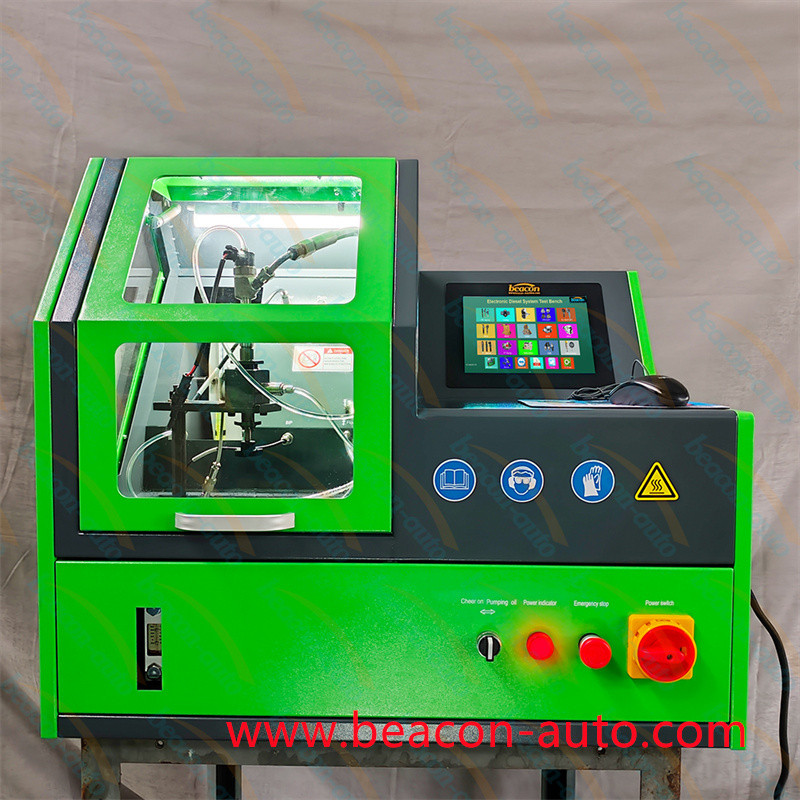

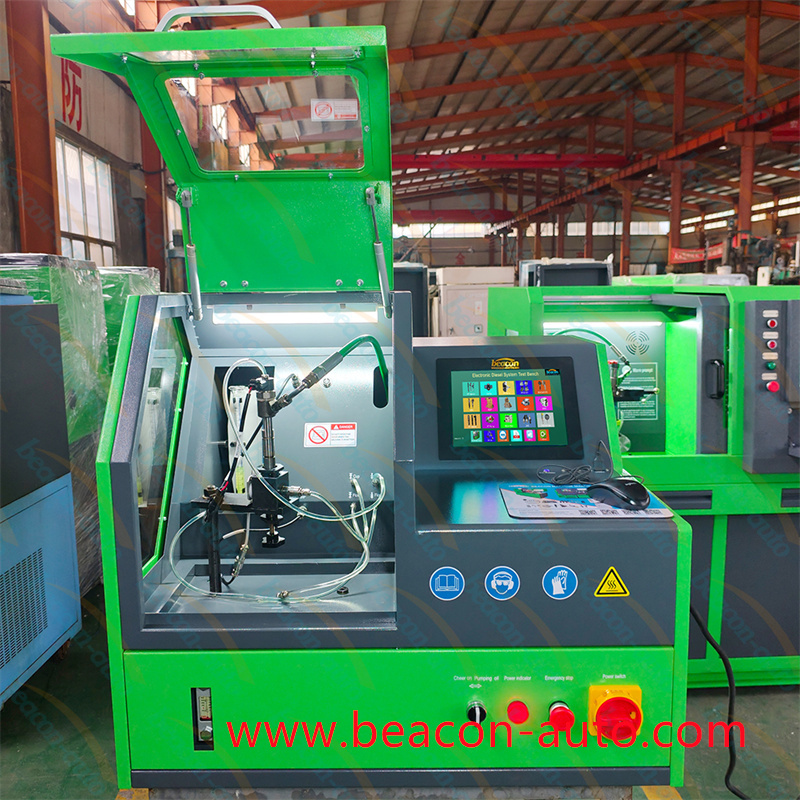

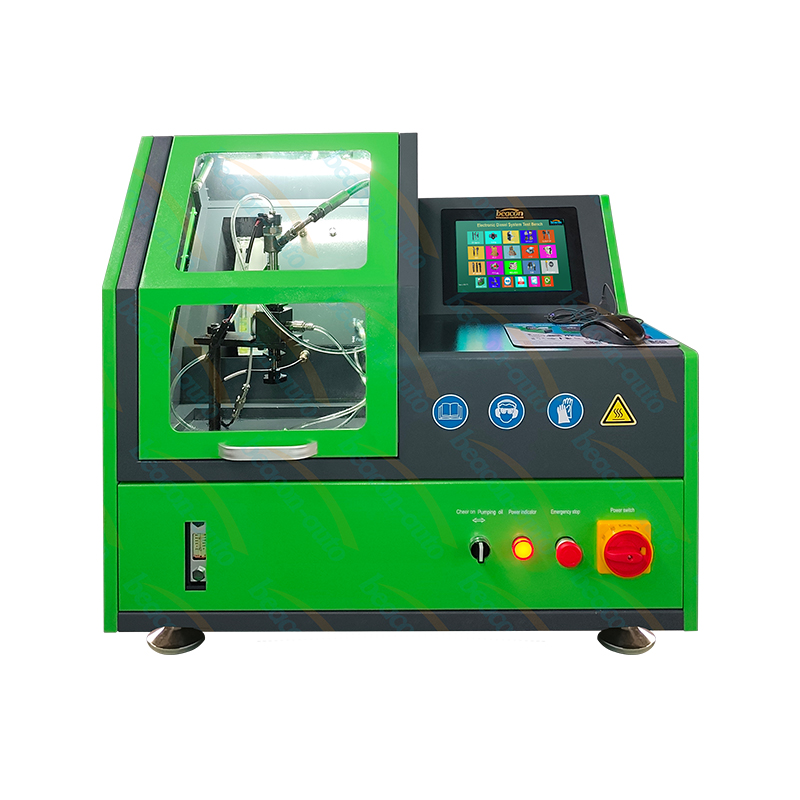

EPS210S Common Rail Injector Test Bench

EPS210S Diesel Injector Test Bench has two measuring system , it is with injector flow sensor and glass cup . it can test all kinds of common rail injectors and piezo injector by glass cup or by injector flow sensor , it also can do injector coding function , it also is with BIP function

Whatsapp: +86-18253885137

Tel / Wechat: 0086-18253885137

Email: franksong@beacon-machine.com

inquiry

Introduction

EPS210S Common Rail Injector Test Bench

FUNCTION
(1) Test the sealing performance of the common rail injector
(2) Test the full load performance of the common rail injector
(3) Test the mid-load performance of common rail injectors
(4) Test the idling performance of the common rail injector

(5) Test the pre-injection performance of the common rail injector

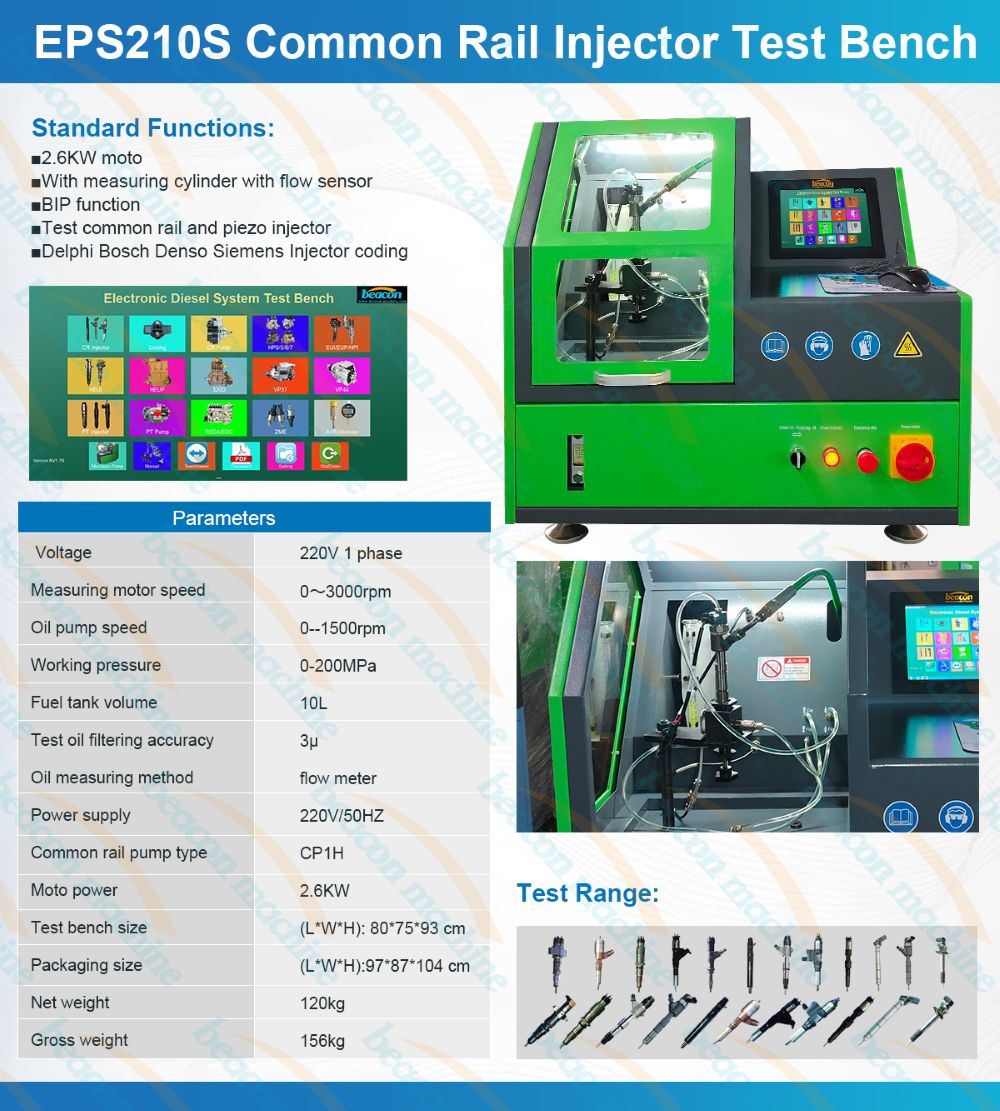

parameter

TECHNICAL PARAMETER
(1) Measuring motor speed: 0～3000rpm; oil pump speed: 0--1500rpm
(2) Working pressure: 0-2000 bar
(3) Fuel tank volume: 10L;
(4) Test oil filtering accuracy: 3μ;
(5) Oil measuring method: flow meter
(6) Power supply: 220V/50HZ;
(7) Common rail pump type: CP1;
(10) Output power: 2.6KW
(11) Overall dimensions (mm): 970*870*104

(12) Net weight: 120Kg.
