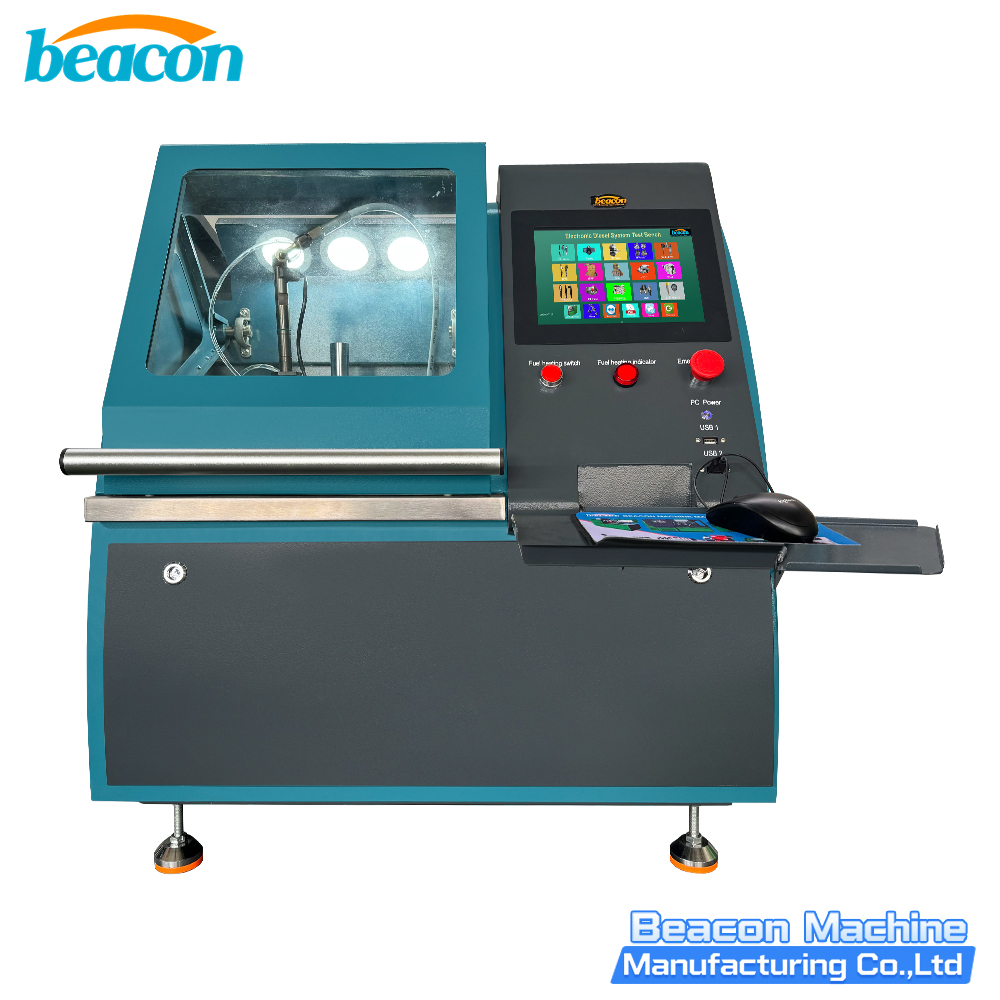

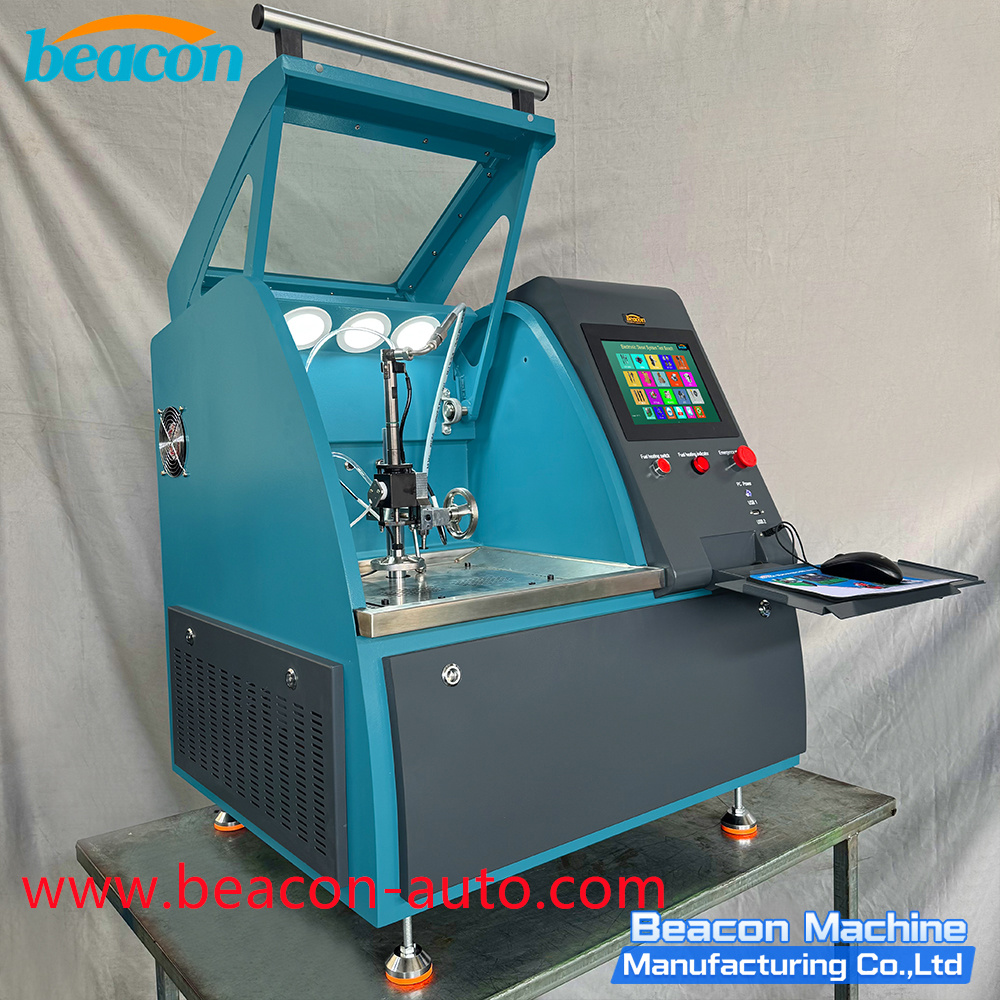

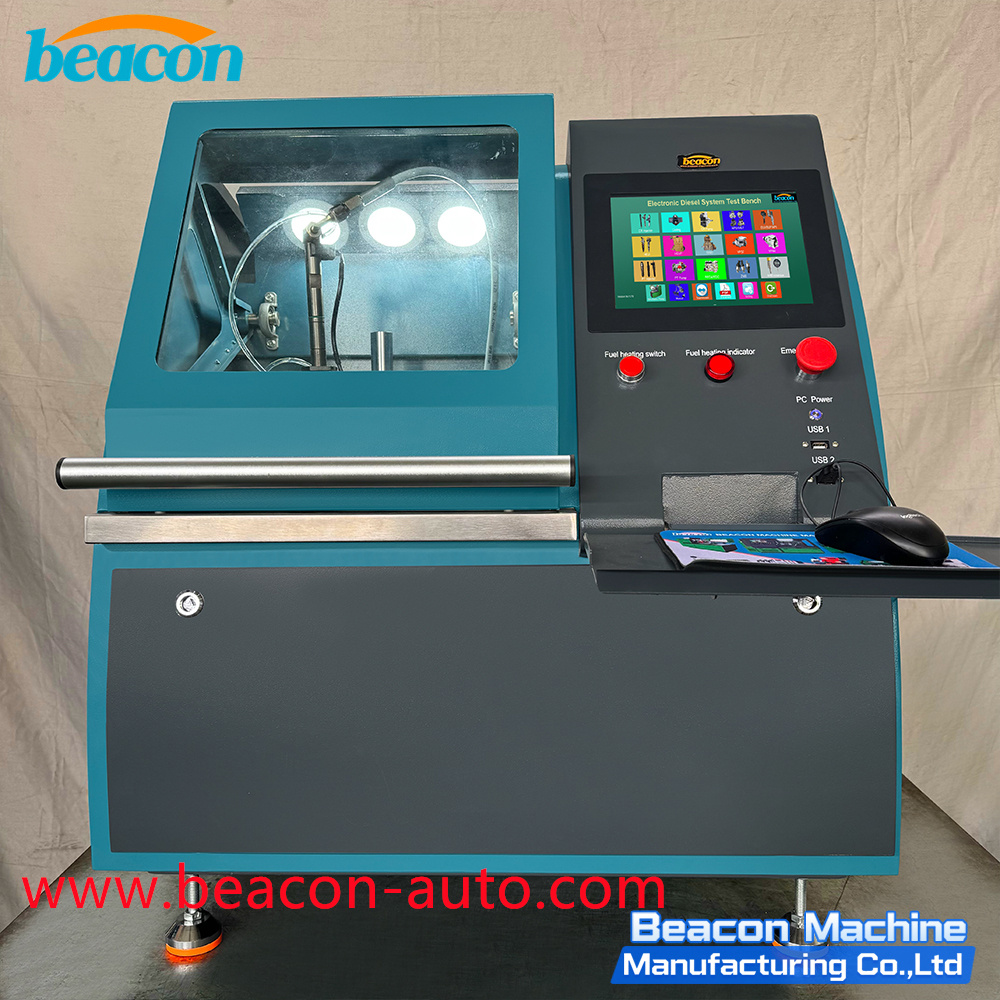

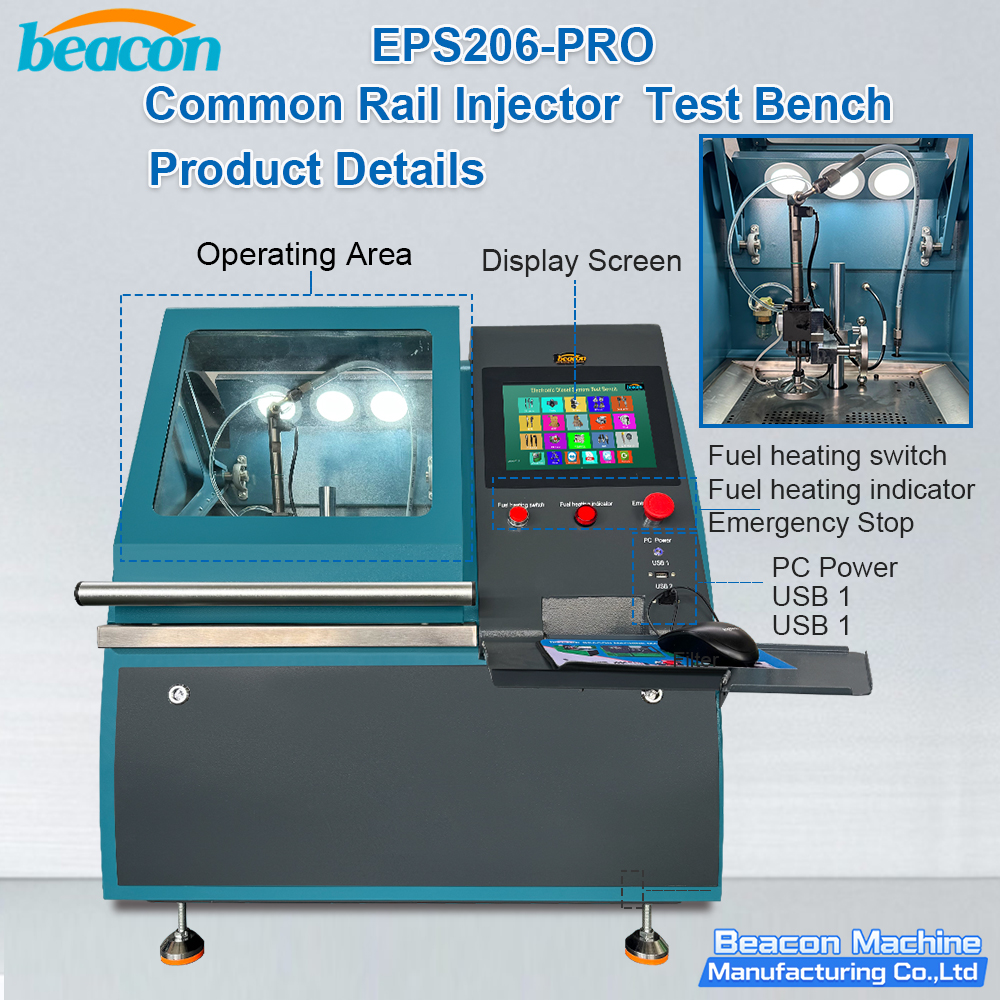

EPS206 Pro Common Rail Diesel Injector Machine

EPS206 PRO common rail injector test bench can test all kinds of bosch ,denso ,delphi ,siemens etc common rail injectors and piezo injectors , also can do injector coding function

Whatsapp: +86-18253885137

Tel / Wechat: 0086-18253885137

Email: franksong@beacon-machine.com

inquiry

Introduction

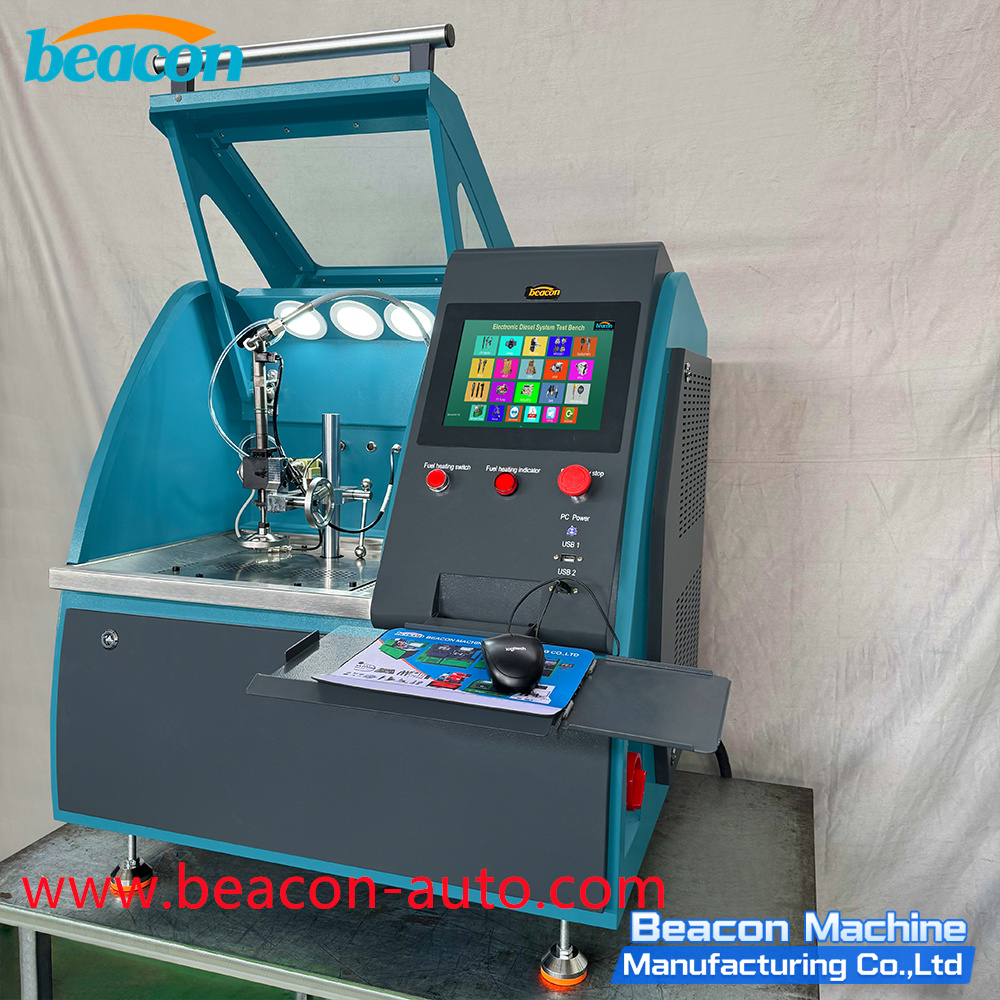

EPS206 Pro Common Rail Diesel Injector Machine

General Introduction：

CR206-Pro CR Injectors & Pump Test Bench is the latest table type model for testing CR injectors. It is a professional diesel injection testing solution designed for workshops and service centers.

1.Supporting high-speed solenoid valve type common rail injectors, also supports piezoelectric crystal common rail injectors of the third-generation high-pressure common rail technology; 2.Single-channel common rail injector; 3.Support multiple rail pressure sensors (BOSCH/DENSO/ DELPHI); 4.Intelligent PID algorithm, more precise pressure control; 5.Short-circuit protection in both software and hardware makes the machine more reliable; 6.Multiple language options;

Working Principle:

CR206-Pro common rail injector test bench imitate the working conditions of the diesel engine ECU (Engine Control Unit), while providing control signals for common rail systems such as Bosch, Denso, Delphi, and piezoelectric ceramics to drive high-pressure common-rail fuel pumps and high-pressure common rail systems & common rail injectors work. Drive signal parameters can be set by end users according to their actual conditions and saved, which is convenient for maintenance personnel to judge and maintain the working status of the high-pressure common rail system.

Basic Machine Test Functions:
1. Basic machine: 2.6KW, 220V

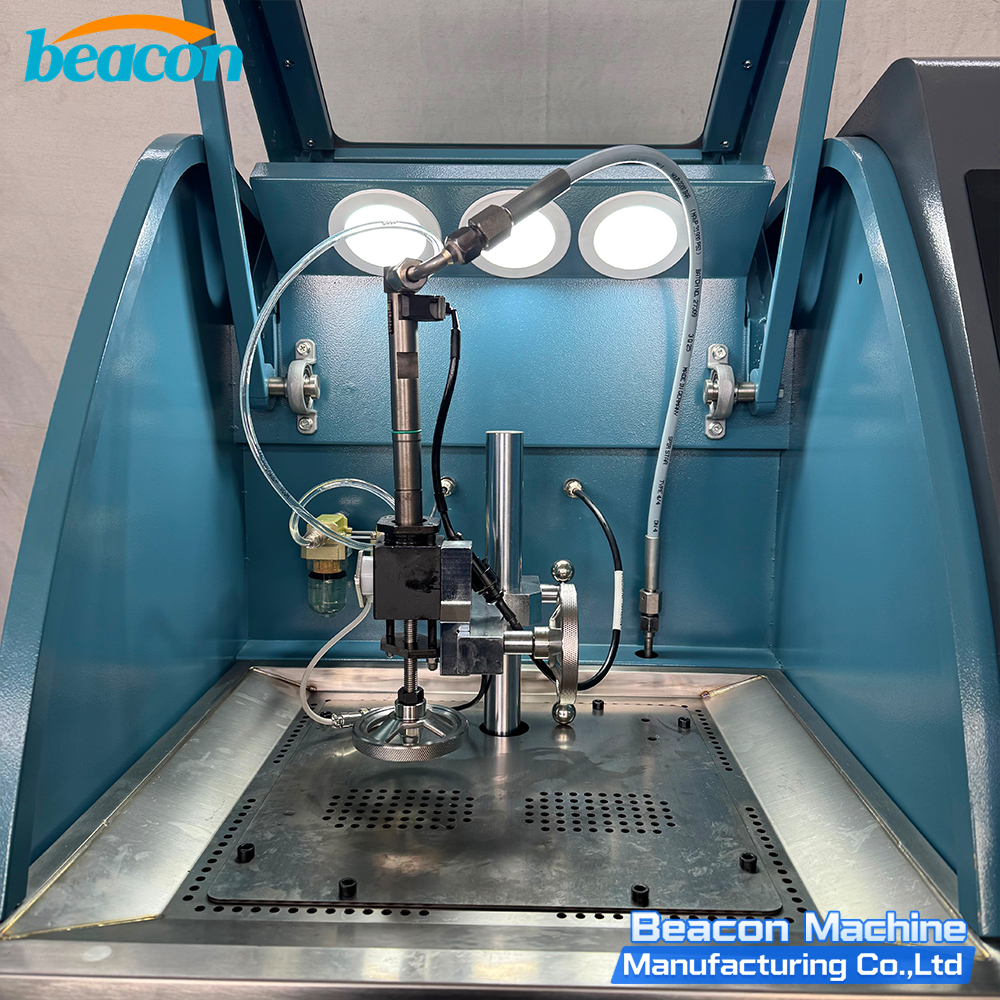

2. Common Rail Injector

3. Piezo Injector

4. BlP
5. Delphi Bosch Denso Siemens Injector coding(free gift)

parameter

Test Items:

1. Test the sealing performance 2.Test the full load performance 3.Test the mid-load performance 4.Test the idling performance 5.Test the pre-injection performance

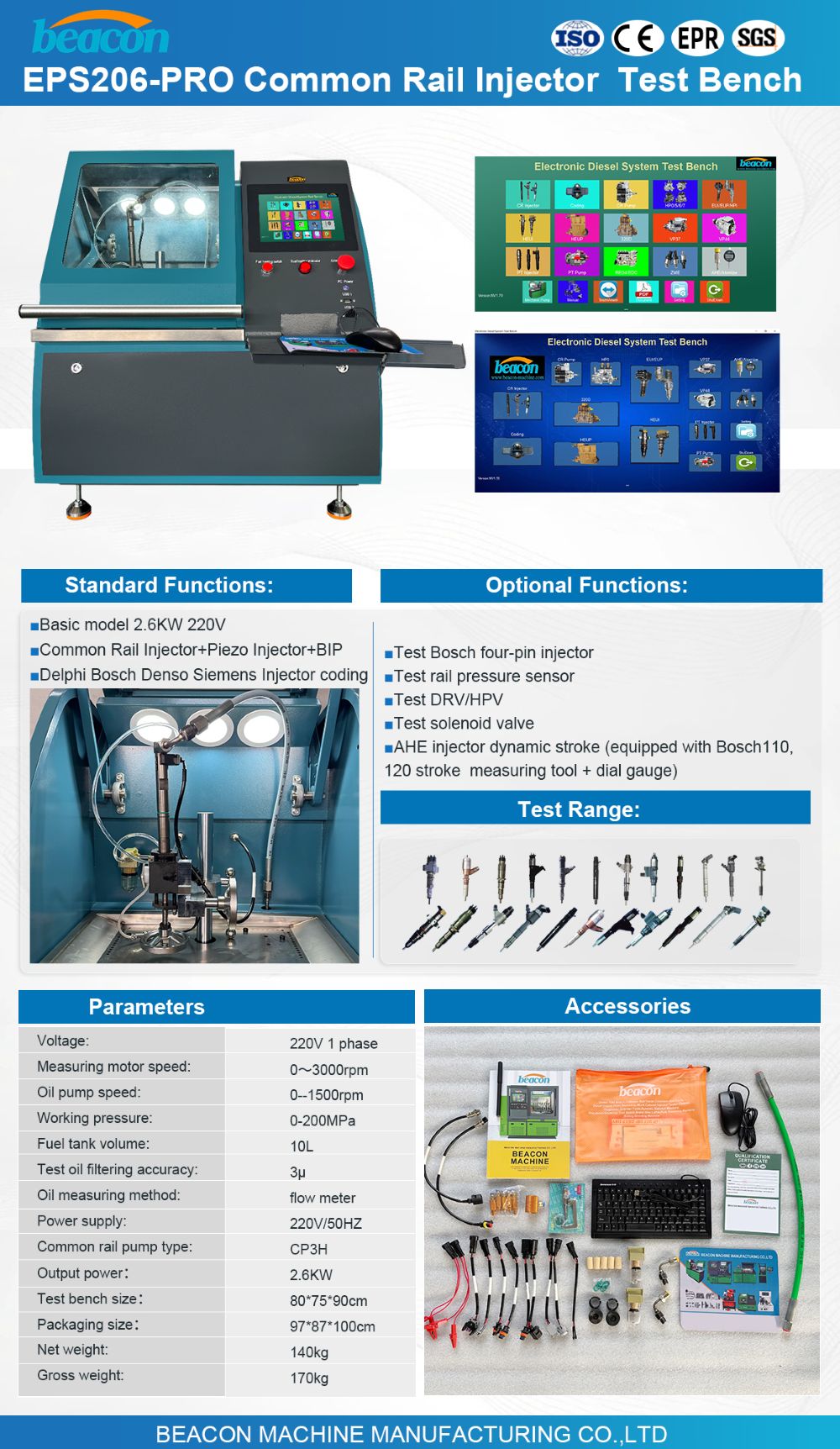

PRODUCT SPECIFICATIONS

Model	EPS206-Pro
Voltage	220V 1 phase
Measuring motor speed	0～3000rpm
Oil pump speed	0--1500rpm
Working pressure	0 - 200MPa
Fuel tank volume	10L
Test oil filtering accuracy	3μ
Oil measuring method	flow meter
Power supply	220V/50HZ
Common rail pump type	CP3H
Output power	2.6KW

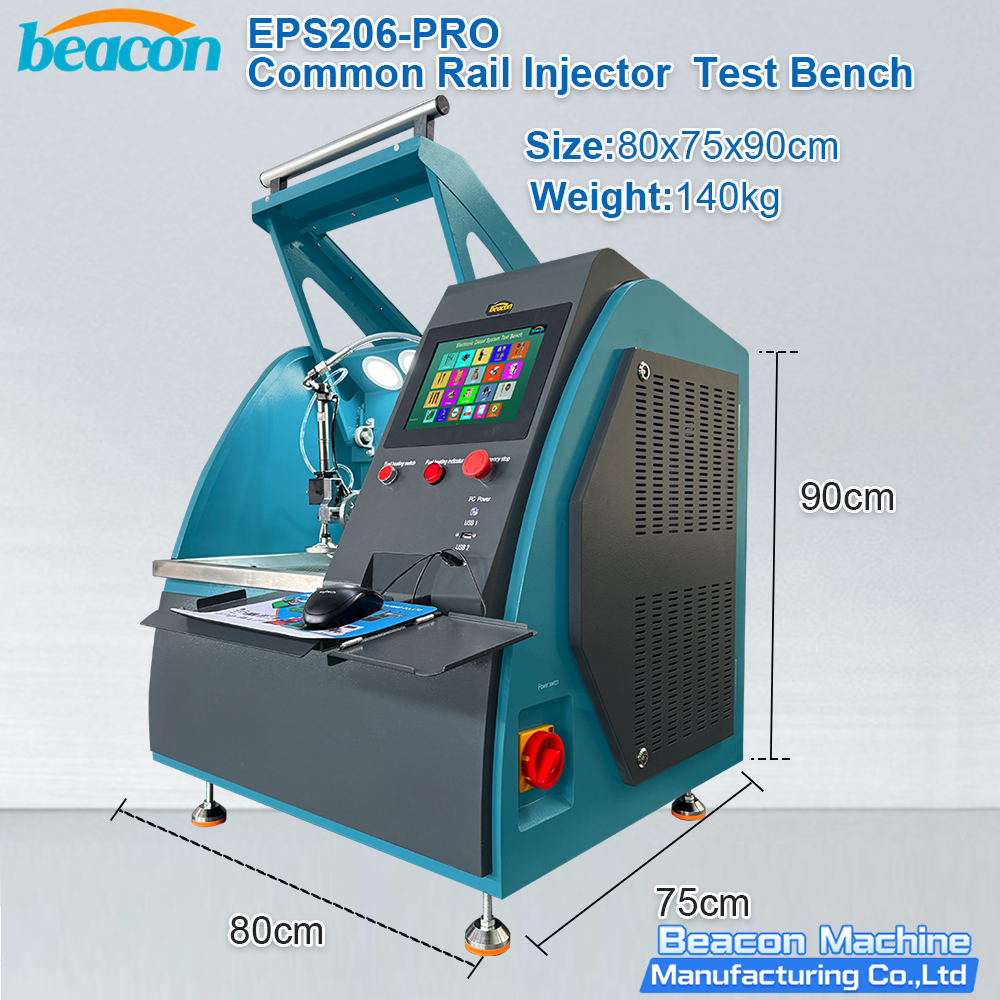

Size(LxWxH)	80x75x90cm
Net weight(cm/kg)	140kg
