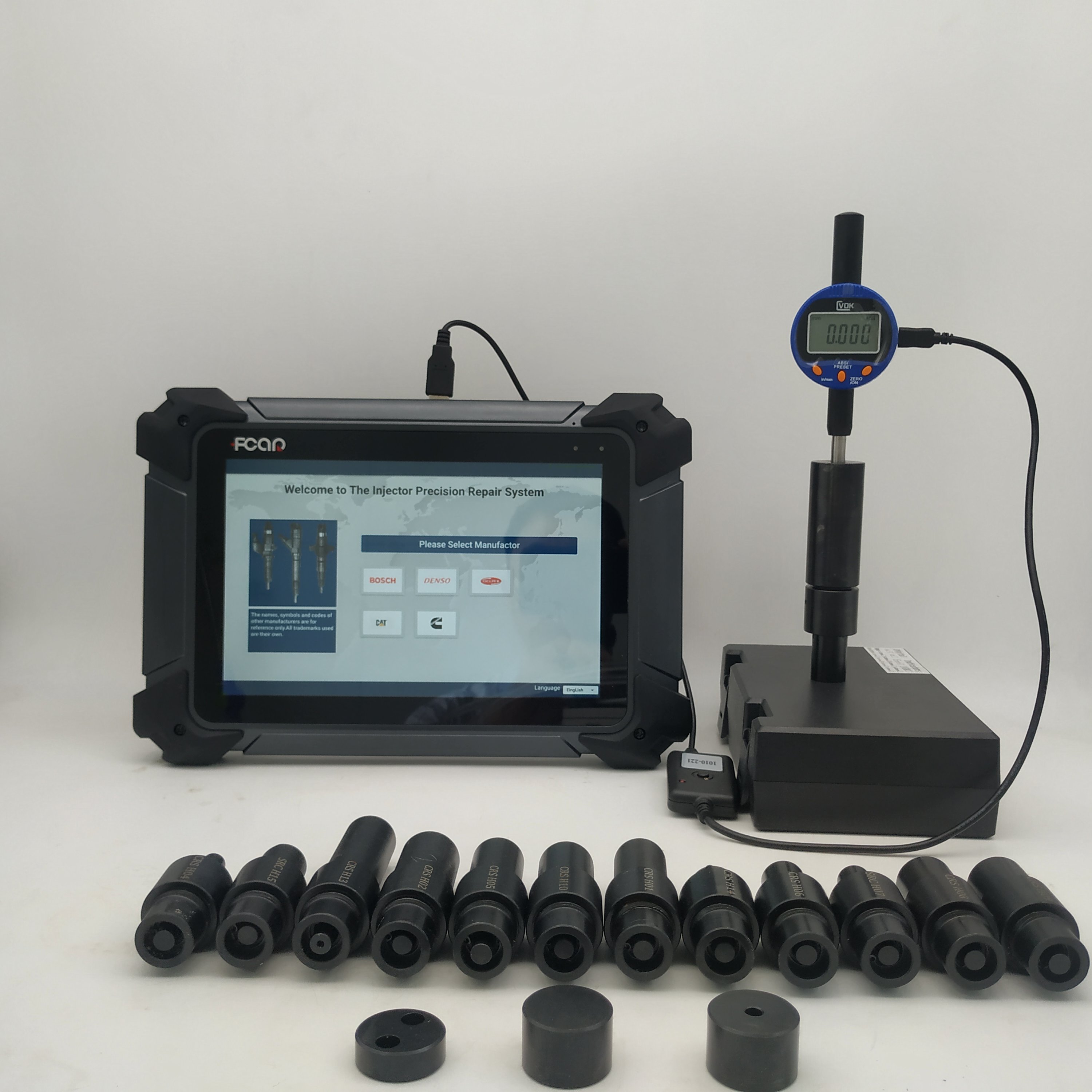

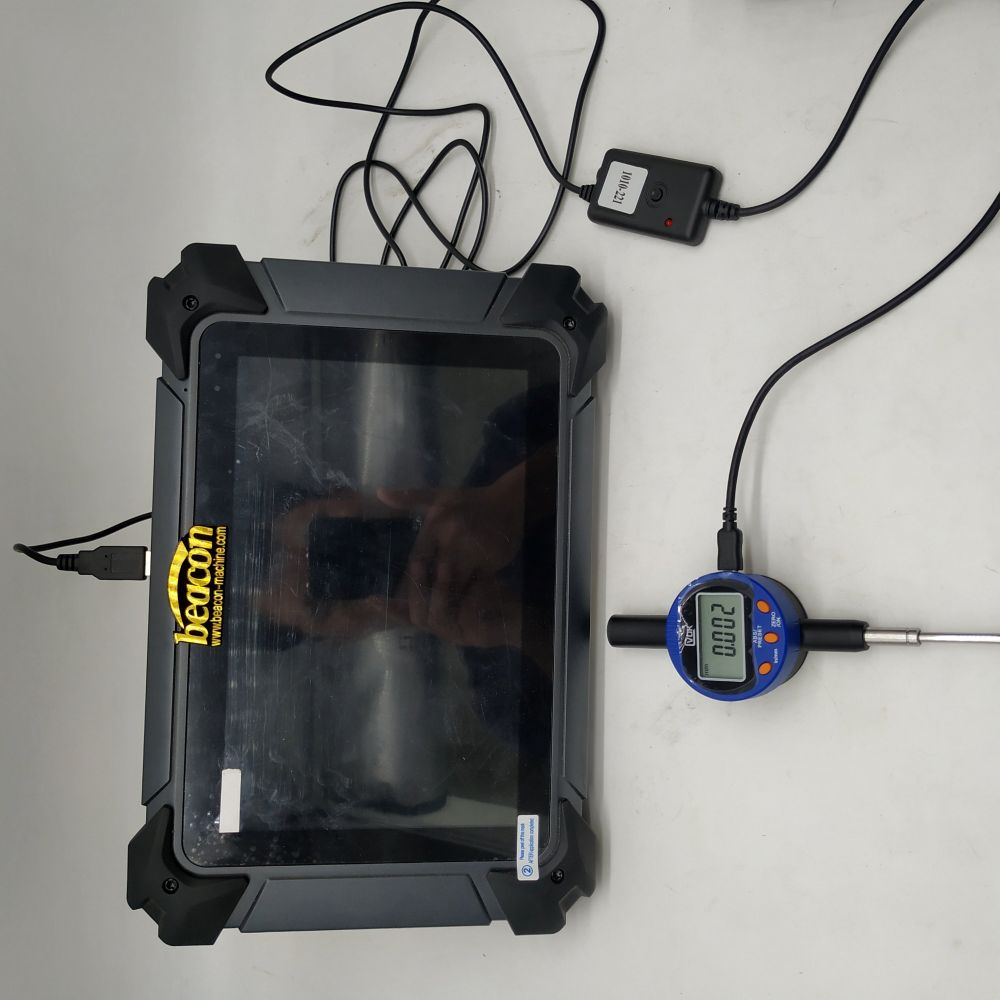

CRM4000 Stage 3 Common Rail Injector Stroke Measuring System Tools Device

CRM4000 common rail injector stroke measuring tools system used for bosch ,denso ,delphi ,Cummins and CAT injectors

inquiry

Introduction

CRM4000 Stage 3 Common Rail Injector Stroke Measuring System Tools Device

CRM4000 Common Rail Injector stroke measuring system, which includes almost all common rail injectors stroke measuring standard
data inside. Suitable for BOS/CH , CAT, DENSO, DELPHI, CU/MMINS SIEMENS injectors and so on .
It can test:
1. Adjust Needle Lift
2. Adjust Needle Opening Pressure
3. Adjust Total Lift of Armature Assembly
4. Adjust Actual Lift of Armature Assembly
5. Adjust Solenoid Air Gap
6. Adjust Solenoid Spring Compression
7. Driving Armature

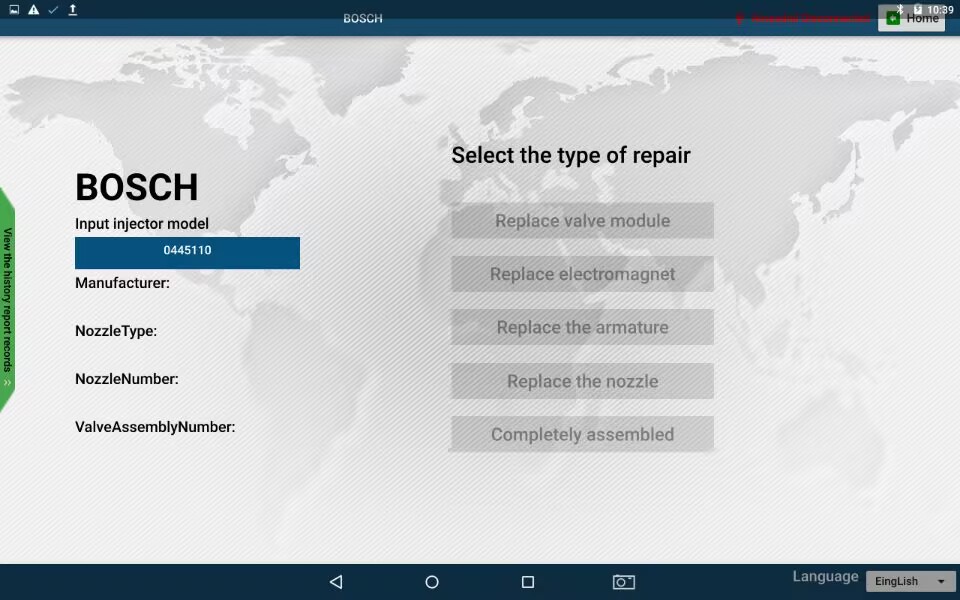

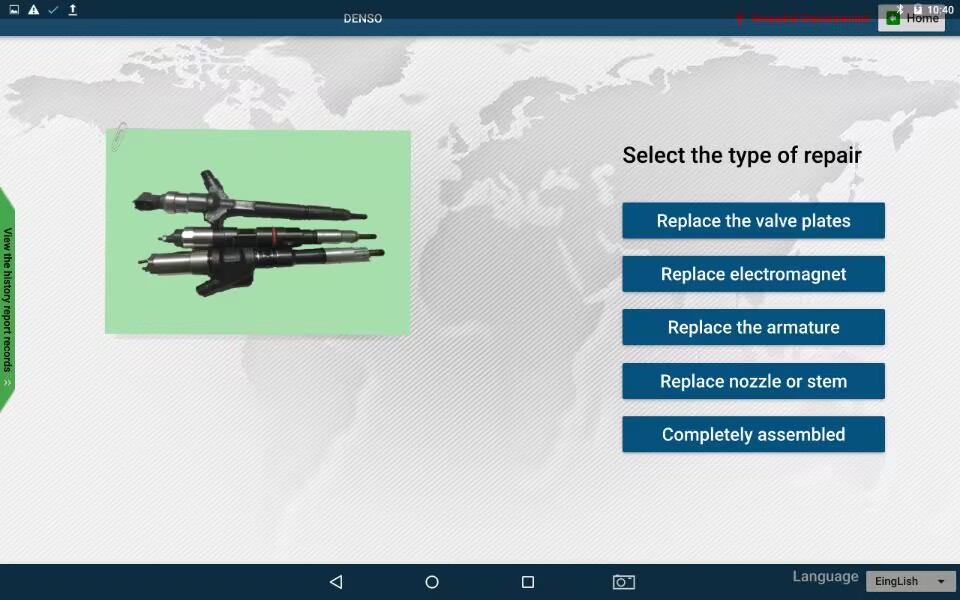

Common Rail Injector Repair Stage 3 Rebuild Injector after Component Being Replaced:
Injector Critical dimensions are accurately controlled by using the calibration shims or spacers of exact thicknesses in the
injector during injector rebuild to meet Bosch spec tolerance of 1um.

parameter

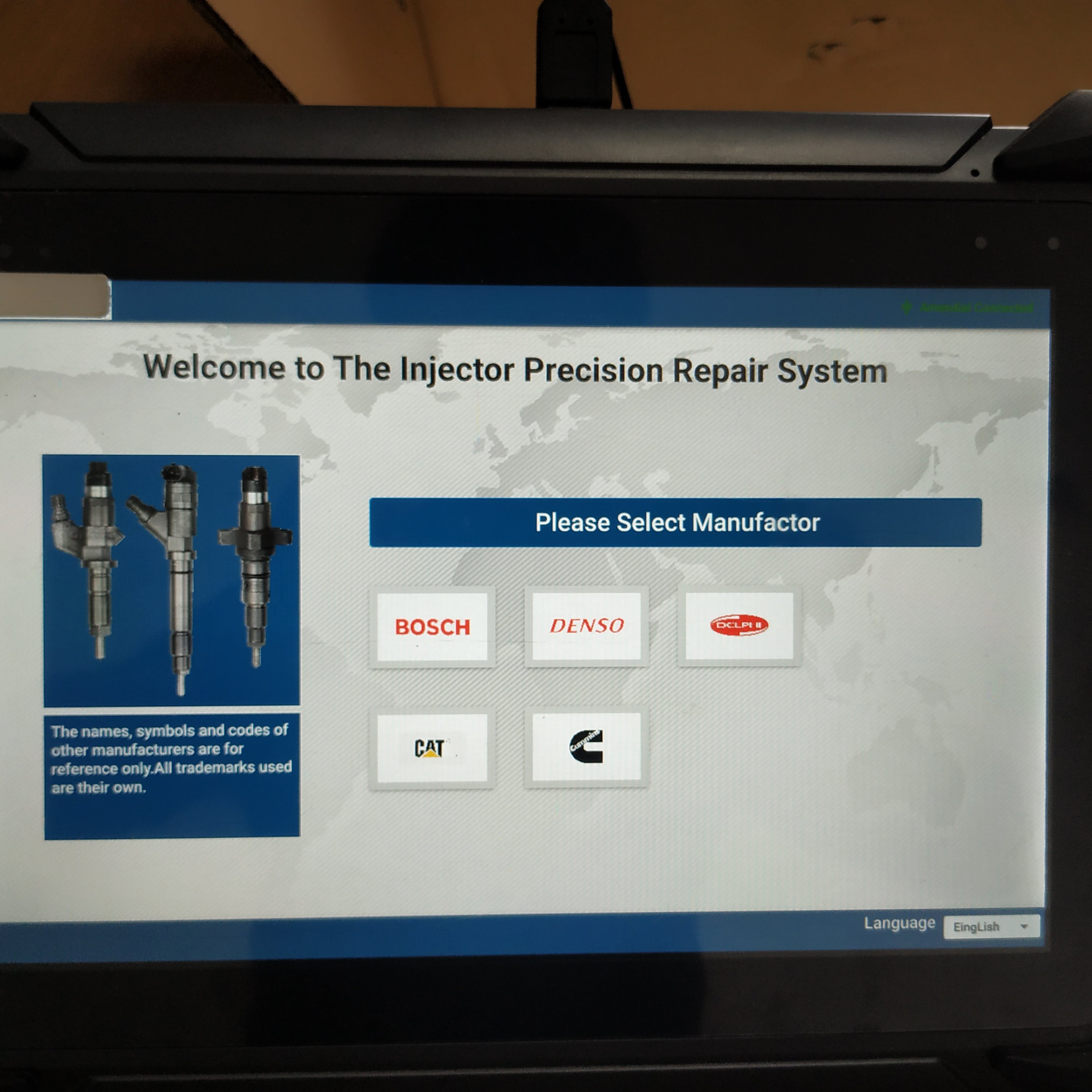

1:Intuitive, step-by-step instruction to direct user to rebuild injector

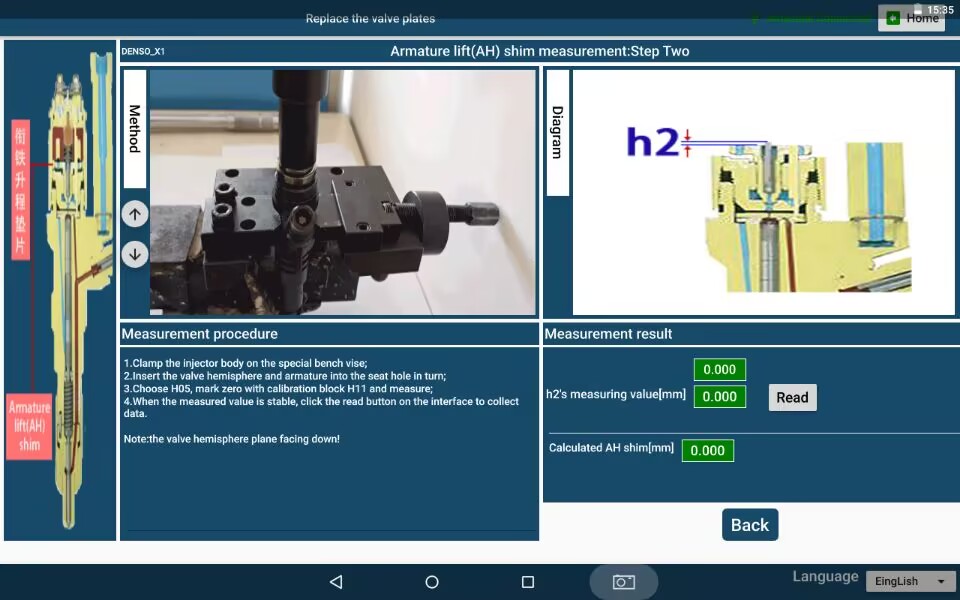

Measure thickness of calibration shims
Measure dimension of injector components
Provide the required thickness of calibration shims
2:Complete database to cover Bosch common rail injectors
CRI 1, CRI 2, CRI 3 for Automotive engine
CRIN 1, CRIN 2 for Commercial vehicle engine
