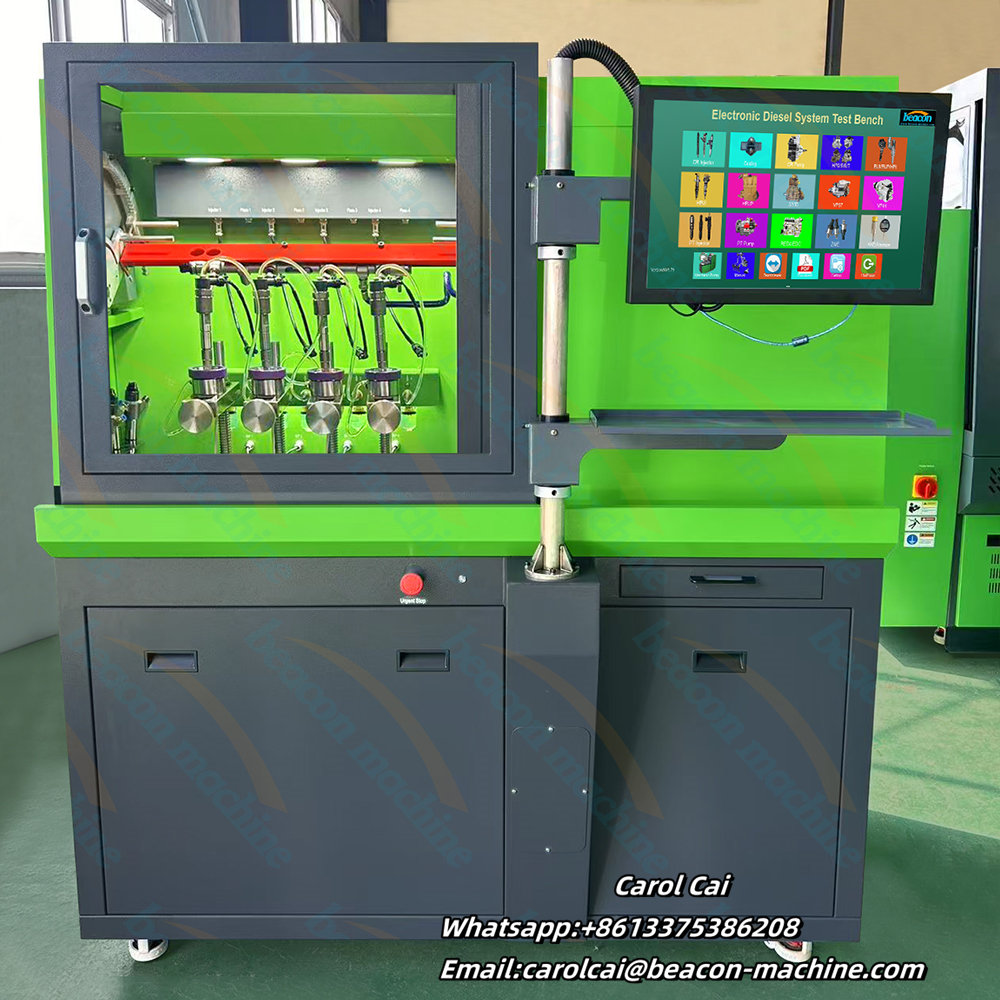

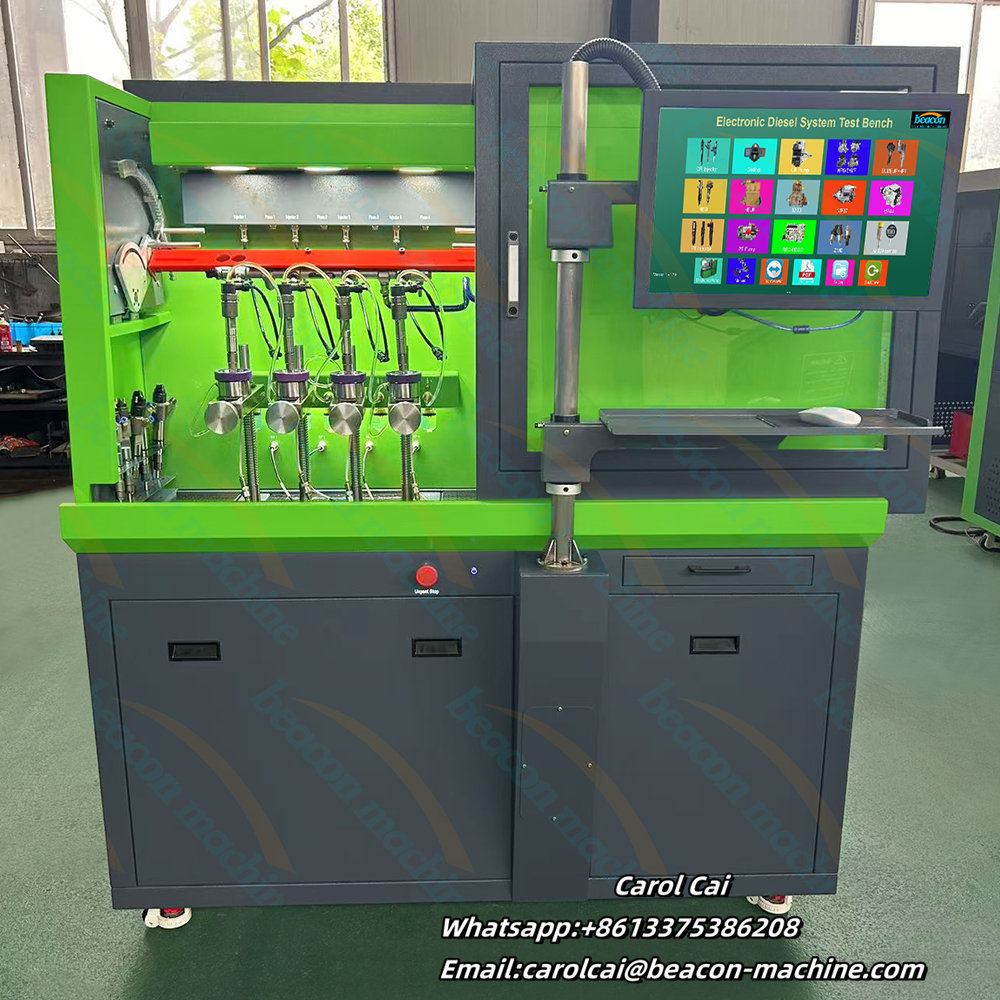

CR304S Diesel Piezoelectric Electromagnetic Common Rail Injector Test Bench Equipment Testing Machine for 4 pcs Injectors

Common rail diesel fuel injector test bench for 4pcs injectors test at the same time

Introduction

1) Integrated automatic operation, including test bench speed, fuel rail pressure, flow measurement, report analysis, etc., one-button operation, you can get the measurement results.
(2) It can test solenoid valve type or piezoelectric crystal type injectors of Bosch, Delphi, Denso, Siemens, Caterpillar, Cummins, domestic fresh air, Beiyou, heavy oil and other manufacturers
(3) The standard data is consistent with the original factory data, and the test accuracy is high;
(4) The database is fully open, and the part number can be increased.
(5) The network is automatically upgraded, and the test data and functions are kept up-to-date at all times;
(6) The injection response time can be tested (optional);
(7) Injector compensation codes can be generated;
(8) Injector resistance and inductance can be tested

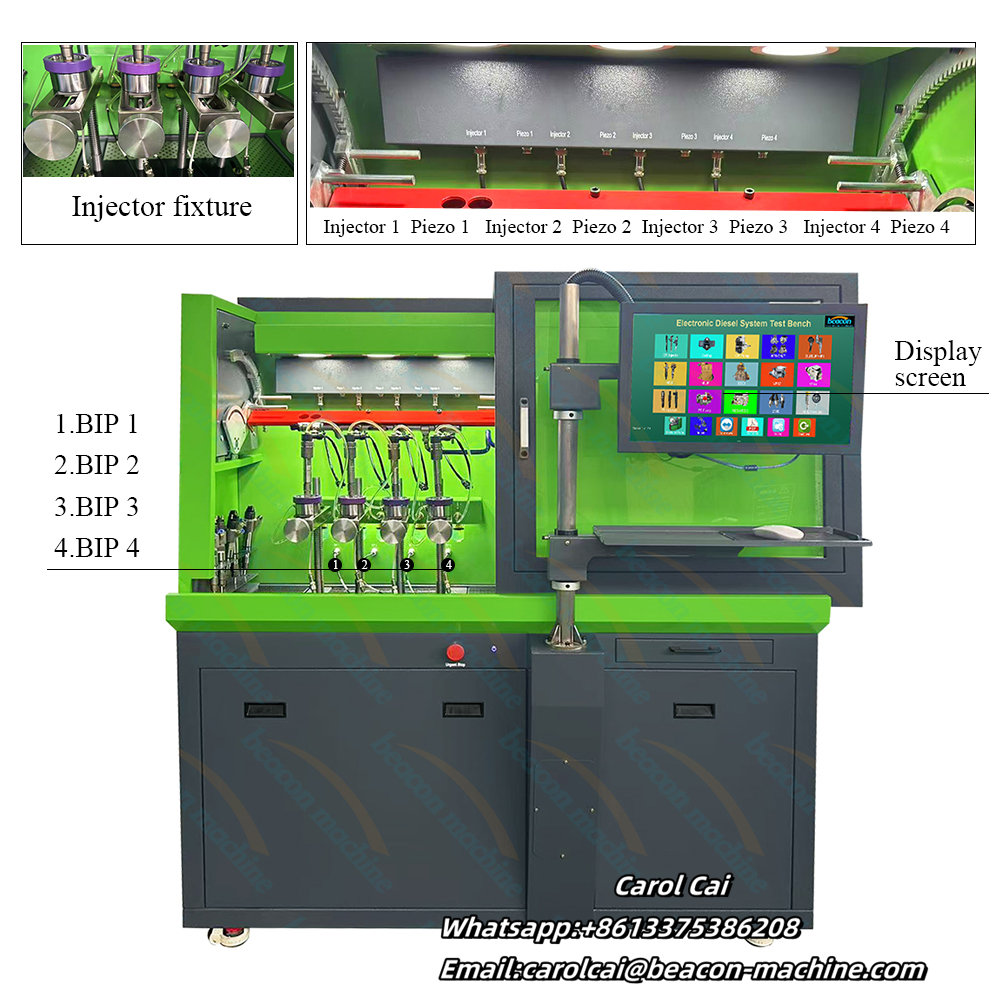

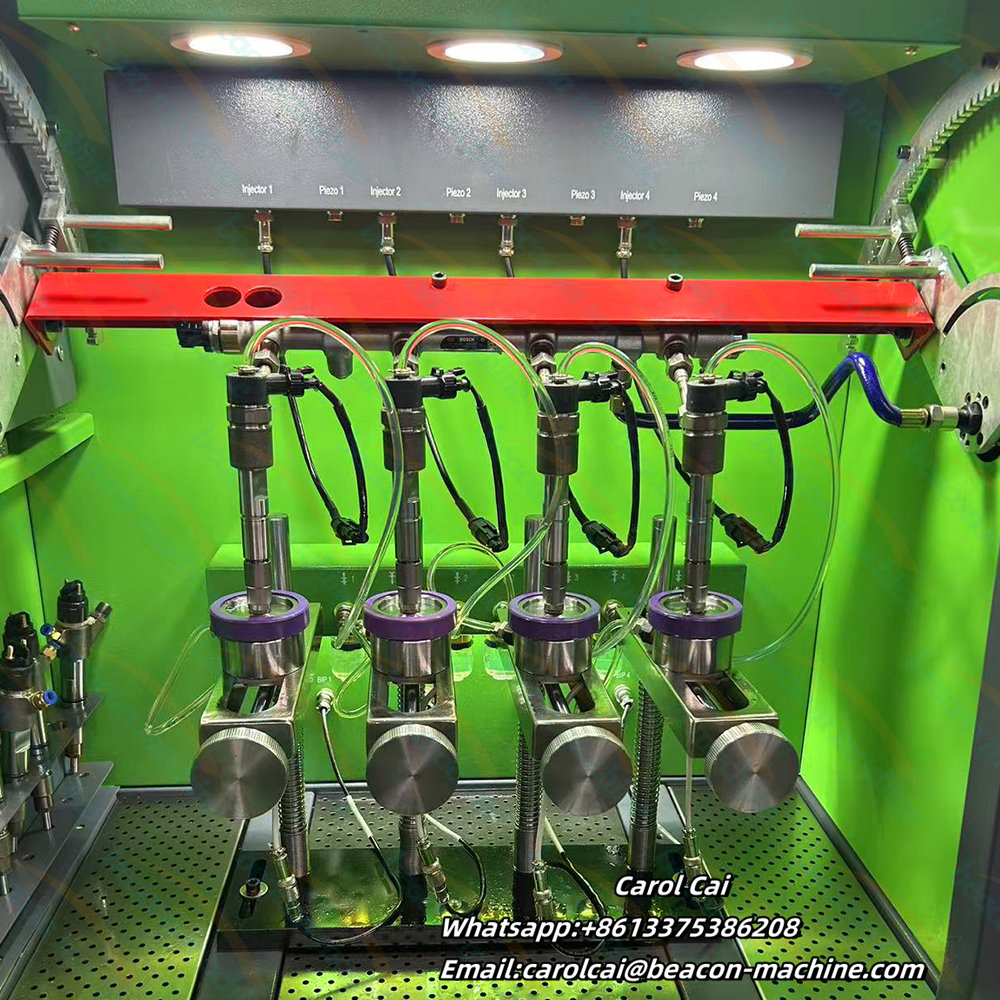

(9) With four flow sensors, it can measure four injectors at the same time

parameter

Function
1. Test the common rail injector
2. Test the piezo injector
3. Delphi, Denso, Bosch, Siemens coding function
4.Simultaneously measure 4 injectors with 4 flow sensors

Optional features
1 BIP function
2 AHE injector dynamic stroke (with Bosch 110, 120 stroke measuring tool + dial gauge)
3 Rail pressure sensor test
4 DRV/HPV test
5 Solenoid valve test
6 Bosch 4 pins injector test
