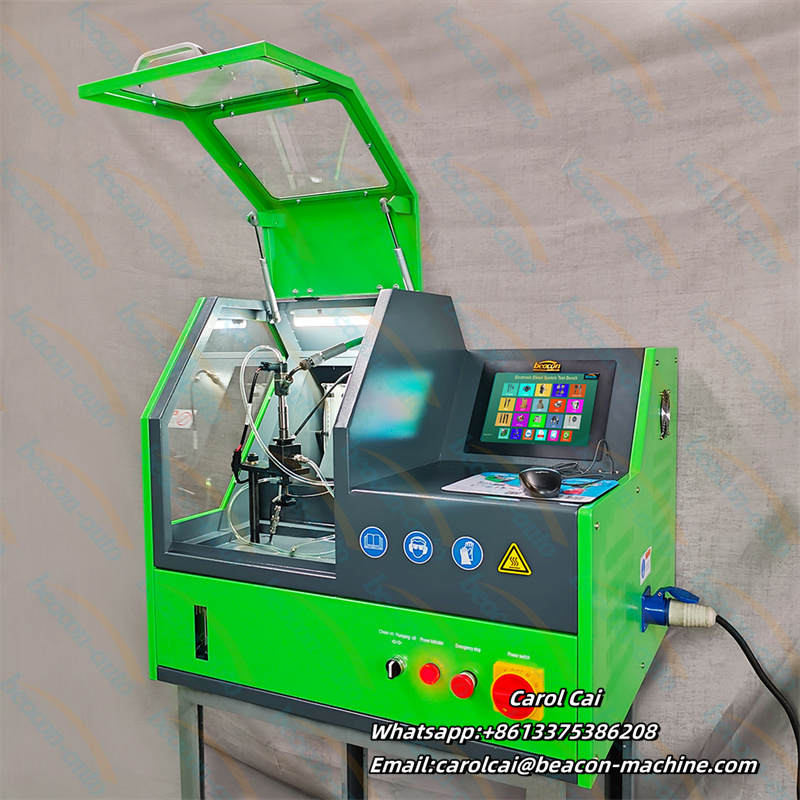

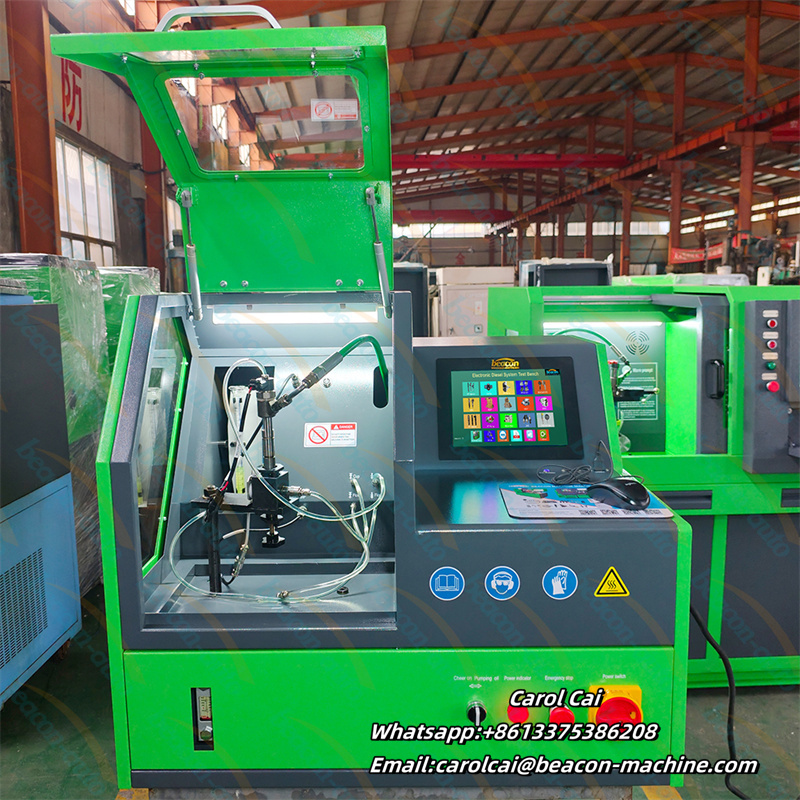

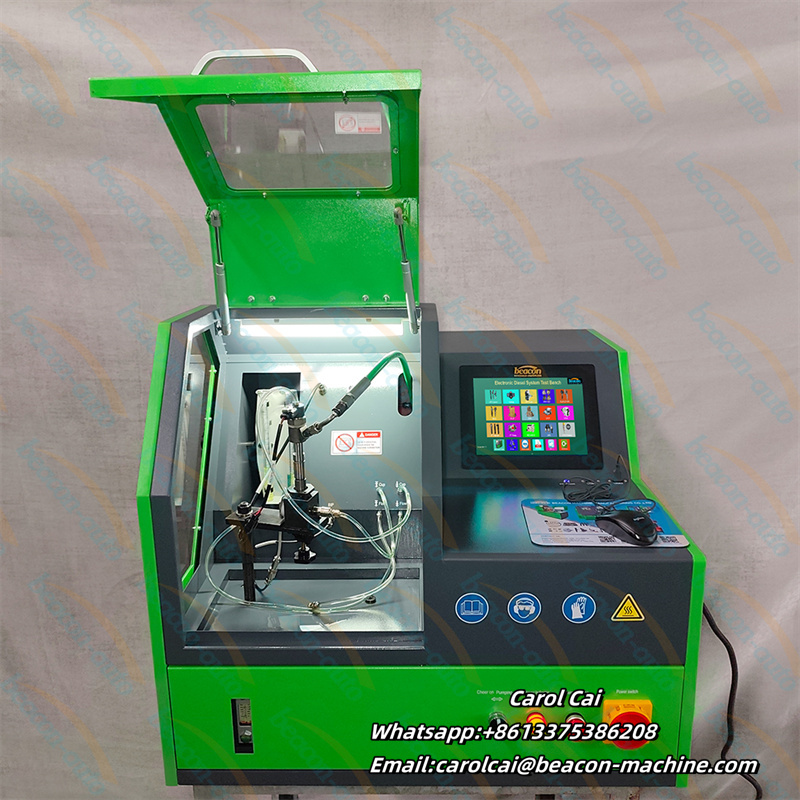

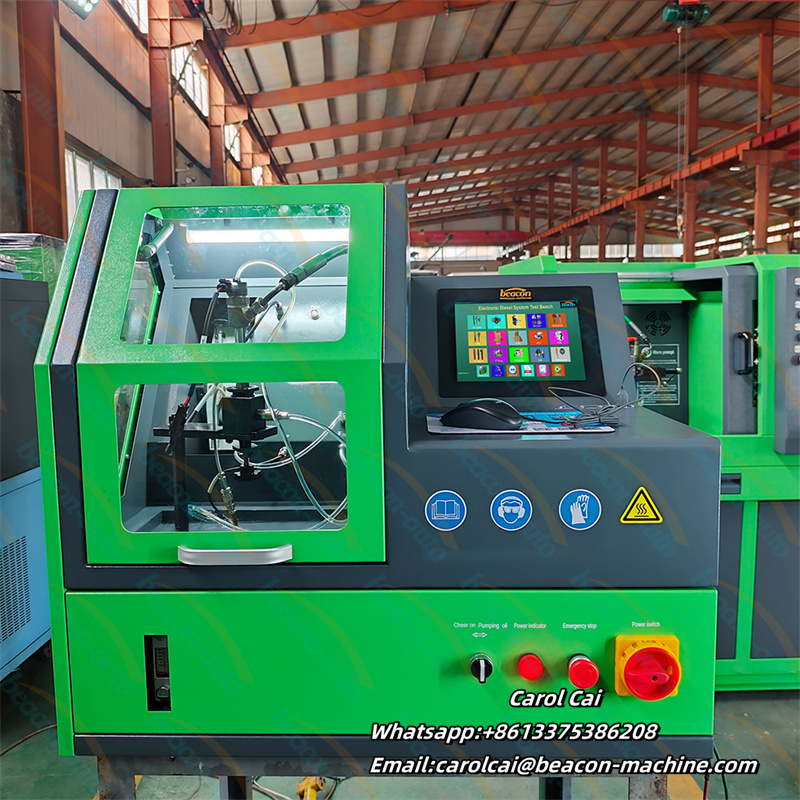

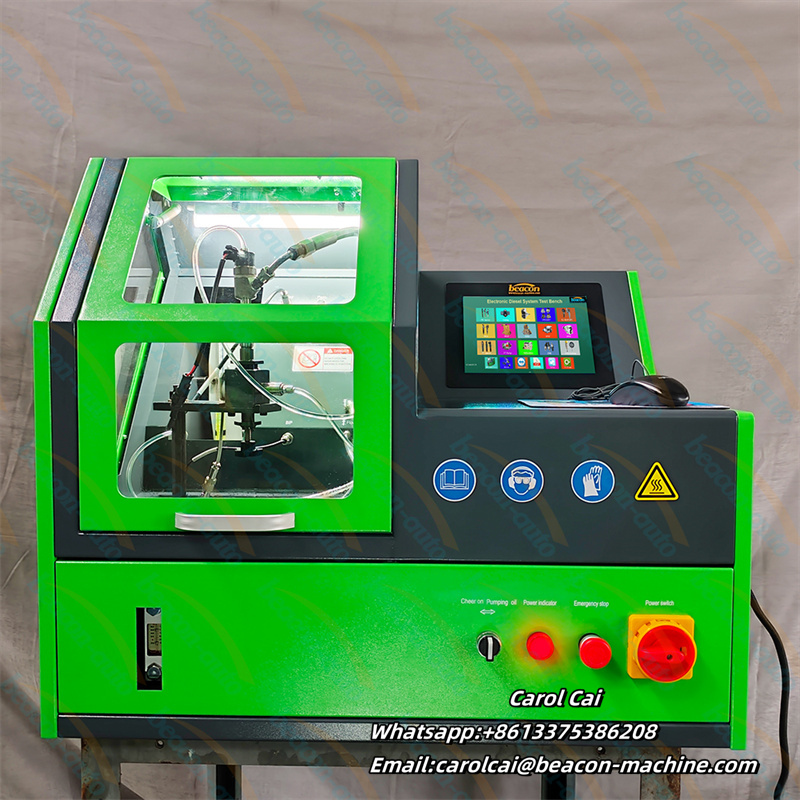

EPS210S Common rail fuel injector tester diesel injector repair testing machine

EPS210S Common Rail Injector test Bench Fuel Injector Tester Piezo Electric Injector Tester

Introduction

FUNCTION
(1) Test the sealing performance of the common rail injector
(2) Test the full load performance of the common rail injector
(3) Test the mid-load performance of common rail injectors
(4) Test the idling performance of the common rail injector

(5) Test the pre-injection performance of the common rail injector

parameter

TECHNICAL PARAMETER
(1) Measuring motor speed: 0～3000rpm; oil pump speed: 0--1500rpm
(2) Working pressure: 0-2000 bar
(3) Fuel tank volume: 10L;
(4) Test oil filtering accuracy: 3μ;
(5) Oil measuring method: flow meter
(6) Power supply: 220V/50HZ;
(7) Common rail pump type: CP1;
(10) Output power: 2.6KW
(11) Overall dimensions (mm): 970*870*104

(12) Net weight: 120Kg.
