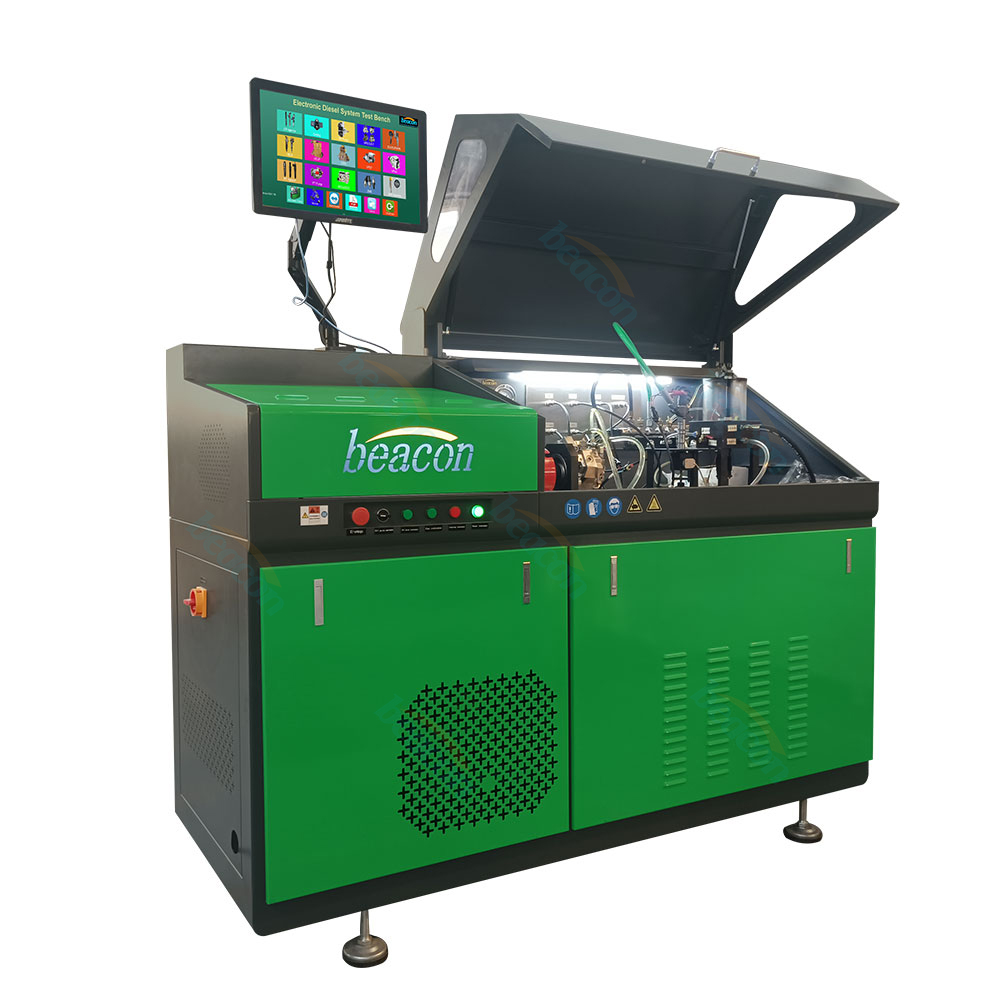

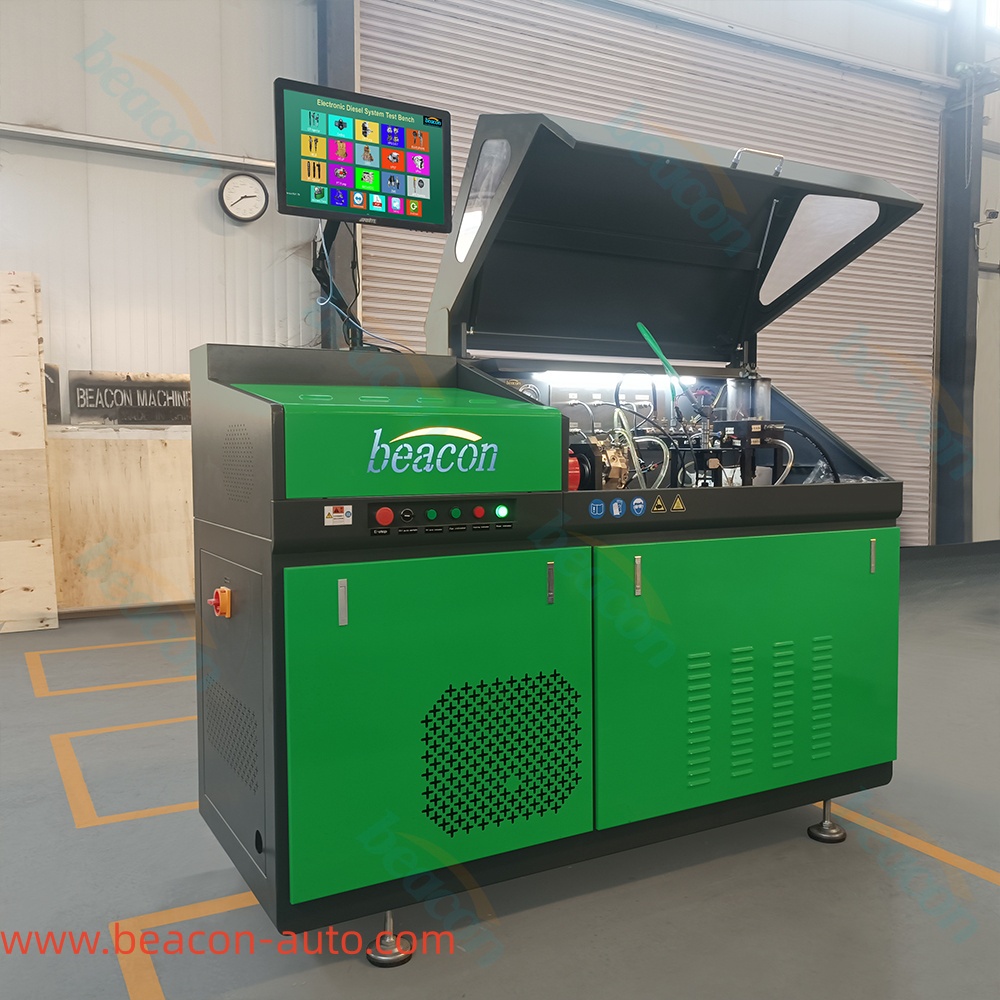

CR707 Common Rail Injector Pump Testing Machine

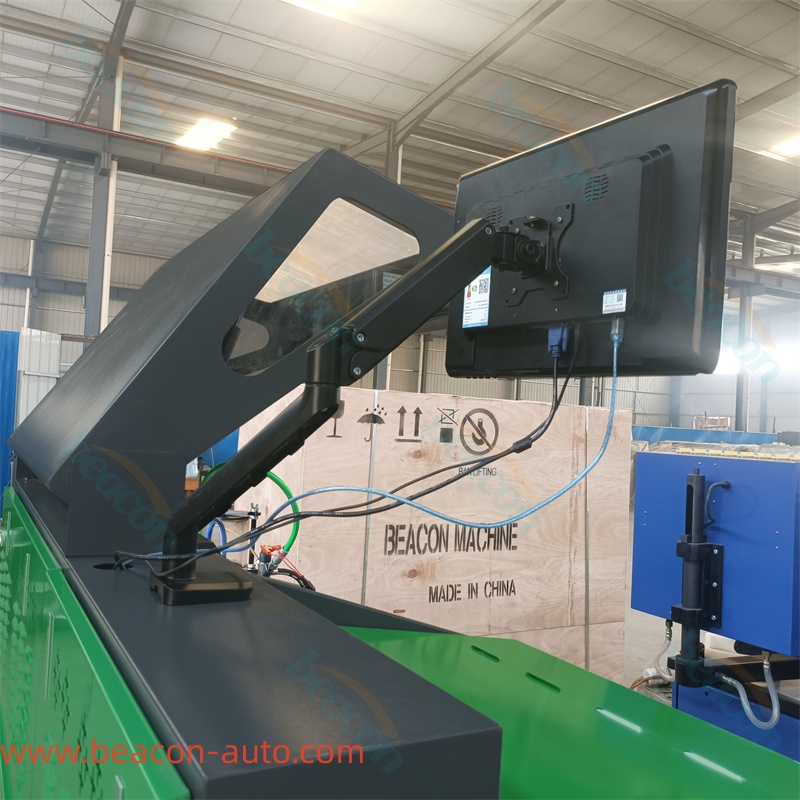

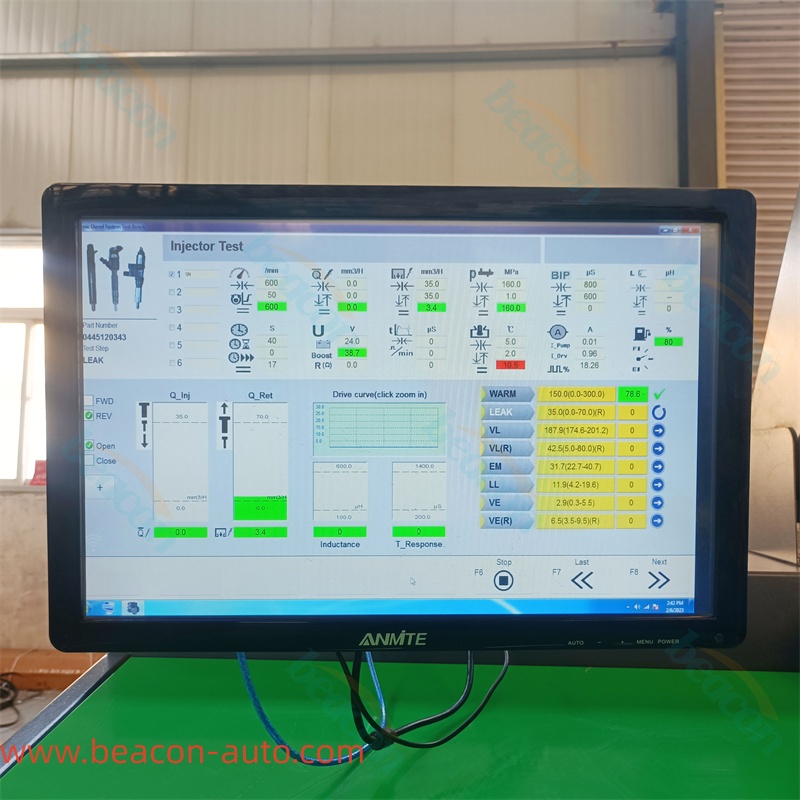

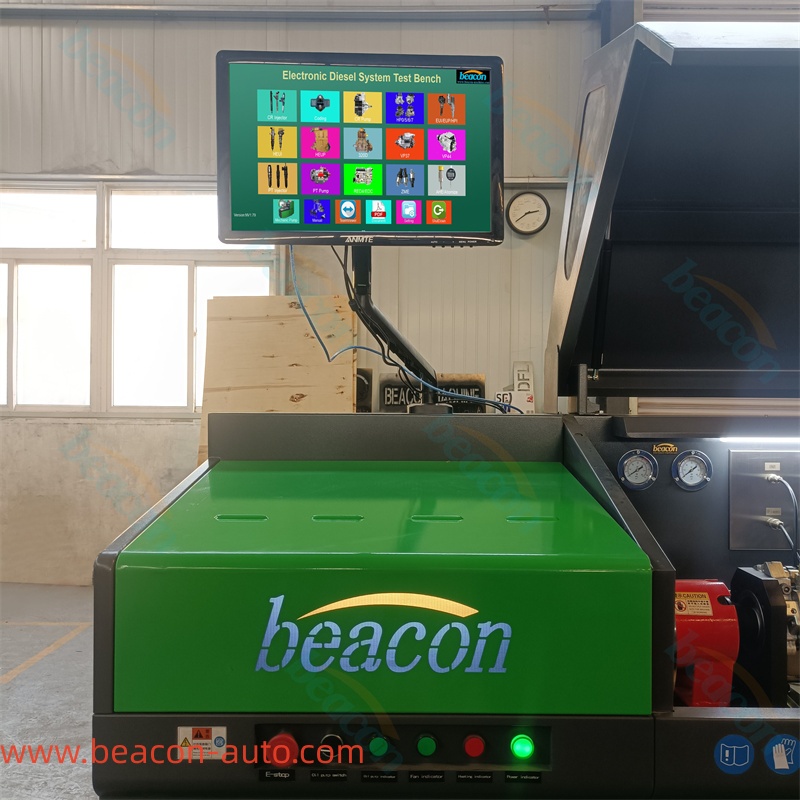

CR707 fuel injector pump testing machine with a touch screen and movable screen,easy to perate

inquiry

Introduction

CR707 Common Rail Injector Pump Testing Machine

The system is suitable for detection of BOSCH, DENSO, DELPHI and SIEMENS common rail pump and injectors. Such as CP1, CP2.CP3, HP3 series injector pump and the type of Electromagnetic injectors.

Basic function
1. Common rail fuel injectors test
2. Piezo injector test
3. Common rail pump test
4. Denso Hpo pump test
5. Bosch, Denso, Siemens, Delphi coding functions

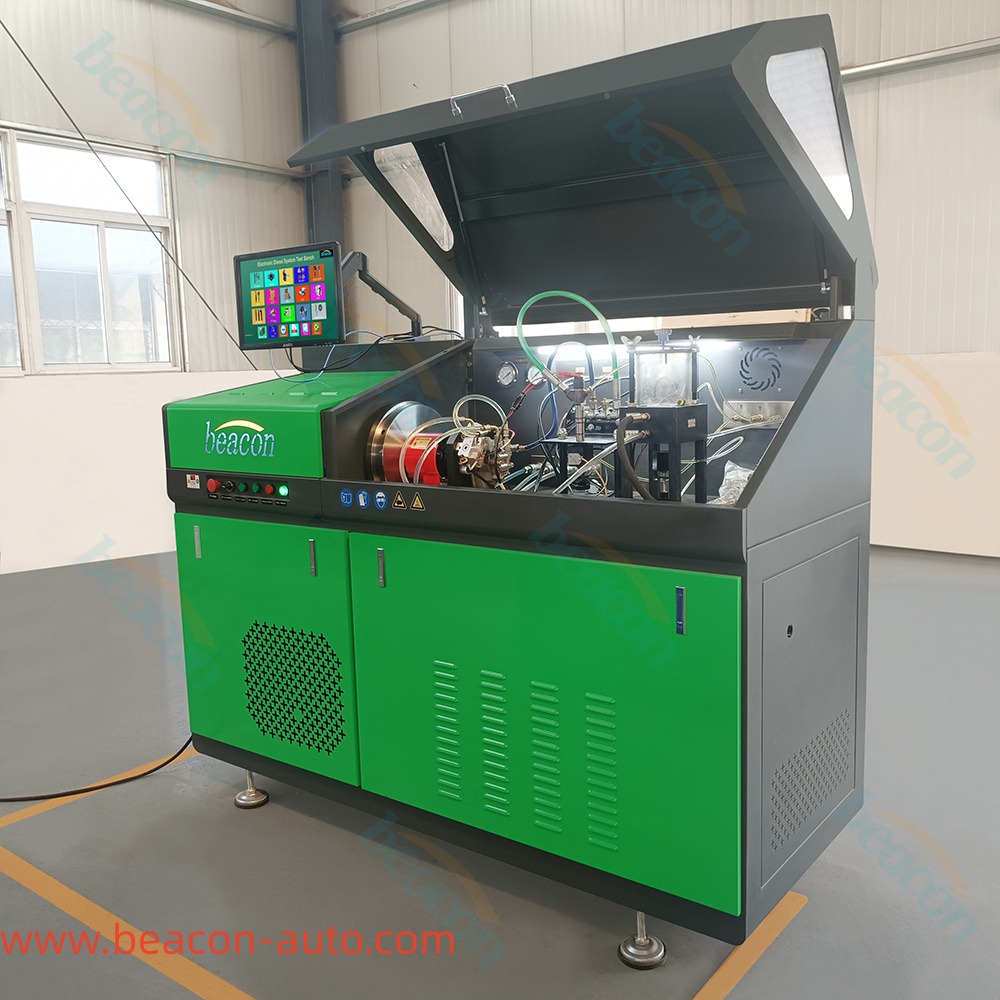

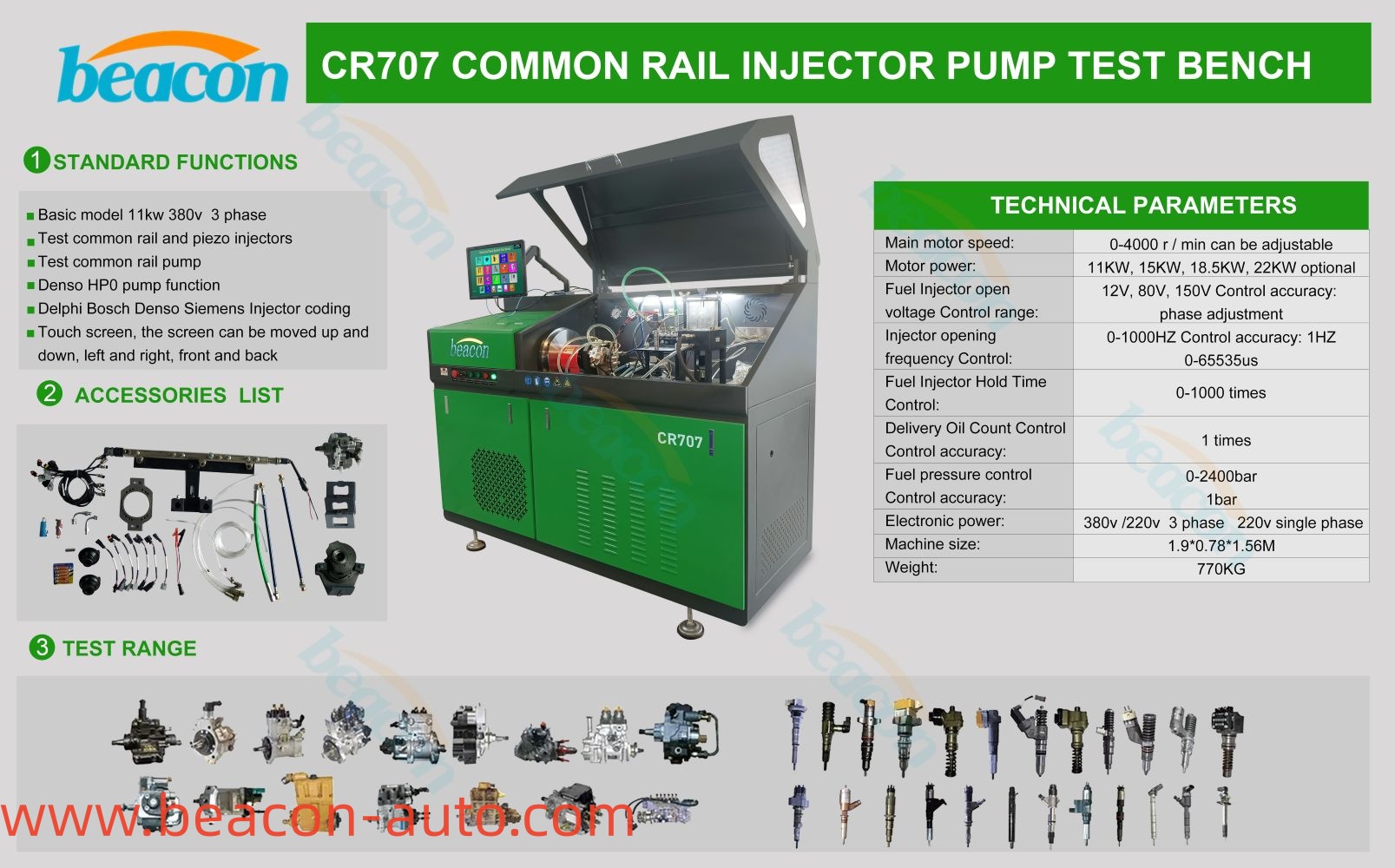

CR707 Common Rail Injector Pump Testing Machine CR707 Common Rail Test Bench

parameter

Optional features
1.Test eui eup with TU-A CAMBOX
2.Test eui eup with TU-B CAMBOX
3.Test eui eup with TU-C CAMBOX
4.Test 2 / 4 / 6 fuel injectors one by one (with 1 flow sensor)
5.Test CAT HEUI 3126B c7 c9 with old or new adapters
6.HEUI 3126A/3412E/NAVISTAR/ISUZU/G2.8/G2.9 ---NEED WITH New HEUI adapters
7.CAT C7 C9 pump(Need add HEUI C7 C9 function)
8.Test CP4 pump function
9.PT injector need with TU-C
10.PT pump need with TU-C
11.HPI Q60 X15 Cummins need with TU-C
12.AHE injector dynamic stroke (with Bosch 110, 120 stroke measuring tool + dial indicator)
13.Delphi E3 double pulse control system
14.ZME test measurement unit
15.Rail pressure sensor test
16.DRV/HPV test
17.Solenoid valve test
18.Bosch 4 pins injector test

19.CAT 320D pumps

Main motor speed:0-4000 r / min can be adjustable
Motor power:11KW, 15KW, 18.5KW optional
Fuel Injector open :12V, 80V, 150V Control accuracy:
voltage Control range: phase adjustment
Injector opening :0-1000HZ
Control accuracy: 1HZ
frequency Control:0-65535us
Fuel Injector Hold Time Control:0-1000 times
Delivery Oil Count Control accuracy:1 times
Fuel pressure control:0-2400bar
Control accuracy: 1bar
Electronic power: 380v /220v 3 phase 220v single phase
Product Size:1.9*0.78*1.56M
Weight:770KG(Contains cam box)
