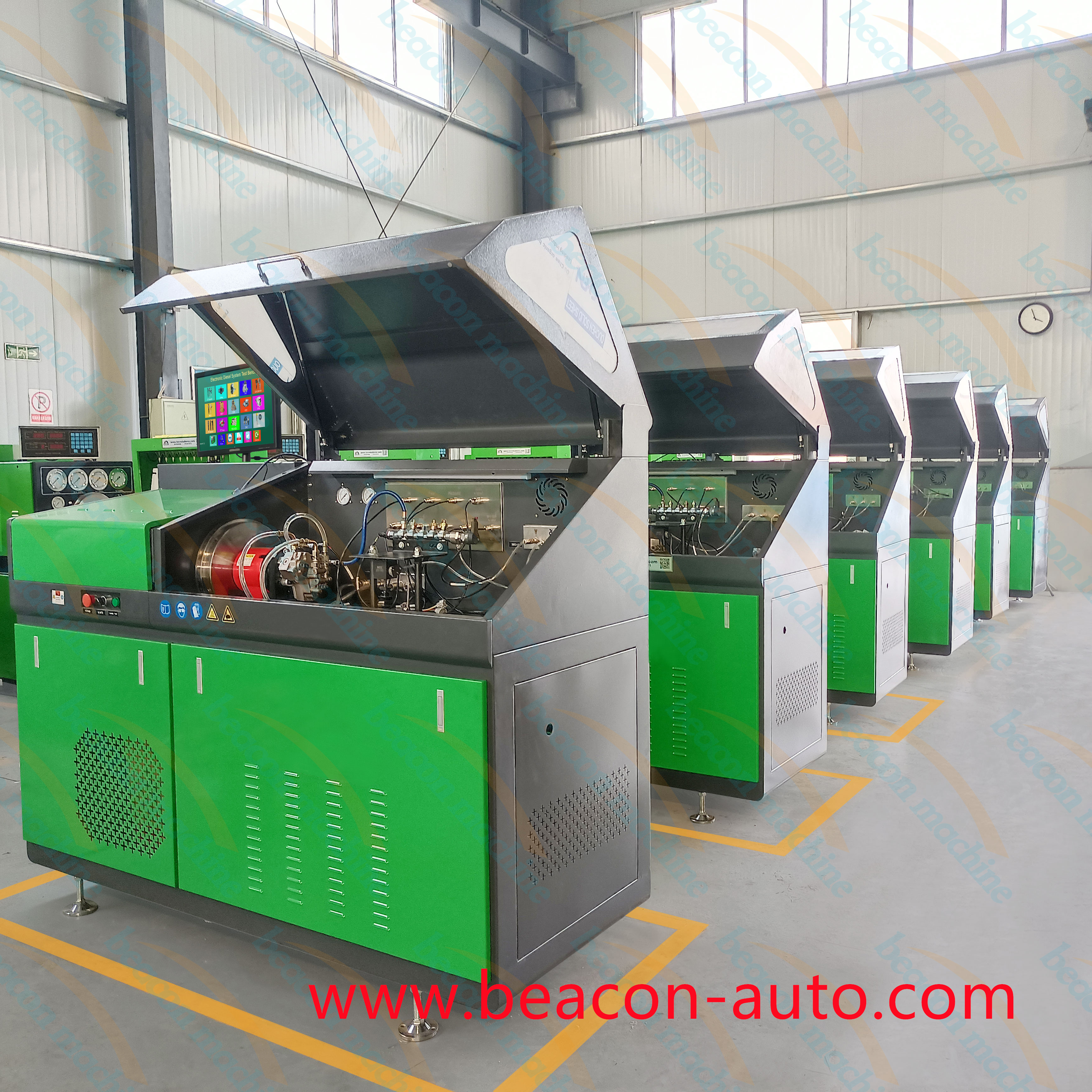

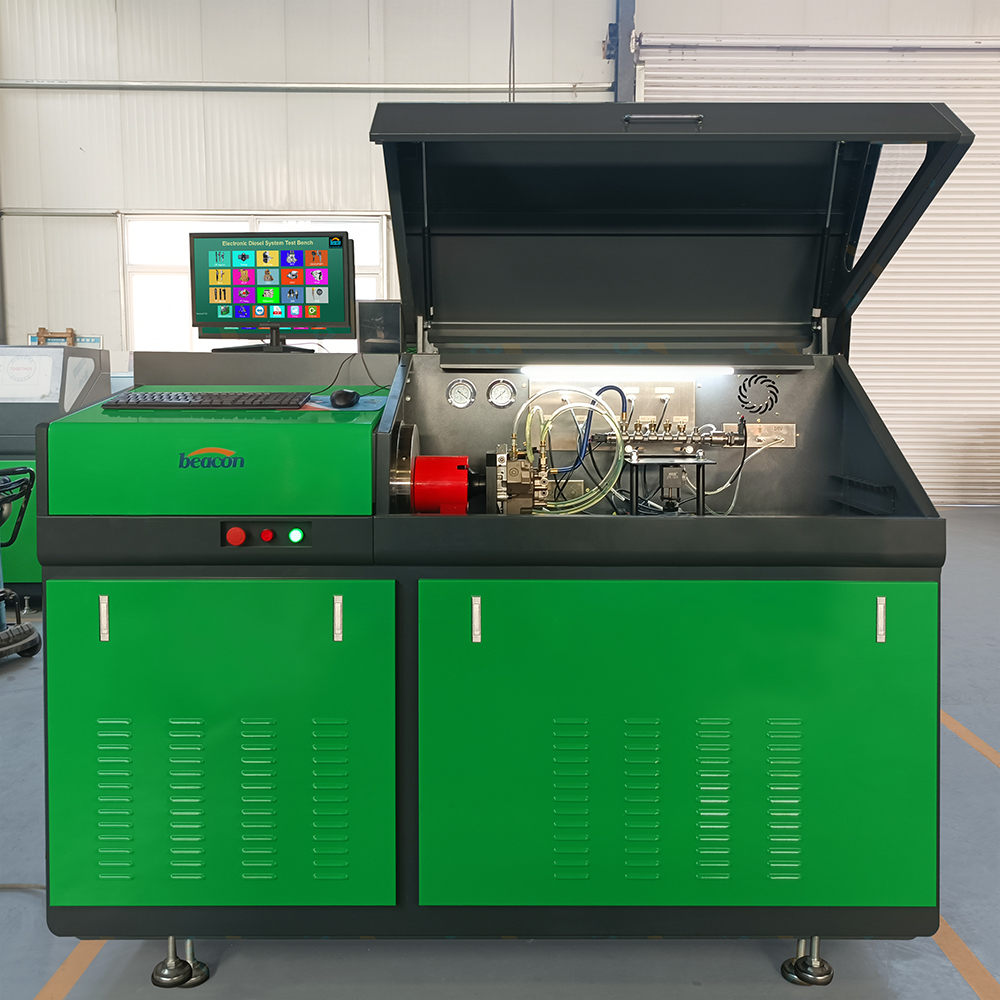

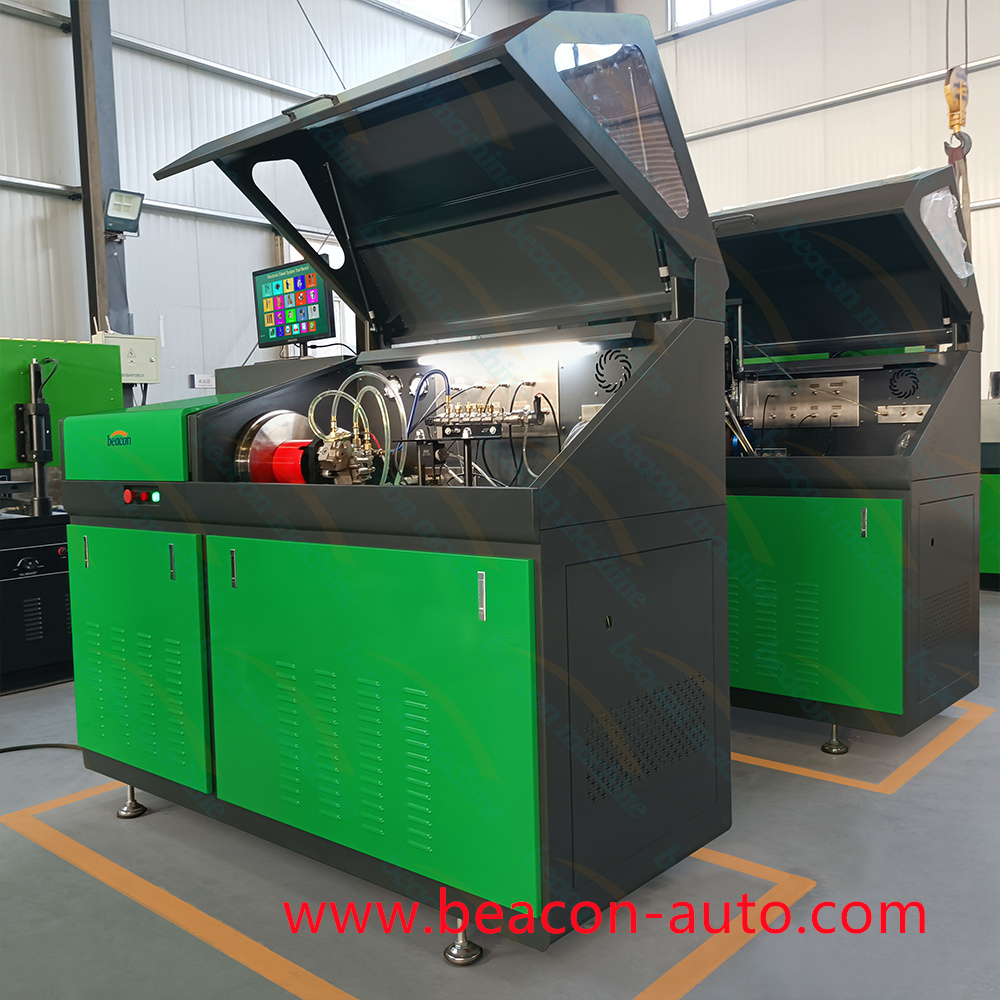

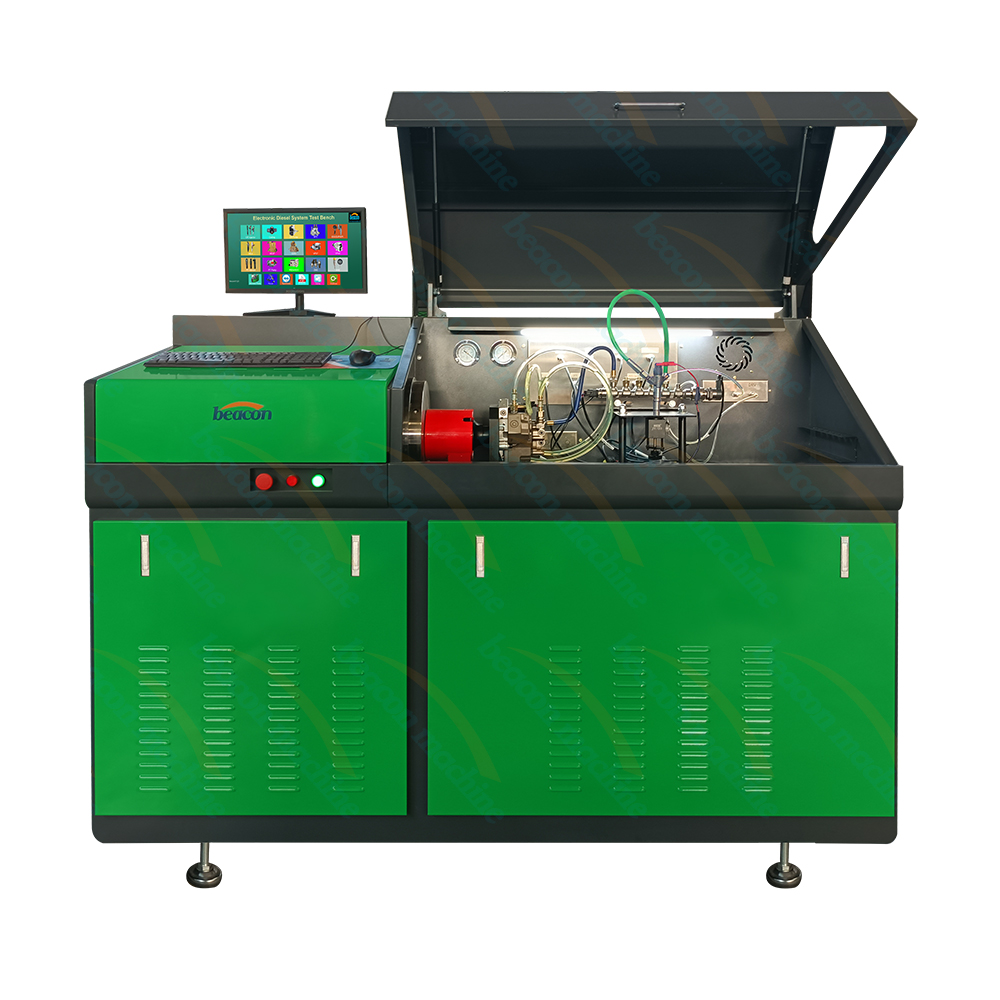

CR708 Common Rail diesel Fuel Injector Pump test Bench

    CR708 Common Rail diesel Fuel Injector Pump test Bench

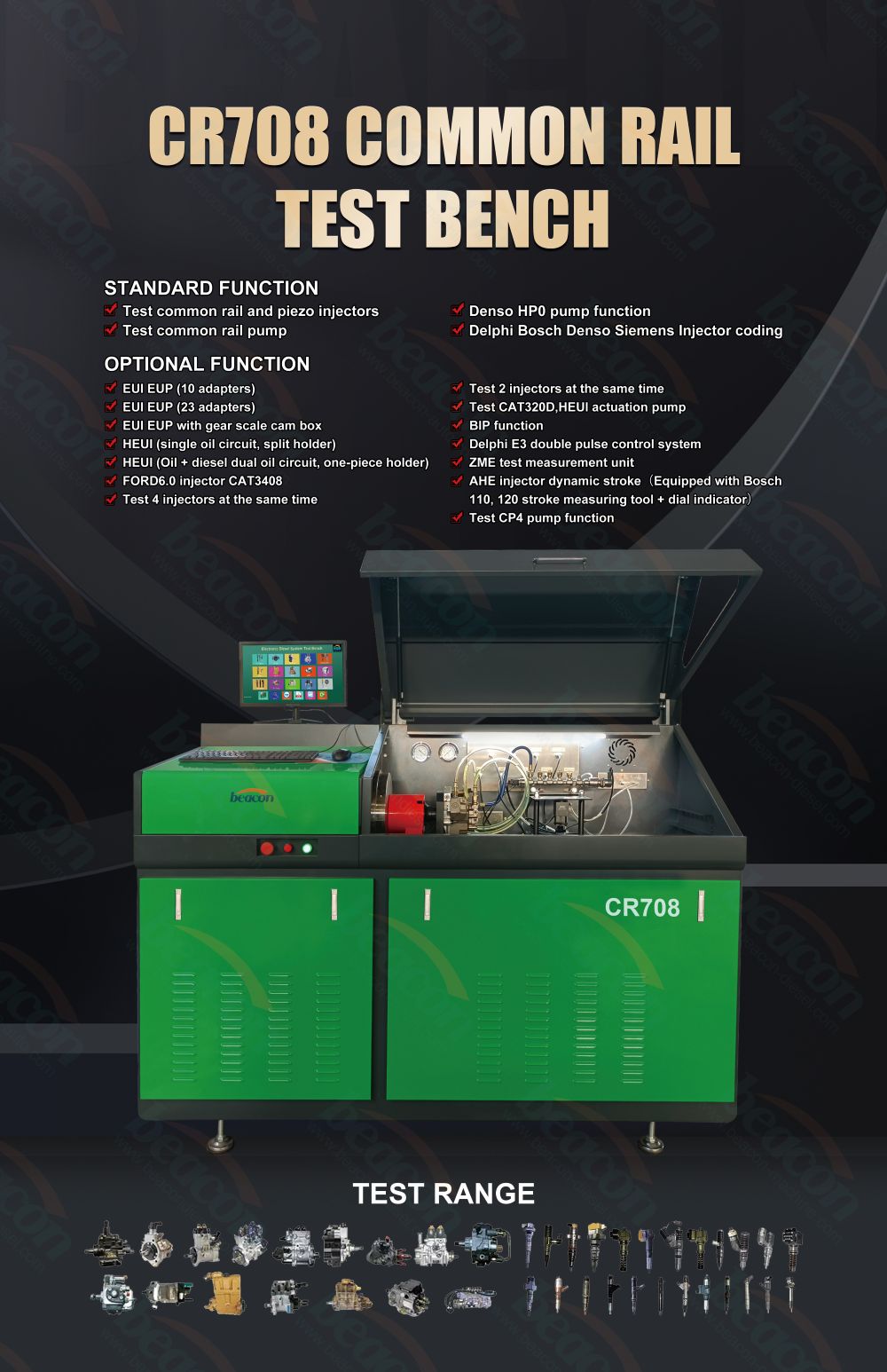

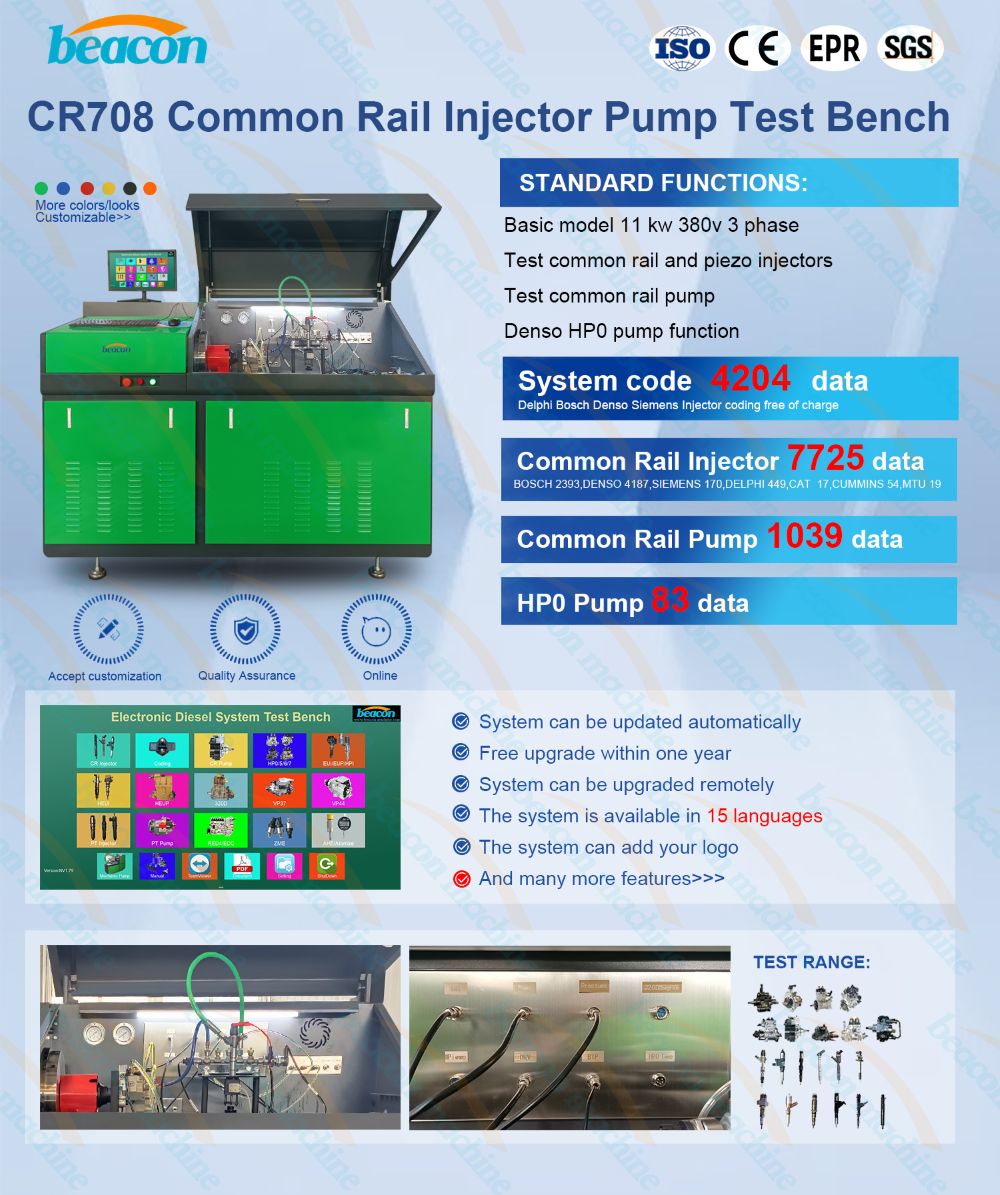

1. Common rail fuel injectors test

2. Piezo injector test

3. Common rail pump test

4. Denso Hpo pump test

5. Bosch, Denso, Siemens, Delp

Optional features

1 Test eui eup with TU-A CAMBOX

2 Test eui eup with TU-B CAMBOX

3 Test eui eup with TU-C CAMBOX

4 Test 2 / 4 / 6 fuel injectors one by one (with 1 flow sensor)

5 Test CAT HEUI 3126B c7 c9 with old or new adapters

6 HEUI 3126A/3412E/NAVISTAR/ISUZU/G2.8/G2.9 ---NEED WITH New HEUI adapters

7 CAT C7 C9 pump(Need add HEUI C7 C9 function)

8 Test CP4 pump function

9 PT injector need with TU-C

10 PT pump need with TU-C

11 HPI Q60 X15 Cummins need with TU-C

12 AHE injector dynamic stroke (with Bosch 110, 120 stroke measuring tool + dial indicator)

13 Delphi E3 double pulse control system

14 ZME test measurement unit

15 Rail pressure sensor test

16 DRV/HPV test

17 Solenoid valve test

18 Bosch 4 pins injector test

19 CAT 320D pumps

Main motor speed: 0-4000 r / min can be adjustable

Motor power: 11KW, 15KW, 18.5KW optional

Fuel Injector open: 12V, 80V, 150V

Voltage Control range: phase adjustment

Injector opening: 0-1000HZ

Control accuracy: 1HZ

Frequency Control: 0-65535us

Fuel Injector Hold Time Control: 0-1000 times

Delivery Oil Count Control  accuracy: 1 times

Fuel pressure control: 0-2400bar

Control accuracy: 1bar

Electronic power: 380v /220v  3 phase   220v single phase

Product Size: 1.9*0.78*1.56M

Weight: 770KG(Contains cam box)
