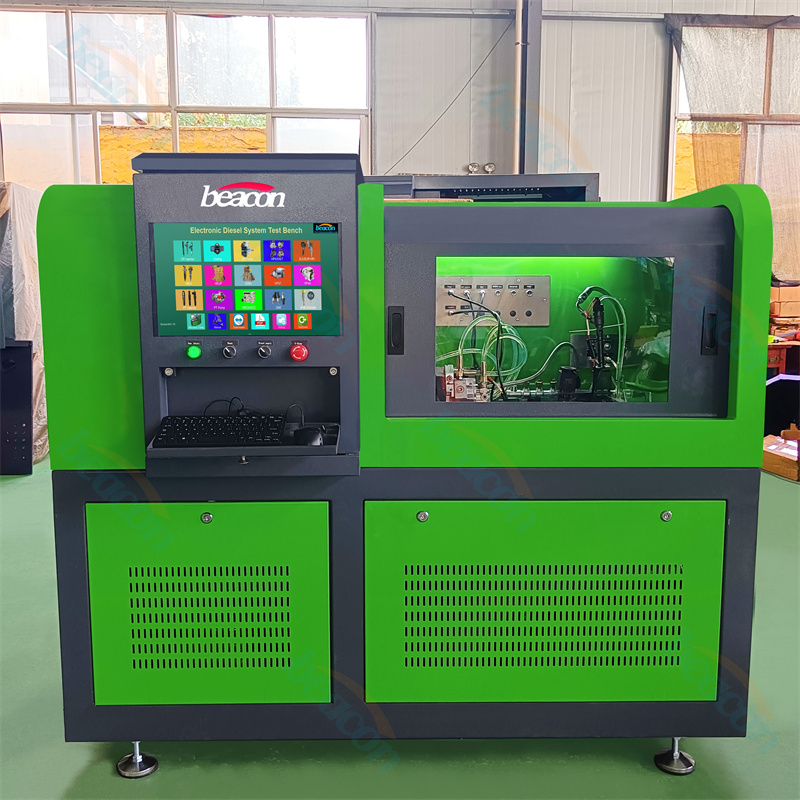

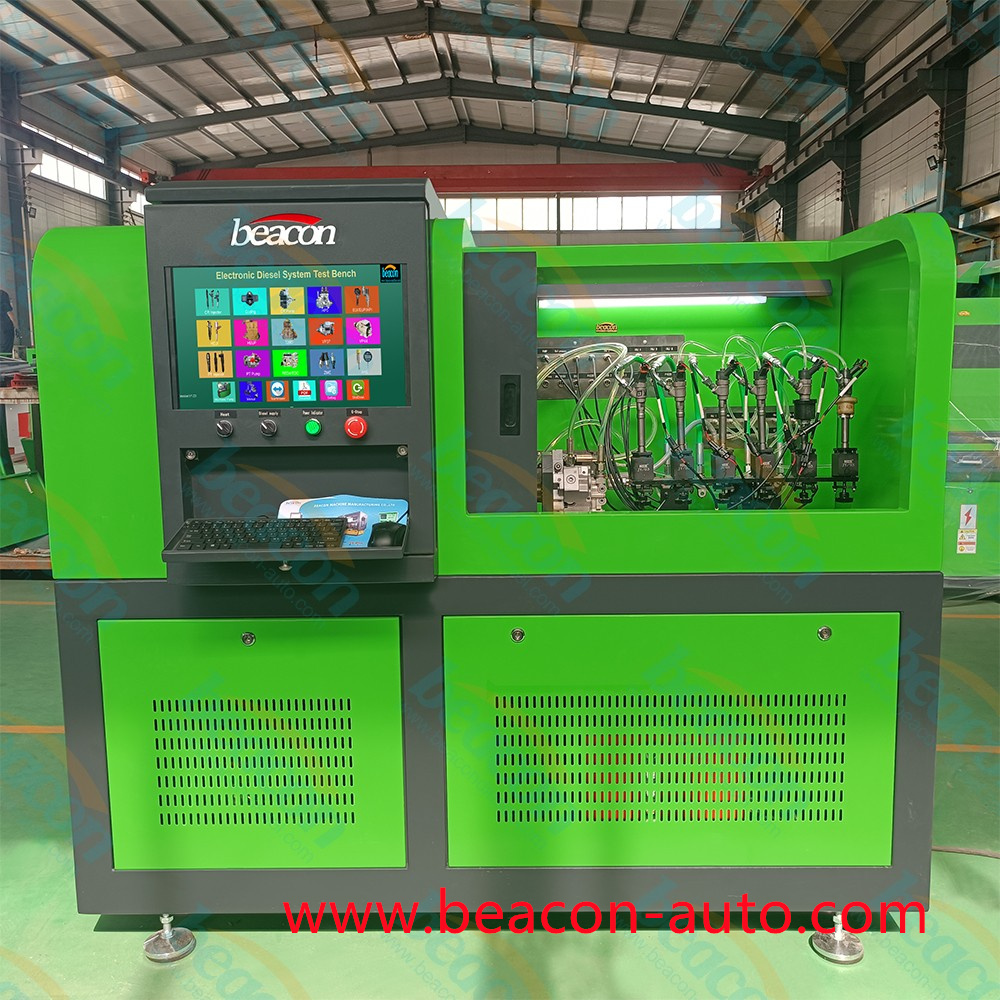

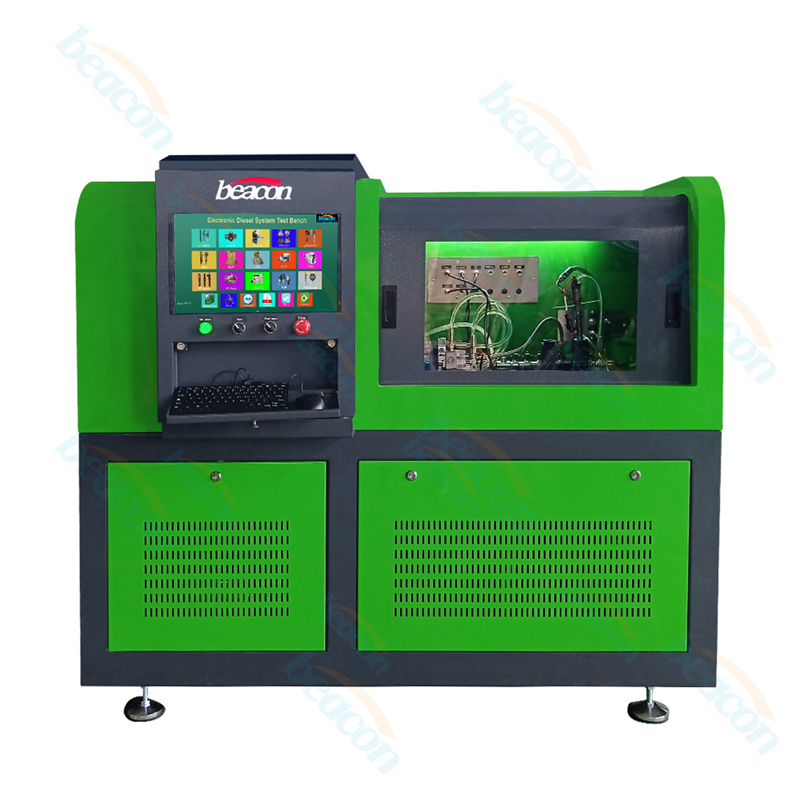

CR819 Common Rail Diesel Injector Pump Test Bench

Introduction

CR819 common rail test bench is mainly test for common rail pump and Injector. Also it is continuous fuel delivery analysis computerised measuring system for conventional and new diesel injection systems. The electronic fuel delivery measuring system is compulsory for modern diesel injection system testing. It guarantees a high level of reproductivity of the measured value.

System application

The system is suitable for detection of BOSCH, DENSO, DELPHI and

SIEMENS common rail pump and injectors. Such as CP1, CP2.CP3, HP3 series injector pump and the type of Electromagnetic injectors, It also can test 6 common rail injectors in one time.

Main features

1、 Basic model 11kw 380v 3-phase

2、 Test common rail and piezoelectric injectors

3、 Test the common rail pump

4、 Denso HP0 pump function

5、 Delphi Bosch Denso Siemens injector code

Optional function：

1、 EUI EUP (10 adapters)

2 、EUI EUP (19 adapters)

3、 EUI EUP with gear scale cam box

4、 HEUI (single oil circuit, split holder)

5、 HEUI (oil + diesel dual oil circuit, conjoined gripper)

6 、HEUI 3412 ISUZU function

7、 FORD6.0 Injector Carter 3408

8、 Measure six at the same time (without additional flow sensor)

9 、Measure four at the same time (without additional flow sensor)

10 、Measure two at the same time (without additional flow sensor)

11 、Simultaneous measurement of six (additional flow sensor)

12 、Simultaneous measurement of four (additional flow sensor)

13、 Simultaneous measurement of two (additional flow sensor)

14 、Delphi, Denso, Bosch, Siemens coding

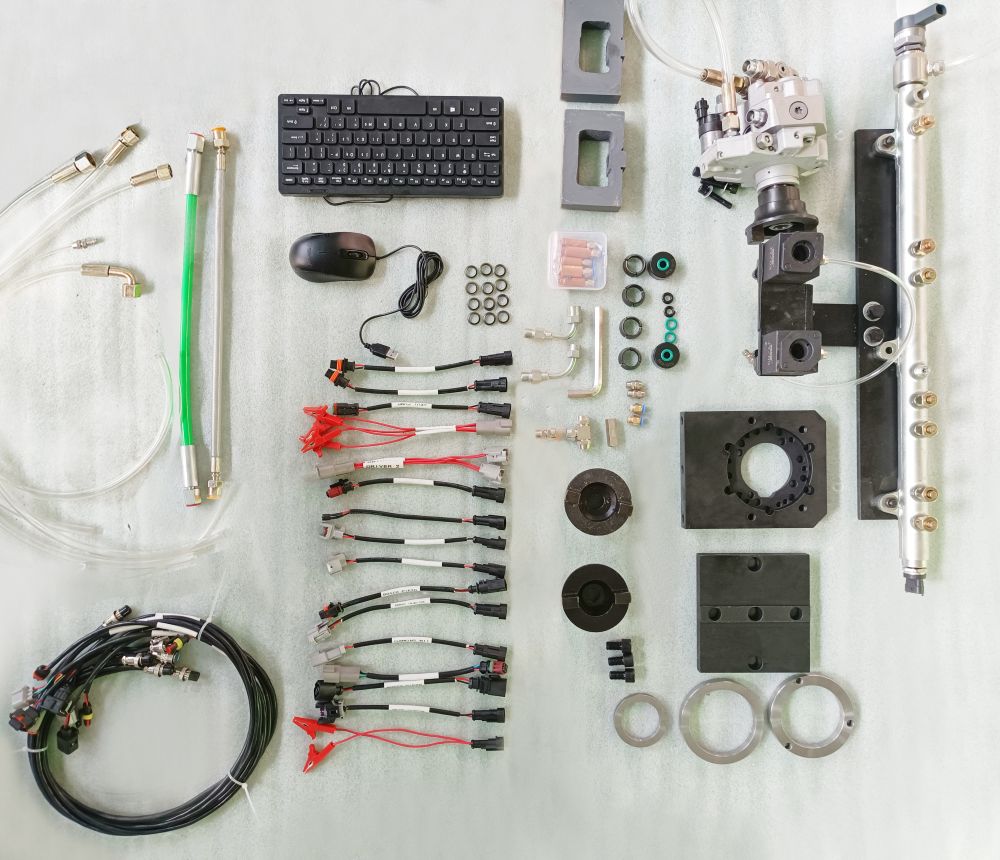

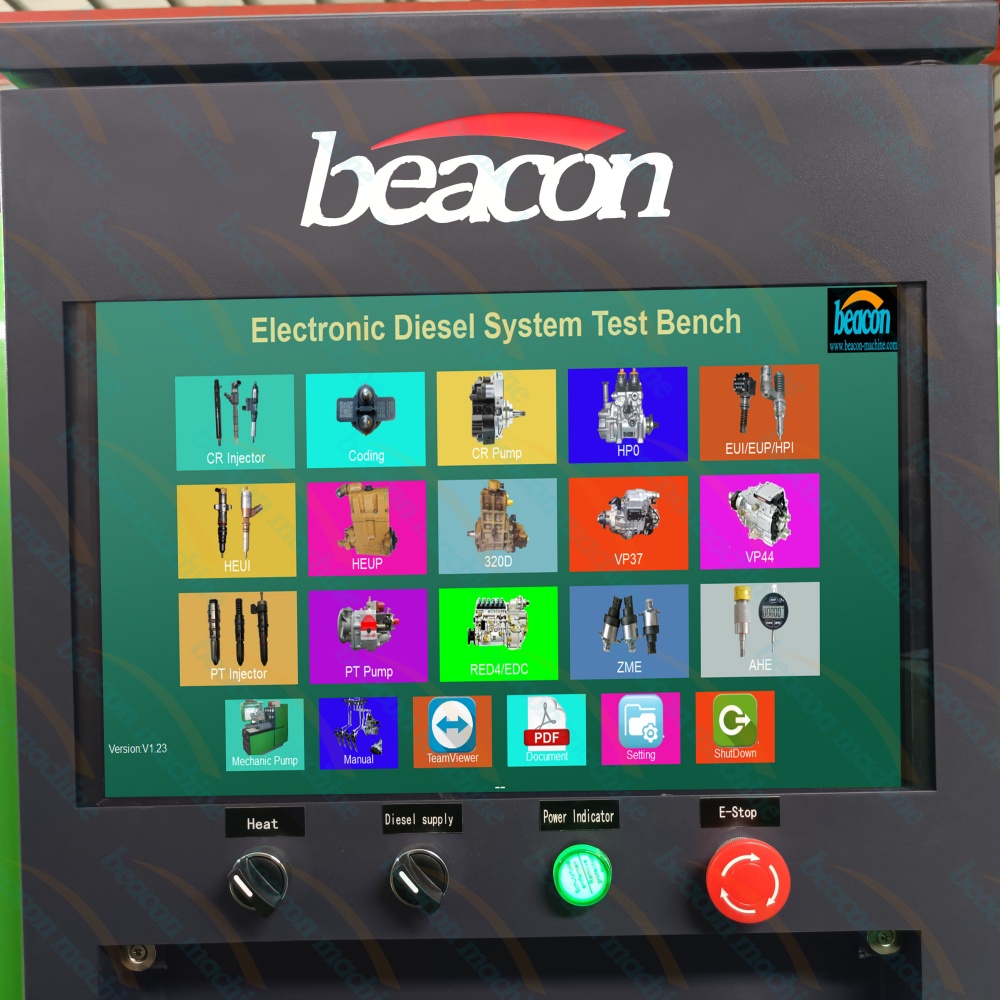

The details photos

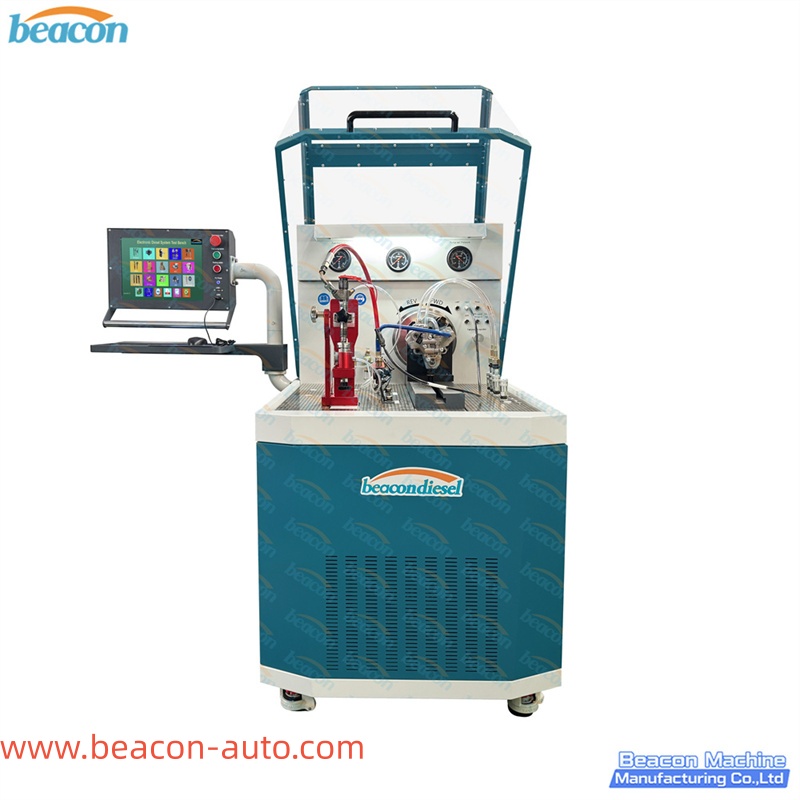

other products
