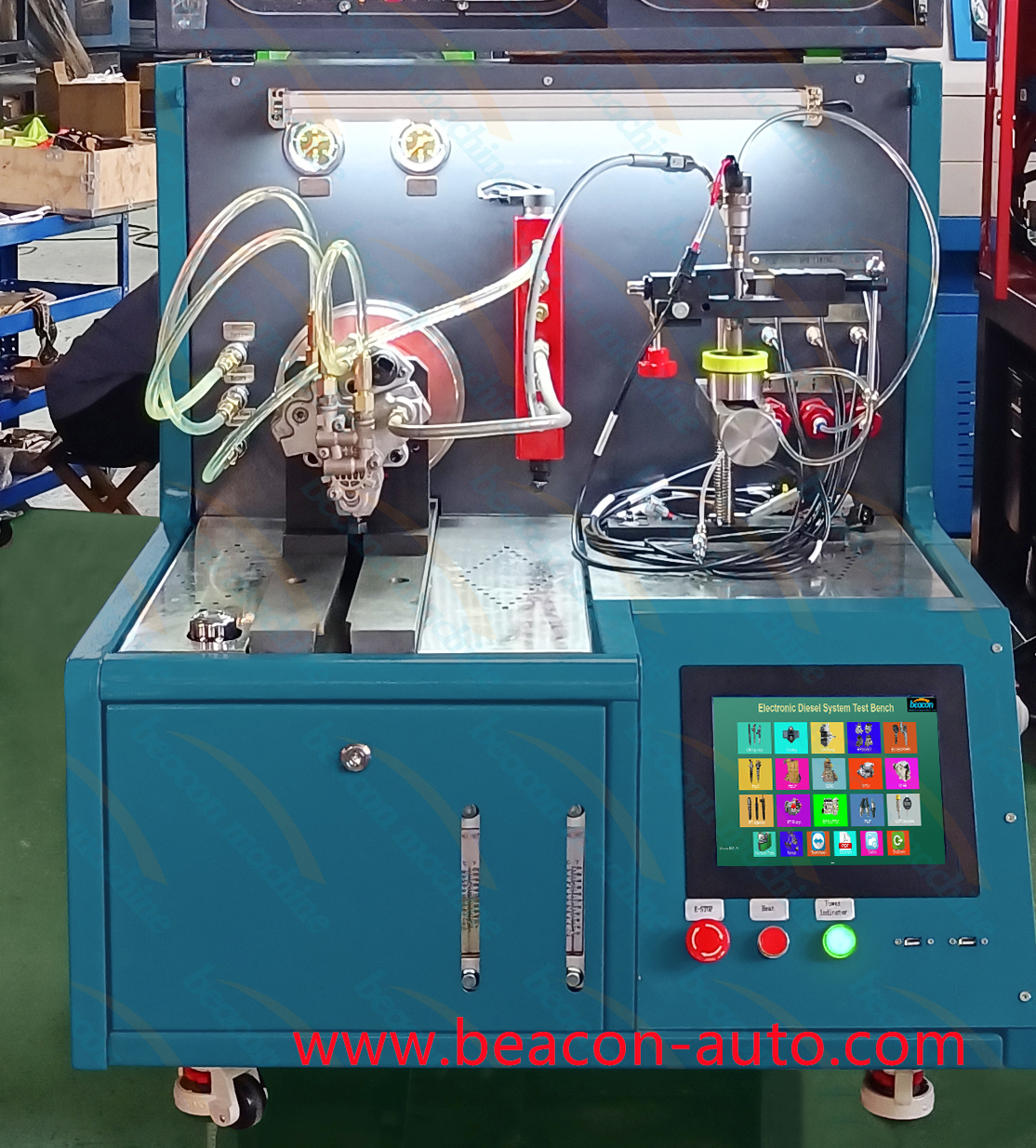

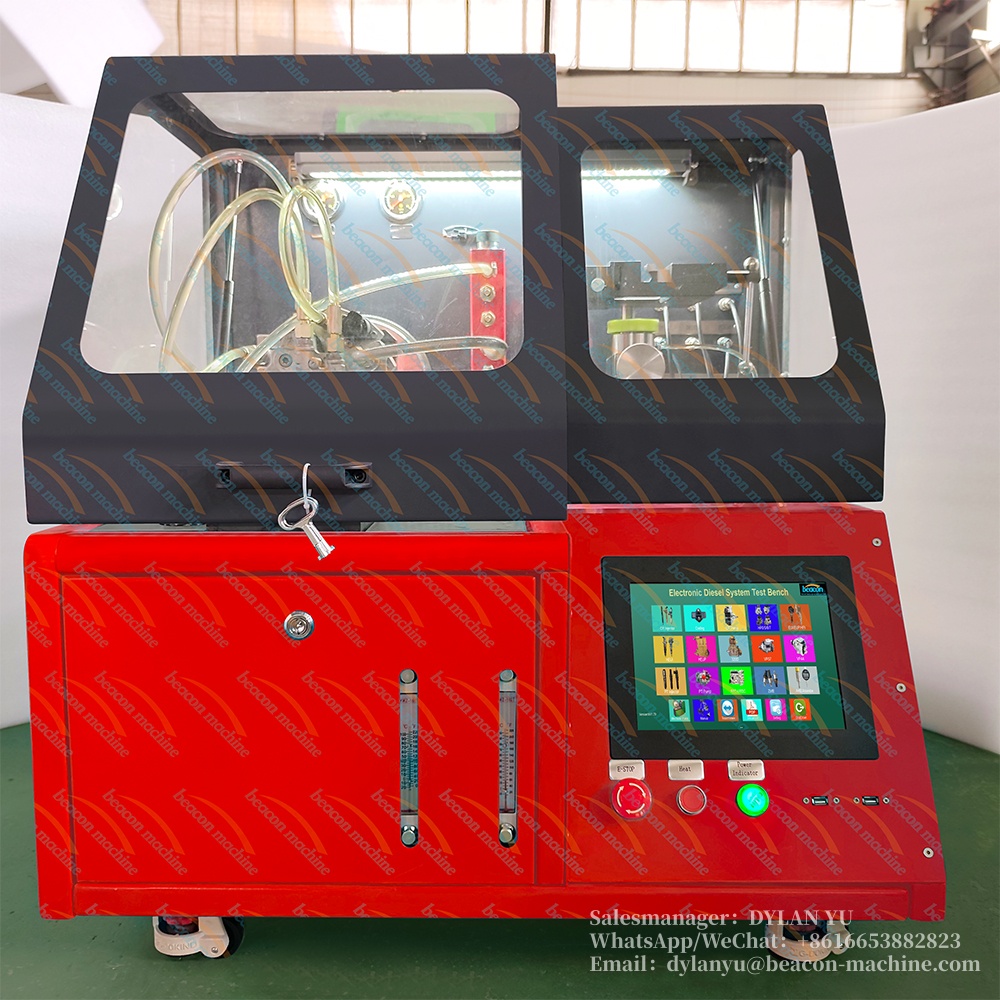

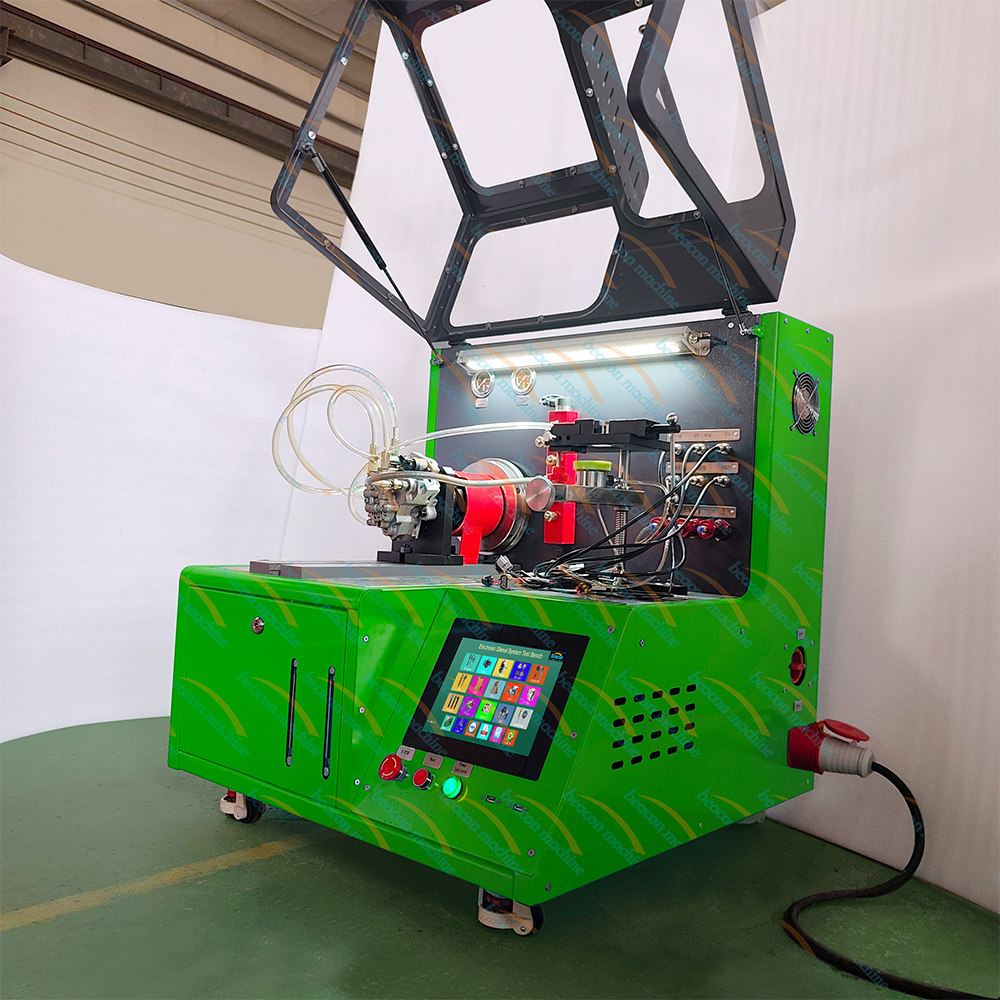

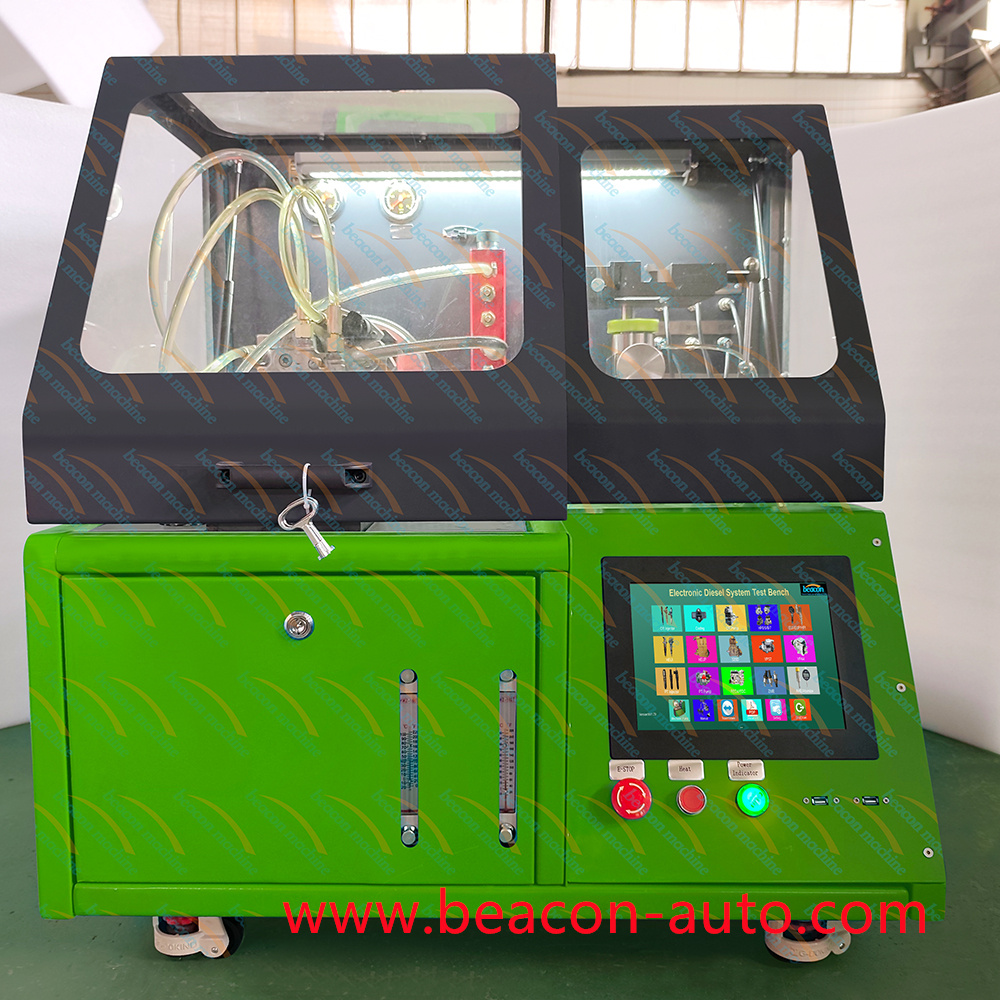

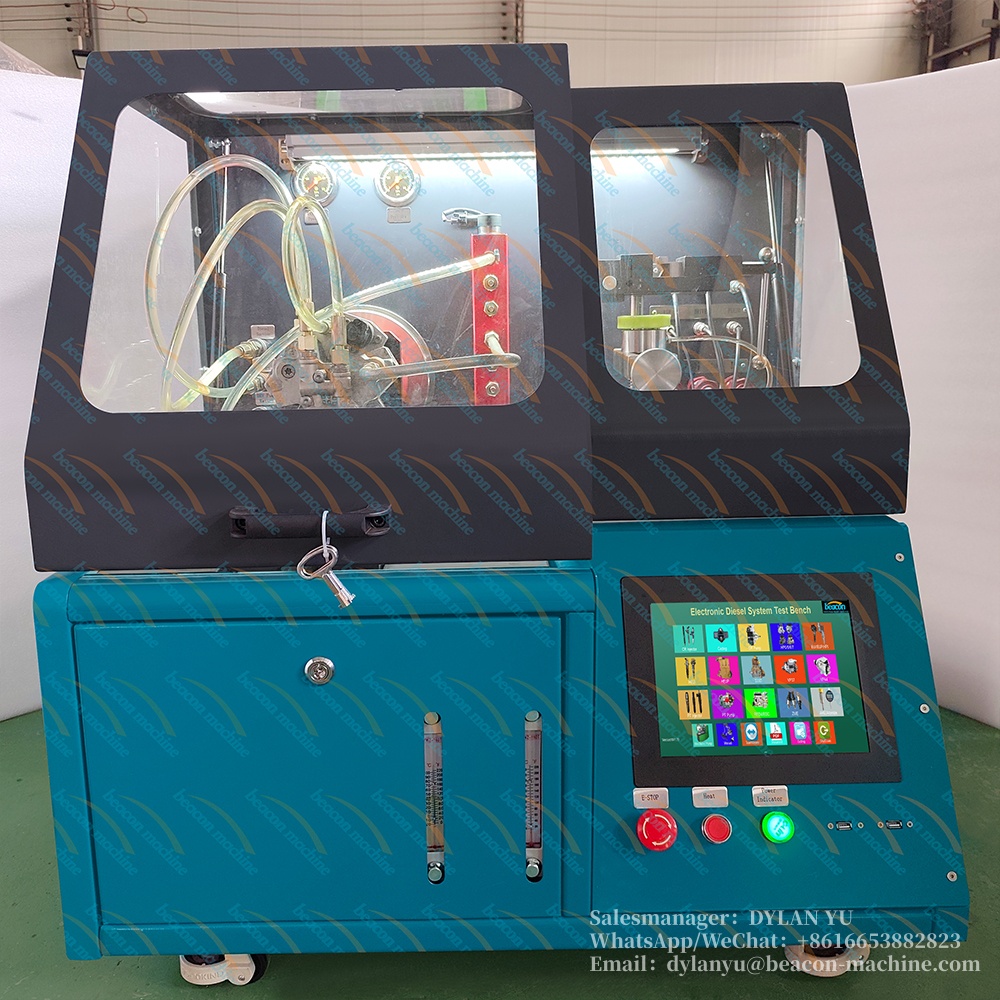

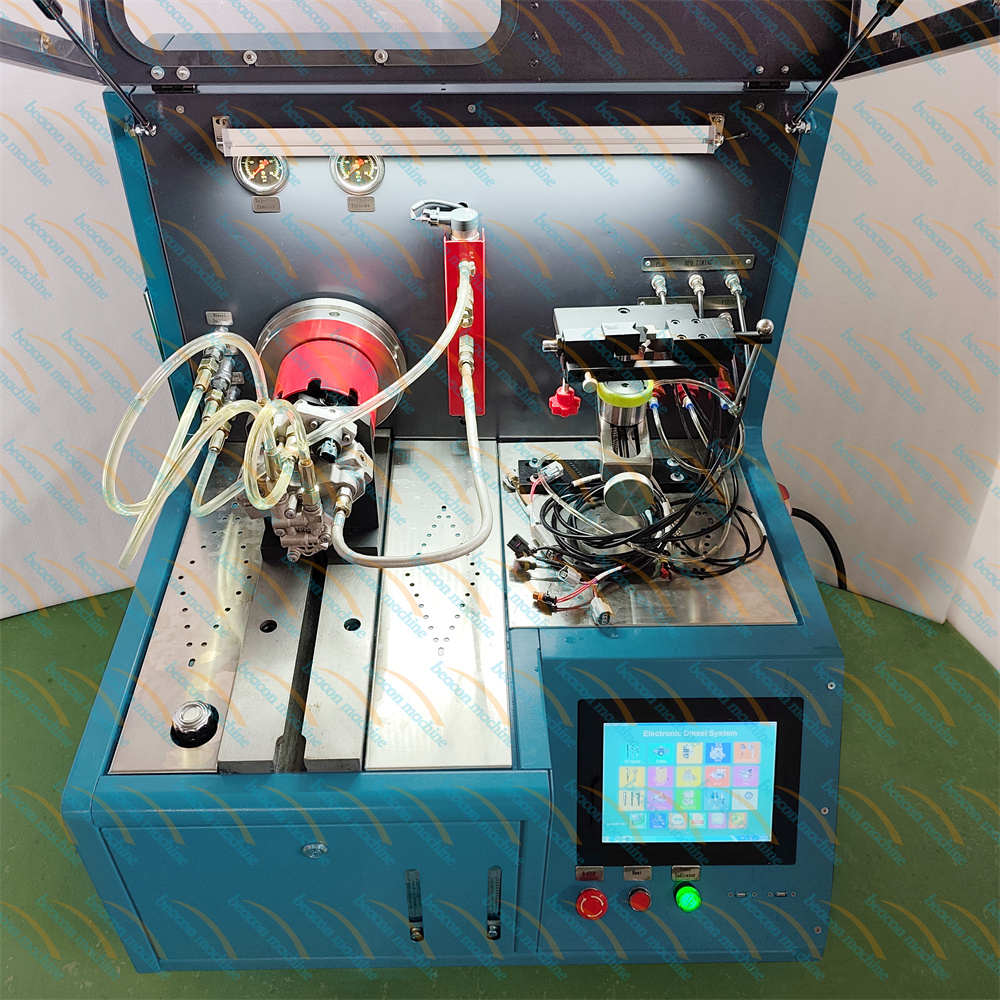

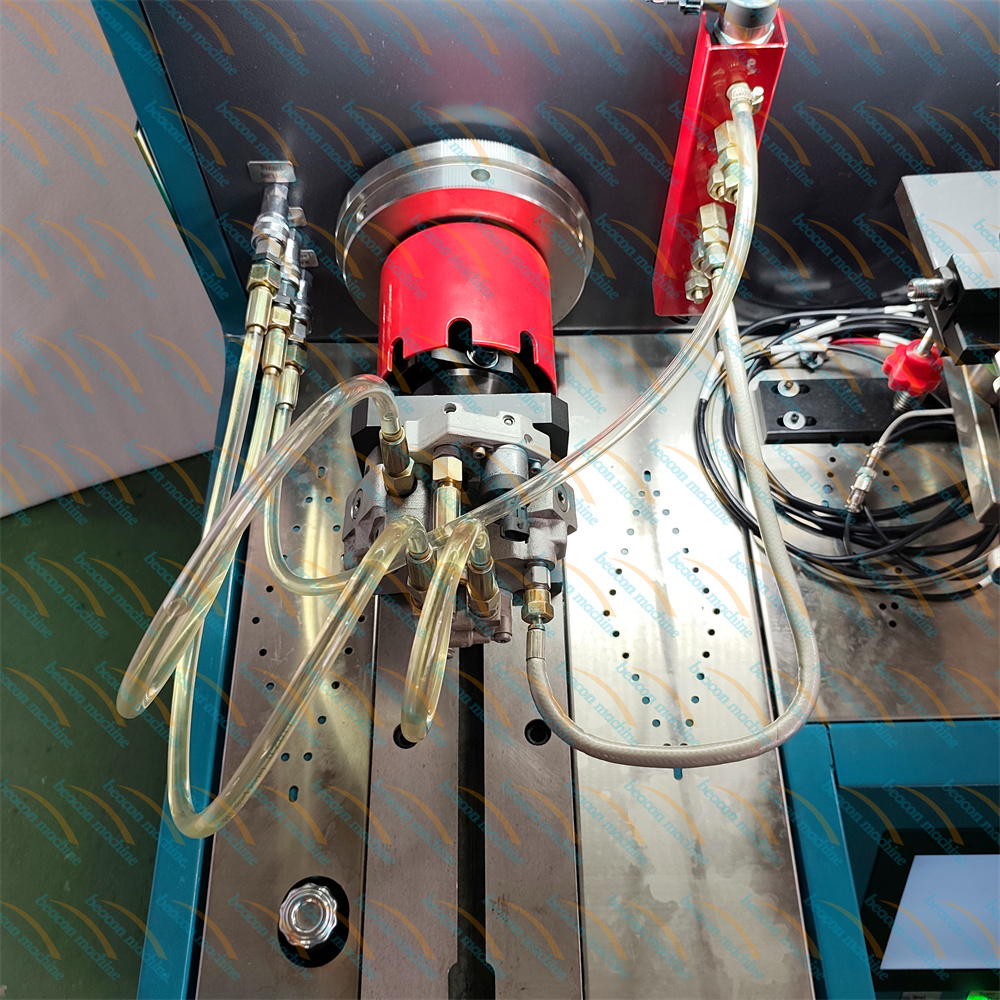

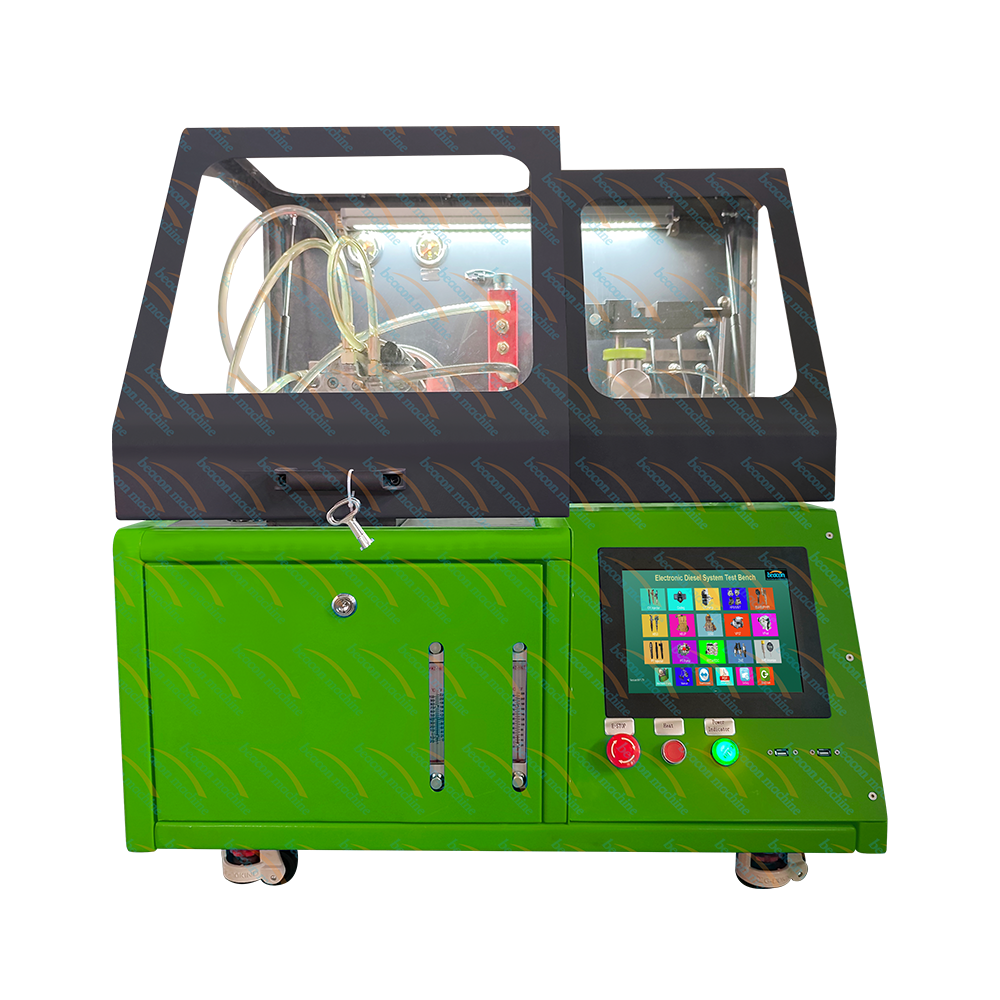

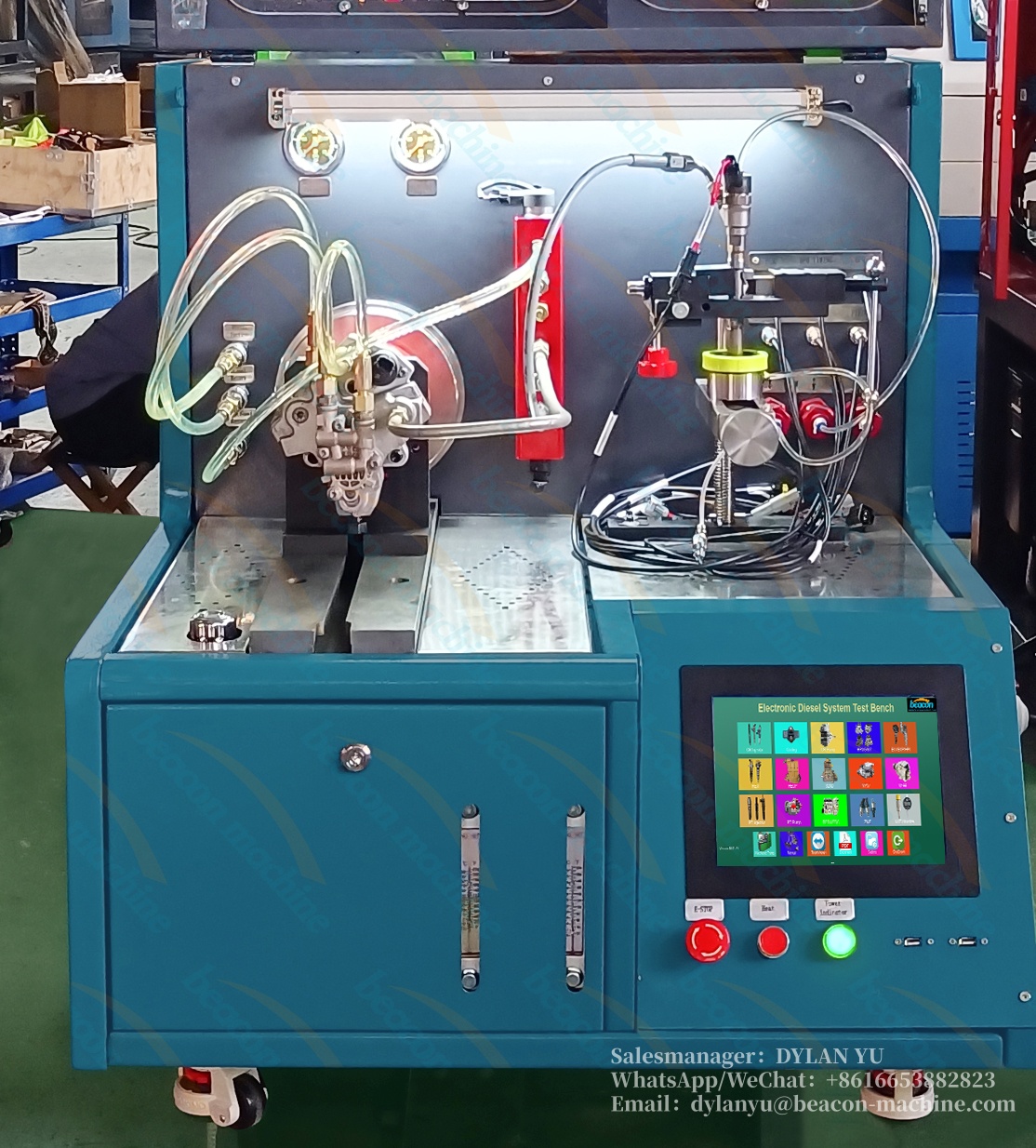

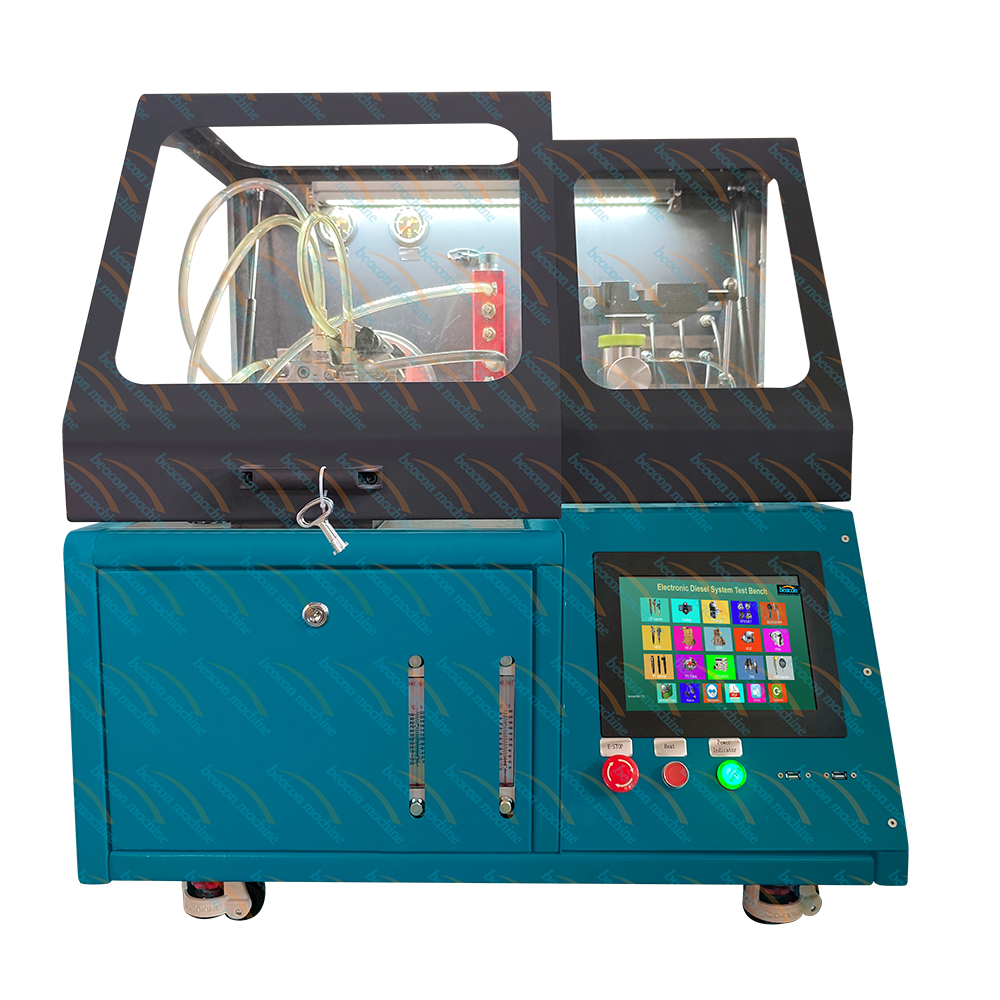

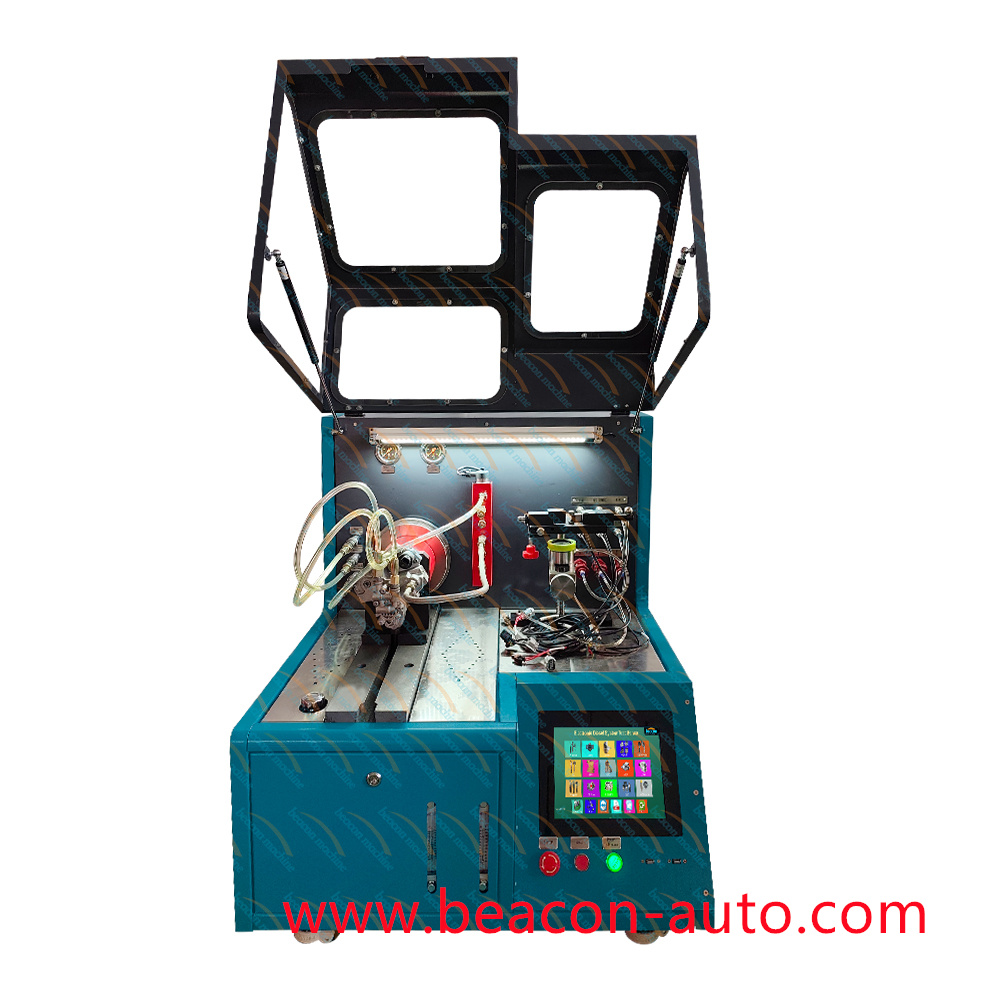

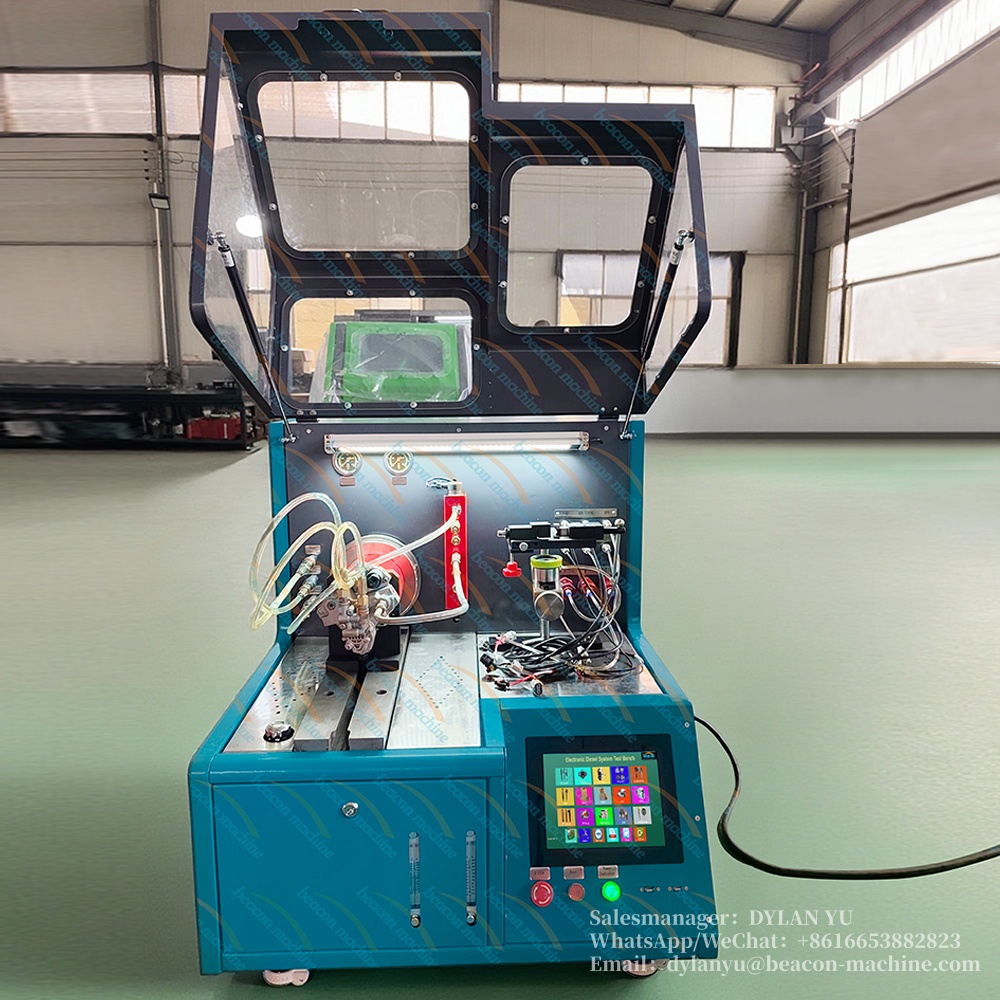

Common rail test machine diesel injector test bench diesel common rail injection pump calibrator CR216 (with BIP function)

Basic model 5.5kW 380V 3-phase Common Rail Injector+Piezo Injector+BIP Common Rail Pump Denso HP0 Pump Function Delphi Bosch Denso Siemens Injector coding

inquiry

Introduction

The function of the CR216 common rail injector test bench is to imitate the working condi- tions of the diesel engine ECU (Engine Control Unit), while providing control signals for common rail systems such as Bosch, Denso, Delphi, and piezoelectric ceramics to drive high-pressure common-rail fuel pumps and high-pressure common rail systems. Rail injec- tors work; users of drive signal parameters can be set according to their actual conditions    and saved, which is convenient for maintenance personnel to judge and maintain the work- ing status of the high-pressure common rail system.

Product main imageProduct main imageProduct main image

parameter

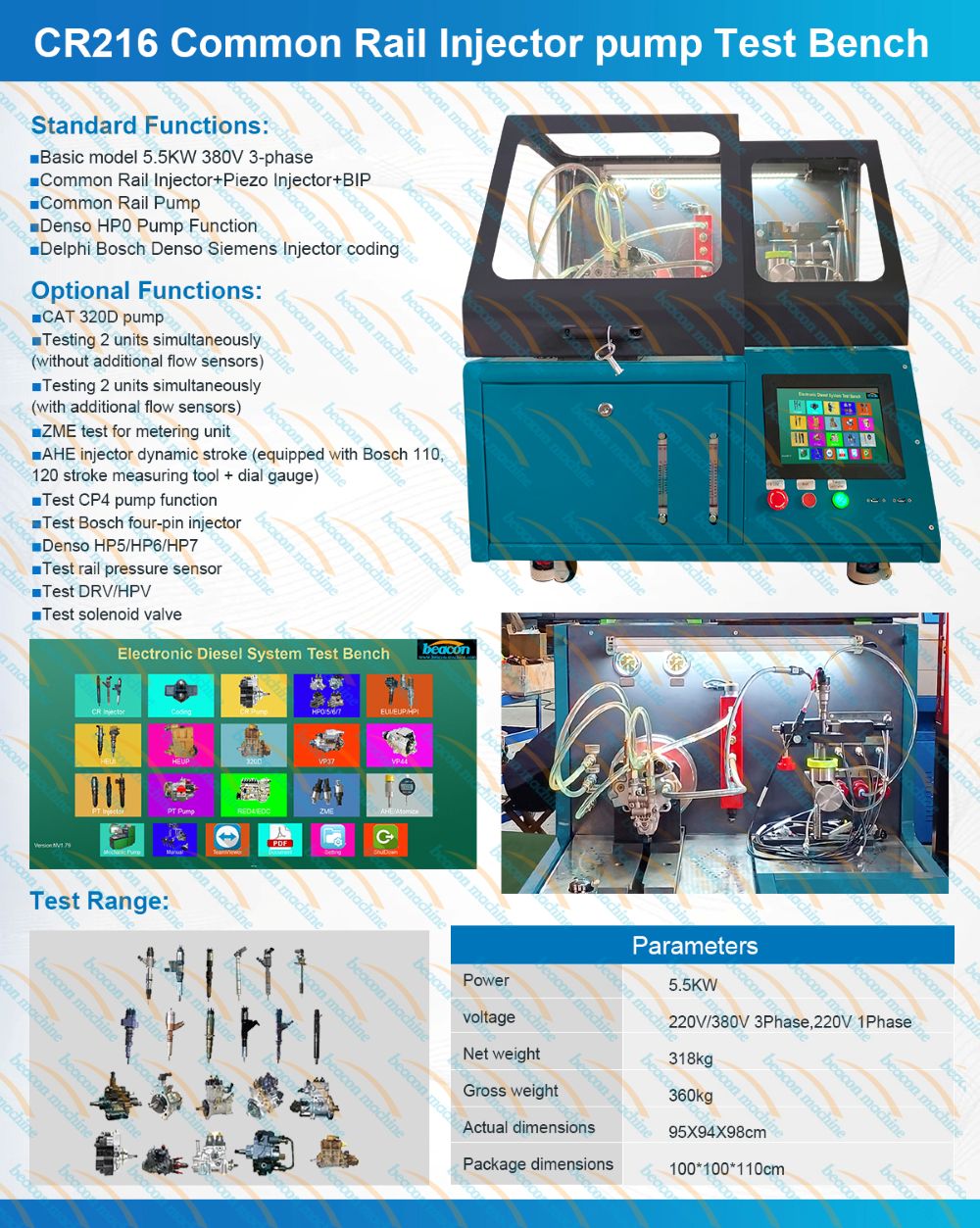

Parameters
Power 5.5KW
voltage 220V/380V 3Phase,220V 1Phase
Net weight 318kg
Gross weight 360kg
Actual dimensions 95X94X98cm
Package dimensions 100*100*110cm
Optional Functions:
CAT 320D pump
Testing 2 units simultaneously(without additional flow sensors)
Testing 2 units simultaneously(with additional flow sensors)
ZME test for metering unit
AHE injector dynamic stroke (equipped with Bosch 110,120 stroke measuring tool + dial gauge)
Test CP4 pump function
Test Bosch four-pin injector
Denso HP5/HP6/HP7
Test rail pressure sensor
Test DRV/HPV
Test solenoid valve
Product main imageProduct main imageProduct main image
