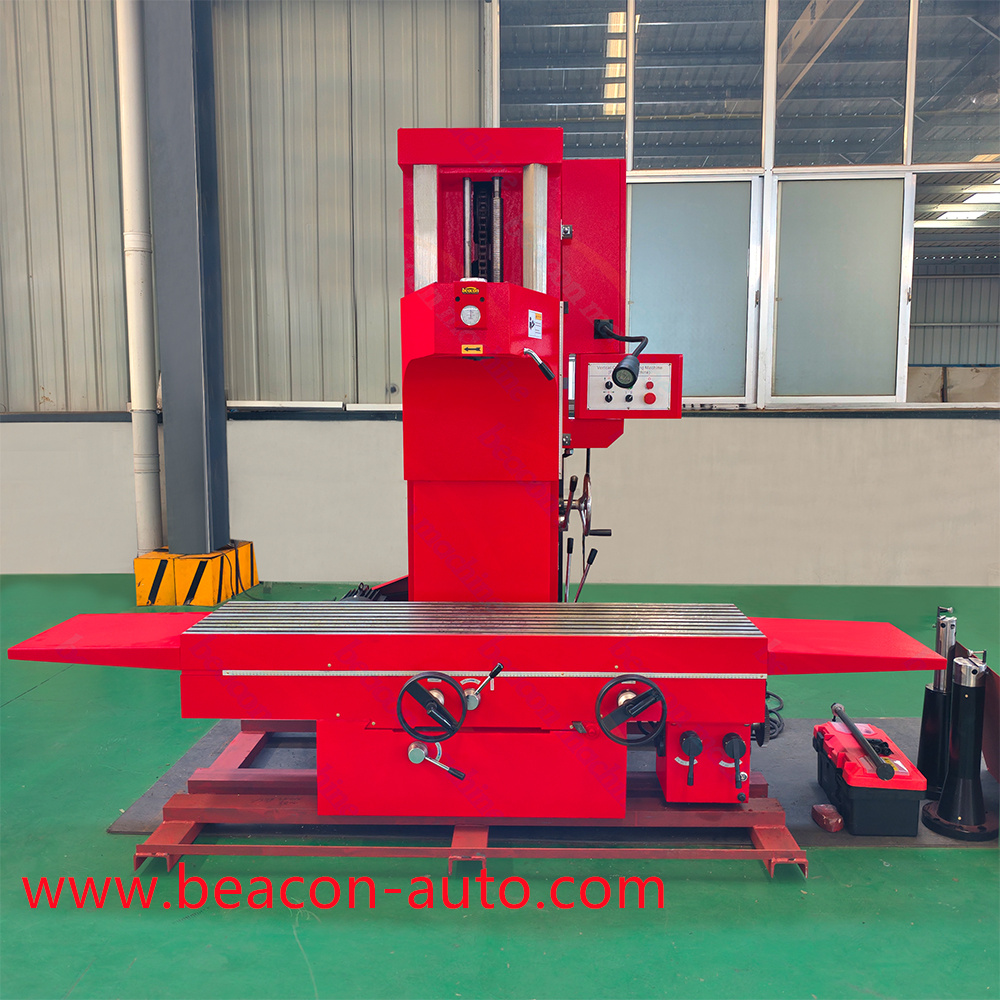

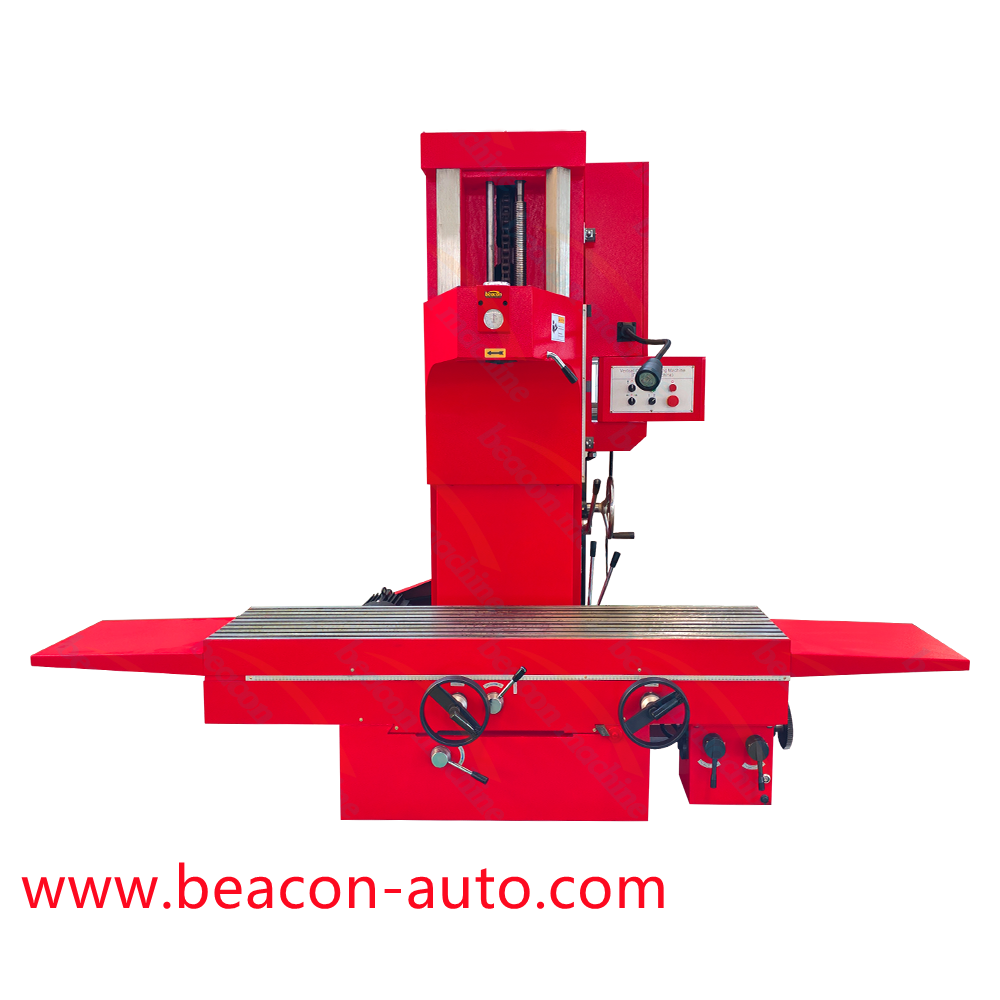

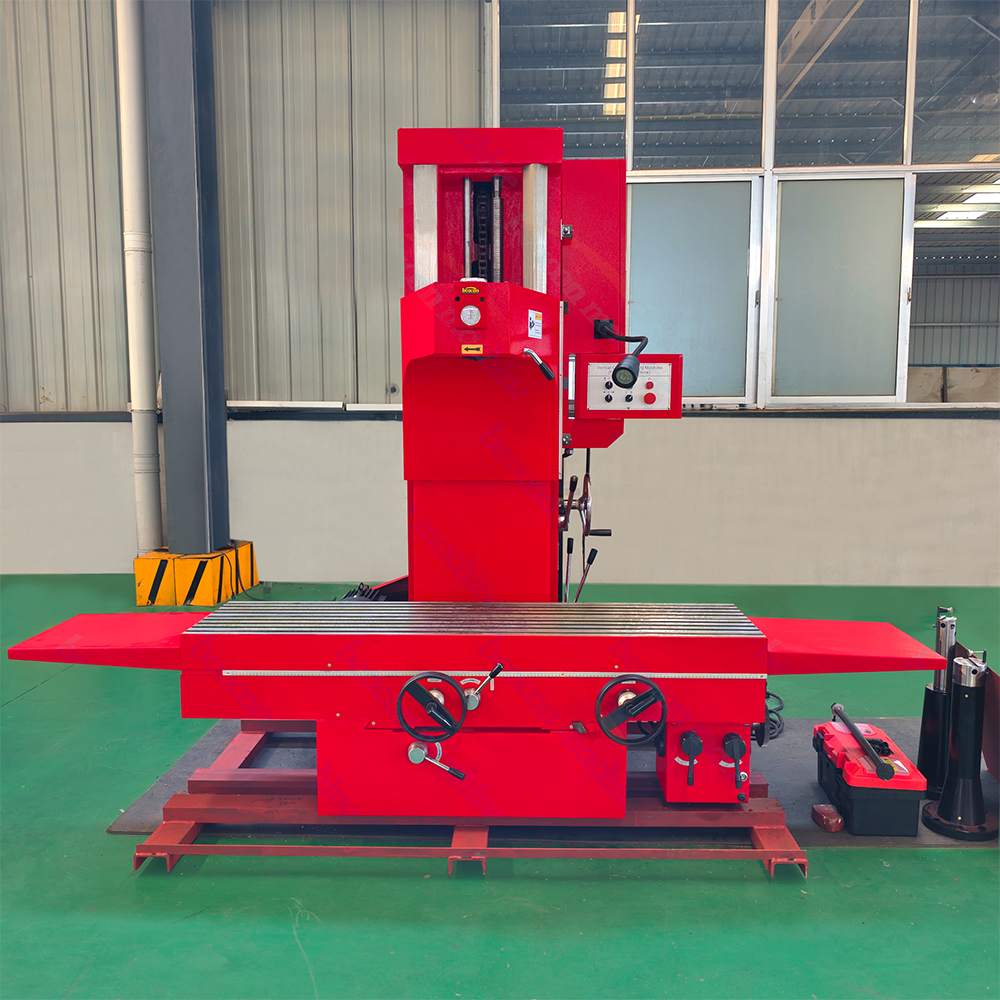

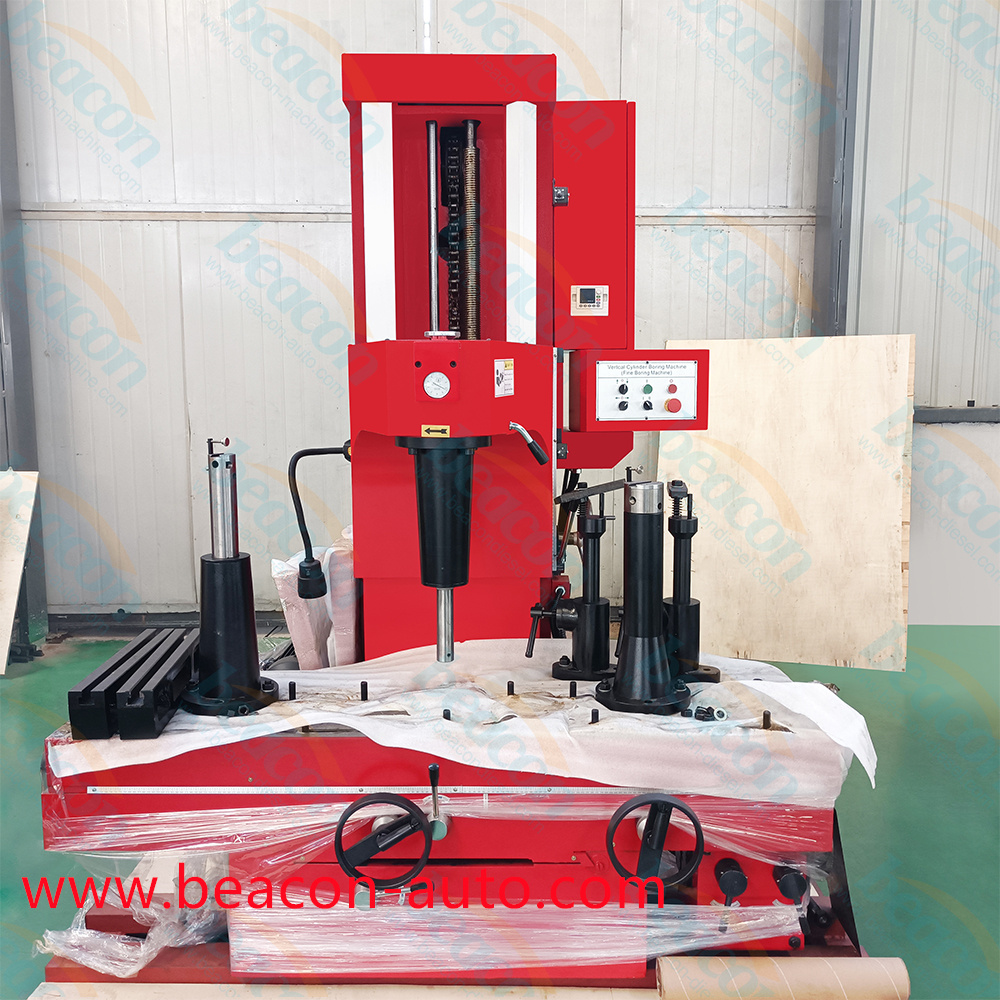

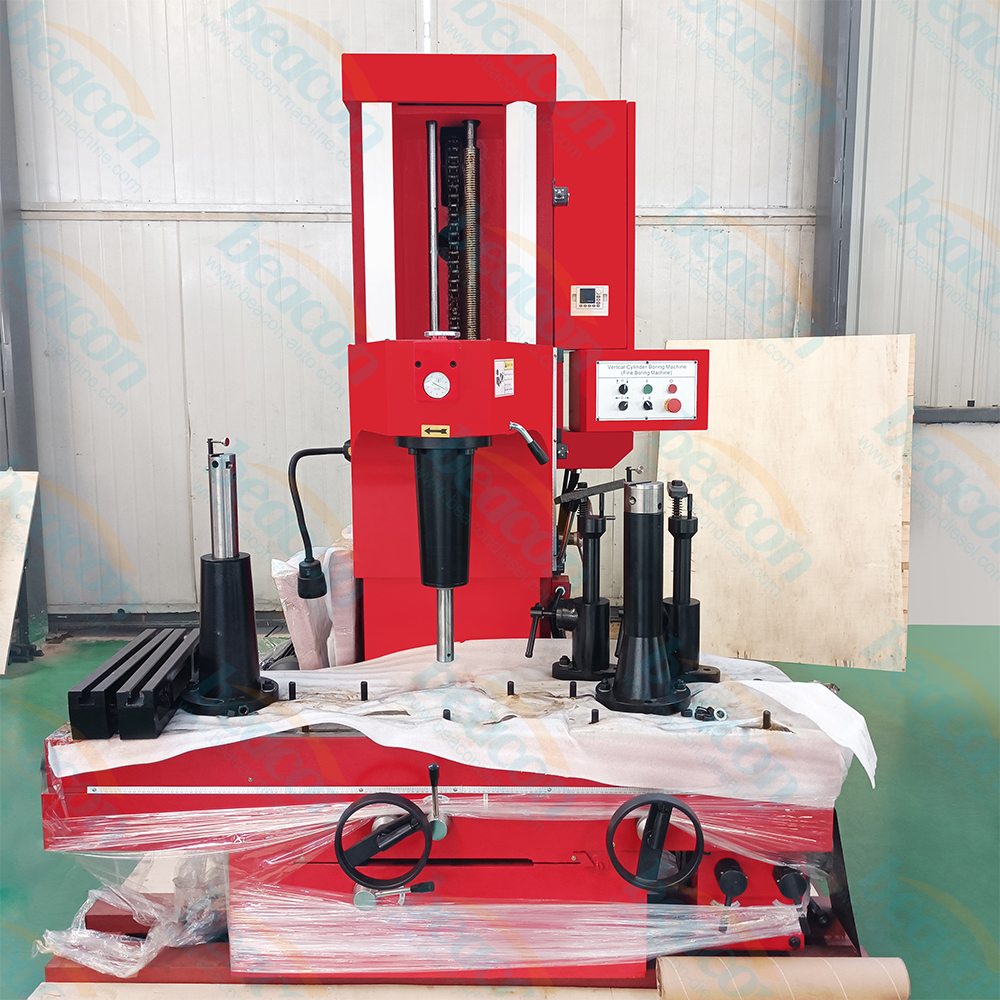

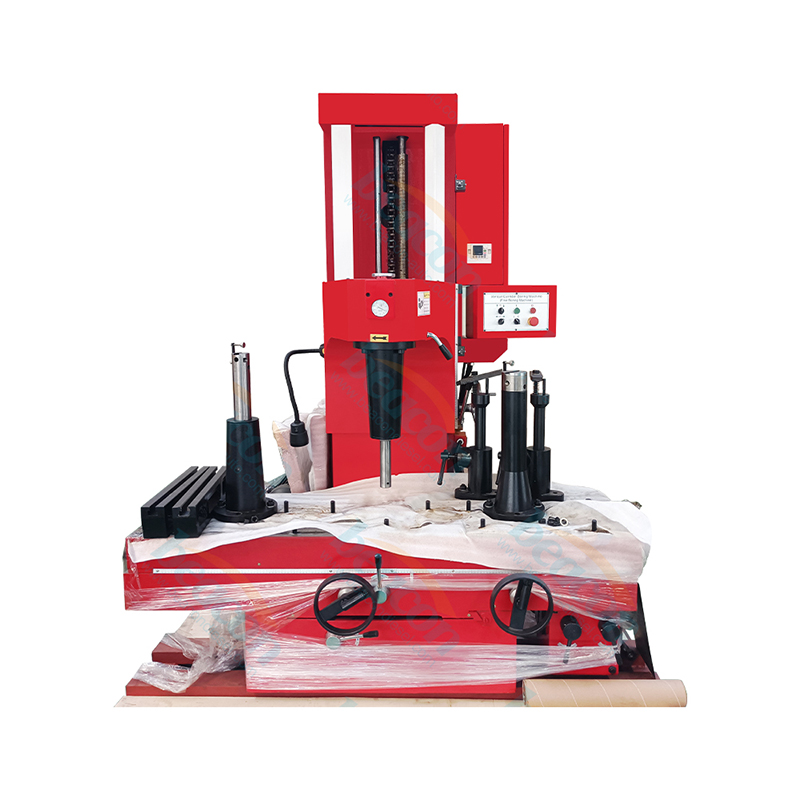

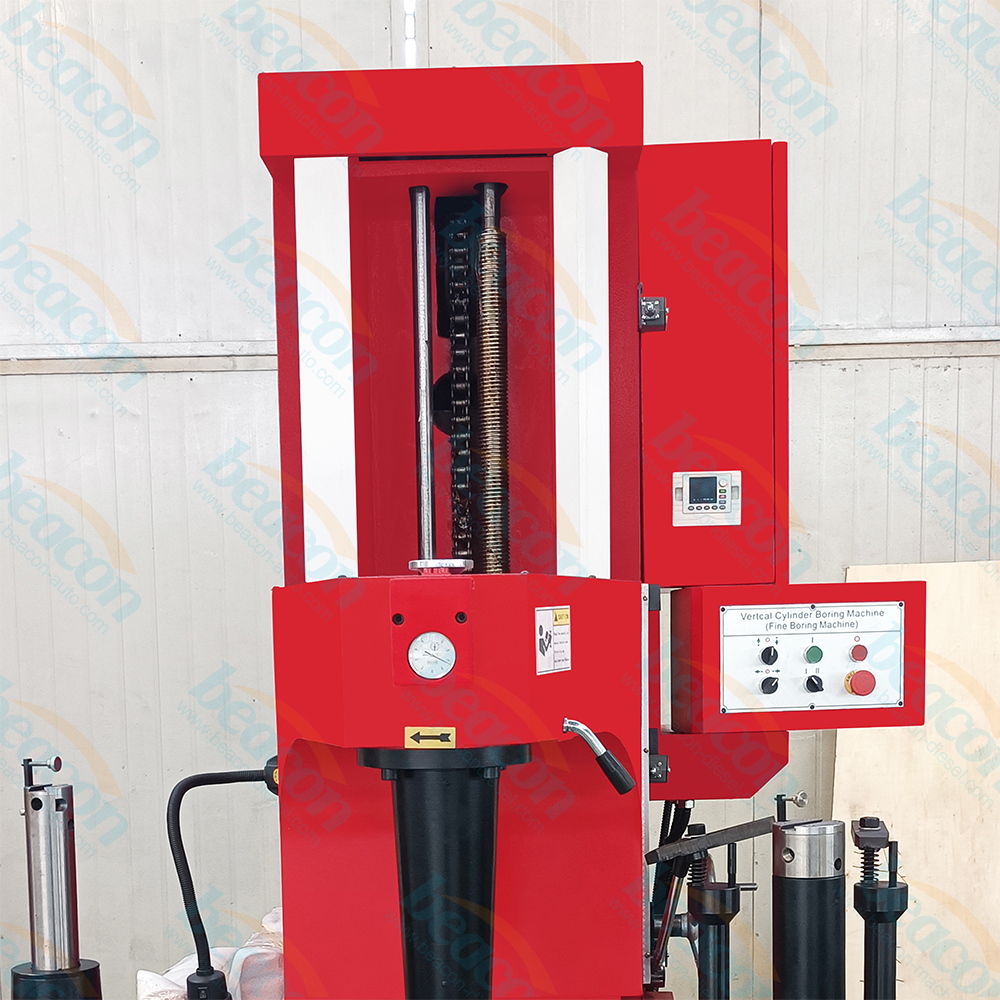

T8018D Cylinder Boring Machine

T8018D Boring machine mainly for boring cylinder hole & cylinder liner inner hole of of internal-combustion engine of vehicles & tractors, also used for fine boring inner hole of other parts

Whatsapp: +86-18253885137

Tel / Wechat: 0086-18253885137

Email: franksong@beacon-machine.com

inquiry

Introduction

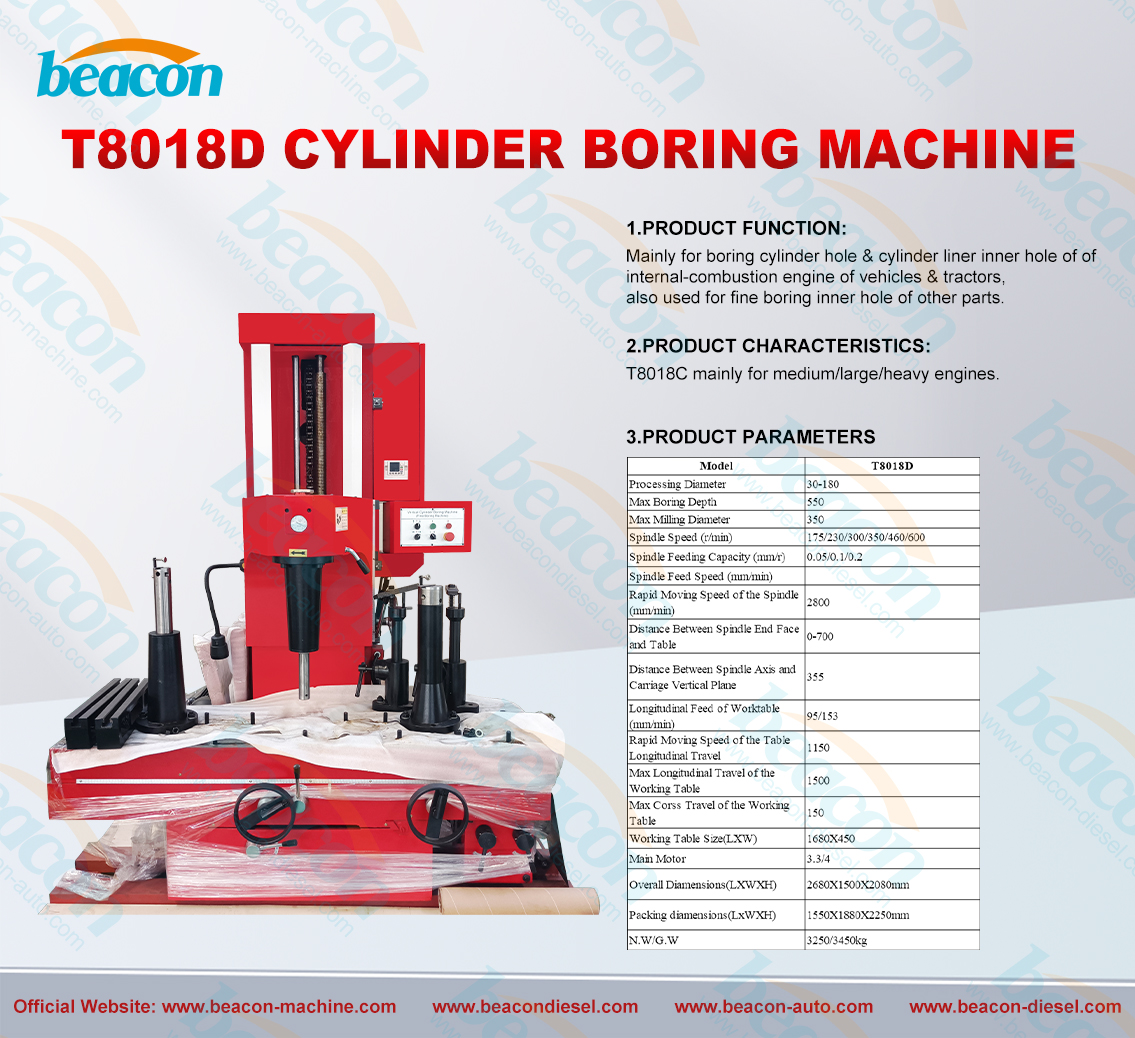

T8018D Cylinder Boring Machine

1.Product function:

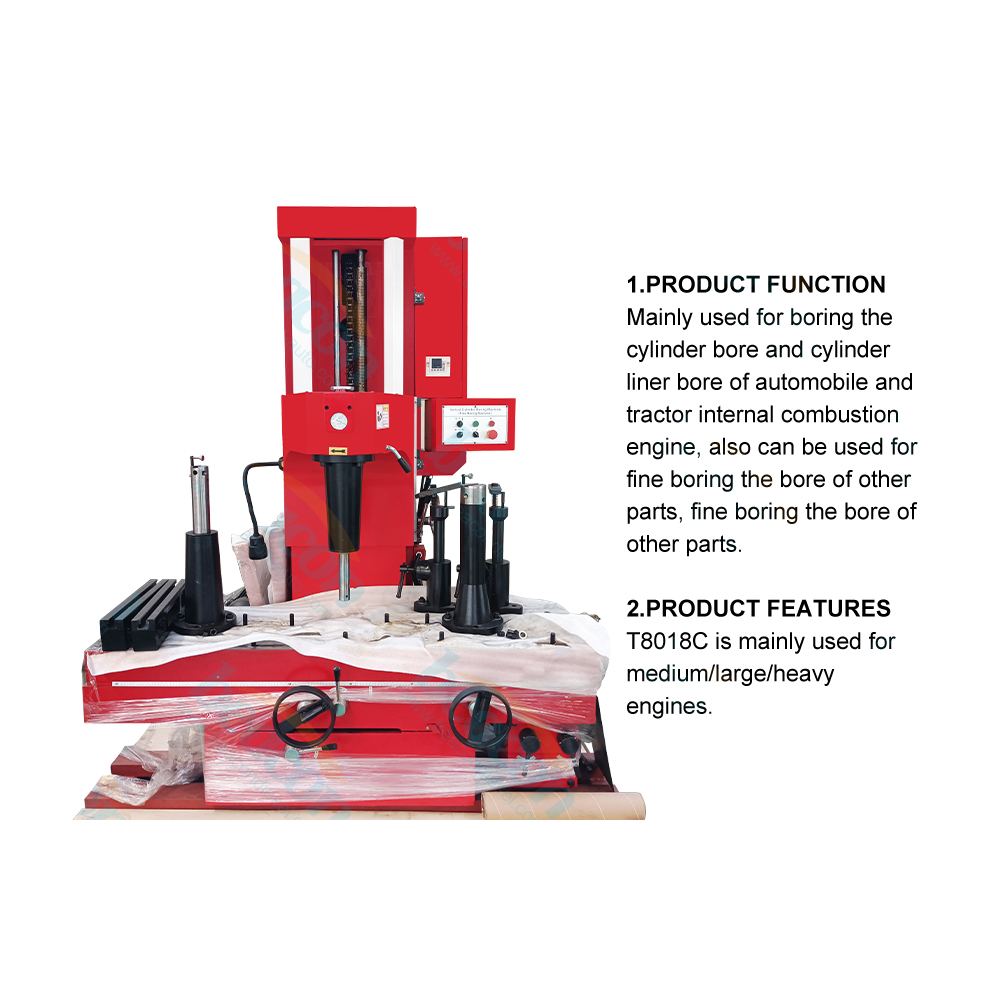

Mainly for boring cylinder hole & cylinder liner inner hole of of internal-combustion engine of vehicles & tractors, also used for fine boring inner hole of other parts.

2.Product characteristics:

T8018D mainly for medium/large/heavy engines

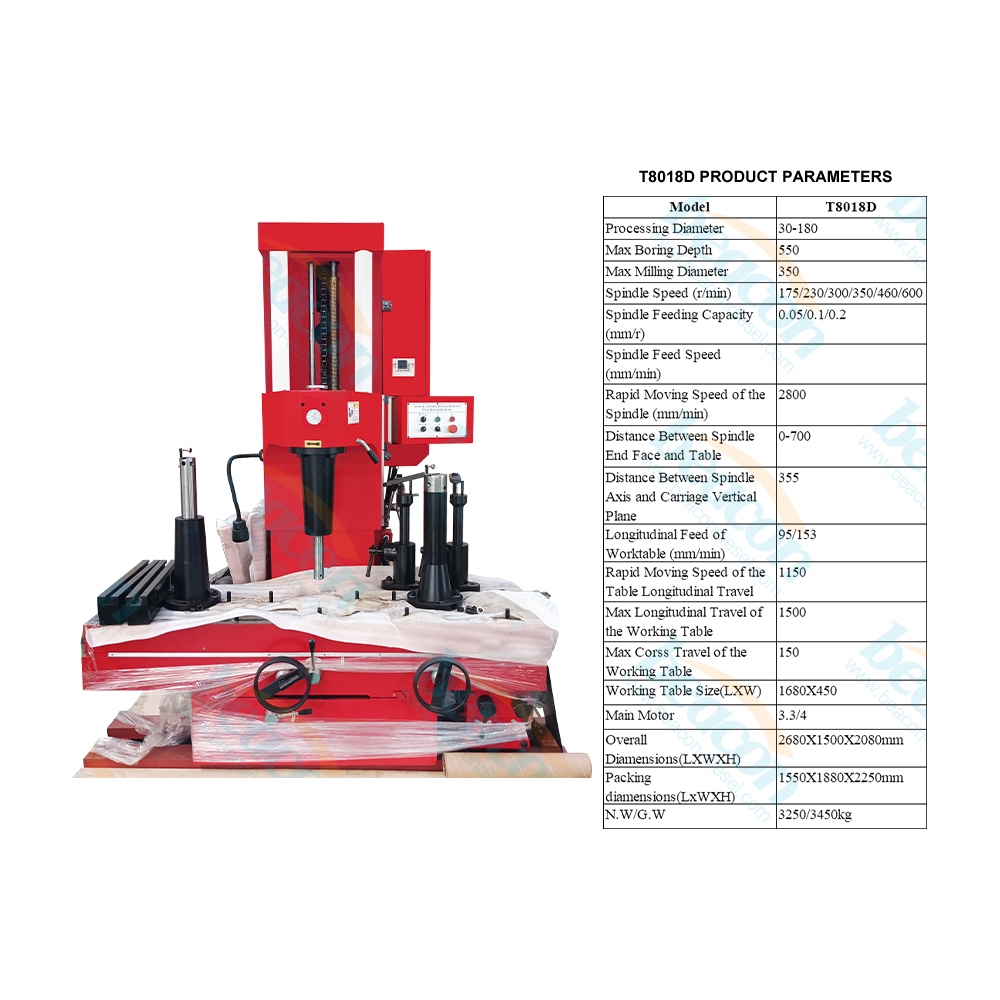

parameter

Processing Diameter 30-180
Max Boring Depth 550
Max Milling Diameter 350
Spindle Speed (r/min) 175/230/300/350/460/600
Spindle Feeding Capacity (mm/r) 0.05/0.1/0.2
Rapid Moving Speed of the Spindle (mm/min) 2800
Distance Between Spindle End Face and Table 0-700
Distance Between Spindle Axis and Carriage Vertical Plane 355
Longitudinal Feed of Worktable (mm/min) 95/153
Rapid Moving Speed of the Table Longitudinal Travel 1150
Max Longitudinal Travel of the Working Table 1500
Max Corss Travel of the Working Table 150
Working Table Size(LXW) 1680X450
Main Motor 3.3/4
Overall Diamensions(LXWXH) 2680X1500X2080
Packing diamensions(LxWXH) 1550X1880X2250
N.W/G.W 3250/3450
