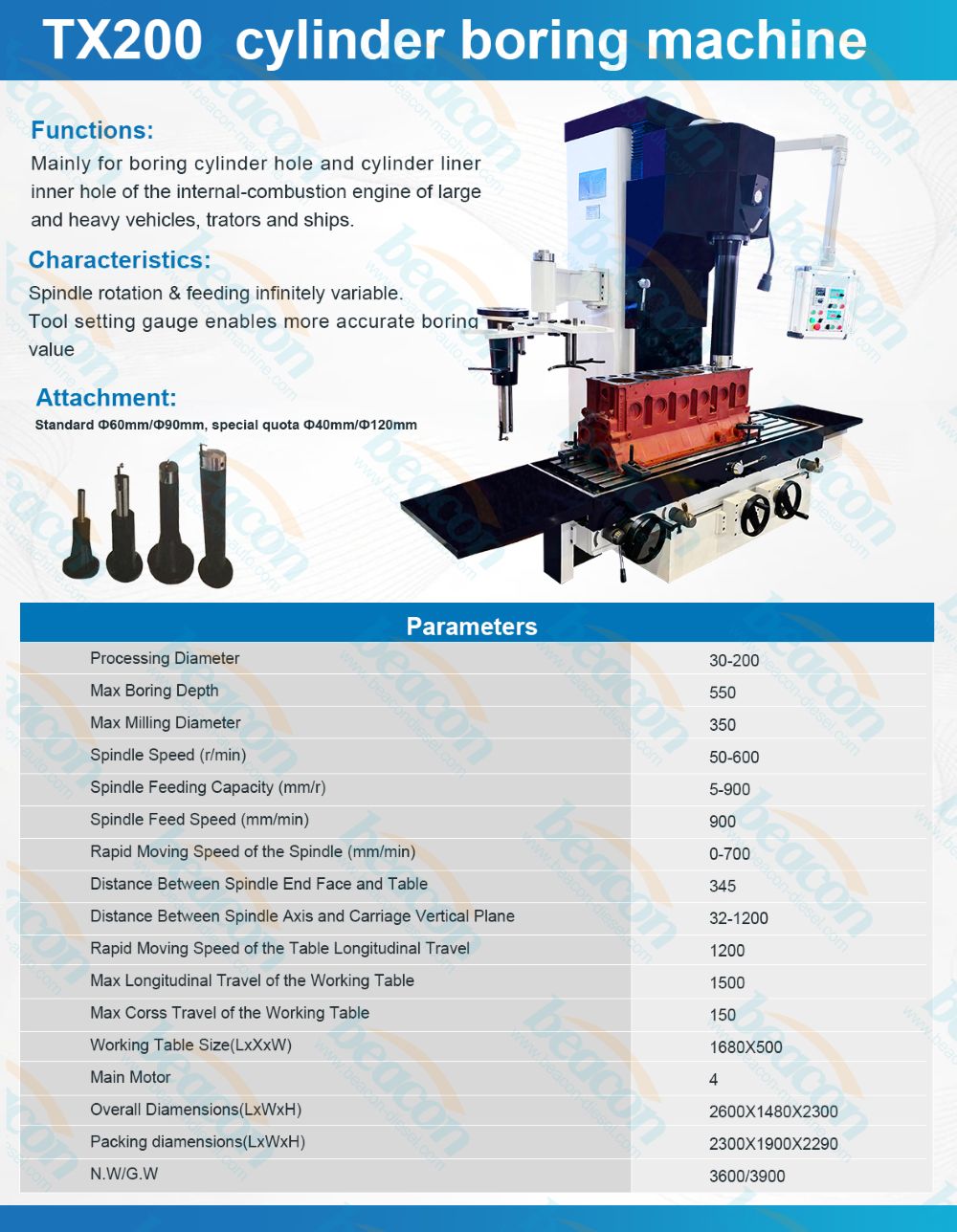

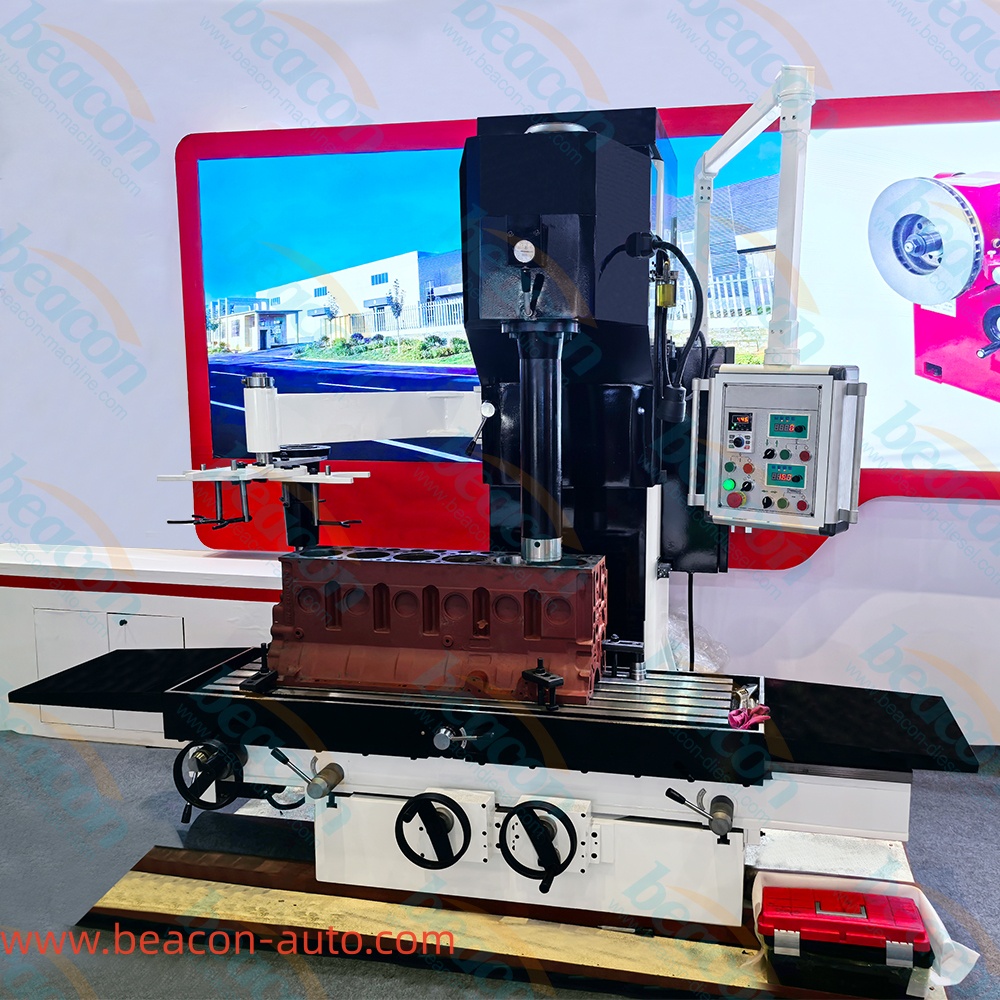

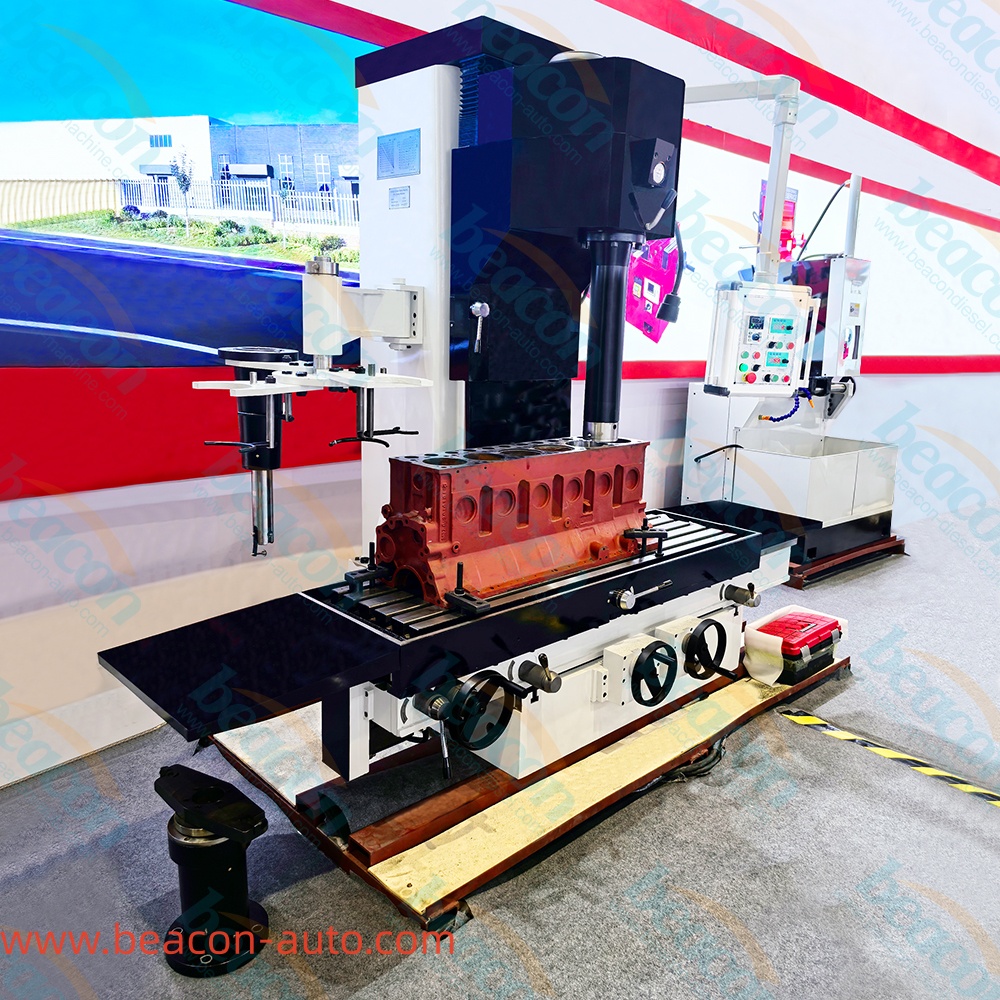

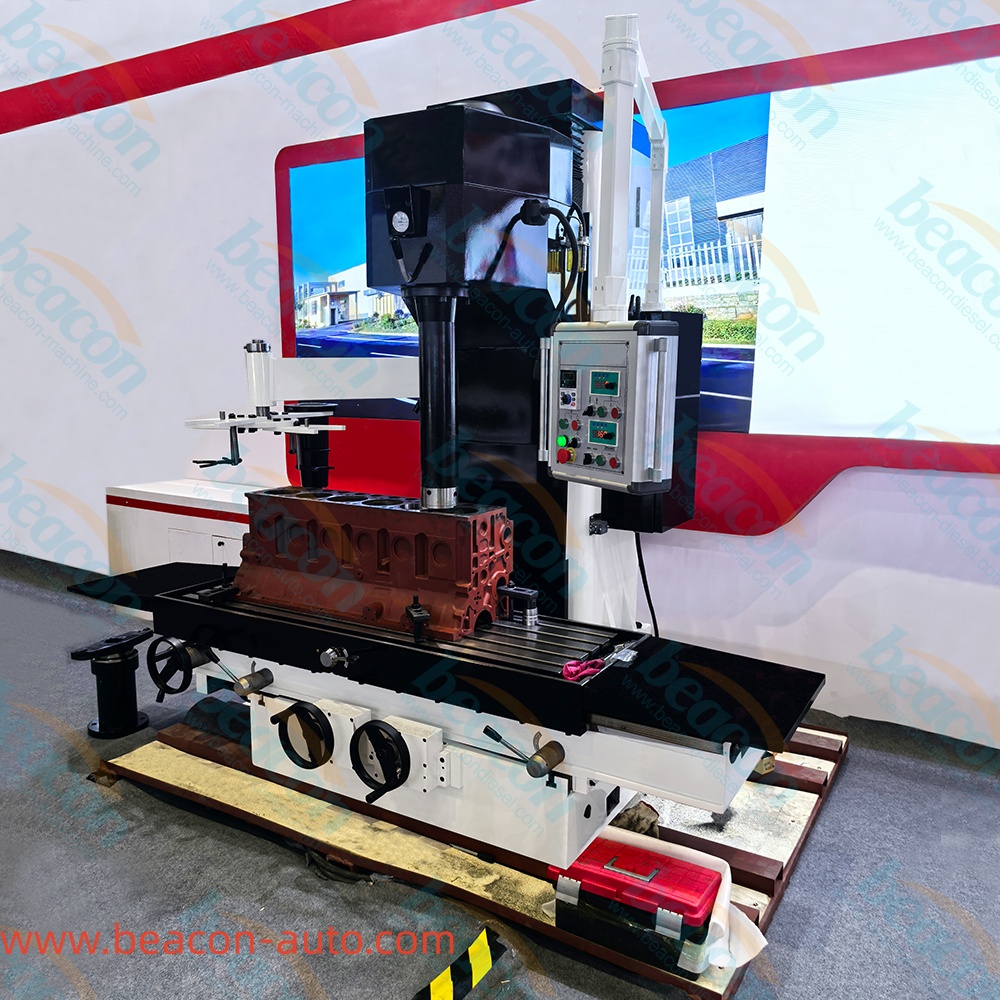

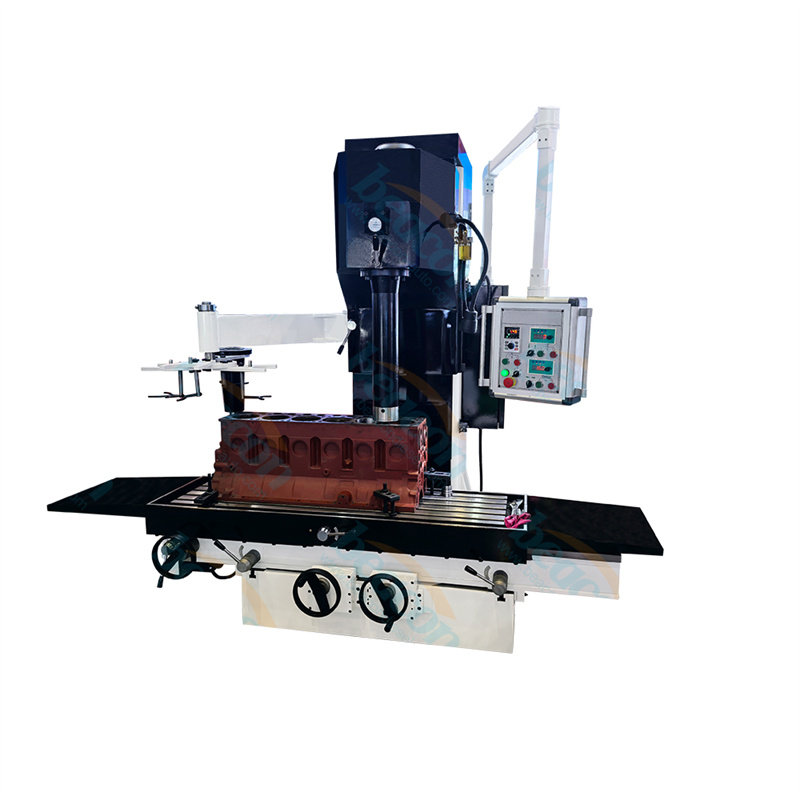

TX200 Automatic Vertical Cylinder Boring and Surface Milling Machine

     TX200 Automatic Vertical Cylinder Boring and Surface Milling Machine

1.Product characteristics:
Spindle rotation & feeding infinitely variable.

Tool setting gauge enables more accurate boring value

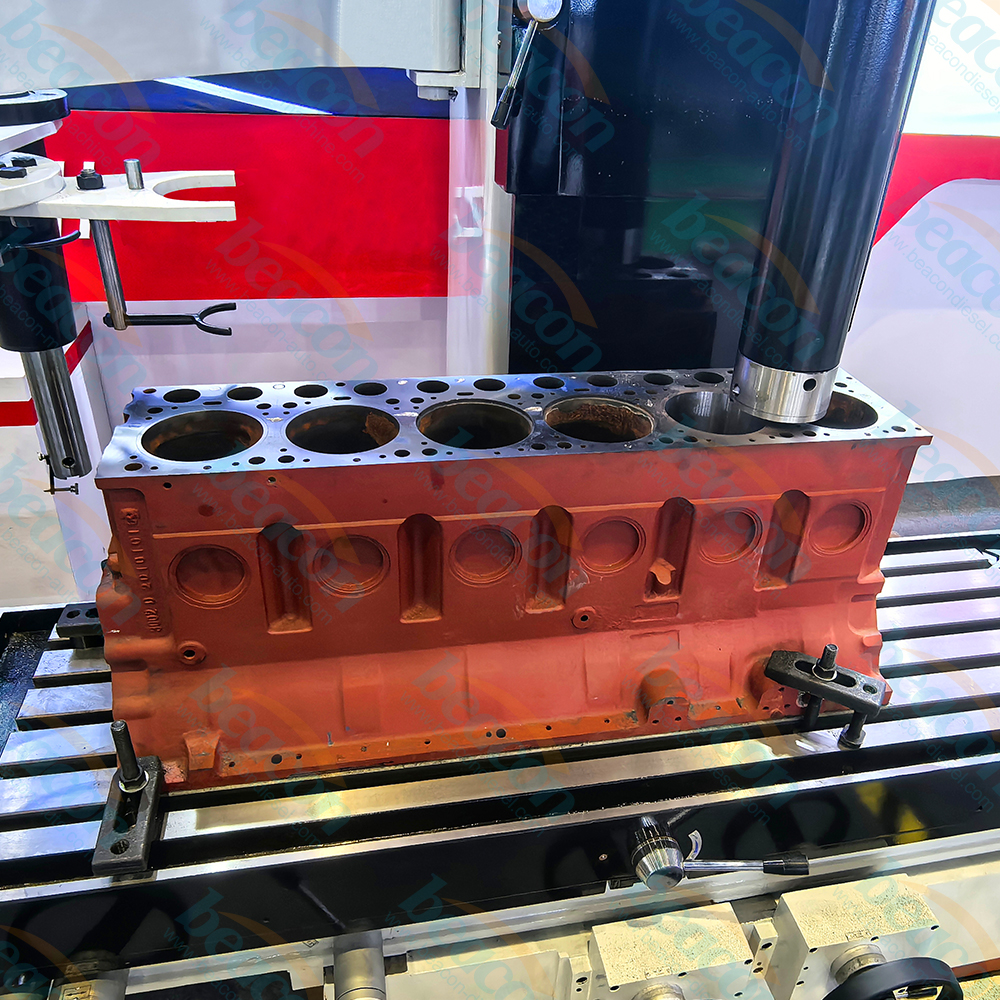

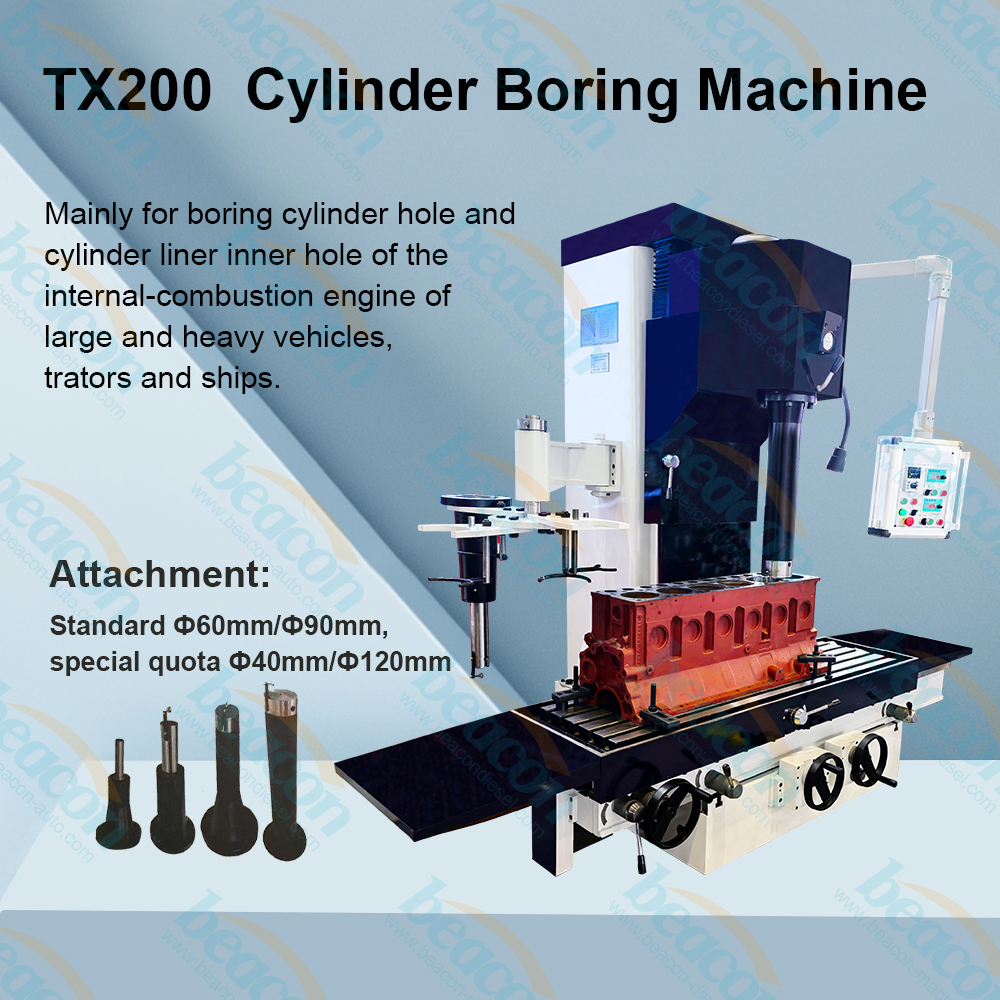

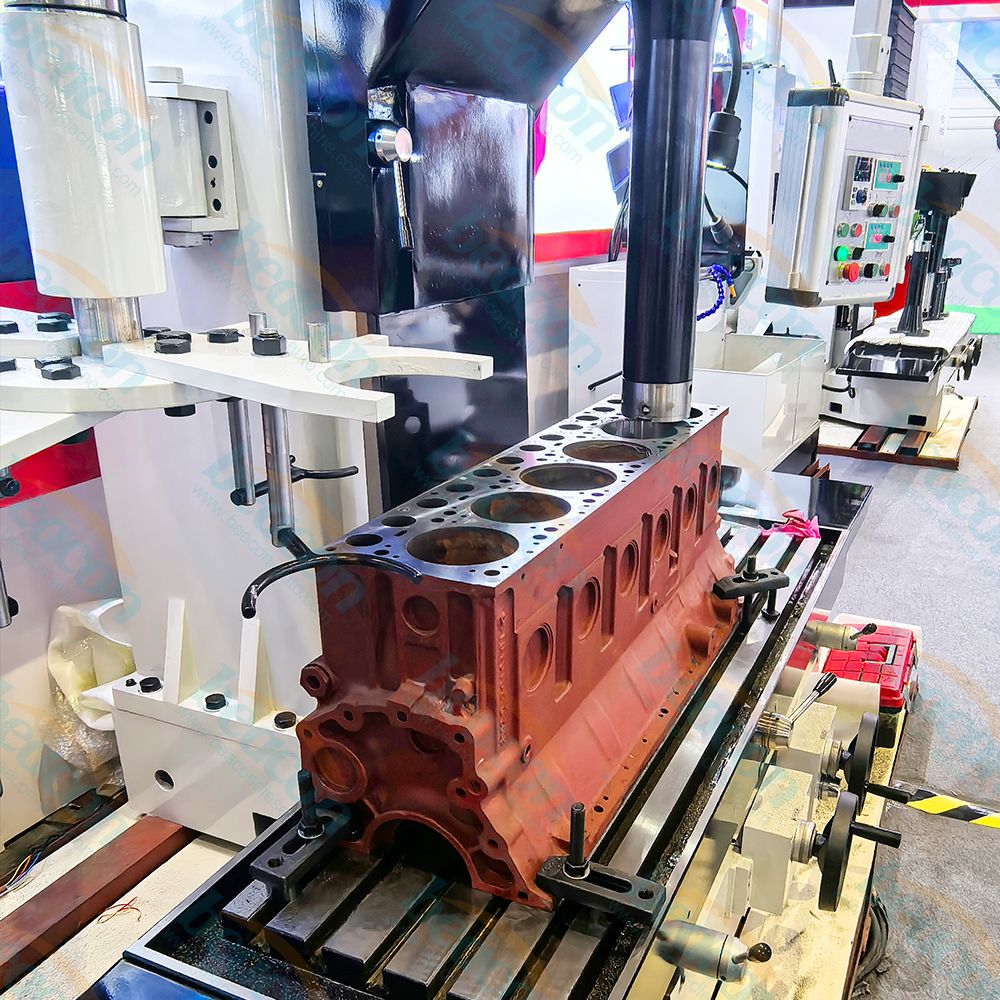

2. TX200 Automatic Vertical Cylinder Boring and Surface Milling Machine Mainly for boring cylinder hole and cylinder liner inner hole of the internal-combustion engine of large and heavy vehicles, trators and ships

Parameter :

Model:TX200
Processing Diameter: 30-200
Max Boring Depth: 550
Max Milling Diameter: 350
Spindle Speed (r/min): 50-600
Spindle Feed Speed (mm/min): 5-900
Rapid Moving Speed of the Spindle (mm/min): 900
Distance Between Spindle End Face and Table: 0-700
Distance Between Spindle Axis and Carriage Vertical Plane: 345
Longitudinal Feed of Worktable (mm/min): 32-1200
Rapid Moving Speed of the Table Longitudinal Travel: 1200
Max Longitudinal Travel of the Working Table: 1500
Max Corss Travel of the Working Table: 150
Working Table Size(LXW): 1680X500
Main Motor: 4
Overall Diamensions(LXWXH): 2600X1480X2300
Packing diamensions(LxWXH): 2300X1900X2290

N.W/G.W: 3600/3900
