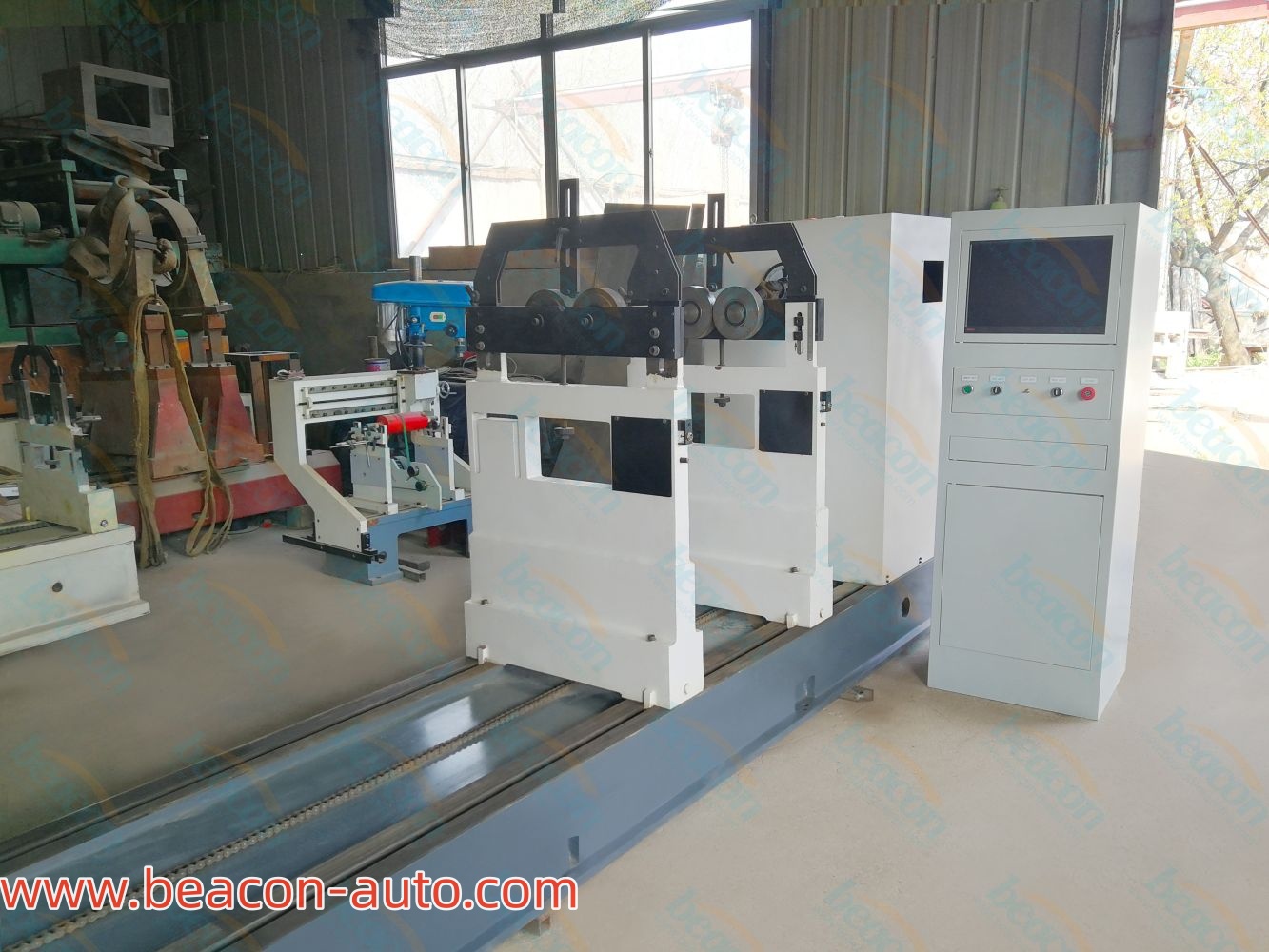

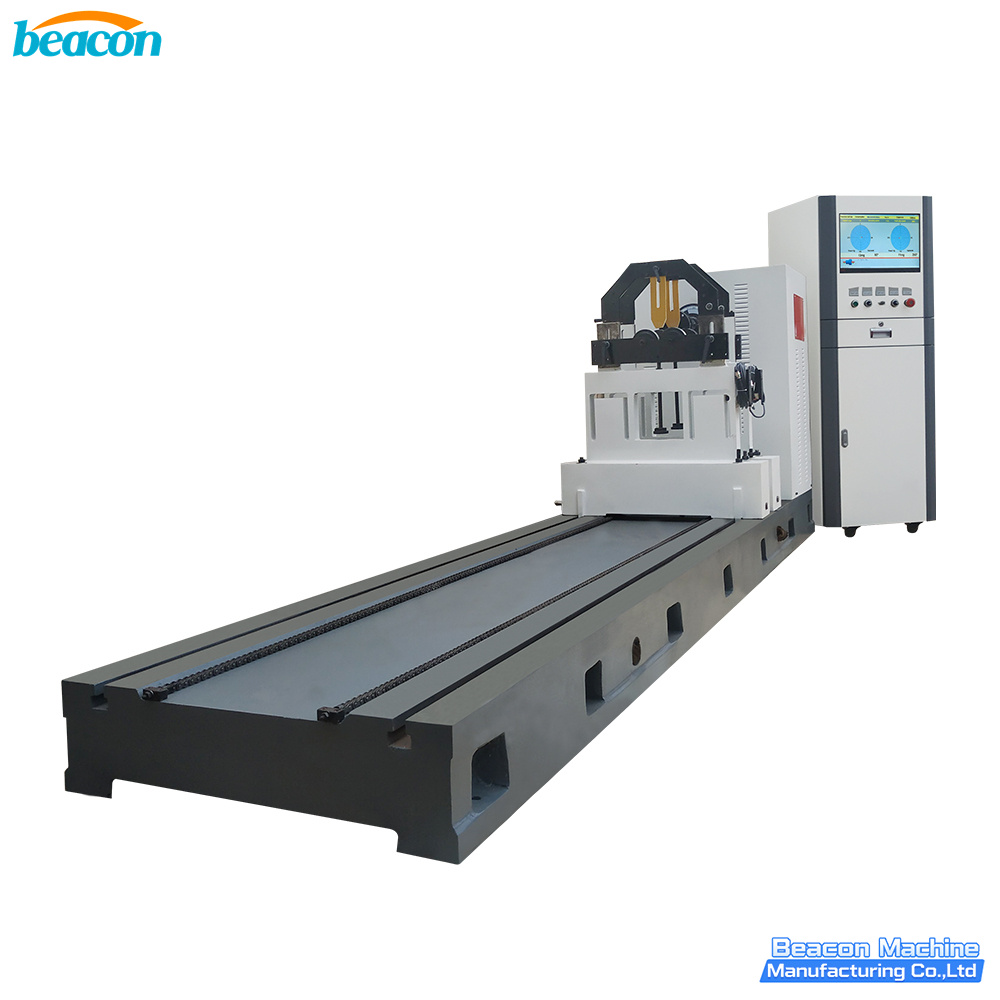

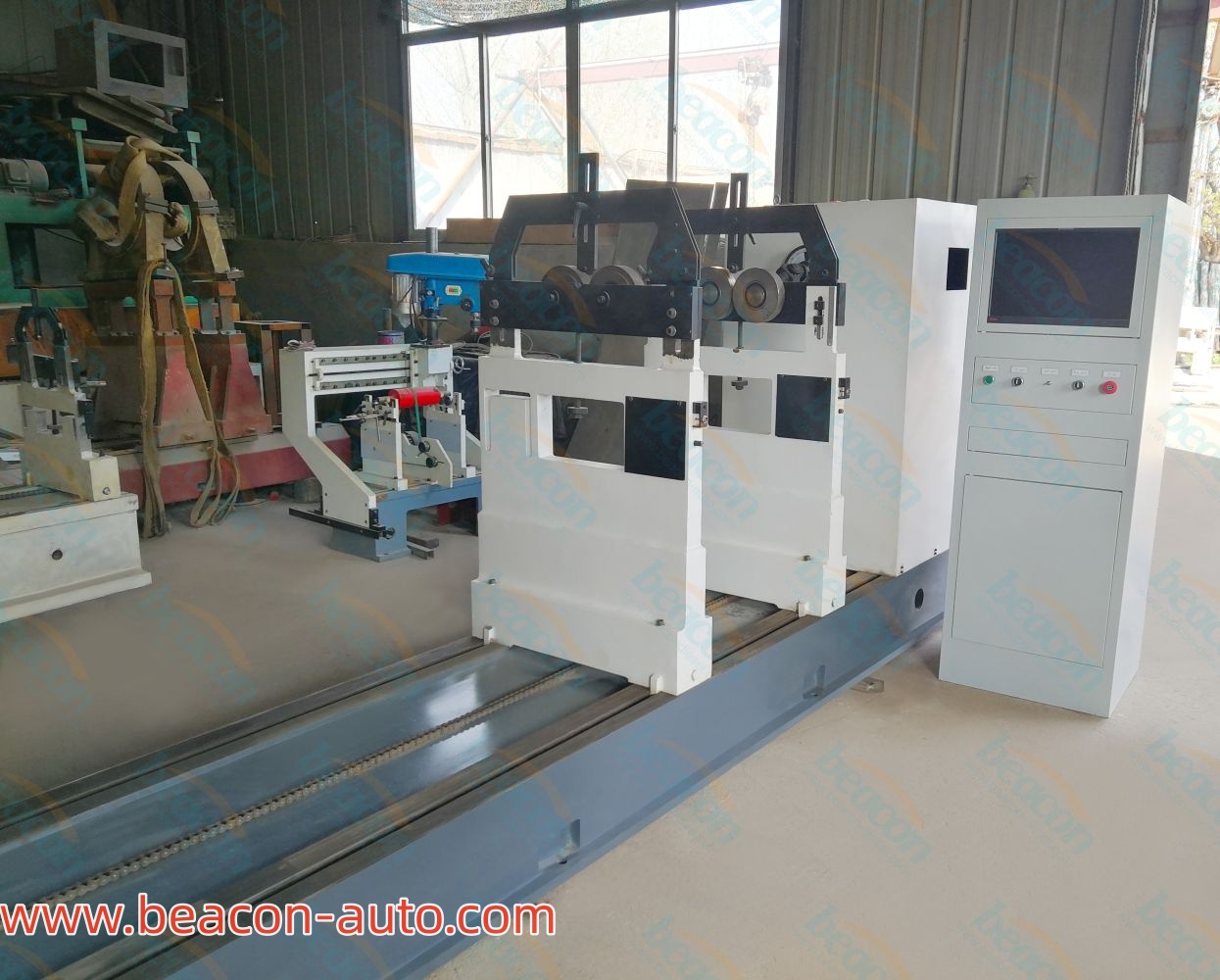

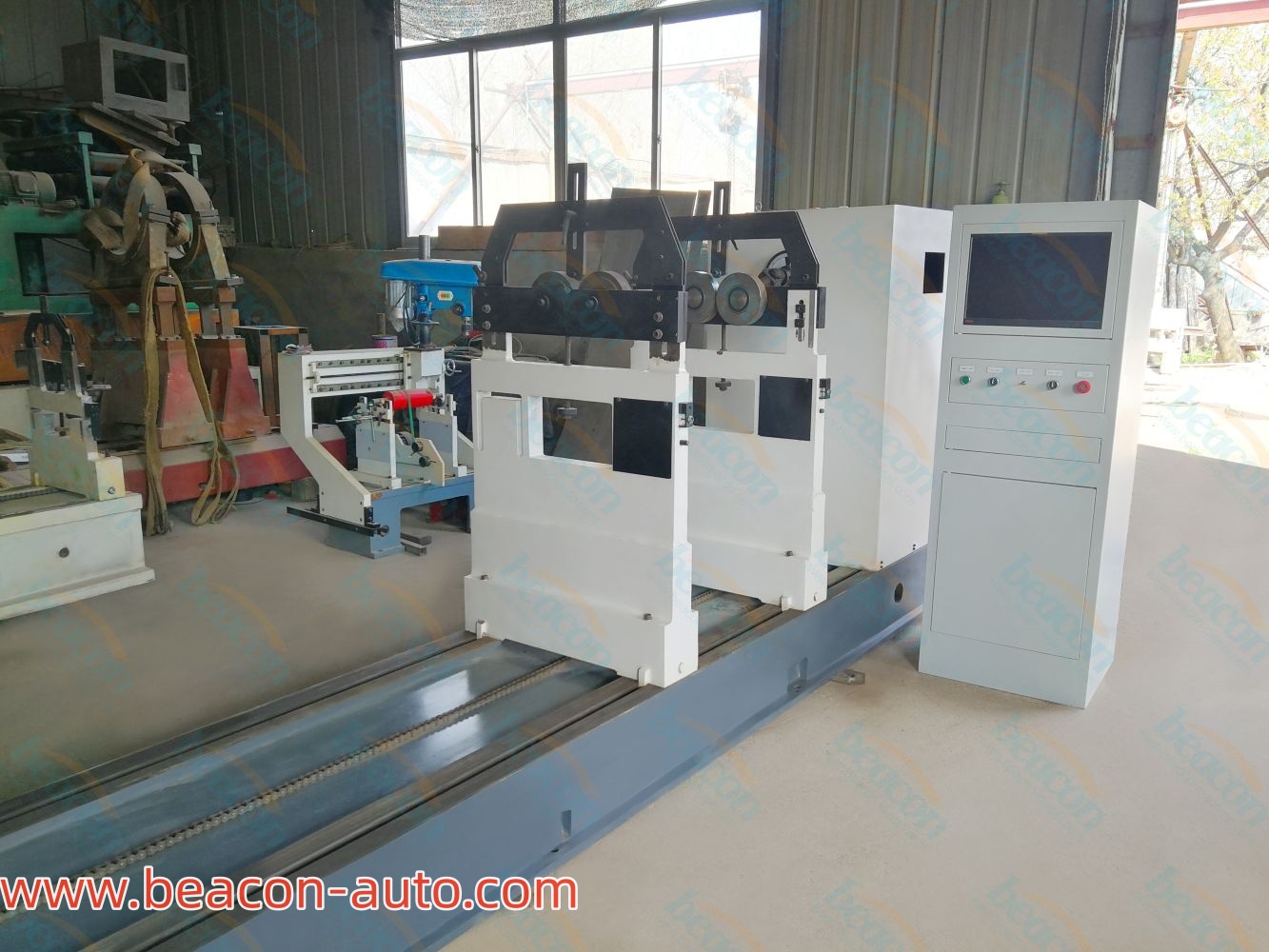

YFW-1600A Fan Impeller and Fan blade dynamic Balancing Machine

   YFW-1600A Fan Impeller and  Fan blade dynamic Balancing Machine

Features:

Widely used fan, blower, etc, can be in the single side, double side and multiple correction plane ba lance measurement. Have high efficiency, precision accurate, show intuitional, reliable quality, eas y maintenance, the characteristics of software with ordinary workpiece and standard rotor two cali bration function, overcoming the other hard supporting balance machine measurement system to us ers to calibration equipment defects, and the coupling compensation function and so on many kind s of measuring method and function to choose, can realize the input parameters, preview, the exper iment, the results storage, print, operating all adopt the localization menu structure, the man- machi ne dialogue, automatic hints.

TechnicalParameters

Model YFW-1600A Max. mass of workpiece(kg) 30-1600 Max.diameter of workpiece(mm) Φ2000 The distance between the two bearing (mm) 300-1600 Max.rotor Diameter(mm) Φ20-120 (Φ120-240optional) balancing speed(r/min) 300-1500 Stepless minimum achievable residual unbalance (g.mm/kg) ≤0.5 Unbalance rate % ≥90 Power (kw) 11 Speed drive way Frequency speed
