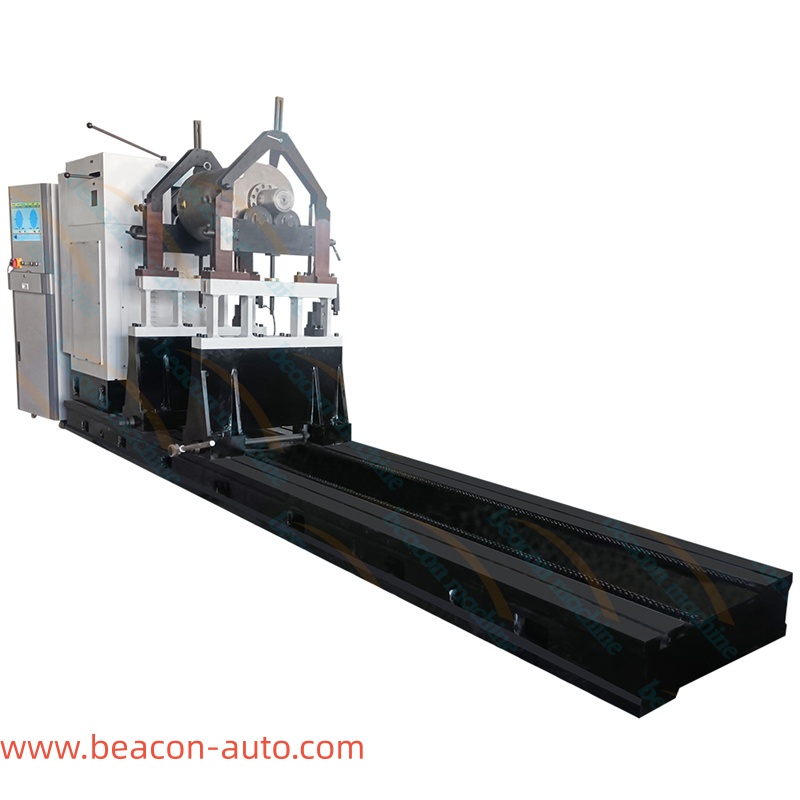

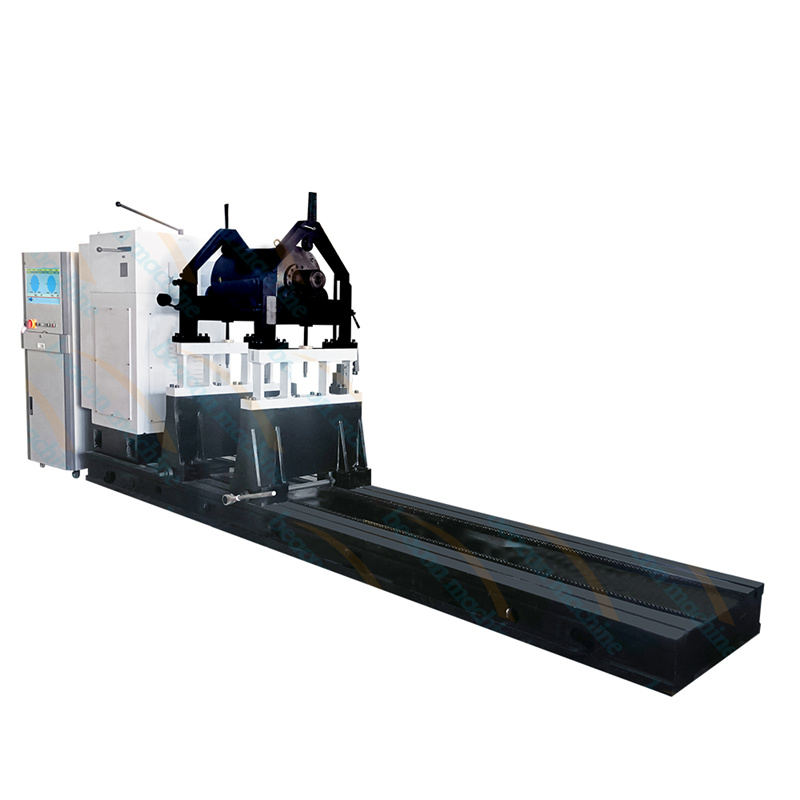

High Speed Balance Equipment YYW-8000A 8 Ton Dynamic Rotor Roller Balancing Machine
YYW-8000A balancing machine can be in a single-sided, double-sided and multiple calibration surface balance measurements, suitable for shafts, discs and the centre of gravity of the outward-facing rotor.
Introduction
High Speed Balance Equipment YYW-8000A 8 Ton Dynamic Rotor Roller Balancing Machine
Equipment Model :YYW-8000A
Maximum mass of work-piece kg:8000
Minimum mass of work-piece kg:500
Maximum diameter of work-piece on bed guideway surface mm φ3500
Minimum distance between two supports mm:400
Maximum distance between two supports mm:2300
Bed length mm:4000*1100*260
Pendulum structure:Modular construction, roller H-type support
Support shaft diameter mm:φ50-250，φ250-450
Balance speed r/min:253/435/708/1140Four-speed mechanical transmission
Minimum Residual Unevenness Measure:≤0.5 g.mm/kg
reduction in imbalance%:≥95%
Motor power:55KW
Speed control method:Frequency control + 4-speed mechanical gears
transmission method:Universal joints (two sets for 300nm and 2500nm)
Overall size (L*W*H):4200*1100*2300
parameter
