C9 Injector Common Problems and Repair Points

1. Fault Diagnosis (Symptom Identification)
* Unstable Idle/Vibration: May be due to clogged injectors or poor sealing.
* Increased Fuel Consumption/Decreased Power: Inaccurate fuel injection or poor atomization.
* Difficulty Starting: Insufficient or uneven fuel injection.
* Black Smoke/Excessive Exhaust Emissions: Incomplete fuel combustion, excessive fuel injection, or poor atomization.
* Engine Overheating/Knocking: Injector leakage or unstable fuel supply, leading to abnormal combustion.

2. Disassembly and Cleaning
* Safety First: Ensure the engine is cool before disassembly, disconnect the battery, and release fuel system pressure.
* Specialized Tools: Use C9-specific disassembly tools to avoid damaging the injector body.
* Deep Cleaning: Use a professional ultrasonic cleaner and specialized cleaning fluid to thoroughly remove sludge and carbon deposits, especially in the needle valve, valve seat, and solenoid valve areas.

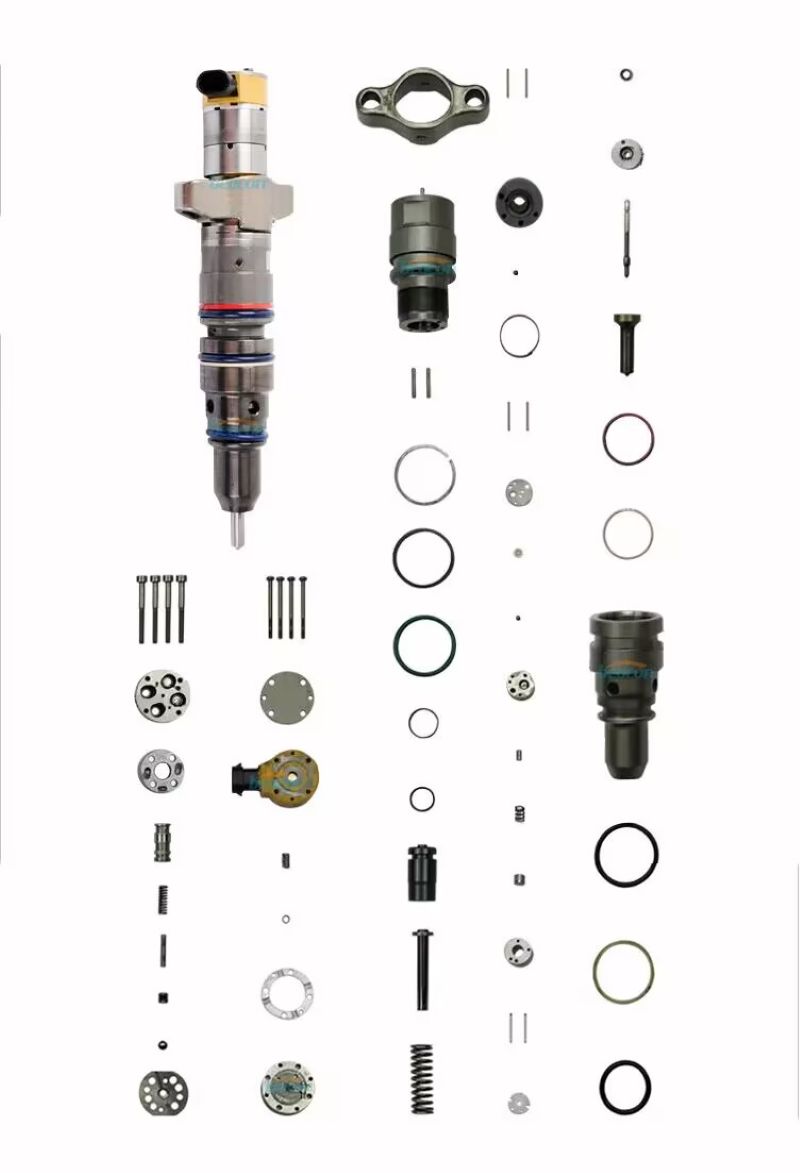

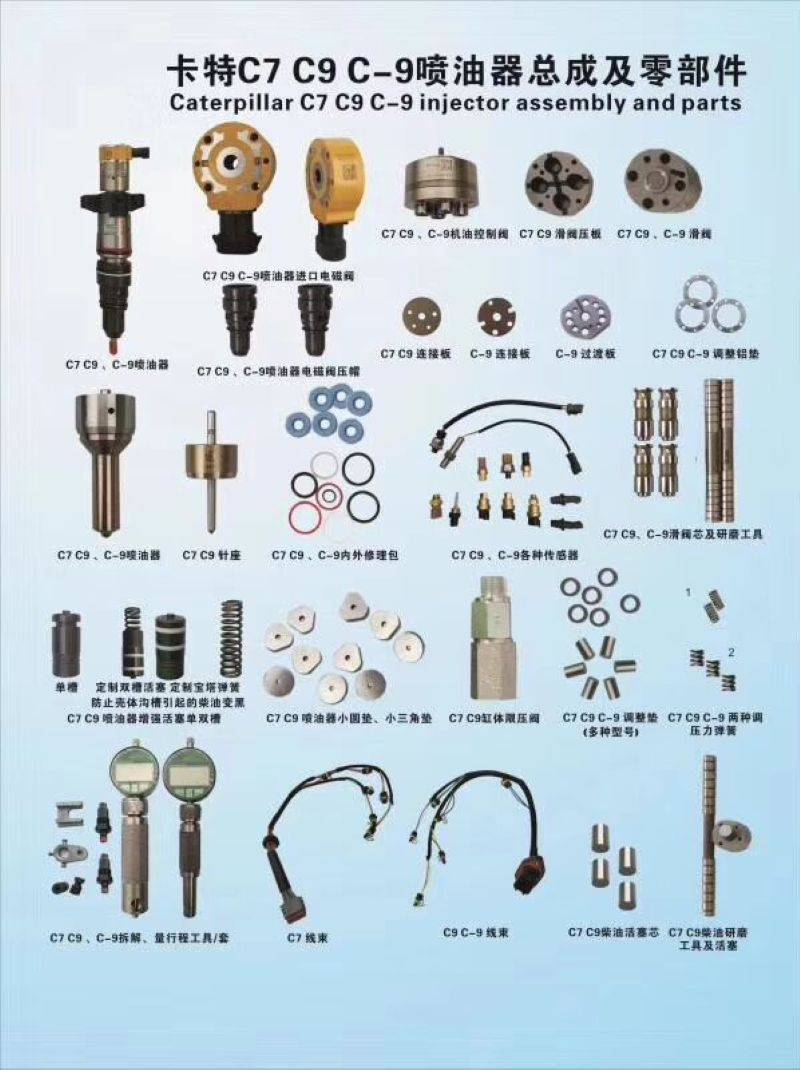

3. Key Component Inspection and Maintenance

Needle Valve and Seat: Inspect for wear and scoring, as these are crucial for sealing and atomization.

Solenoid Valve/Piezoelectric Crystal: Check for sensitive operation and normal resistance.

Sealing Ring/Copper Gasket: Replace with new high-pressure seals to prevent air and oil leaks.

4. Professional Calibration

Test Bench: Test injection quantity, injection pressure, atomization quality, and return flow on a professional injector test bench.

Electronic Speed Controller/Pressure Matching: Adjust the injector's solenoid valve clearance (Electronic Speed Controller) or spring pressure based on test data to ensure matching with the engine ECU.

5. Installation and Road Test

Installation Details: Ensure proper installation and clean, free of foreign objects from the copper gasket.

ECU Matching: After installation, injector coding and basic settings may need to be performed using a diagnostic tool.

Road Test Confirmation: Check performance under idling, acceleration, and load conditions to ensure normal operation. In summary, the C9 fuel injector is a complex technology requiring advanced repair skills, which most ordinary repair shops cannot handle. It is recommended to have it inspected at a Caterpillar authorized service center or a qualified professional repair shop to ensure repair quality and engine safety.
