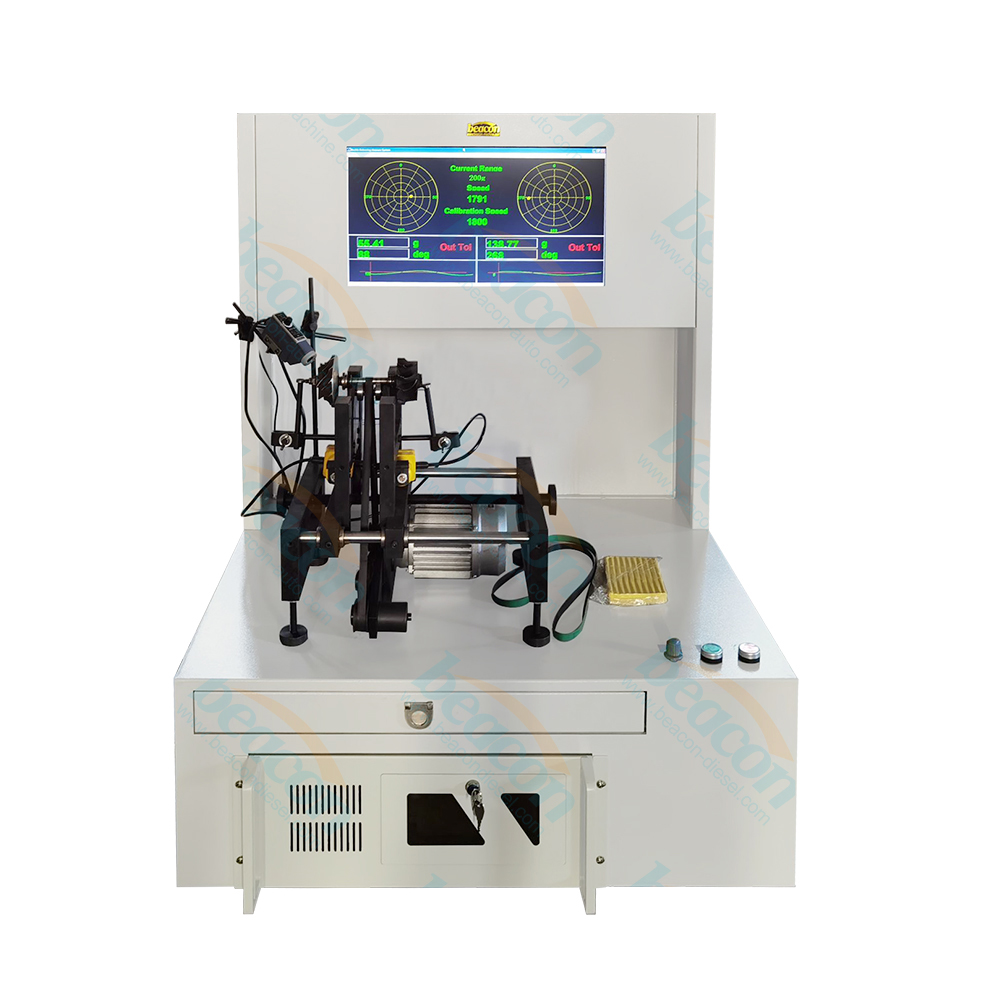

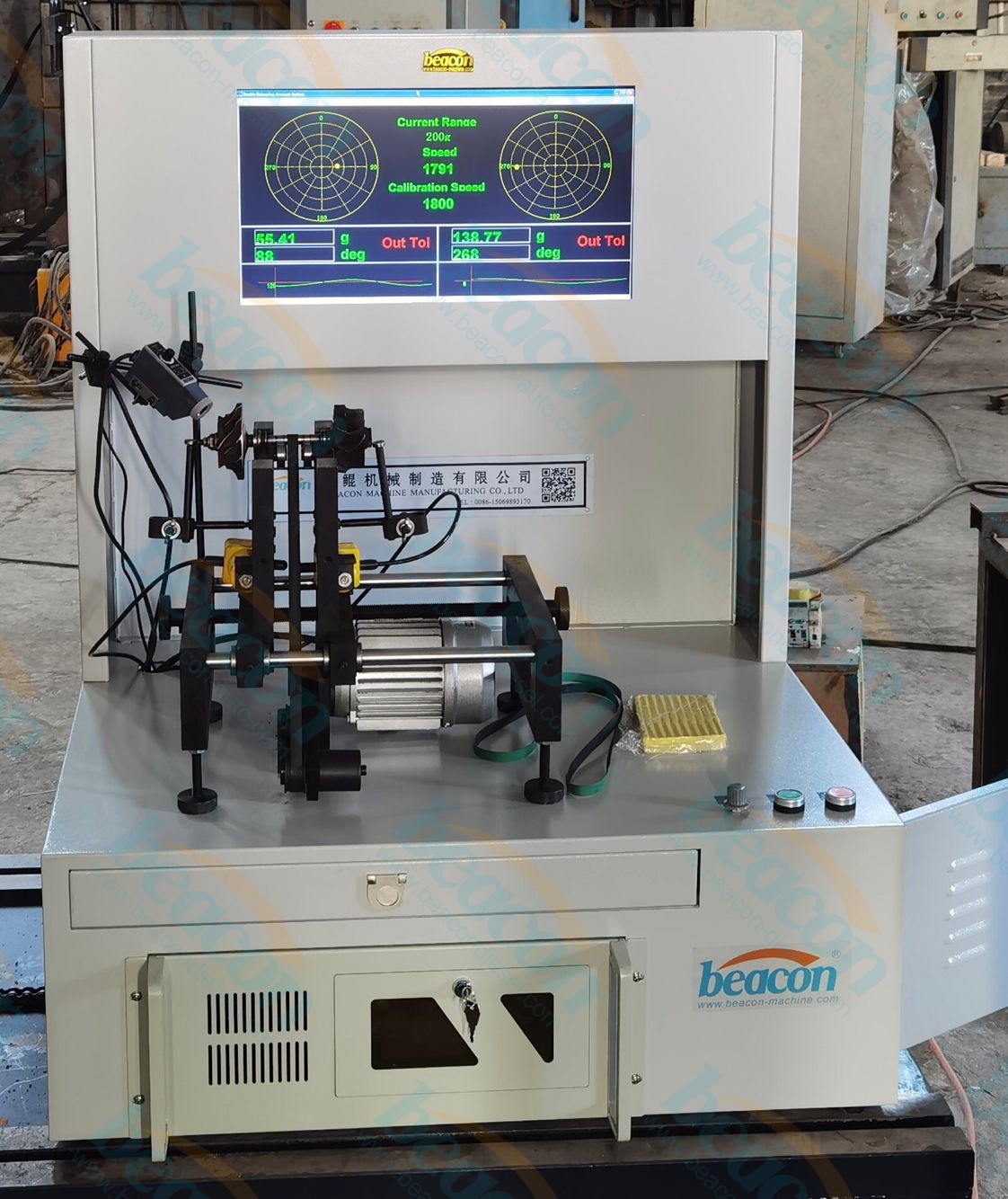

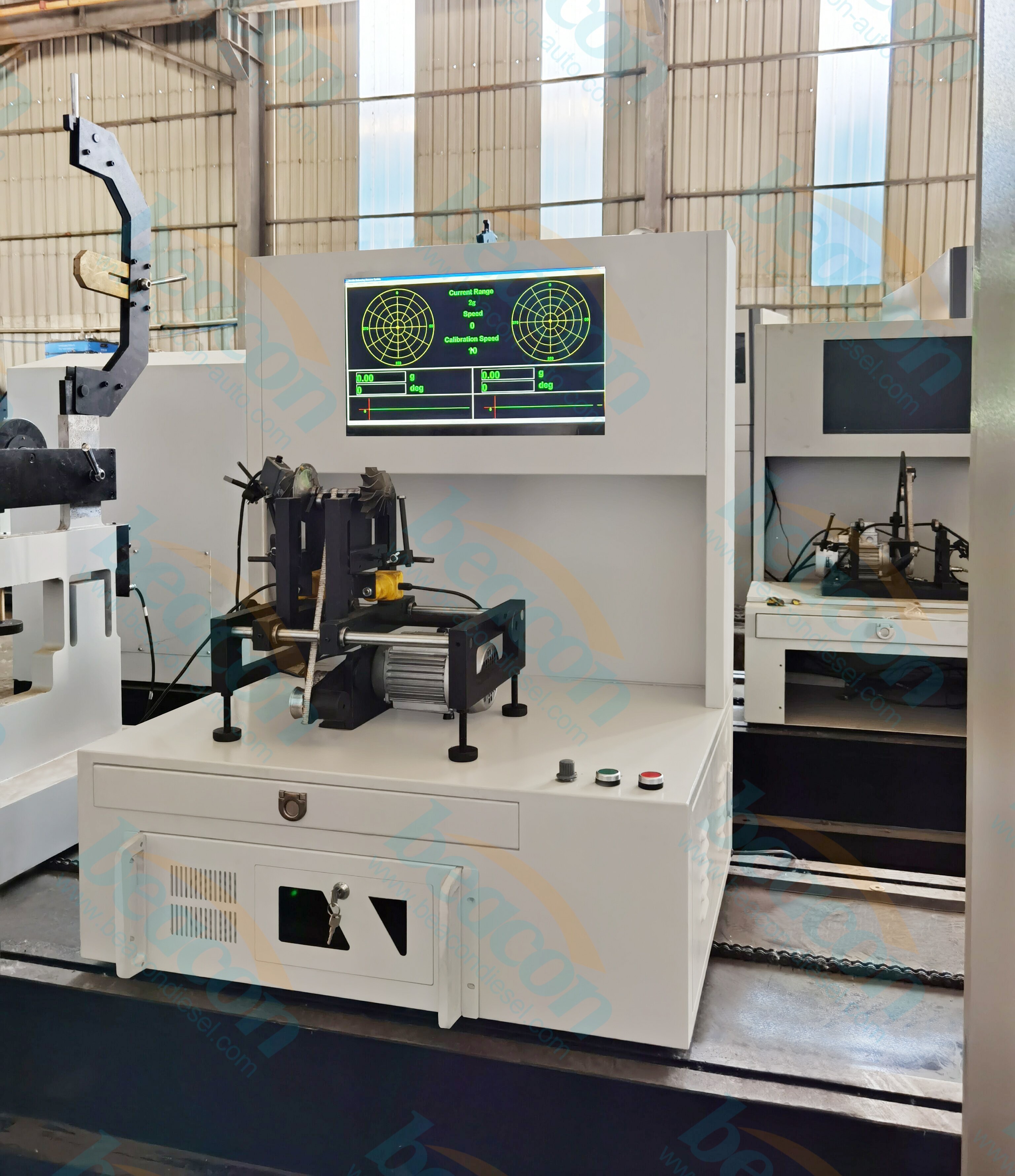

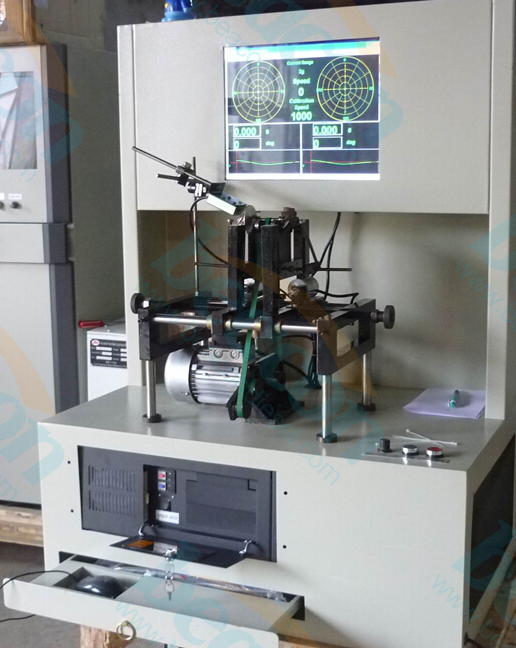

RYQ-5A Turbocharger Rotor Balancing Machine

      RYQ-5A Turbocharger Rotor Balancing Machine

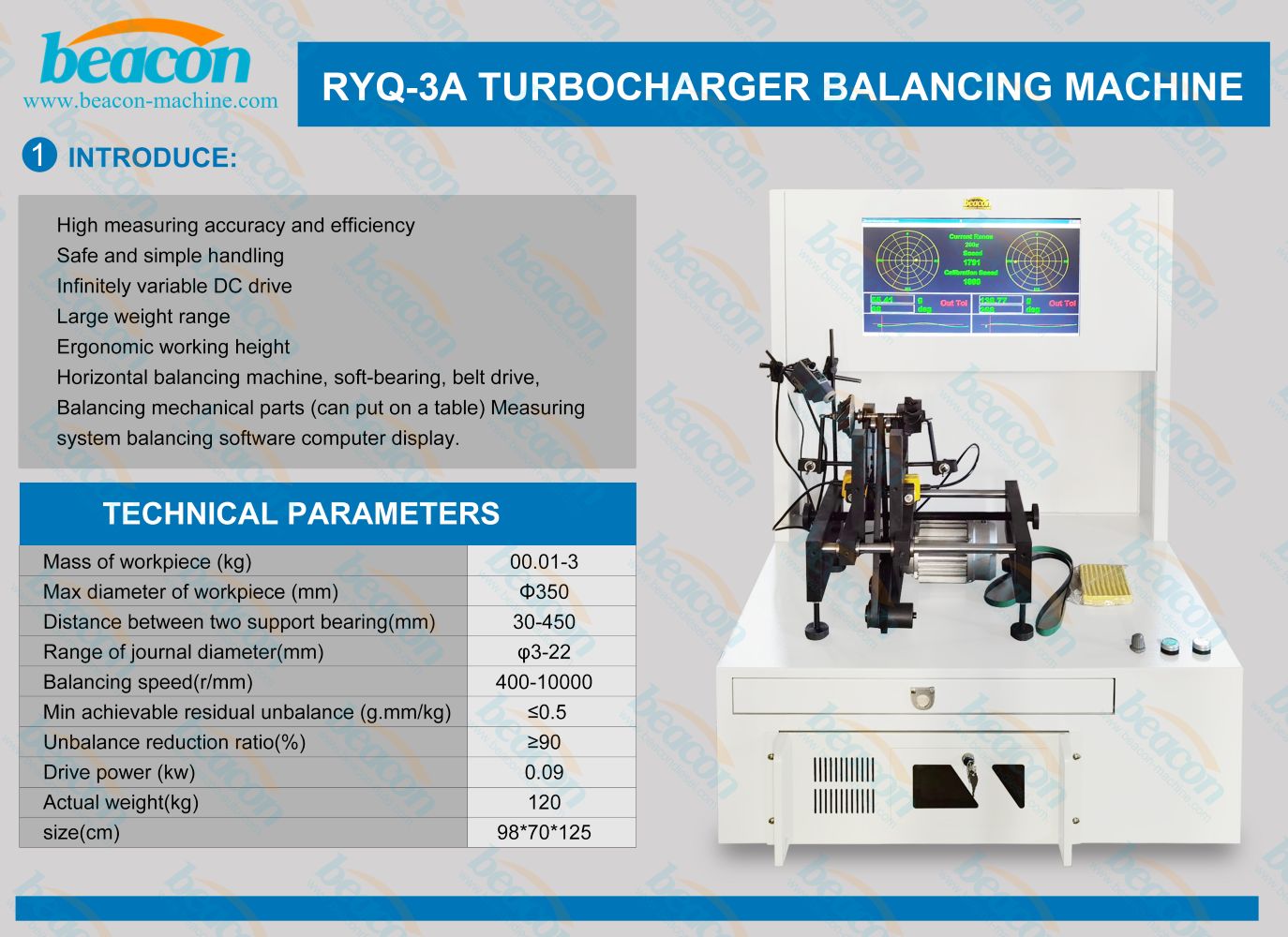

Model RYQ-3A/5A/10A

weight range (Kg) ：0.1~10kg

The maximum diameter of the workpiece (mm) ：φ350

Distance between two supports (mm)： 30- 450

Shaft diameter range in bracket (mm) ：φ4-17

The diameter range of the ring belt driving part (mm) ：≤φ150

Balance speed (R/min) ：400~4000

The Minimum Achievable Residual Imbalance (G .mm/kg)： ≤0.5

Imbalance reduction rate (%)： ≥90

Engine power (Kw)： 0.18

speed mode： Variable frequency motor

Model RYQ-3A/5A/10A

weight range (Kg) ：0.1~10kg

The maximum diameter of the workpiece (mm) ：φ350

Distance between two supports (mm)： 30- 450

Shaft diameter range in bracket (mm) ：φ4-17

The diameter range of the ring belt driving part (mm) ：≤φ150

Balance speed (R/min) ：400~4000

The Minimum Achievable Residual Imbalance (G .mm/kg)： ≤0.5

Imbalance reduction rate (%)： ≥90

Engine power (Kw)： 0.18

speed mode： Variable frequency motor
