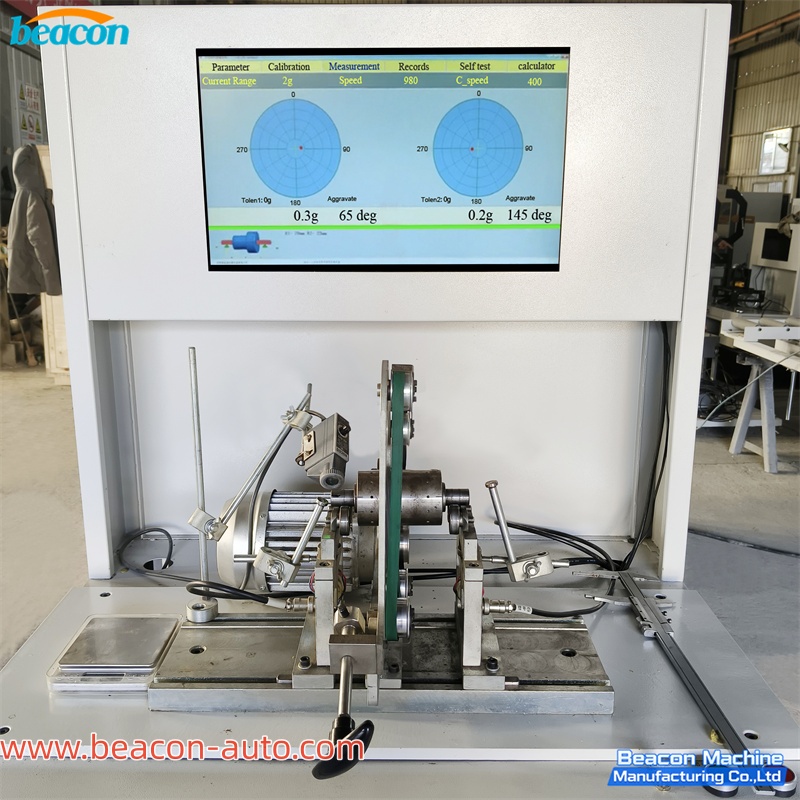

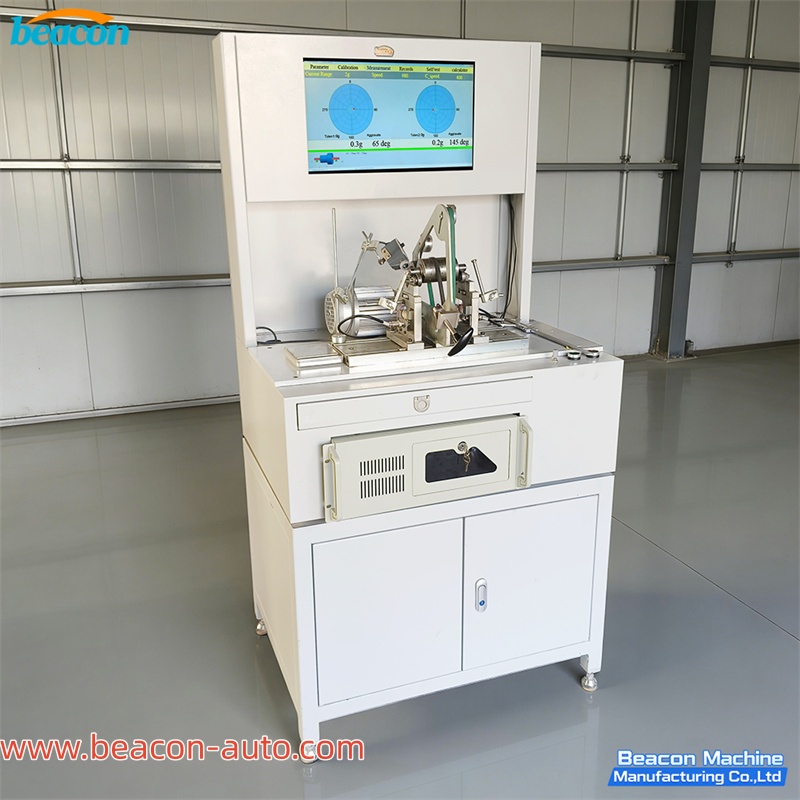

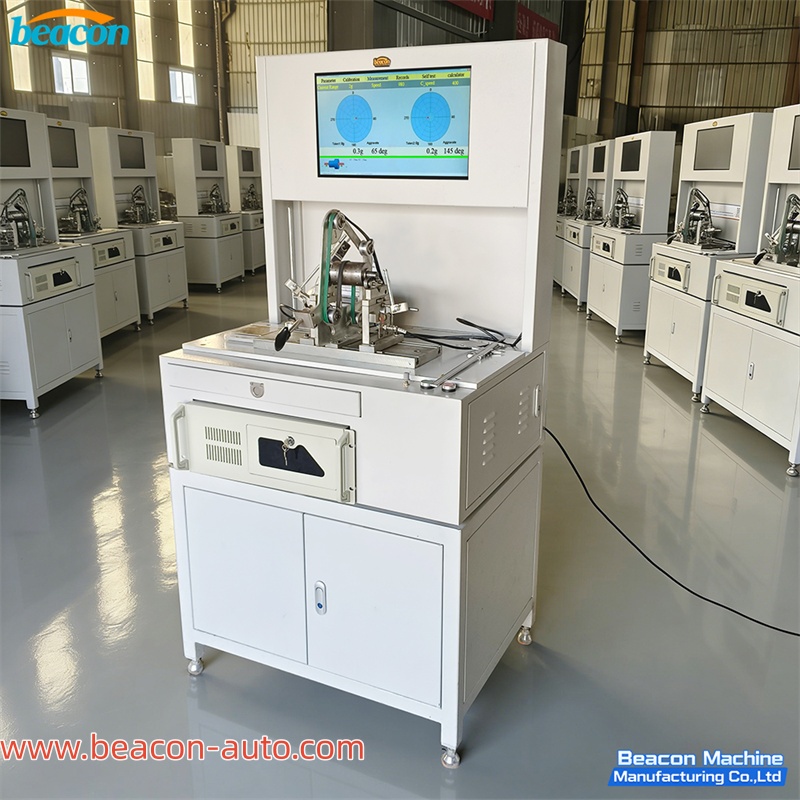

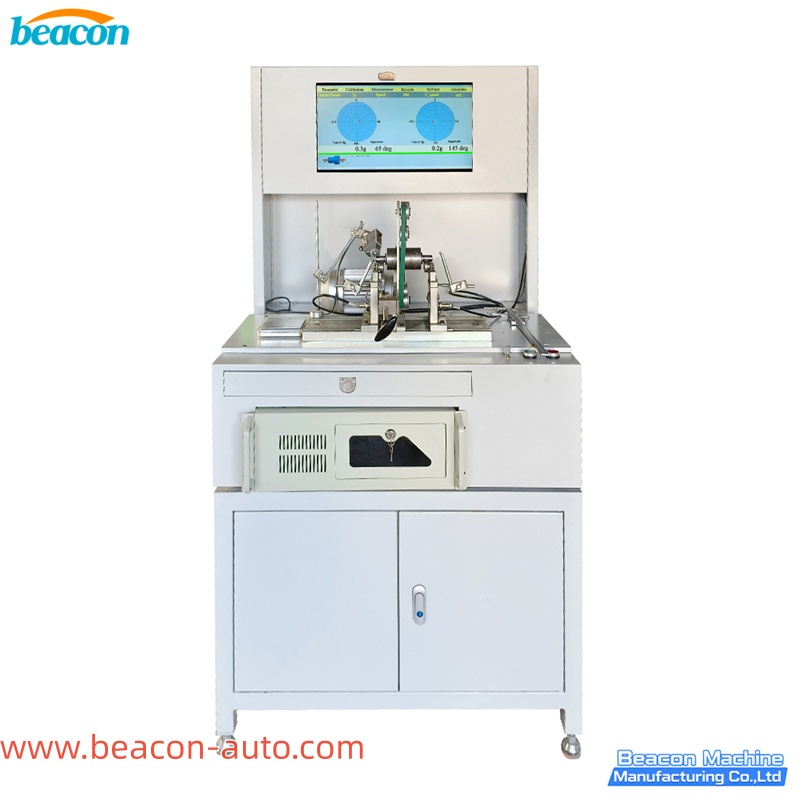

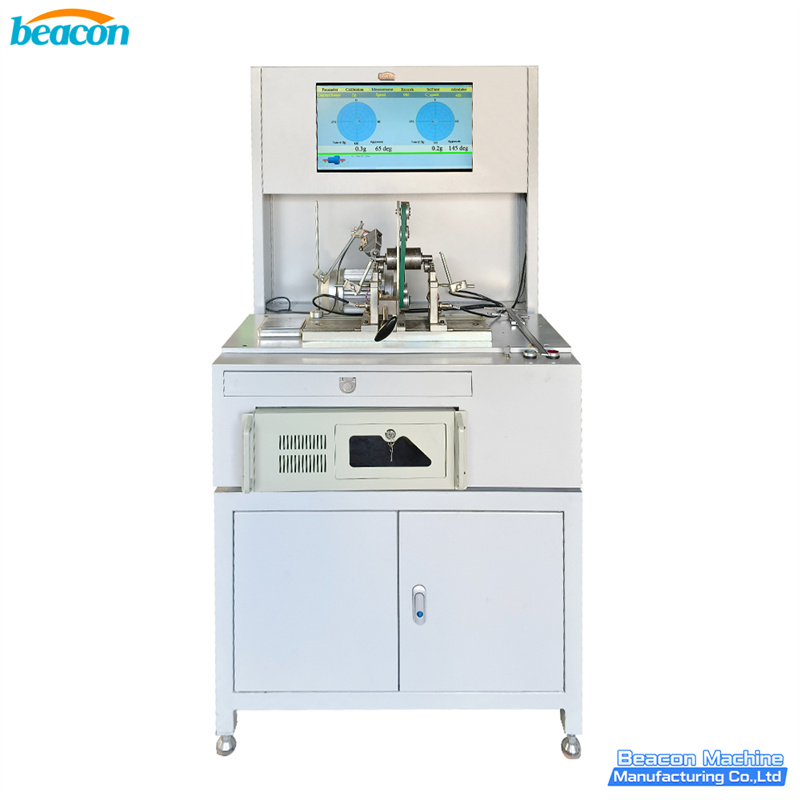

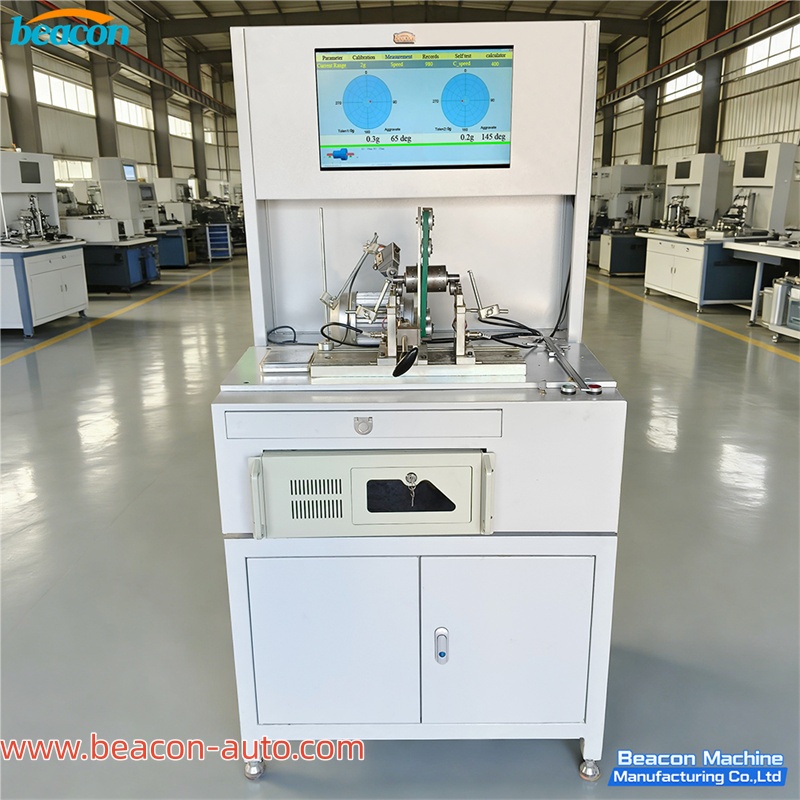

YYQ-5A Belt Drive Rotor Dynamic Balancing Machine

  YYQ-5A  Belt Drive Rotor Dynamic Balancing Machine

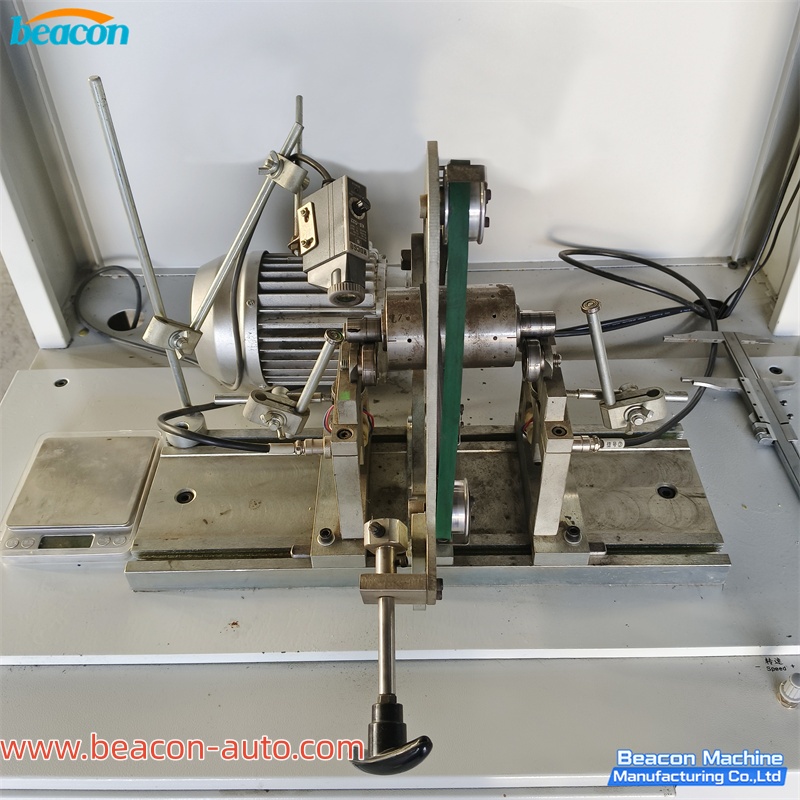

YYQ RYQ series ring belt balancer is especially suitable for balance detection of motor rotors, fan impellers, water pump impellers, supercharger rotors, centrifuge rotors, rubber rollers, machine tool spindles, crankshafts and other mechanical rotating parts. The ring belt is directly driven to reduce the error of the fixture, the operation is simple, and the detection accuracy is higher.

Model: YYQ-5A/10A

Piece weight range (Kg): 0.1~10kg

The maximum diameter of the workpiece (mm): φ500

Distance between two supports (mm): 60- 550

Shaft diameter range in bracket (mm): φ5-36

The diameter range of the ring belt driving part (mm): φ15~φ200

Balance speed (R/min): 400~1400

The Minimum Achievable Residual Imbalance (G .mm/kg): ≤0.5

Imbalance reduction rate (%): ≥90

Engine power (Kw): 0.18

Model: YYQ-5A/10A

Piece weight range (Kg): 0.1~10kg

The maximum diameter of the workpiece (mm): φ500

Distance between two supports (mm): 60- 550

Shaft diameter range in bracket (mm): φ5-36

The diameter range of the ring belt driving part (mm): φ15~φ200

Balance speed (R/min): 400~1400

The Minimum Achievable Residual Imbalance (G .mm/kg): ≤0.5

Imbalance reduction rate (%): ≥90

Engine power (Kw): 0.18
