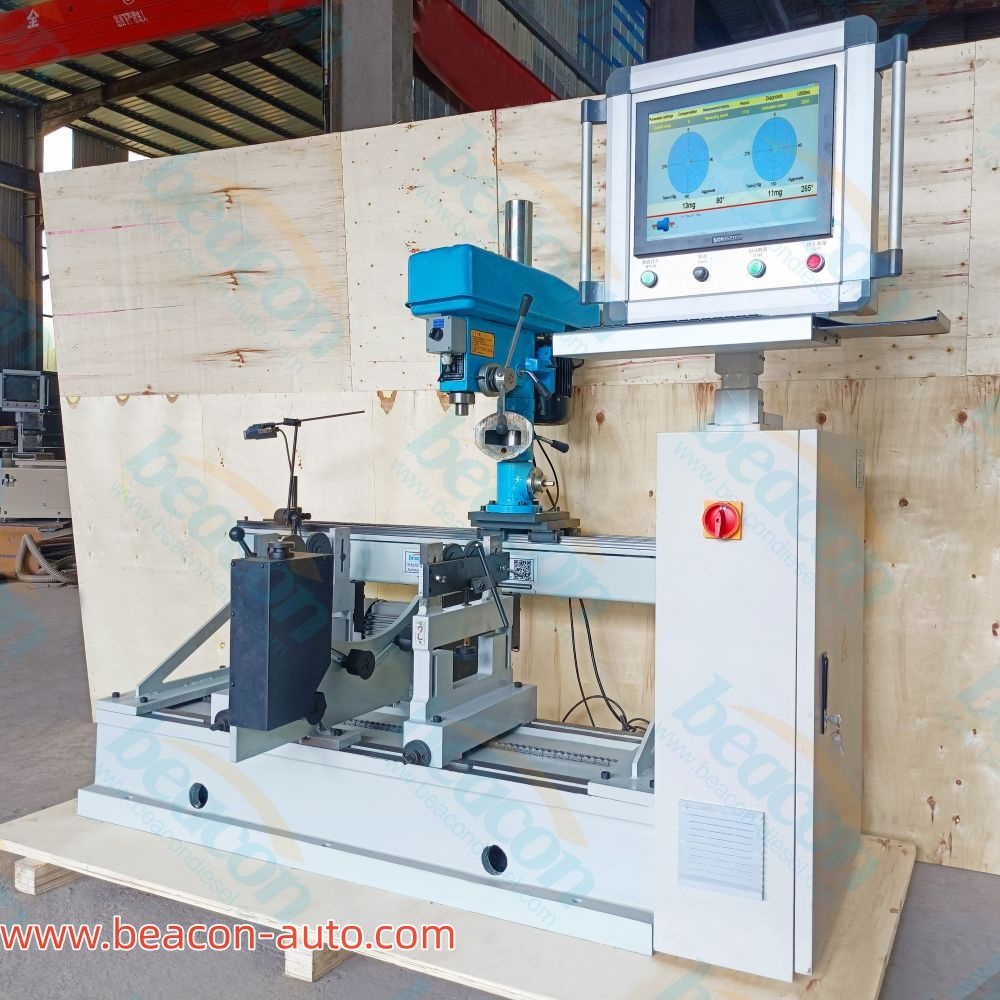

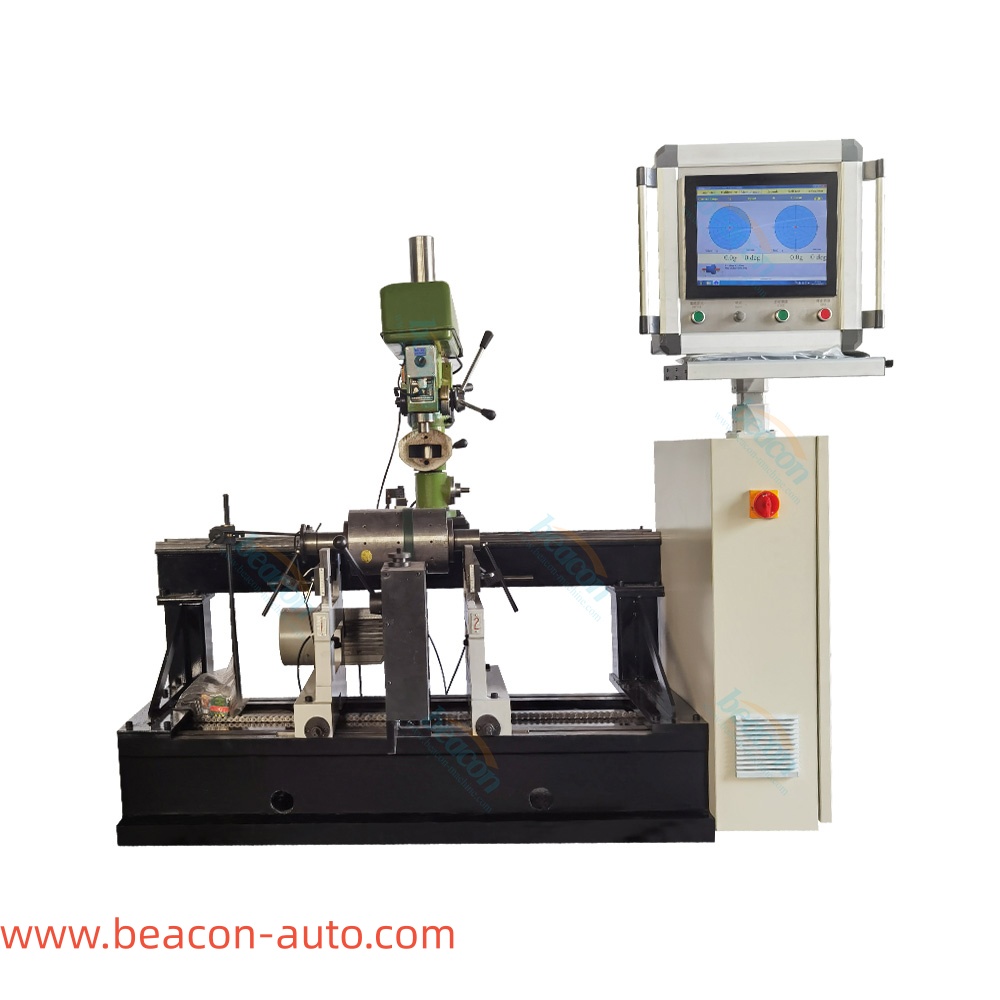

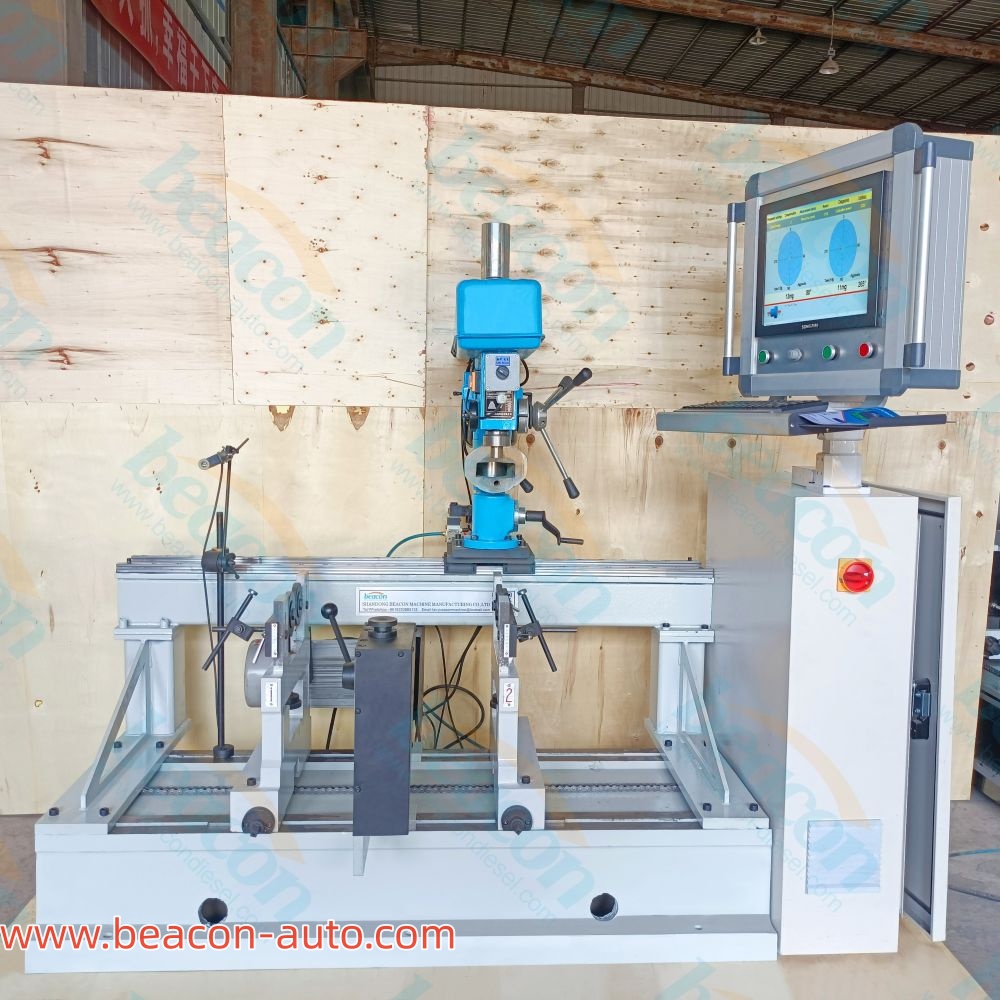

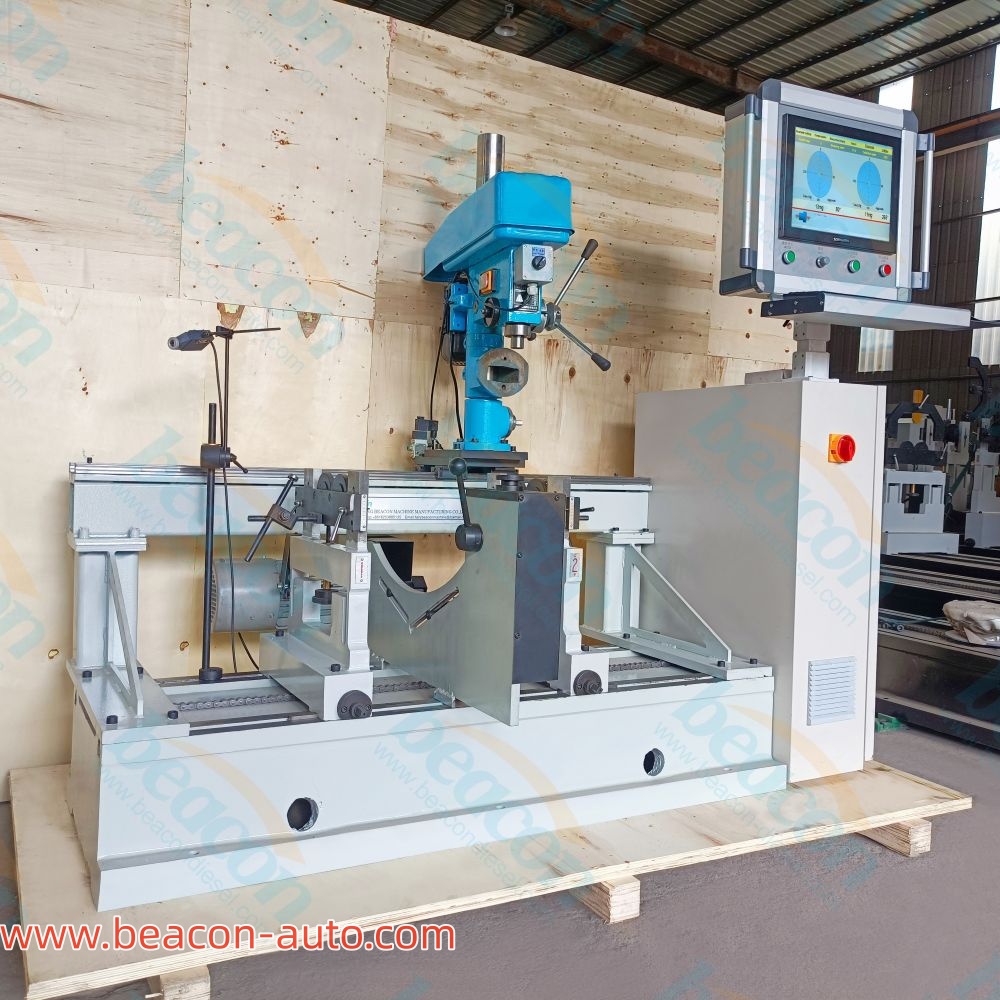

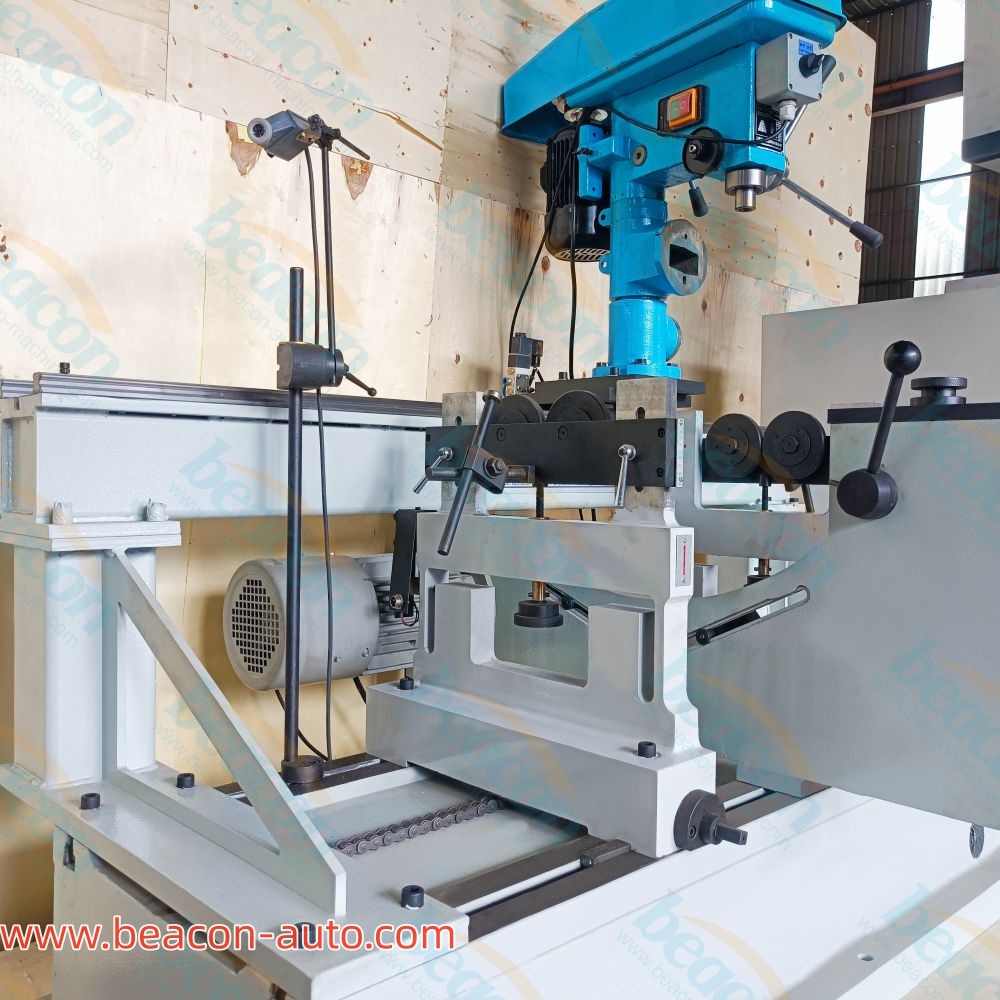

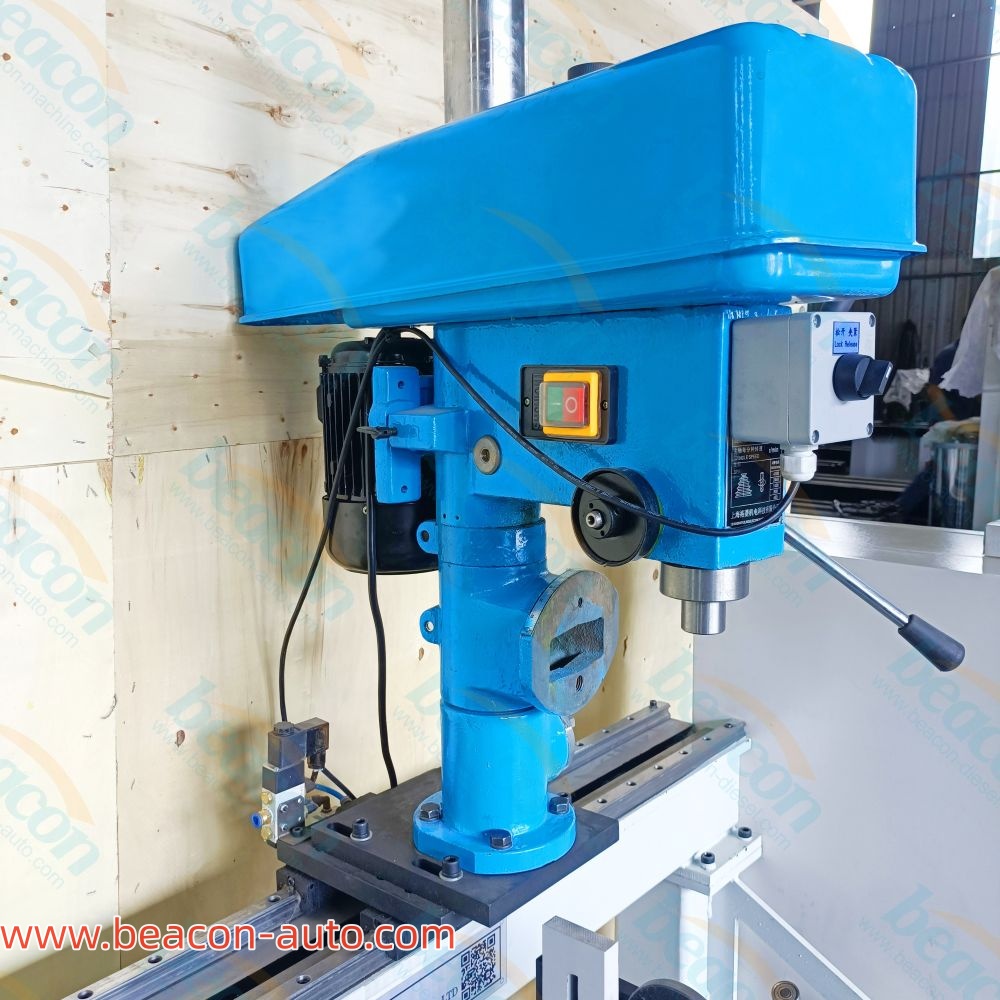

YYQ-100A Electrical Spindle And Motor Dynamic Balancing Machine with Driller

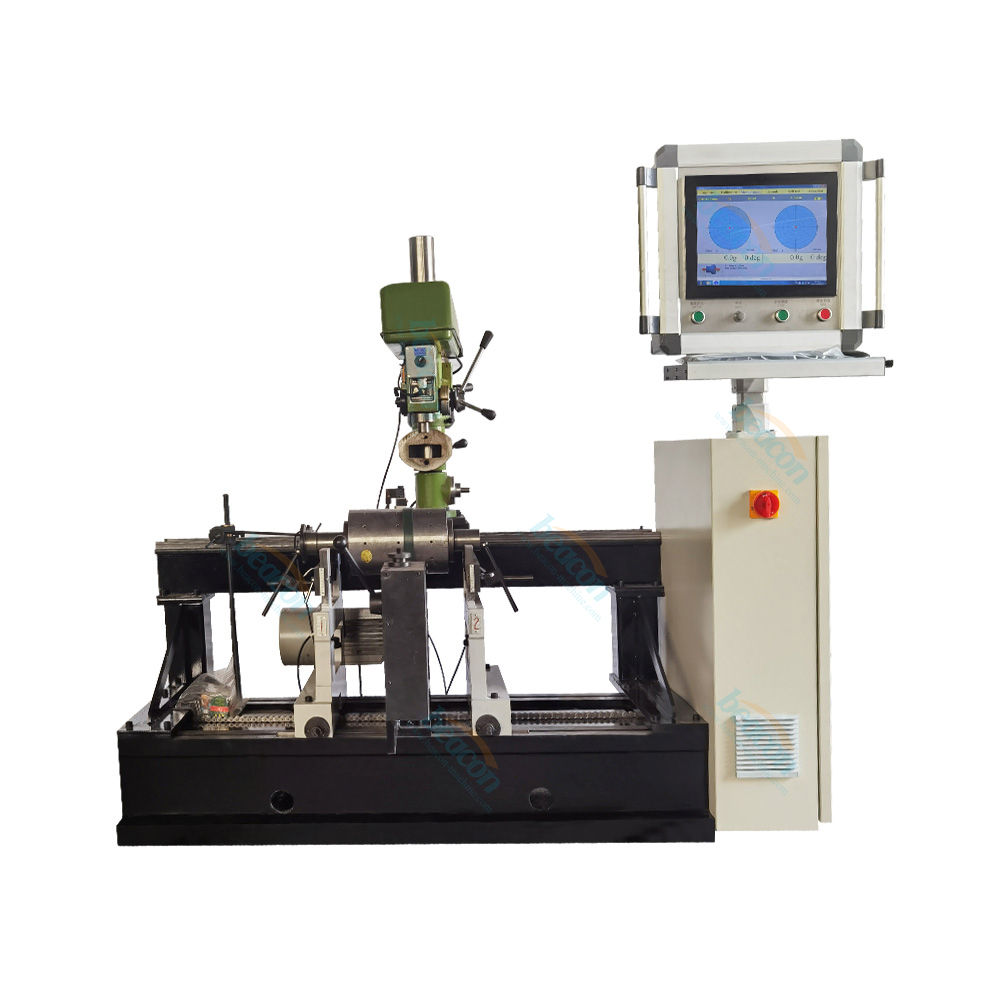

  YYQ-100A Electrical Spindle And Motor  Dynamic Balancing Machine with Driller

FEATURE:

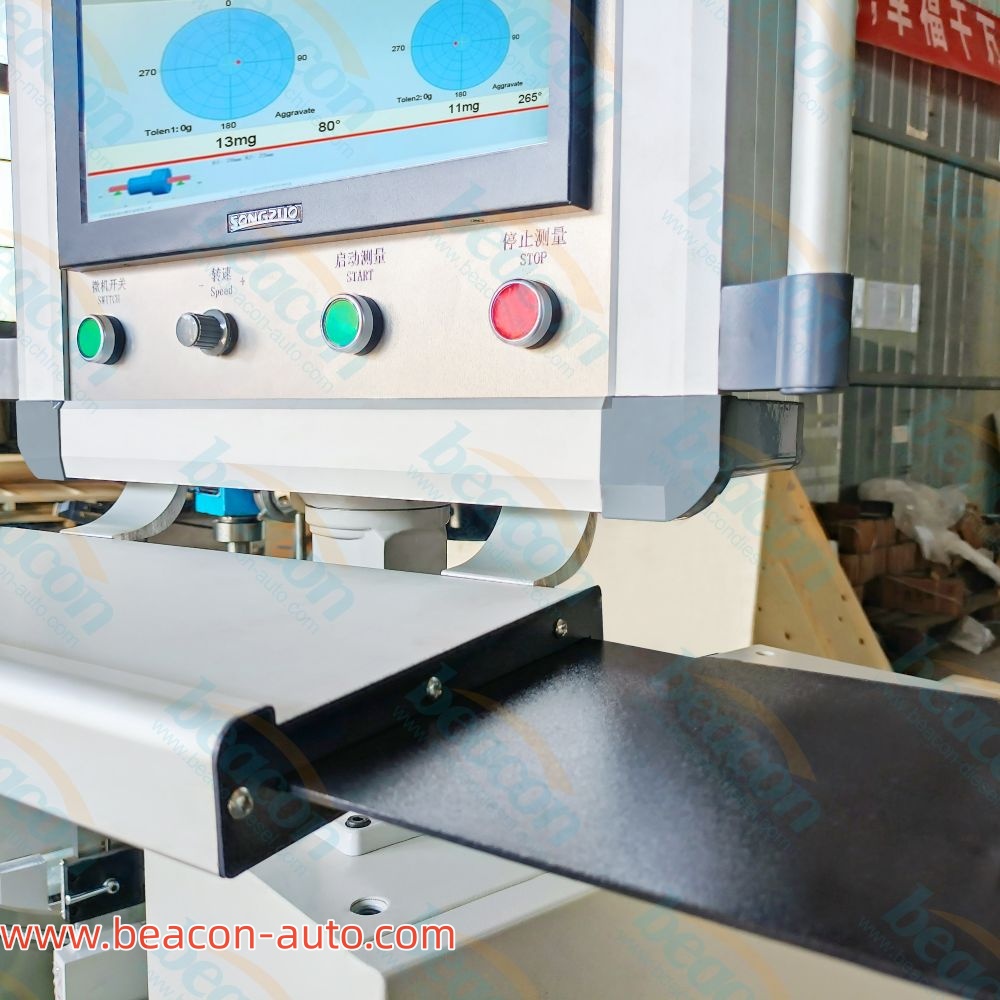

The general hard support dynamic balancing machine is organized and produced in strict accordance with GB/T 4 2 0 1-2006. It adopts semi-hard support, belt drive, screen display structure, industrial control computer for data processing, 15-inch LCD screen display: imbalance and phase Angle and real-time speed, widely used in papermaking machinery, textile machinery, agricultural machinery, electric motors, blowers and other industries; can be balanced on one side, suitable for discs and rotors with outstretched center of gravity.

Workpiece quality range 2-100KG

The maximum diameter of the workpiece is 900mm

Workpiece length 100-1000mm(can be customize)

Balance speed 300~1500 r/min

Remaining unbalance ≤0.5g.mm/kg

Unbalance reduction rate ≥90%

Motor power 1.5kw
